Name: Gothic Cathedral Laser Cut Files
Brand: 21CNCStudio

A tall spire above a long Gothic nave. Build this wooden cathedral display model from SVG and DXF files, with a PDF guide through the assembly.

Get the files Explore the model

Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.

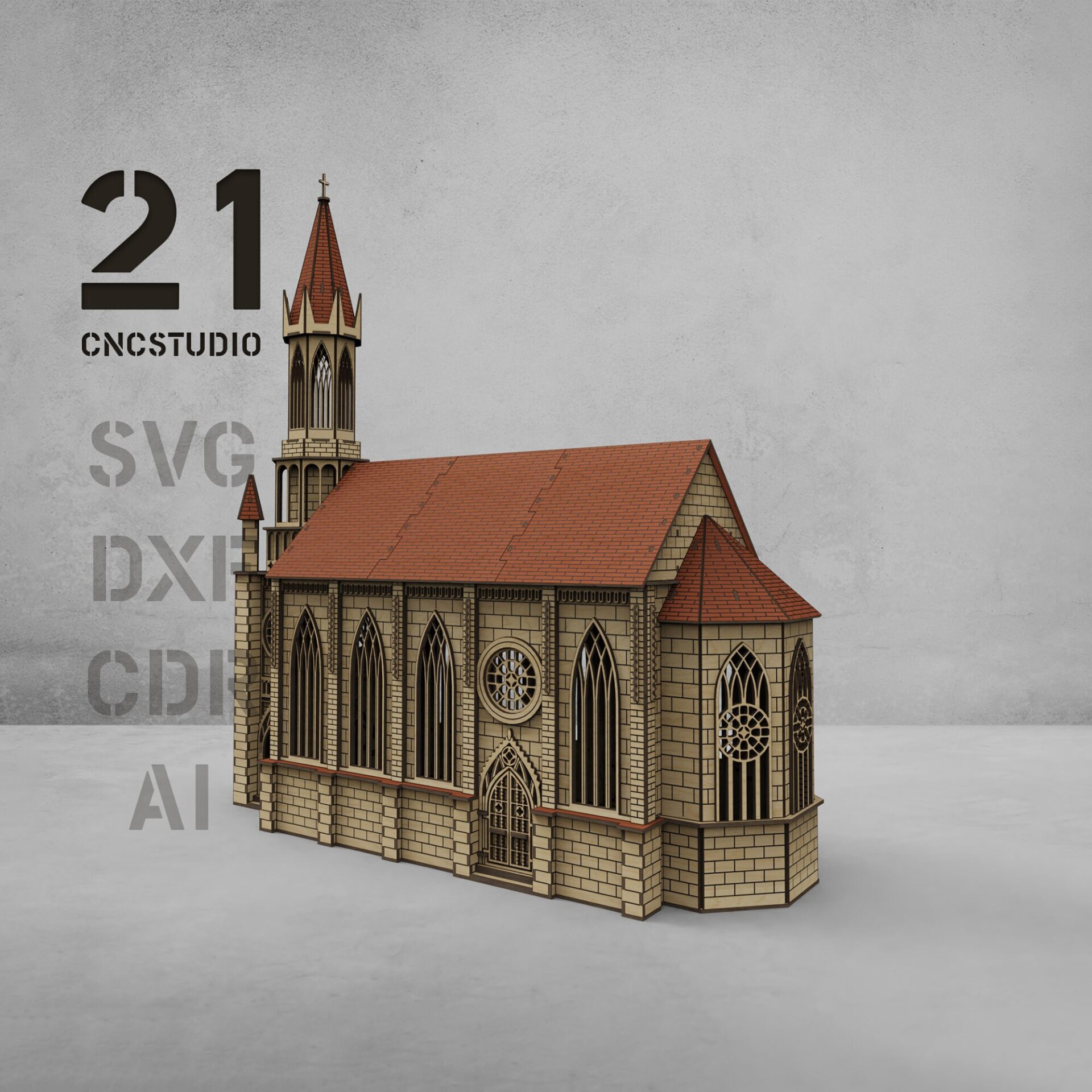

Three-quarter visualization of the wooden Gothic Cathedral with a tall red spire, red roof and pointed windows — AI-assisted model visualization based on 21CNCStudio design renders.

01 /The design

From the entrance arch to the spire.

The cathedral brings together a tall front tower, pointed windows and repeated arches along the nave. Rosette details and masonry patterns give the walls more to explore than their outline alone.

The digital package includes cutting files for 3 mm and 1/8-inch material and a PDF assembly guide. Original renders show the tower and rear of the building; the customer photograph shows a completed model in natural plywood.

Tower and spire

The tall front tower forms the main vertical feature of the model.

Gothic windows

Pointed arches and rosette patterns bring detail to the walls.

Assembly guide

Use the included PDF to identify the parts and follow the construction sequence.

Views & details

A closer look.

Different views, details and a physical build. Select an image for a larger view.

Original 21CNCStudio design render. Rear three-quarter render of the Gothic Cathedral showing its long nave, side windows and gabled end.

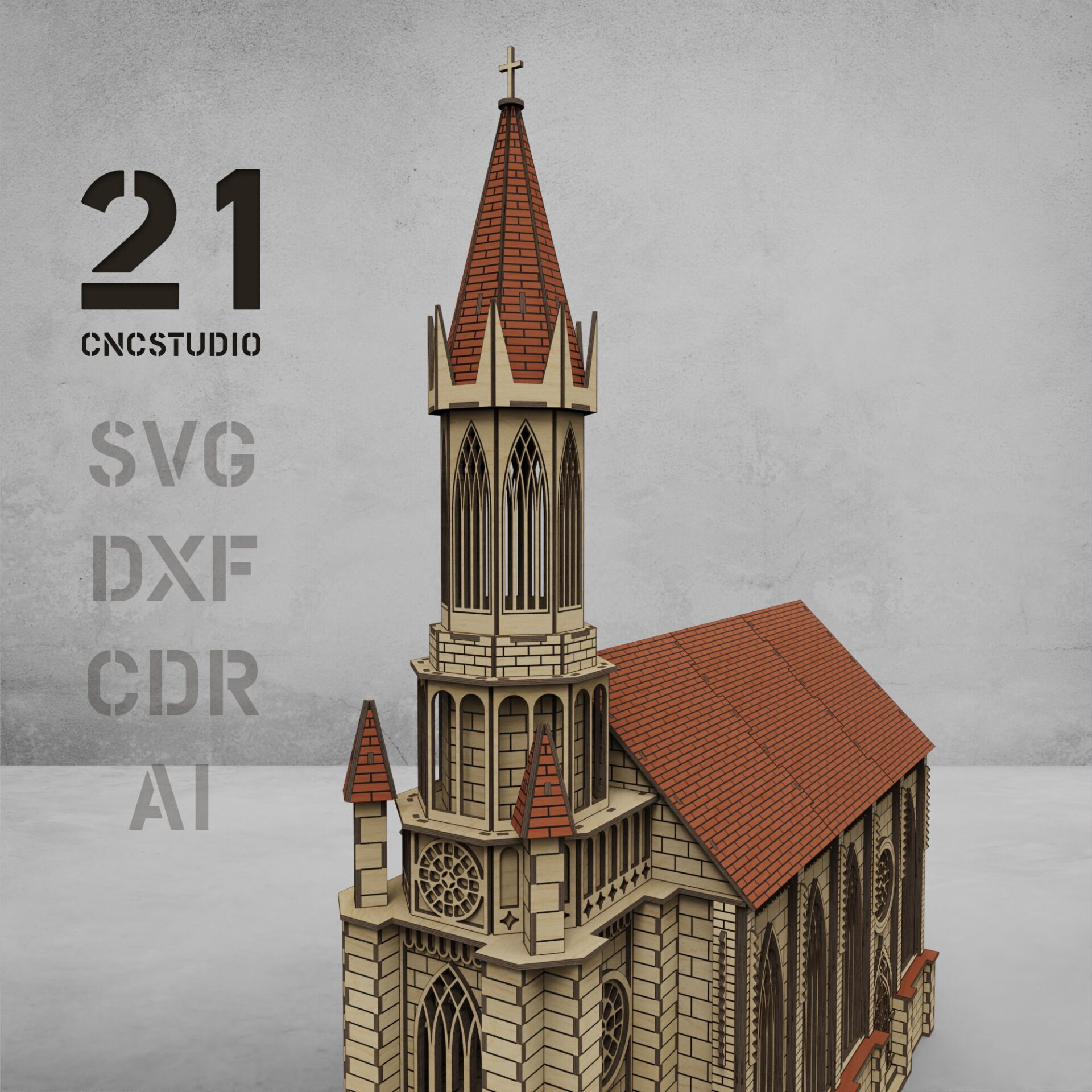

Original 21CNCStudio design render. Close-up render of the Gothic Cathedral tower, red spire and roof.

Original 21CNCStudio design render. Front detail render of the Gothic Cathedral entrance, pointed window and tower masonry pattern.

Customer-built Gothic Cathedral in natural plywood photographed outdoors beside a tree. — Customer build from an Etsy review. Material, colours and finish are the maker’s own example.

02 /At your workbench

Choose your material.Make it fit.

01 /

Measure first.

Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.

02 /

Check the layout.

Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.

03 /

Follow the guide.

Use the PDF assembly guide to identify the parts and work through the construction sequence.

Plan this build.

Check the current file dimensions and the largest parts against your usable cutting area before preparing sheets. Test the narrow details and joint fit, and leave enough display space for the assembled tower and nave.

Before you start.

Design: Gothic church display model
Design files: SVG + DXF
Assembly guide: PDF included
Material versions: 3 mm / 1/8 inch
Architectural details: Arches, rosette windows and cathedral patterns

Is this the Gothic Church Terrain model?

No. This is the cathedral display design with a tall front tower and long nave. The Gothic Church Terrain is a separate design for 28–32 mm tabletop scenes.

What do I receive?

Digital SVG and DXF design files and a PDF assembly guide. No physical model, material or hardware is shipped.

Can I change the scale?

Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.

Can I use the design commercially?

The files are for personal use. Contact 21CNCStudio before commercial use or selling finished models. Do not resell, share or redistribute the digital files without permission.
