Gothic Church Terrain / Laser-cut design
Gothic Church.
Laser-cut a Gothic church terrain model for 28–32 mm miniatures. SVG and DXF files include opening doors, a removable roof and interior furniture, with a PDF assembly guide.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
Lift the roof. Enter the scene.

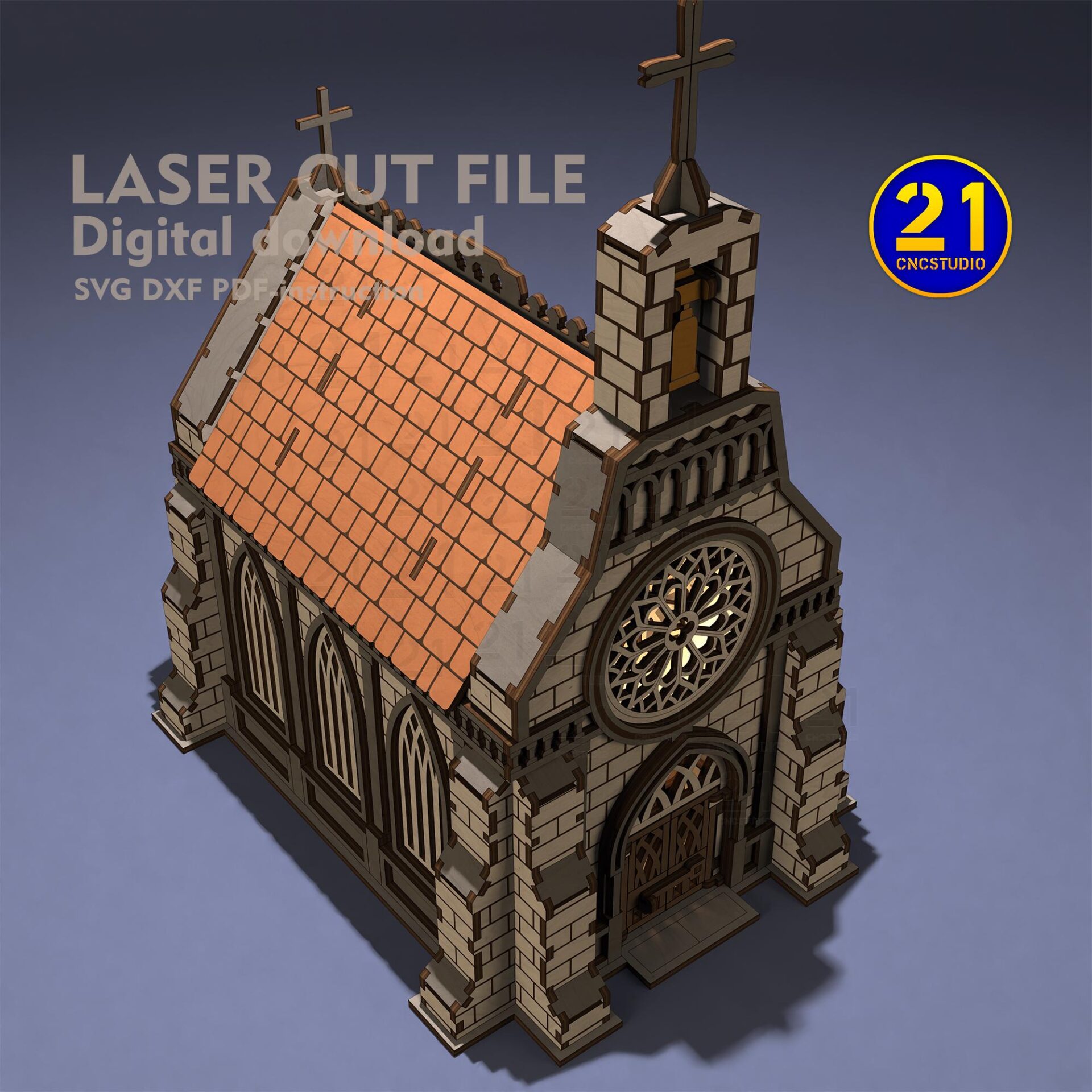

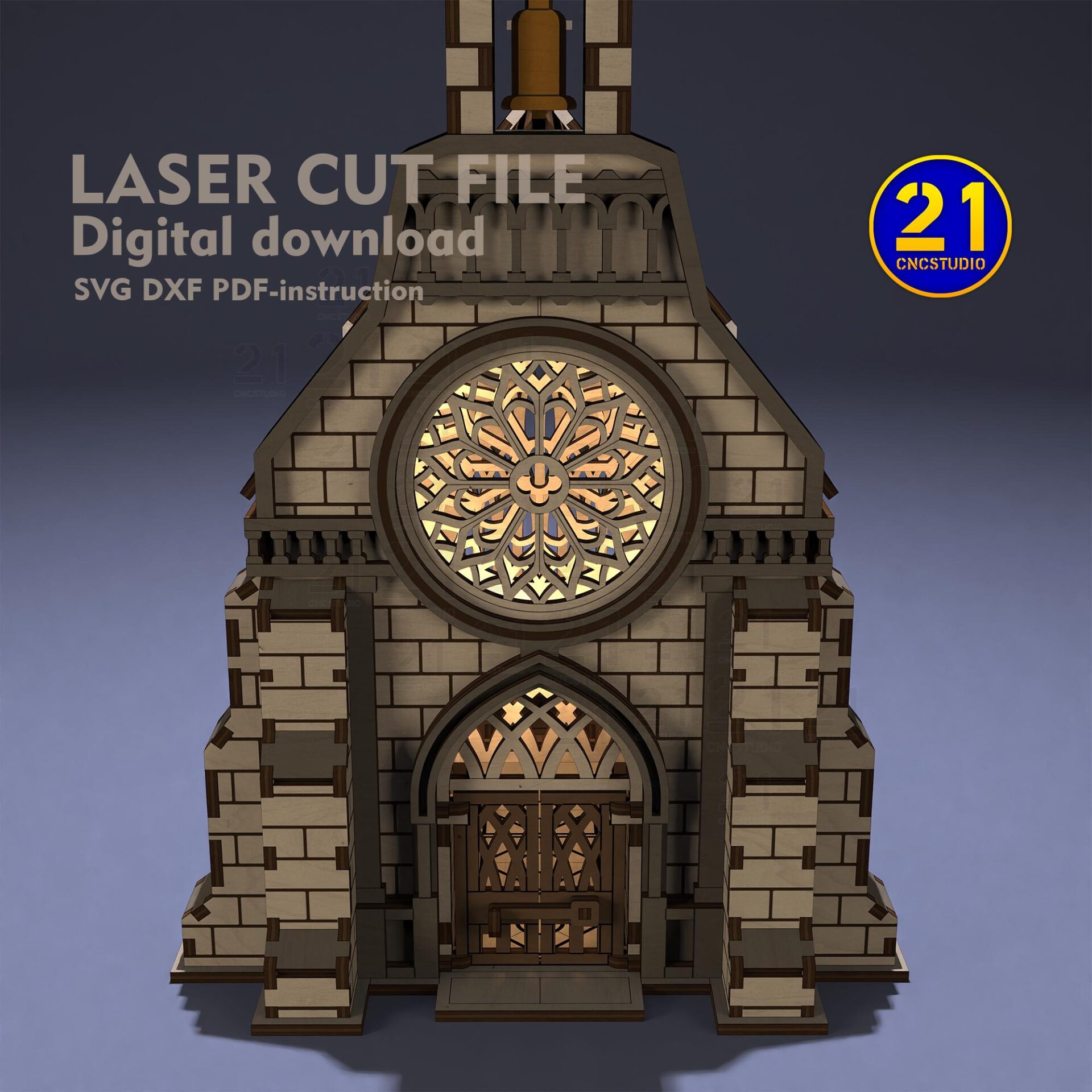

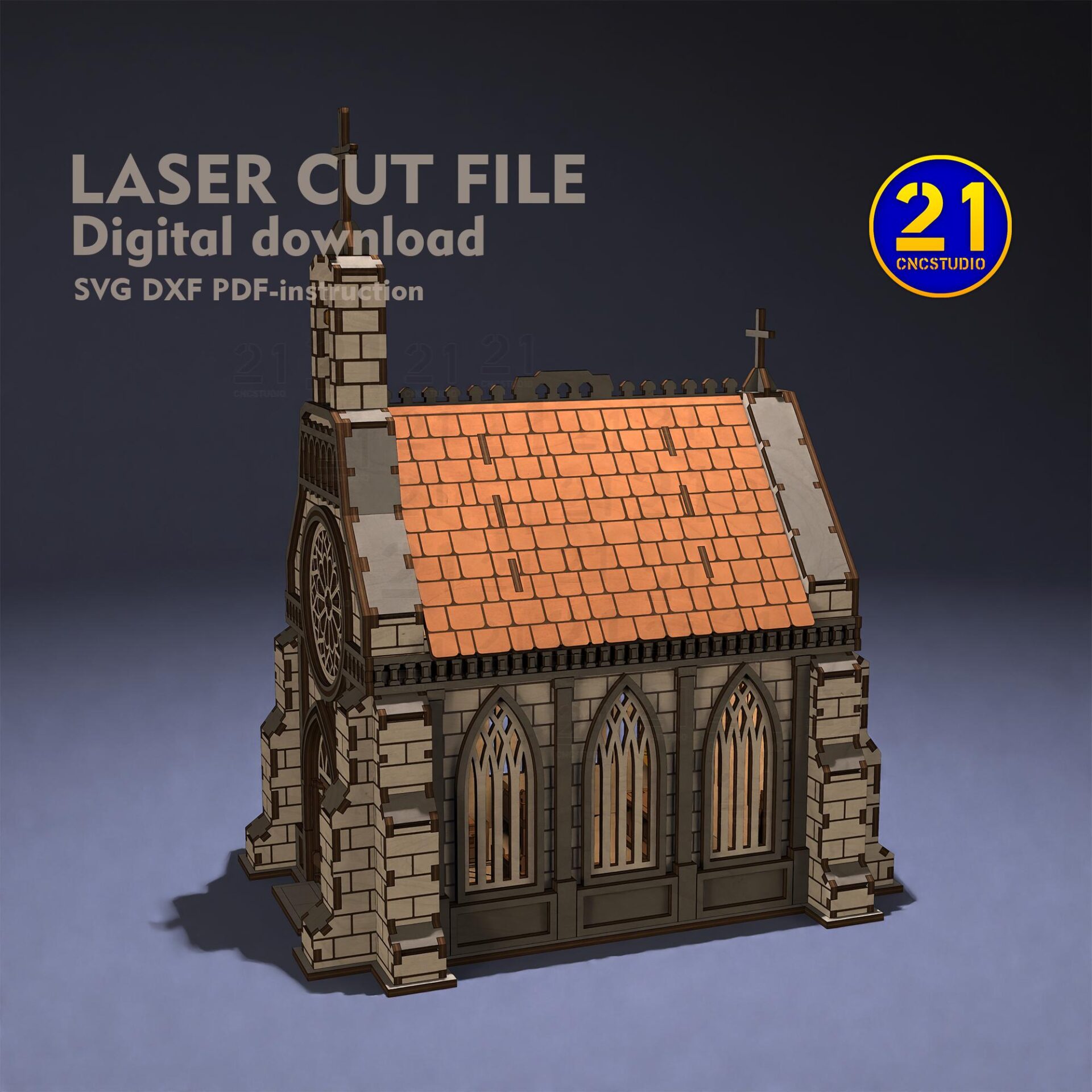

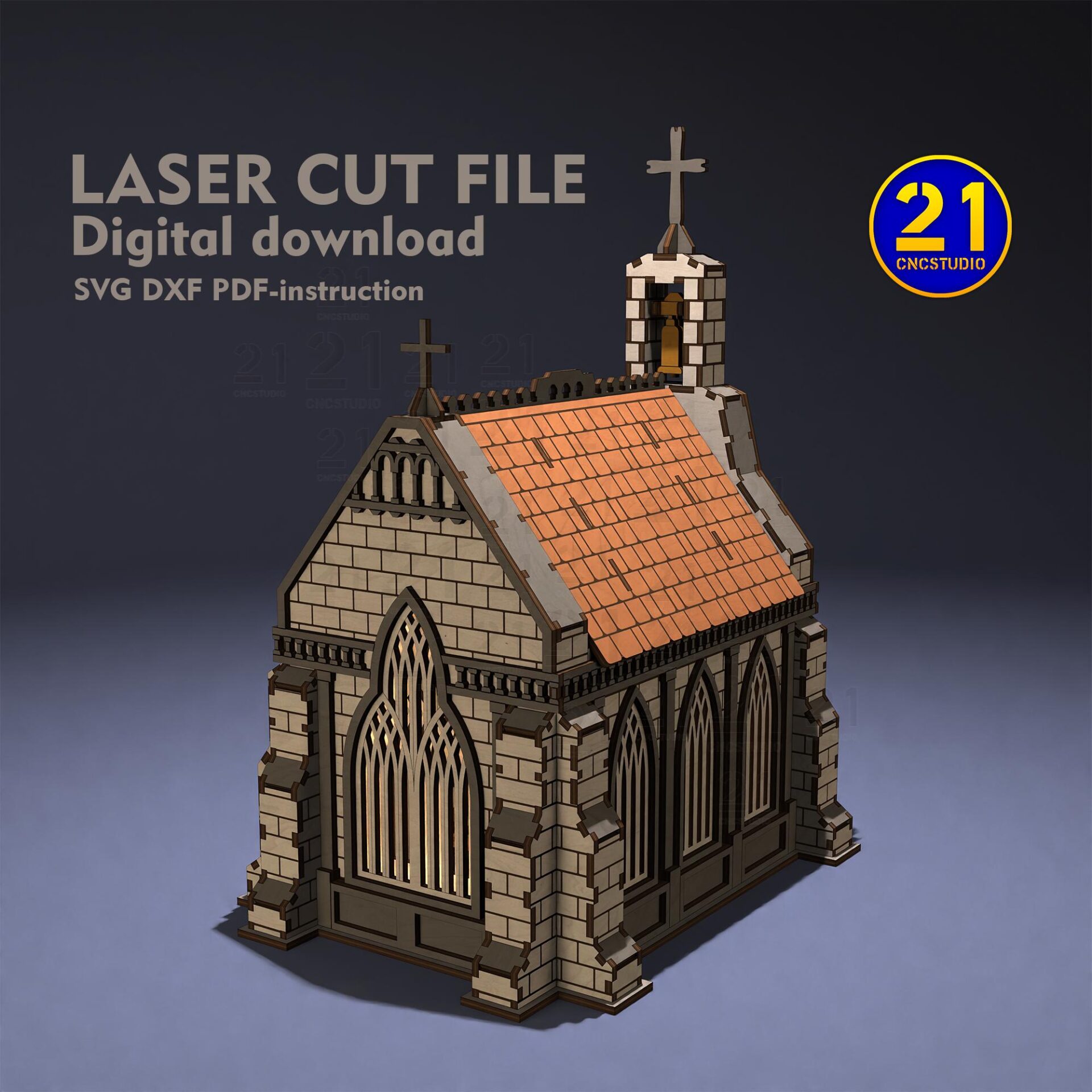

A round window, pointed arches and a cross-topped tower give the church its silhouette. Opening doors and a removable roof let the exterior scene continue into an accessible interior.
The design includes benches, a pulpit and candle stands for that interior. It is intended for 28–32 mm miniatures at approximately 1:56 scale, with a listed 190 × 258 mm footprint.

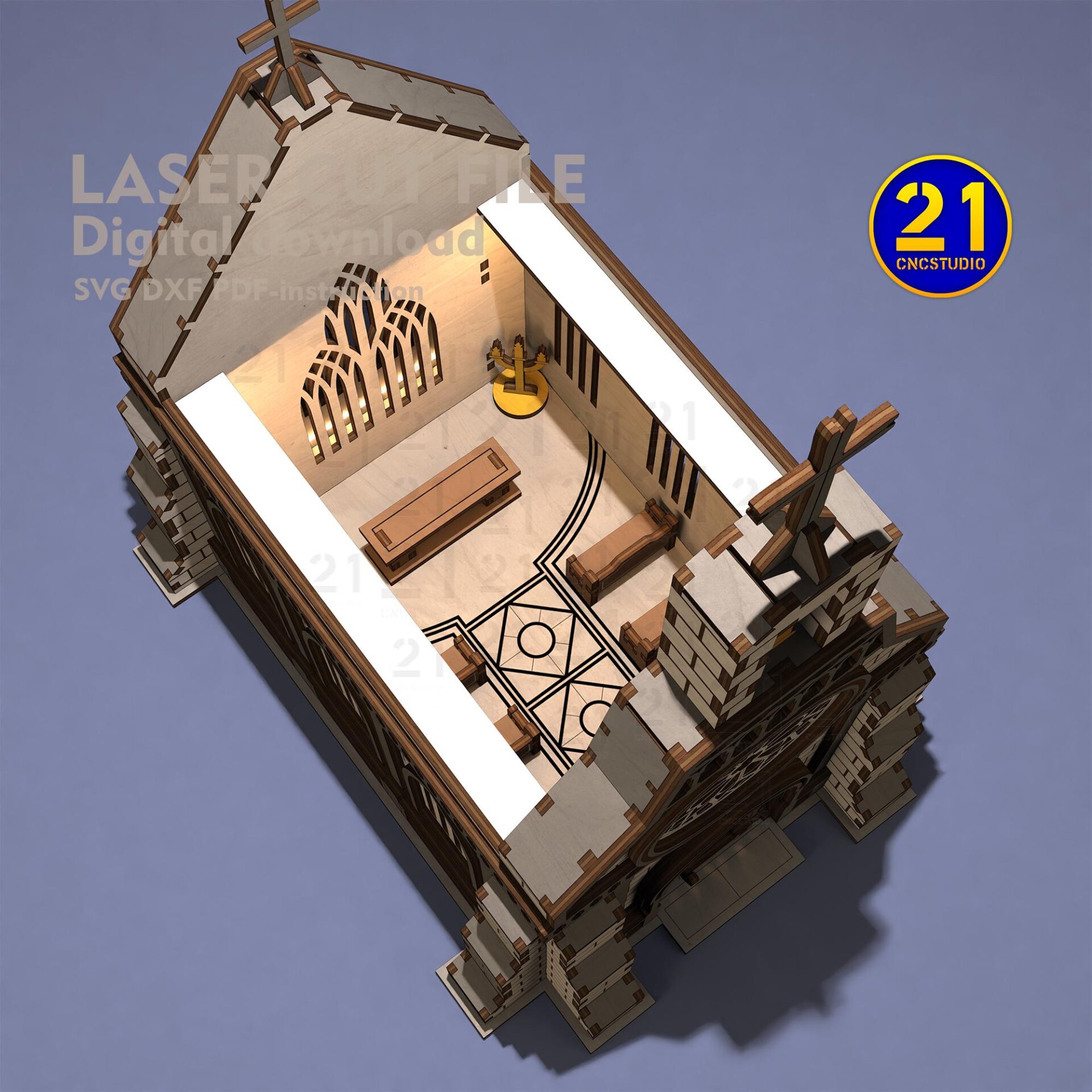

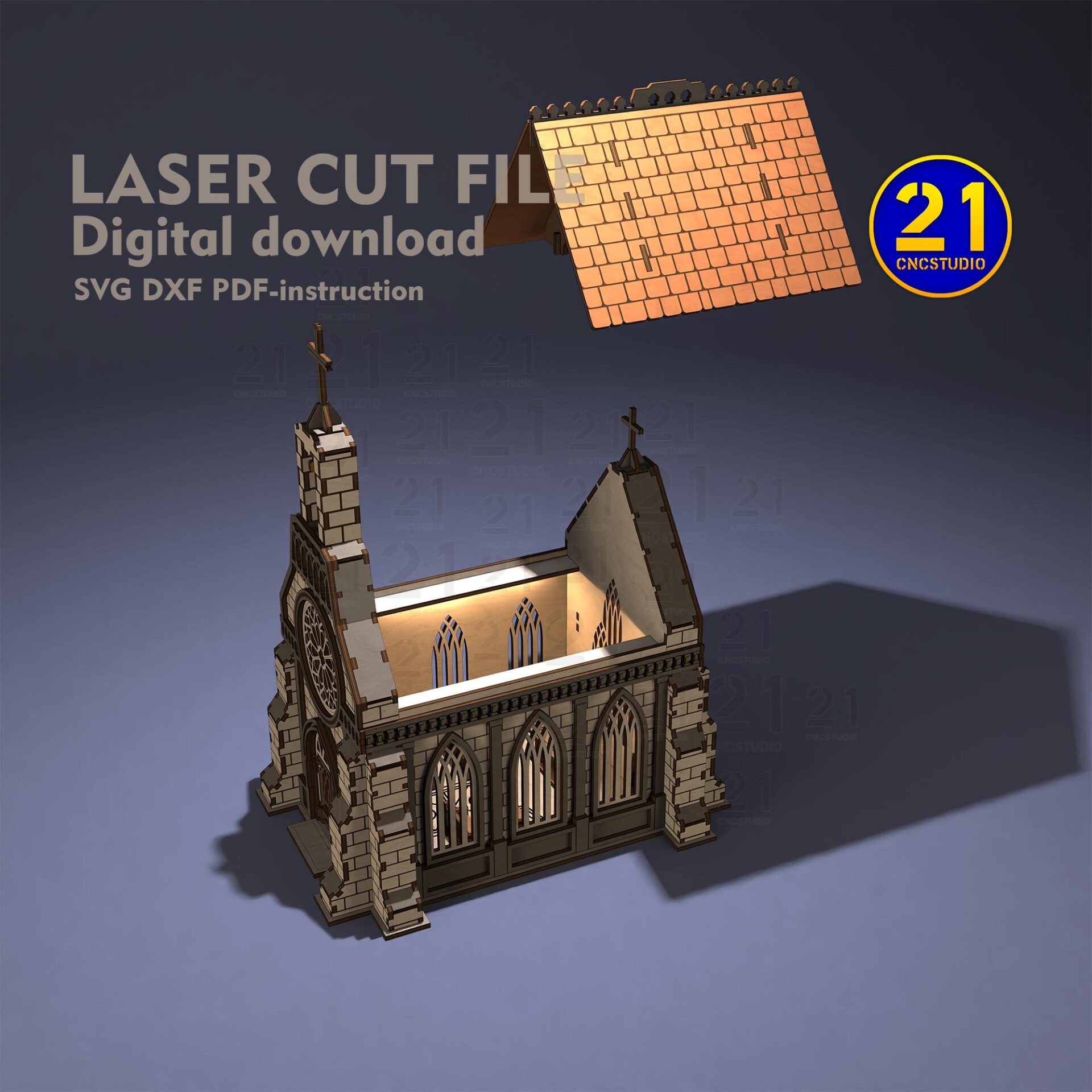

Removable roof
Reach the interior when placing miniatures or arranging a scene.

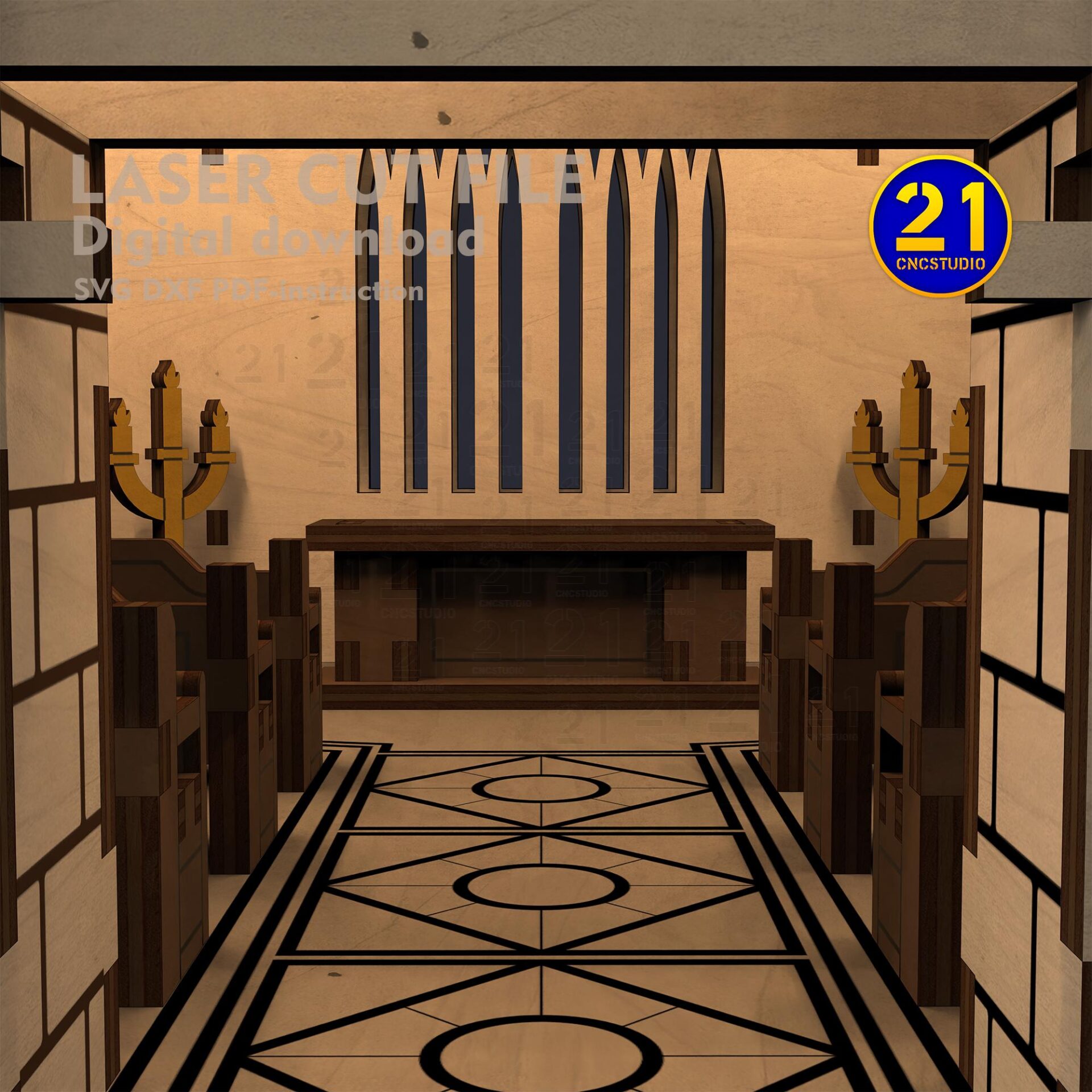

Interior pieces
Bench, pulpit and candle-stand designs are part of the project.
28–32 mm
A tabletop building distinct from the large Catholic Church display.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Dry-fit the roof and door parts before gluing the fixed sections. Check miniature access as you arrange the interior pieces.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design files
- SVG + DXF
- Assembly guide
- PDF included
- Material versions
- 3 mm / 1/8 inch plywood or MDF
- Miniatures
- 28–32 mm; approximately 1:56
- Listed finished size
- 190 × 258 × 319 mm (W × D × H)
- Interior access
- Opening doors and removable roof
- Interior pieces
- Benches, pulpit and candle stands
Can I use the interior during a game?
Yes. The design has opening doors and a removable roof, with benches, a pulpit and candle stands inside. Keep moving and removable parts free during assembly.
What do I receive?
Digital SVG and DXF design files and a PDF assembly guide. No physical model, material or hardware is shipped.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
For personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build your tabletop church.
View the Gothic Church Terrain file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
