Catholic Church.
Build a large wooden Catholic Church display model. Digital laser-cut files for pointed arches, rose windows and a tall square tower.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
Architecture, layer by layer.

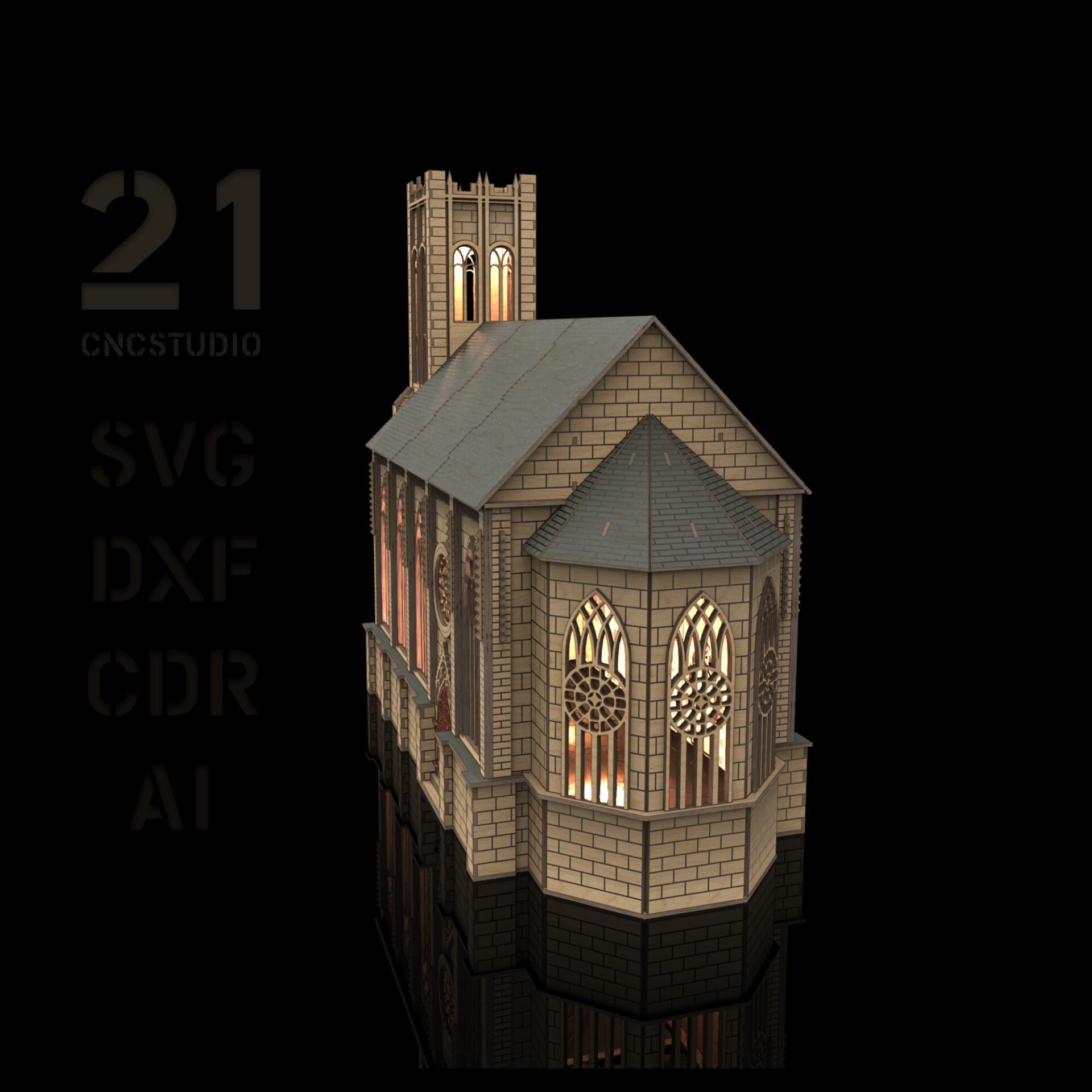

The square tower rises above a long nave, with pointed window openings, rosettes and detailed facades. This is an architectural display project with a substantial presence on a shelf or table.
With 3 mm material, the finished model measures 769 mm long and 697 mm high. The specified maximum individual part is 240 mm: a large completed model does not mean it needs to be cut as one large piece.
769 mm
Overall finished length at the 3 mm material scale.
Gothic detail
Pointed arches, rosettes and facade layers define the church.
Display model
A separate project from the smaller Gothic Church terrain design.
A real build
Made from the files.
A physical build, with the maker’s choice of materials and finish.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Plan a work surface and display space for the completed church. Keep the facade pieces sorted and follow the PDF guide as the larger sections come together.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design files
- SVG + DXF
- Assembly guide
- PDF included
- Material versions
- 3 mm / 1/8 inch
- Finished size at 3 mm
- 769 × 278 × 697 mm (L × W × H)
- Specified maximum part
- 240 mm
- Project type
- Architectural display model
Is this the same model as the Gothic Church terrain?
No. This is a large architectural display model, 769 × 278 × 697 mm at 3 mm material thickness. The separate Gothic Church terrain is designed for 28–32 mm miniatures and has a removable roof and accessible interior.
What do I receive?
Digital SVG and DXF design files and a PDF assembly guide. No physical model, material or hardware is shipped.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
For personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build the church.
View the Catholic Church file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
