Notre-Dame Rose Window / Laser-cut design
Notre-Dame. Rose window.
A round rose window inspired by Notre-Dame de Paris. Cut two layers of tracery and backing, then choose the contrast between them.
Digital design · SVG + DXF + AI + CDR
No physical model or materials are shipped.
01 /The design
Two layers behind the radial detail.

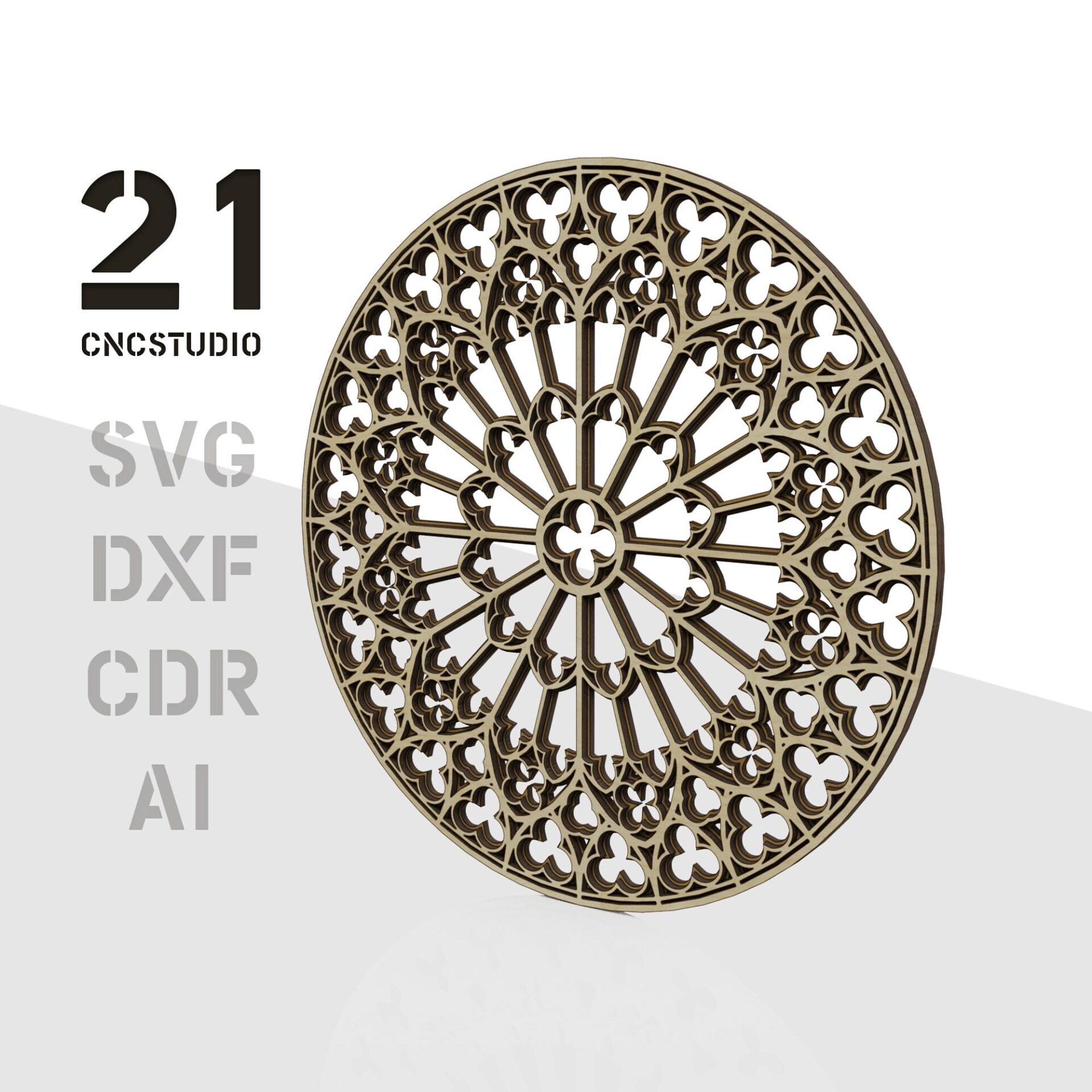

The rose-window design places radial tracery over a backing layer. A contrasting finish helps the repeated openings and central pattern read clearly.
The file set includes SVG, DXF, AI and CDR formats, plus PNG images. The listed minimum size is 278 × 278 mm. No assembly guide is included, so inspect the two layers and their alignment before cutting.

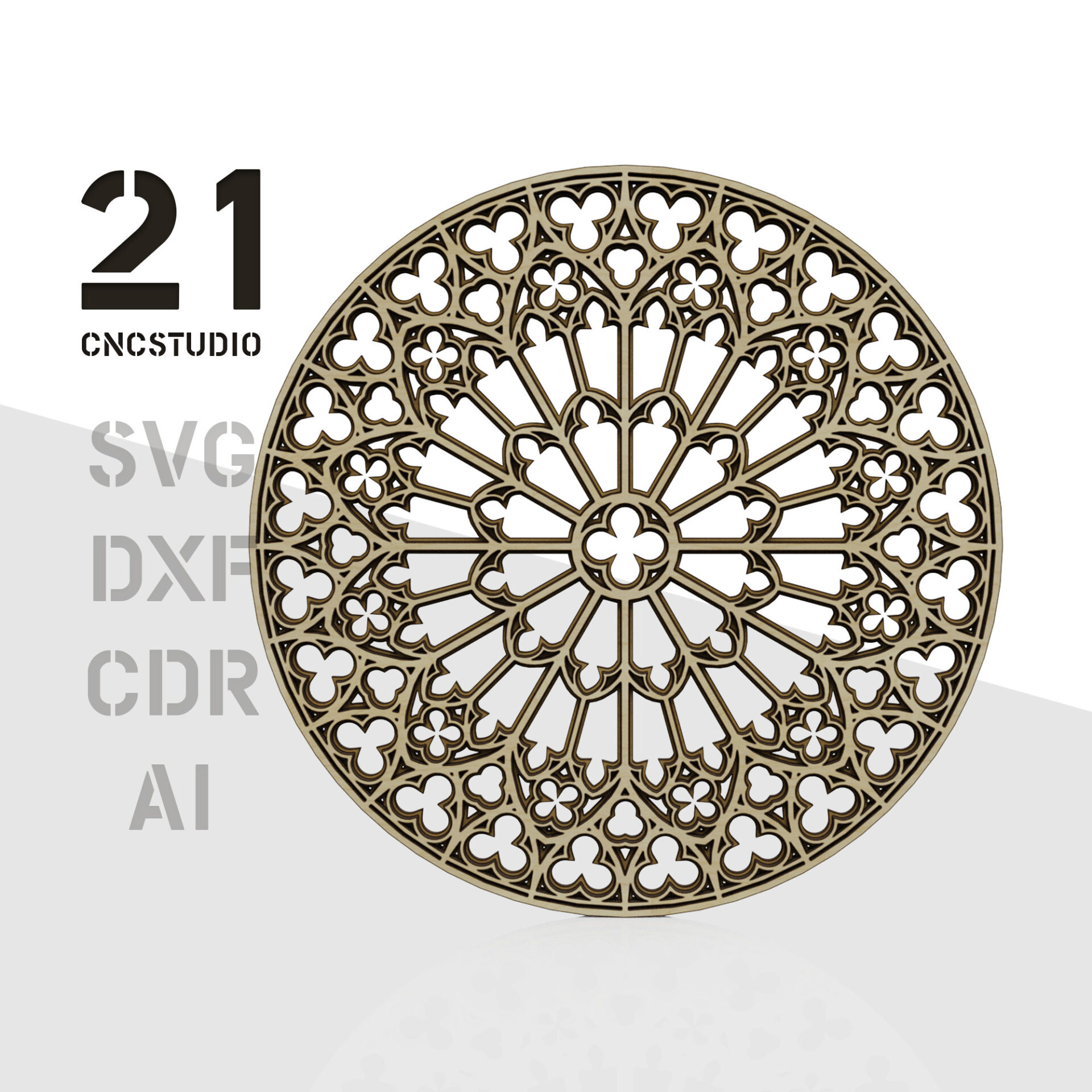

Round tracery
Repeated patterns radiate from the centre of the window.

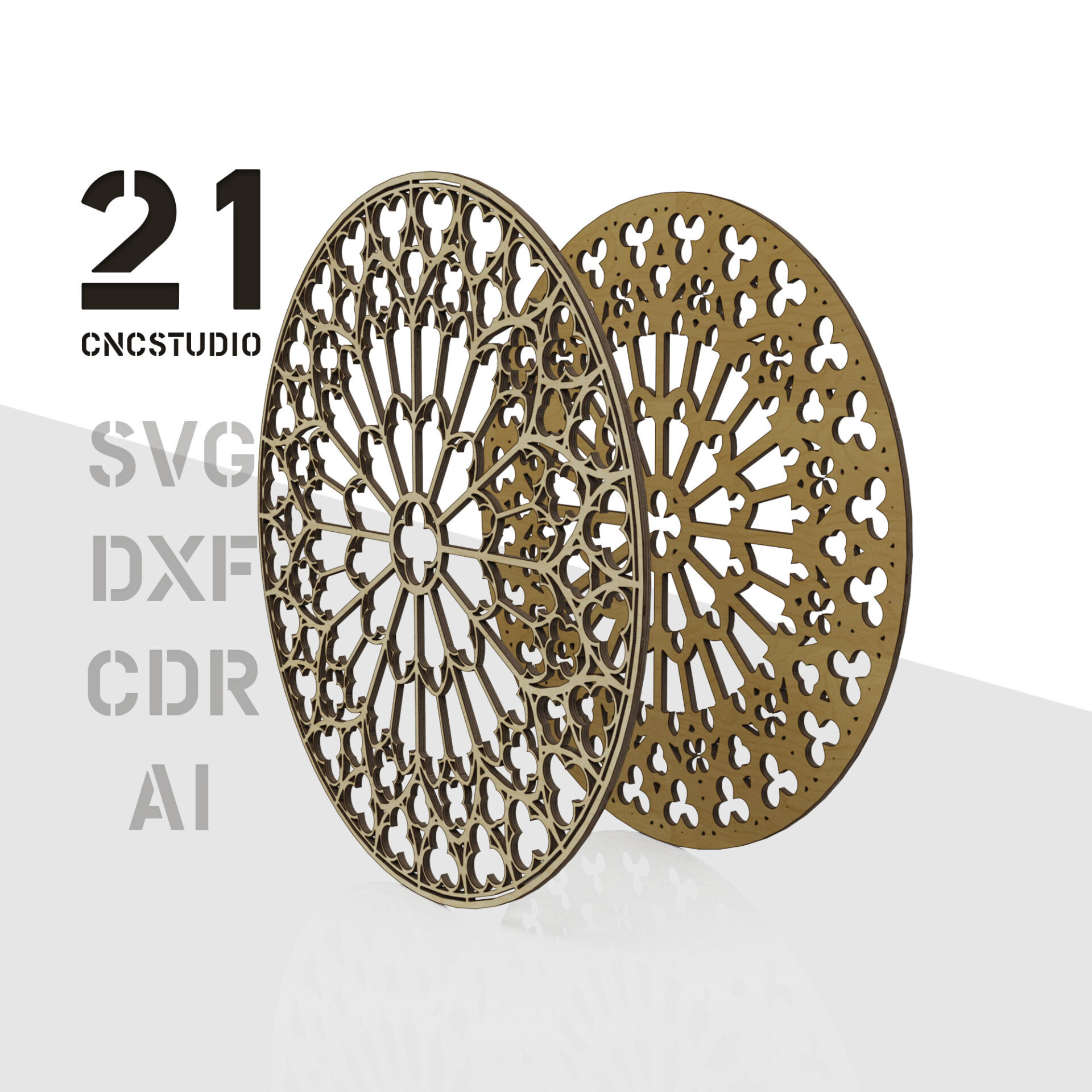

Two-layer construction
The front detail sits over a backing layer.
A finished example
The customer photograph shows one maker’s gold-coloured front and red backing.
A real build
Made from the files.
A physical build, with the maker’s choice of materials and finish.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Respect the minimum-size recommendation and test a small area of the finest tracery. Keep the two layers aligned at the same scale and dry-fit them before fixing them together.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Two-layer rose window artwork
- Vector formats
- SVG, DXF, AI, CDR
- Additional files
- PNG images
- Listed minimum size
- 278 × 278 mm
- Assembly guide
- Not included
Can I reduce the window below 278 × 278 mm?
That is the listing’s recommended minimum. Reducing it further can weaken the narrow bridges or lose small details; do not assume a smaller version will cut successfully.
What do I receive?
SVG, DXF, AI and CDR vector files, plus PNG images. No assembly guide, physical artwork or material is included.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
Contact 21CNCStudio to discuss permission before commercial use. Do not distribute the digital files without the author’s permission.
03 /From the studio to your workbench
Make your rose window.
View the Notre-Dame Rose Window file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
