Amiens Cathedral Window / Laser-cut design
Amiens window. Two layers.
SVG, DXF, AI, CDR and EPS files for a two-layer window pattern inspired by Amiens Cathedral. Cut the leaf-shaped tracery and backing layer to make a circular wall display.
Digital design · SVG + DXF + AI + CDR + EPS
No physical model or materials are shipped.
01 /The design
A rose-window pattern in two layers.

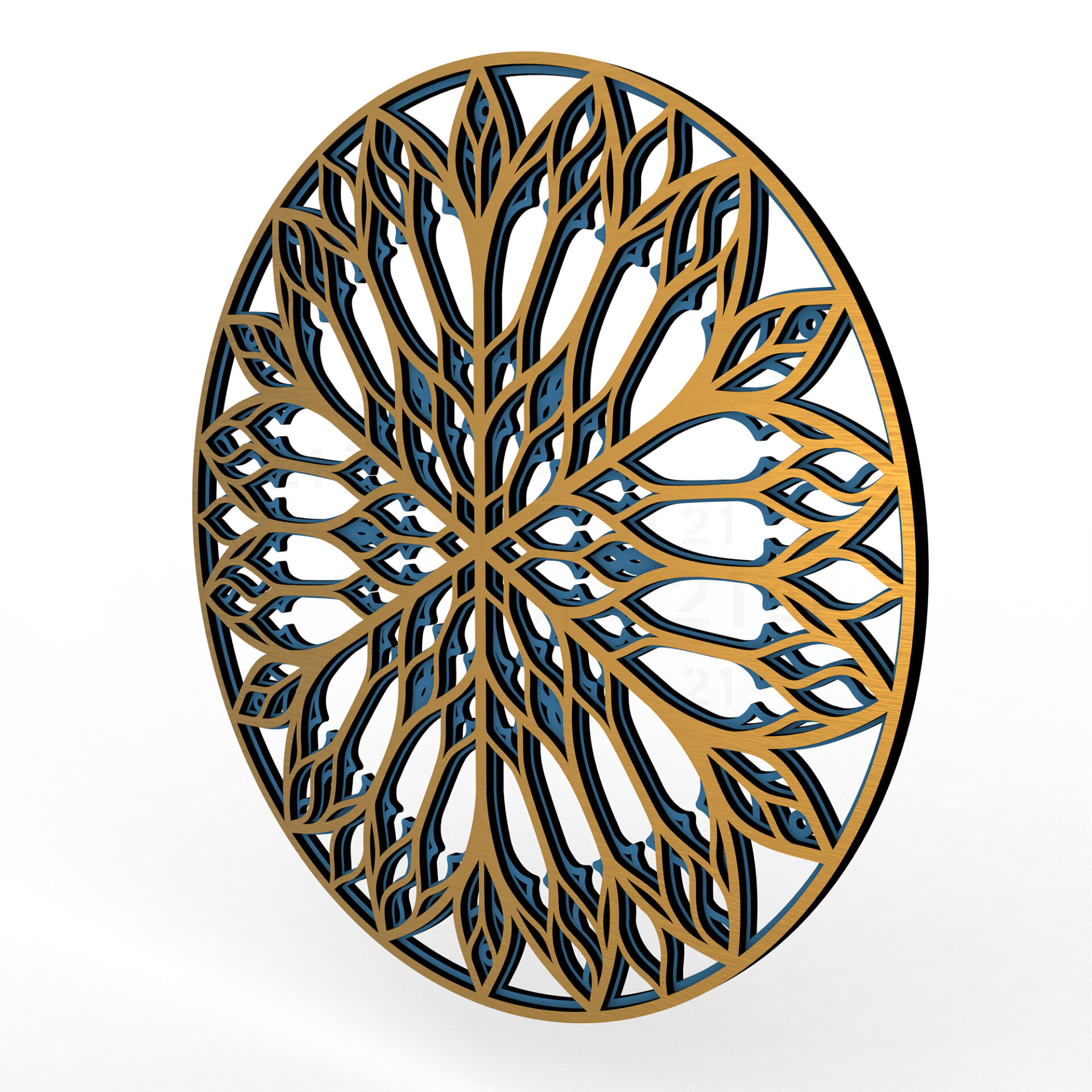

The repeated leaf-shaped openings spread out from the centre of the circular design. Contrasting front and back layers make the tracery easier to read.
The recommended minimum size is 260 × 260 mm. SVG, DXF, AI, CDR and EPS files are included; an assembly instruction guide is not supplied.
Two-layer design

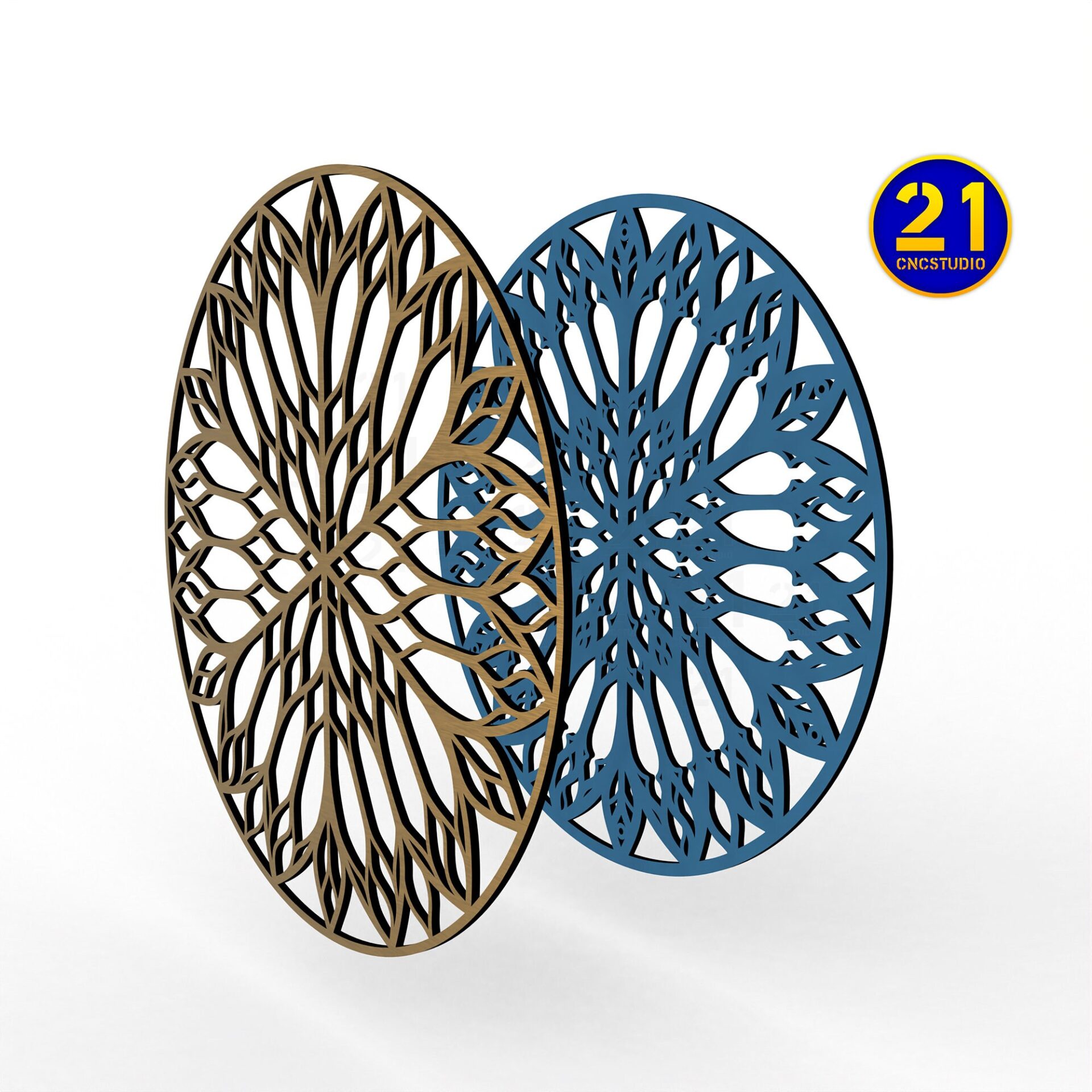

Cut and align the two layers to form the window pattern.
Cathedral-inspired tracery
Repeated curved openings build a circular composition.
Minimum-size guidance
Keep the recommended 260 × 260 mm minimum in mind when preparing the detail.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Inspect the narrow tracery connections before cutting. Respect the minimum-size recommendation, test a detailed section and check that both layers line up before fixing them together.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Two-layer cathedral-inspired window
- Vector formats
- SVG, DXF, AI, CDR, EPS
- Recommended minimum size
- 260 × 260 mm
- Assembly guide
- Not included
Does the window design include an assembly guide?
No. The two-layer design does not include an assembly instruction guide. Inspect the shapes and their alignment before cutting and fixing them together.
What do I receive?
SVG, DXF, AI, CDR and EPS files for the two-layer window artwork. No assembly instruction guide is included. No physical window, glass or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
Contact 21CNCStudio to discuss permission before commercial use. Do not redistribute the digital files without the author’s permission.
03 /From the studio to your workbench
Make the Amiens-inspired window.
View the Amiens Cathedral Window file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
