Wisconsin Layered Map / Laser-cut design
Wisconsin. In layers.
Buildings, green fields and water within the Wisconsin outline. Cut and stack the artwork, then choose the contrast between its layers.
Digital design · SVG + DXF + AI + CDR + EPS
No physical model or materials are shipped.
01 /The design
A landscape held by the state outline.

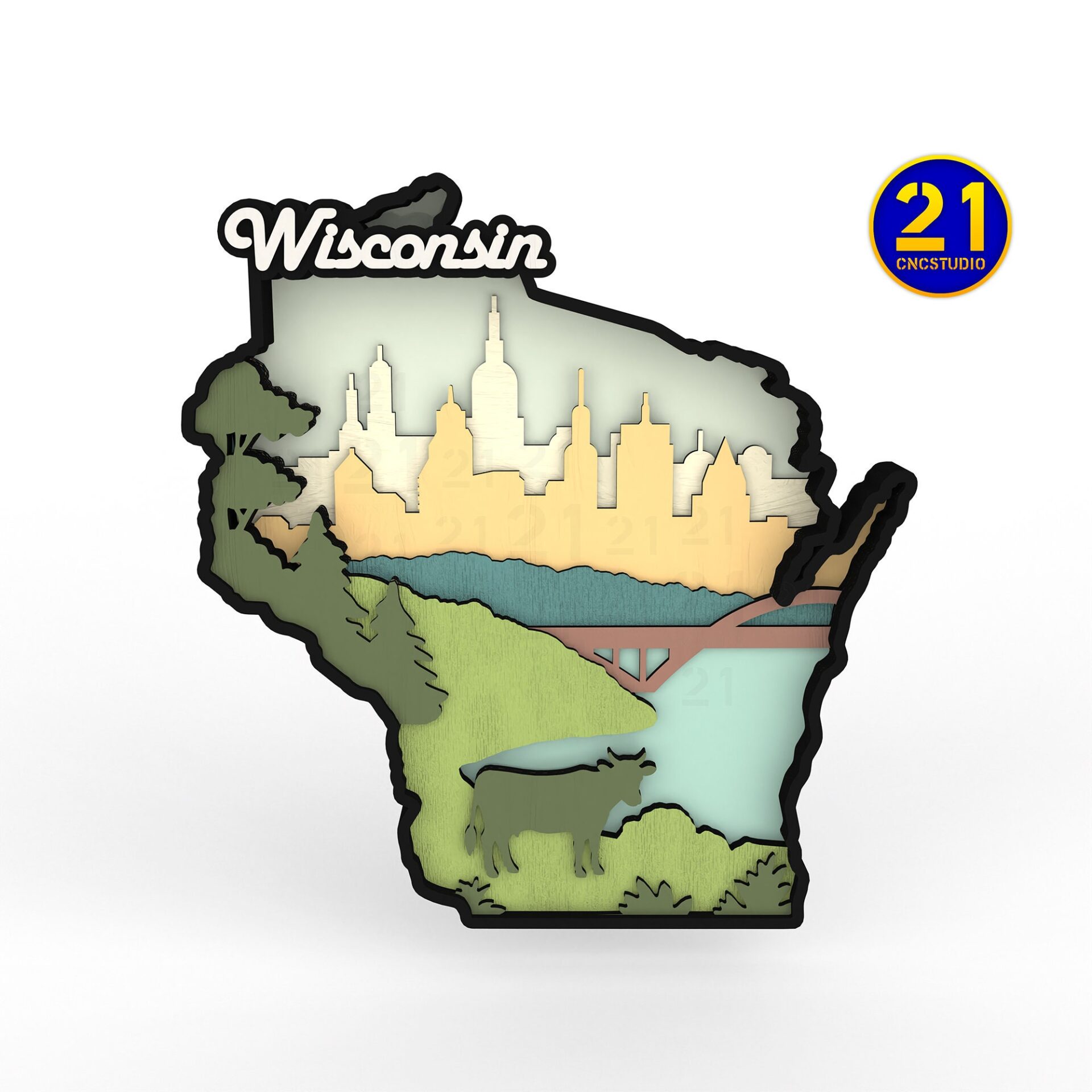

The upper buildings give way to open fields and water toward the bottom of the composition. Wisconsin lettering sits above the scene, while the state shape forms its outer edge.
The listed design size is 260 × 241 mm. The digital package offers SVG, DXF, AI, CDR and EPS formats for preparing the layered artwork in compatible software.
Wisconsin outline
The state shape and lettering identify the composition.
Layered scenery
Buildings, fields and water are separated through the stack.
Five vector formats
Choose a supplied format supported by your preparation software.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Check the fine cutouts and bridges at the listed size. Keep all layers at the same scale, test a small detailed section and confirm their alignment before fixing the stack together.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Layered Wisconsin state art
- Vector formats
- SVG, DXF, AI, CDR, EPS
- Listed design size
- 260 × 241 mm
What size is the Wisconsin design?
The listed design size is 260 × 241 mm. If you resize it, keep all layers at the same scale and check that the smallest details remain practical to cut.
What do I receive?
SVG, DXF, AI, CDR and EPS design files. An assembly guide is not confirmed. No physical artwork or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Make your Wisconsin display.
View the Wisconsin Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
