Nebraska Layered Map / Laser-cut design
Nebraska. Seven layers.
A windmill, buildings and open landscape within the Nebraska outline. Seven layers build the state-themed display.
Digital design · SVG + DXF + AI + CDR
No physical model or materials are shipped.
01 /The design
A windmill at one end, Nebraska across the scene.
The windmill stands in the narrow western section, with buildings and large Nebraska lettering across the wider part of the artwork. Green landscape shapes run through the foreground.
The design uses seven layers at a recommended size of 260 × 130 mm. SVG, DXF, AI and CDR files are supplied.

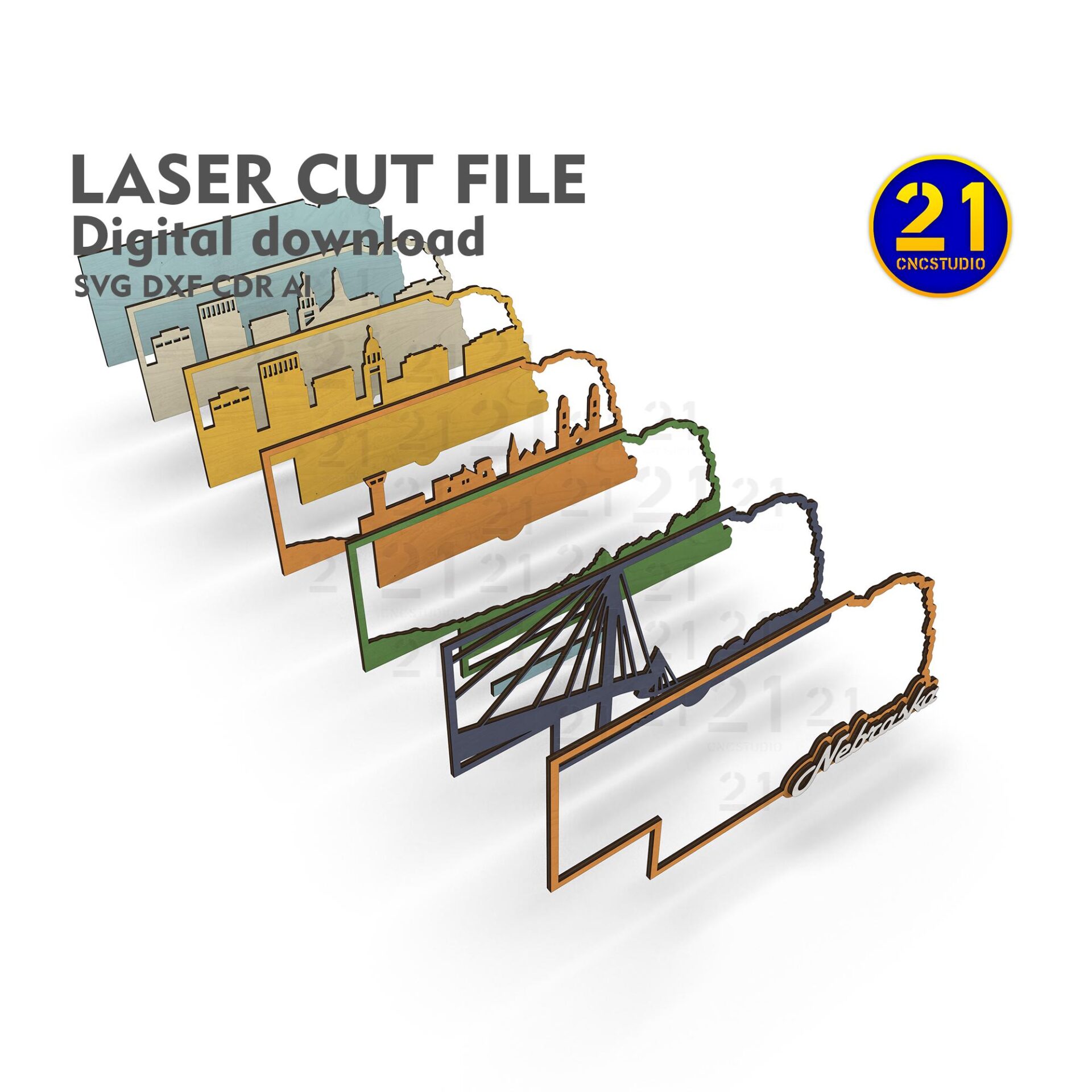

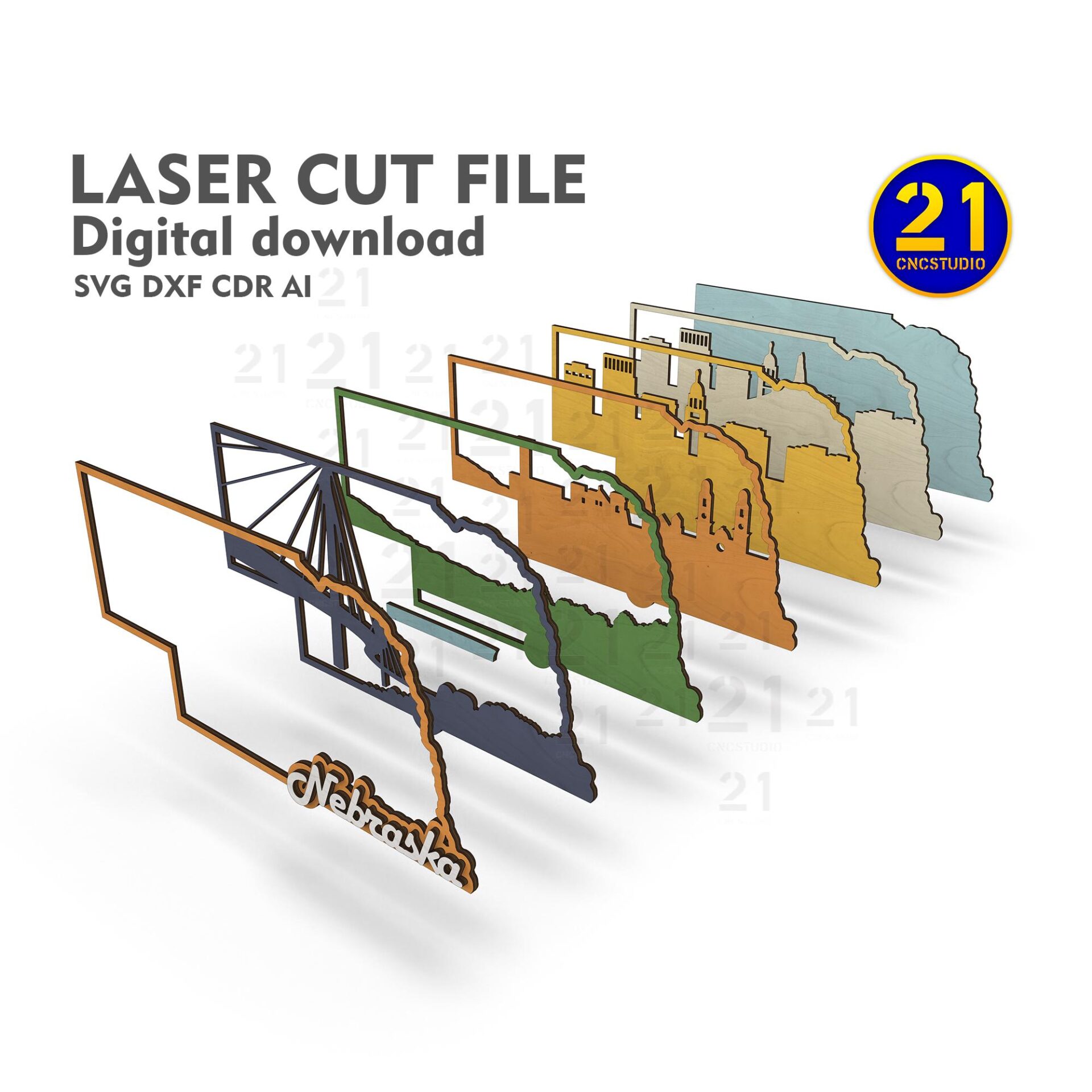

Seven-layer composition
Stack the matching shapes to separate the scenery.
Nebraska silhouette
The state outline and lettering give the artwork its shape.
Four vector formats
Use a format supported by your laser preparation software.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Inspect the windmill and other fine connections at your chosen size. Scale all seven layers equally, test a detailed section and check the alignment before fixing the stack.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Seven-layer Nebraska artwork
- Vector formats
- SVG, DXF, AI, CDR
- Recommended size
- 260 × 130 mm
How large is the Nebraska design?
The recommended size is 260 × 130 mm. Resizing changes the finished dimensions and fine detail, so keep all seven layers at one scale and test before cutting.
What do I receive?
SVG, DXF, AI and CDR design files for the seven-layer artwork. An assembly guide is not confirmed. No physical artwork or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Layer your Nebraska scene.
View the Nebraska Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
