Iowa Layered Map / Laser-cut design
Iowa. Eight farm layers.
Fields, a farm and a tractor inside the Iowa outline. Eight layers separate the countryside into a state-themed display.
Digital design · SVG + DXF + AI + CDR + PDF
No physical model or materials are shipped.
01 /The design

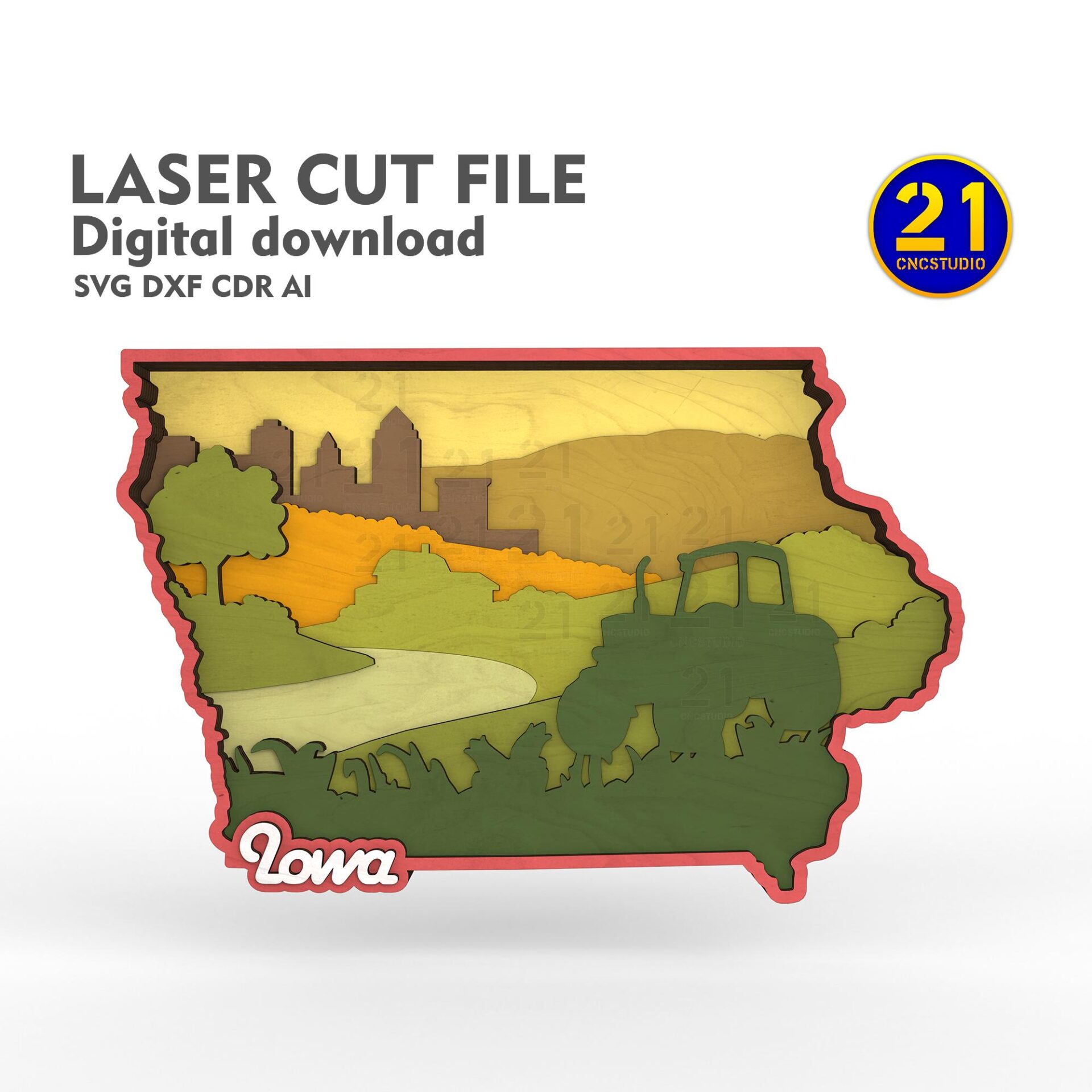

A farm scene within the Iowa shape.
Green fields stretch through the composition, with a farm and tractor among the landscape details. The state outline and Iowa lettering frame the layered scene.
The listed finished size is 260 × 170 mm. SVG, DXF, AI and CDR files are supplied, together with a PDF design file.

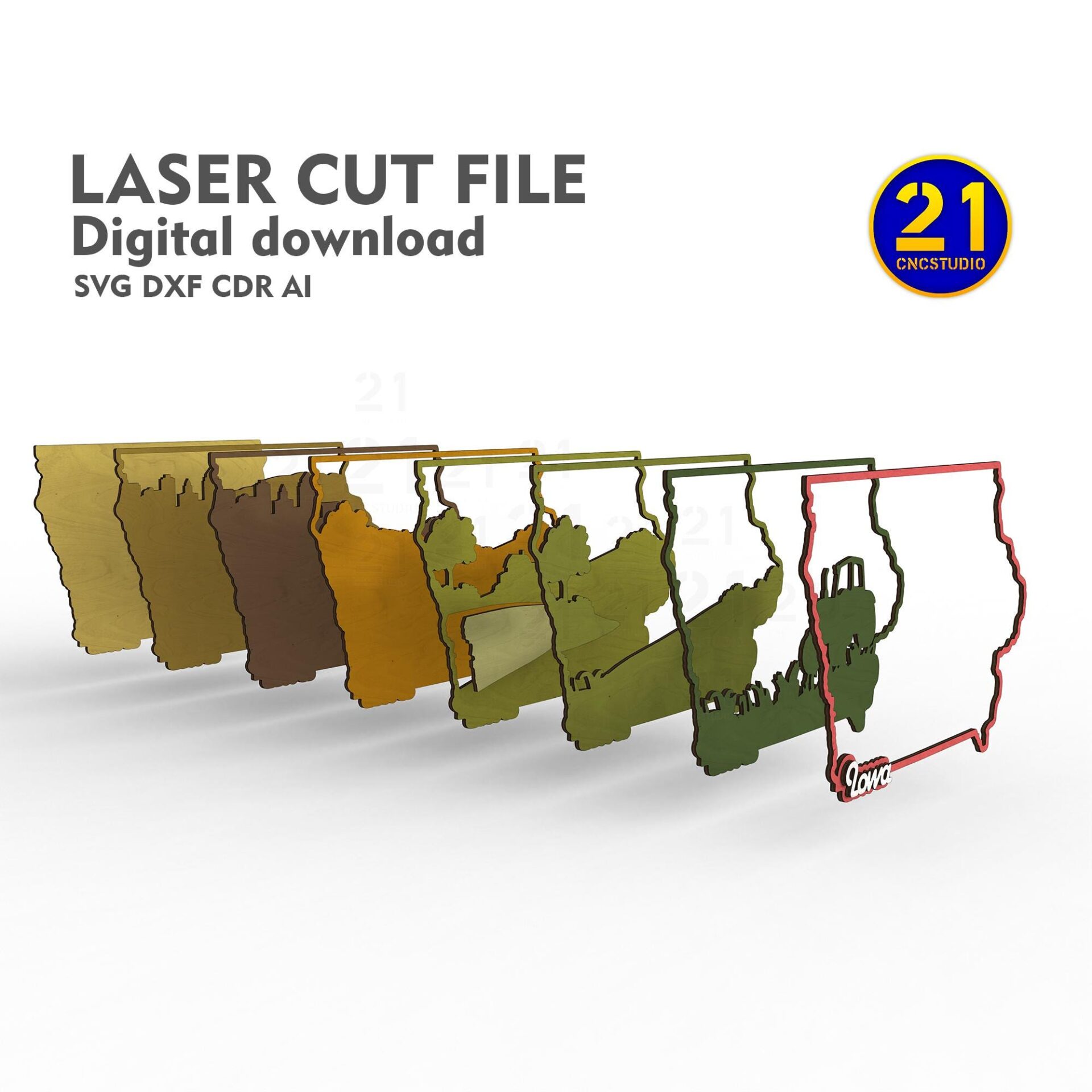

Eight layers
Cut the matching shapes and stack them in order.
Farm and tractor
The rural scene provides the detail inside the Iowa outline.
Several design formats
Choose a supported vector format or inspect the supplied PDF design.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Test the fine farm, tractor and field details at your chosen size. Use the same scale for all layers and check the stack before fixing the finished artwork together.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Eight-layer Iowa artwork
- Scene
- Farm and tractor
- Vector formats
- SVG, DXF, AI, CDR
- Additional format
- PDF design file
- Finished size
- 260 × 170 mm
Is the PDF an assembly guide?
The current package identifies the PDF as a design file. An assembly guide is not confirmed, so inspect the shapes and layer order before cutting.
What do I receive?
SVG, DXF, AI and CDR design files plus a PDF design file. The PDF is not confirmed as an assembly guide. No physical artwork or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build the Iowa farm scene.
View the Iowa Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
