Kentucky Layered Map / Laser-cut design
Kentucky. Eight layers.
Horses and farm scenery inside the long Kentucky outline. Build the eight-layer landscape from the supplied digital design files.
Digital design · SVG + DXF + AI + CDR
No physical model or materials are shipped.
01 /The design

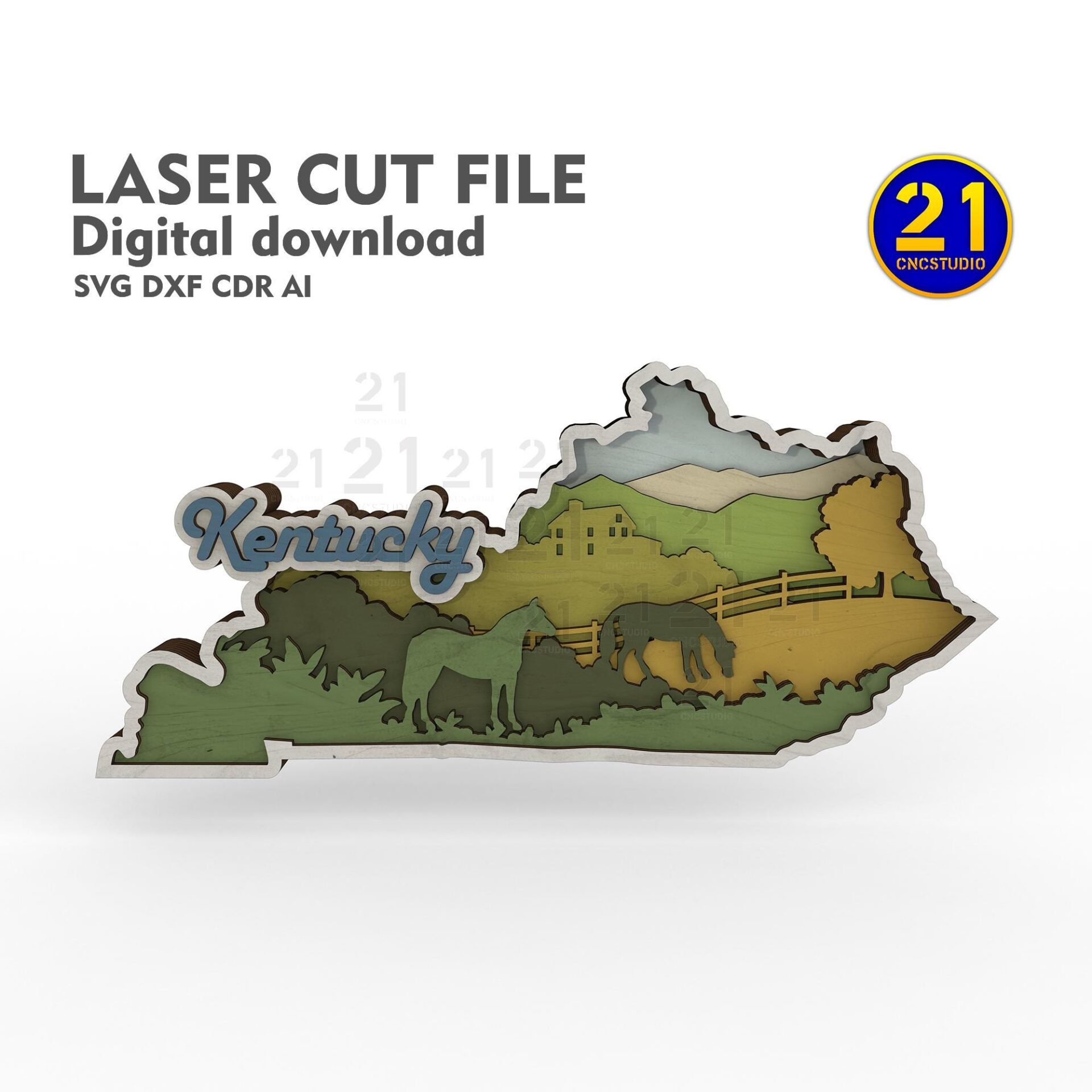

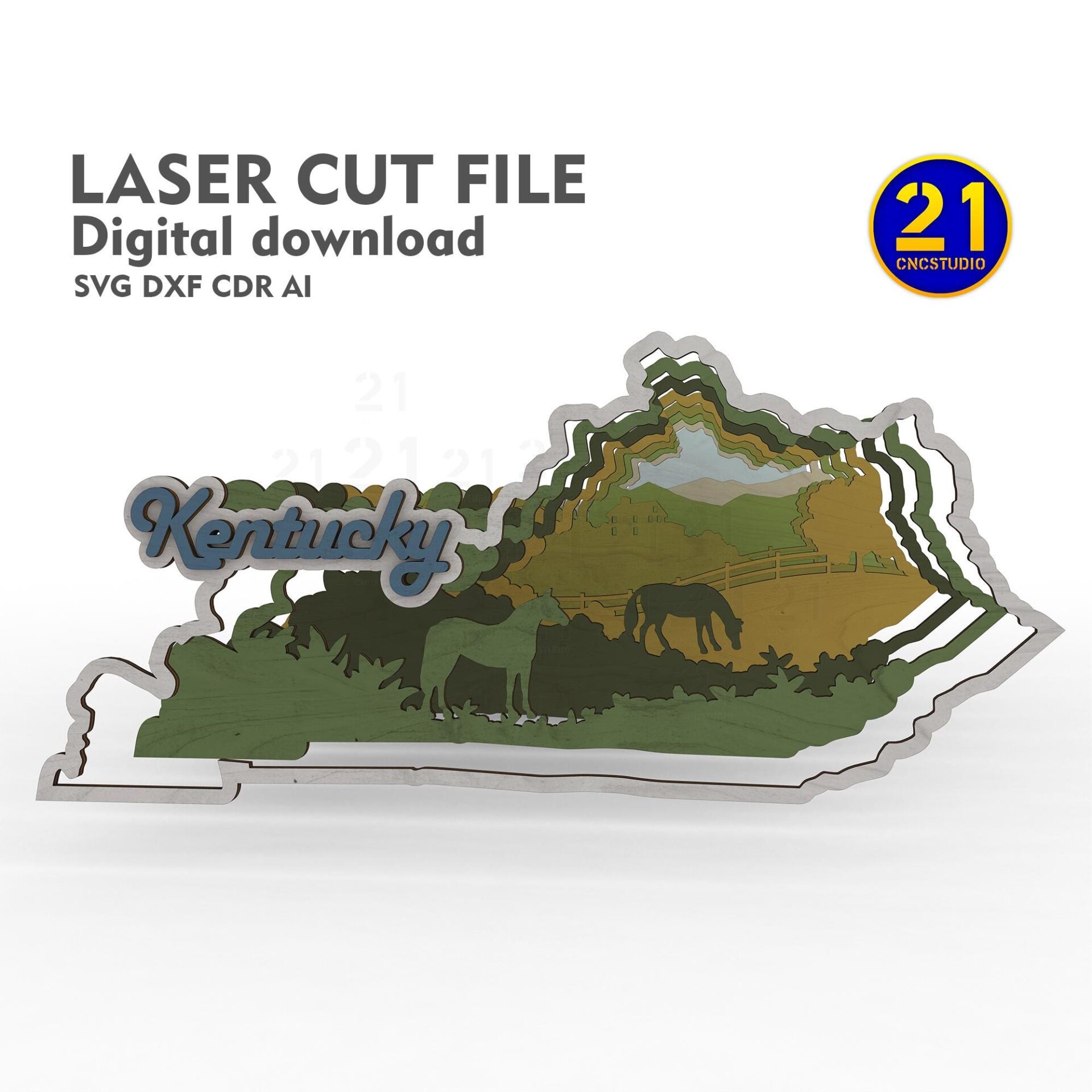

A farm scene across the state shape.
Horses, fences and fields fill the Kentucky silhouette, with the landscape stretching across its broad outline. Contrasting layers distinguish the foreground from the farm scene behind it.
The listed finished size is 260 × 120 mm. SVG, DXF, AI and CDR formats are supplied, together with a PDF design file.

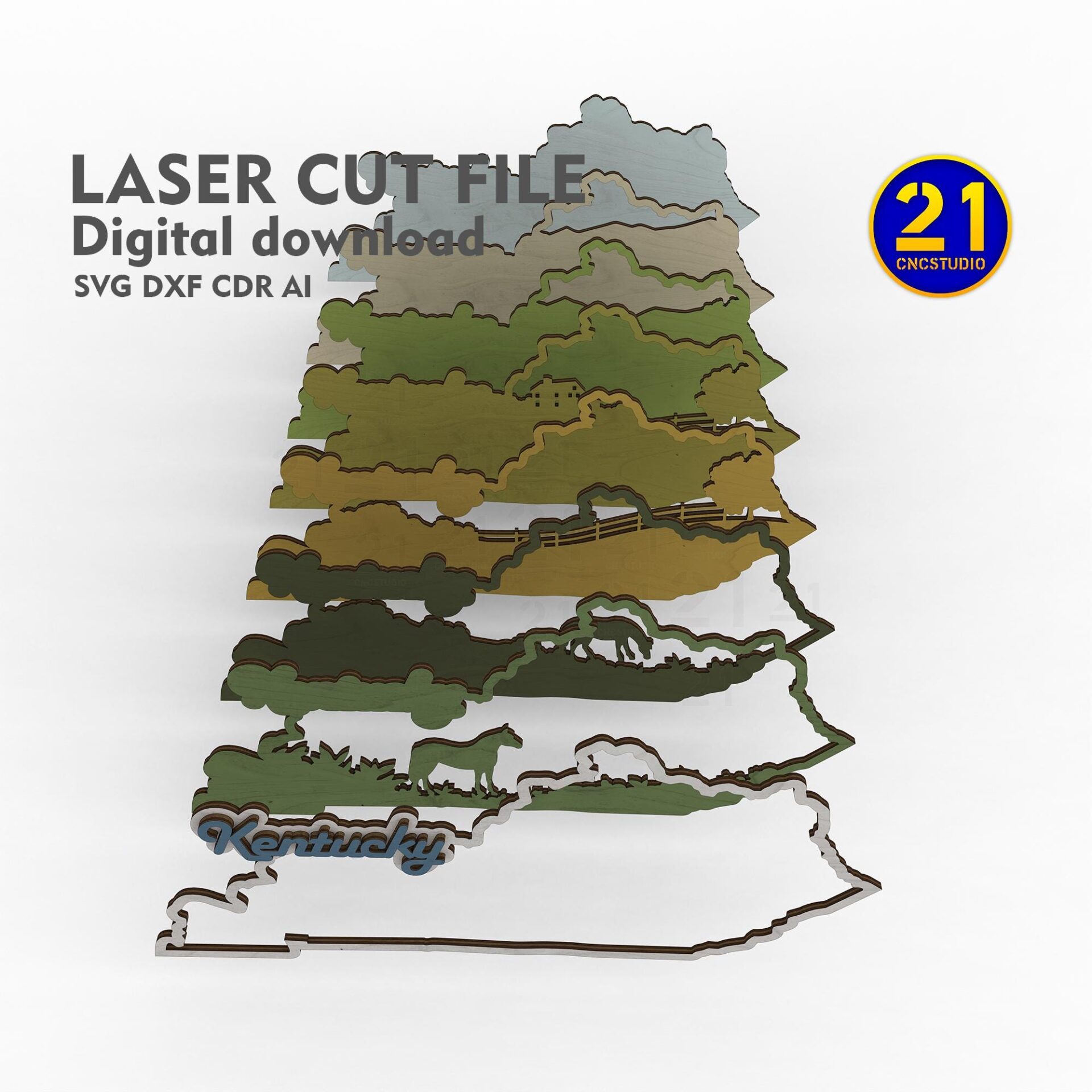

Eight layers
Stack the matching parts to build the landscape relief.
Horses and farmland
The rural scene runs across the Kentucky outline.
Design in several formats
The package includes vector formats and a PDF design file.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Inspect the small horse, fence and tree details at your chosen size. Scale every layer equally, test narrow connections and check the stack before fixing it together.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Eight-layer Kentucky state art
- Scene
- Horses and a farm landscape
- Vector formats
- SVG, DXF, AI, CDR
- Additional design file
- Listed finished size
- 260 × 120 mm
Is the included PDF an assembly guide?
The current package identifies it as a PDF design file. An assembly guide is not confirmed, so inspect the layers and their order before cutting.
What do I receive?
SVG, DXF, AI and CDR design files plus a PDF design file. The PDF is not confirmed as an assembly guide. No physical artwork or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build the Kentucky landscape.
View the Kentucky Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
