Washington State Layered Map / Laser-cut design
Washington State. Eight layers.
SVG, DXF, AI and CDR files for eight-layer Washington State artwork. Build the skyline with the Space Needle below Mount Rainier inside the state outline.
Digital design · SVG + DXF + AI + CDR
No physical model or materials are shipped.
01 /The design
A skyline beneath Mount Rainier.

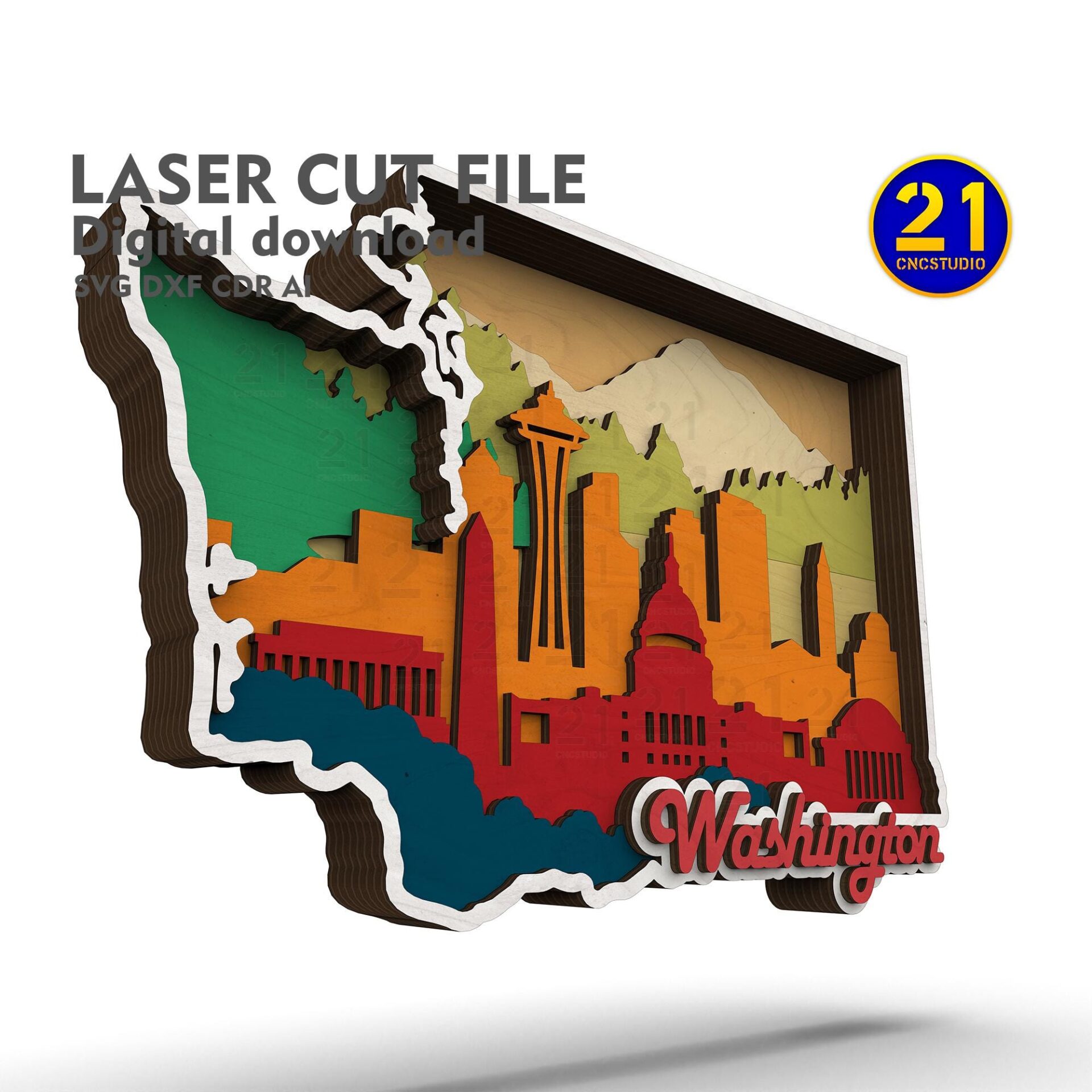

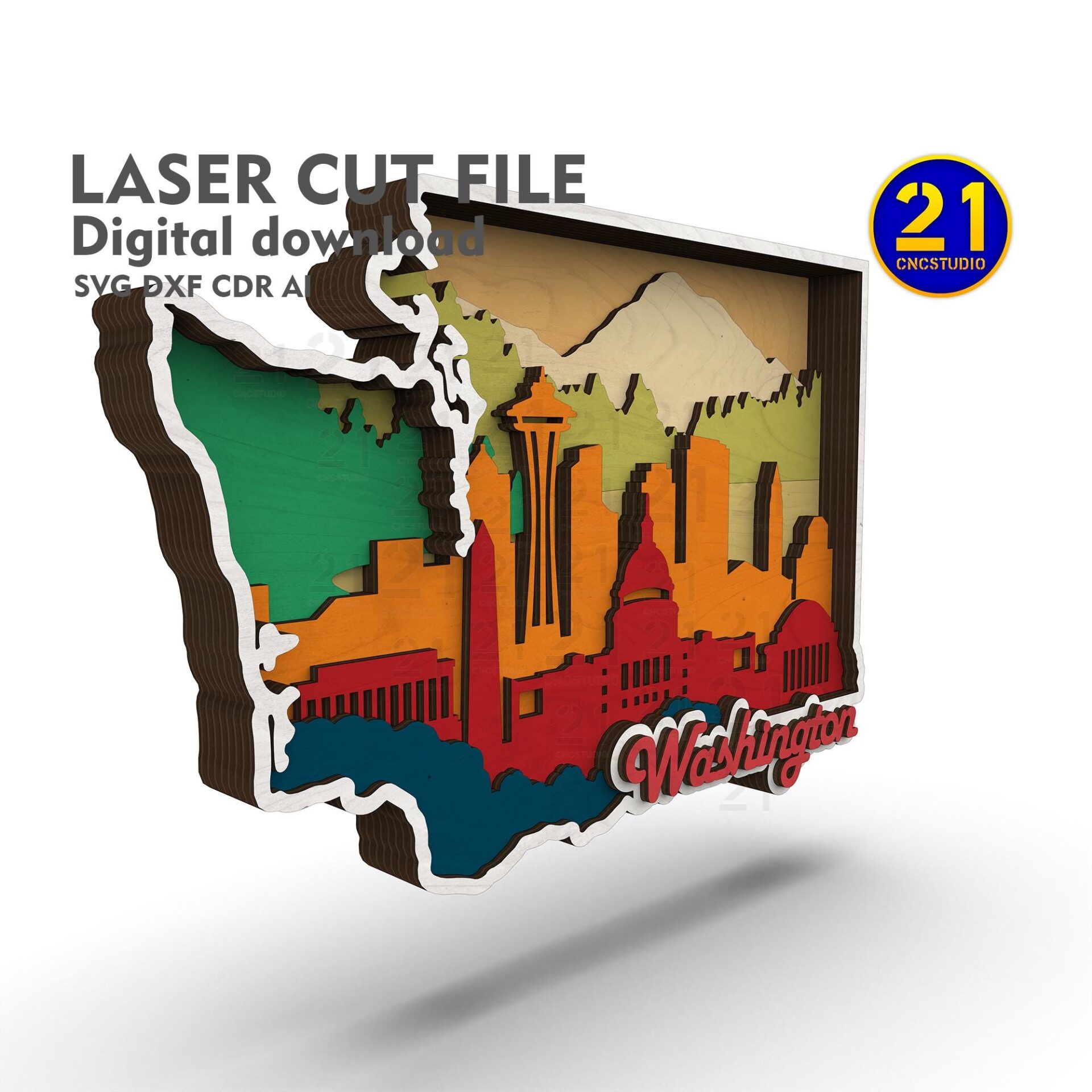

The Space Needle stands among the city shapes, with pale mountains above them and darker foreground layers below. Washington lettering follows the lower edge of the state-shaped composition.
The recommended size is 260 × 175 mm. The eight-layer design is a state-outline landmark scene, separate from the Washington street-map artwork.
Eight layers

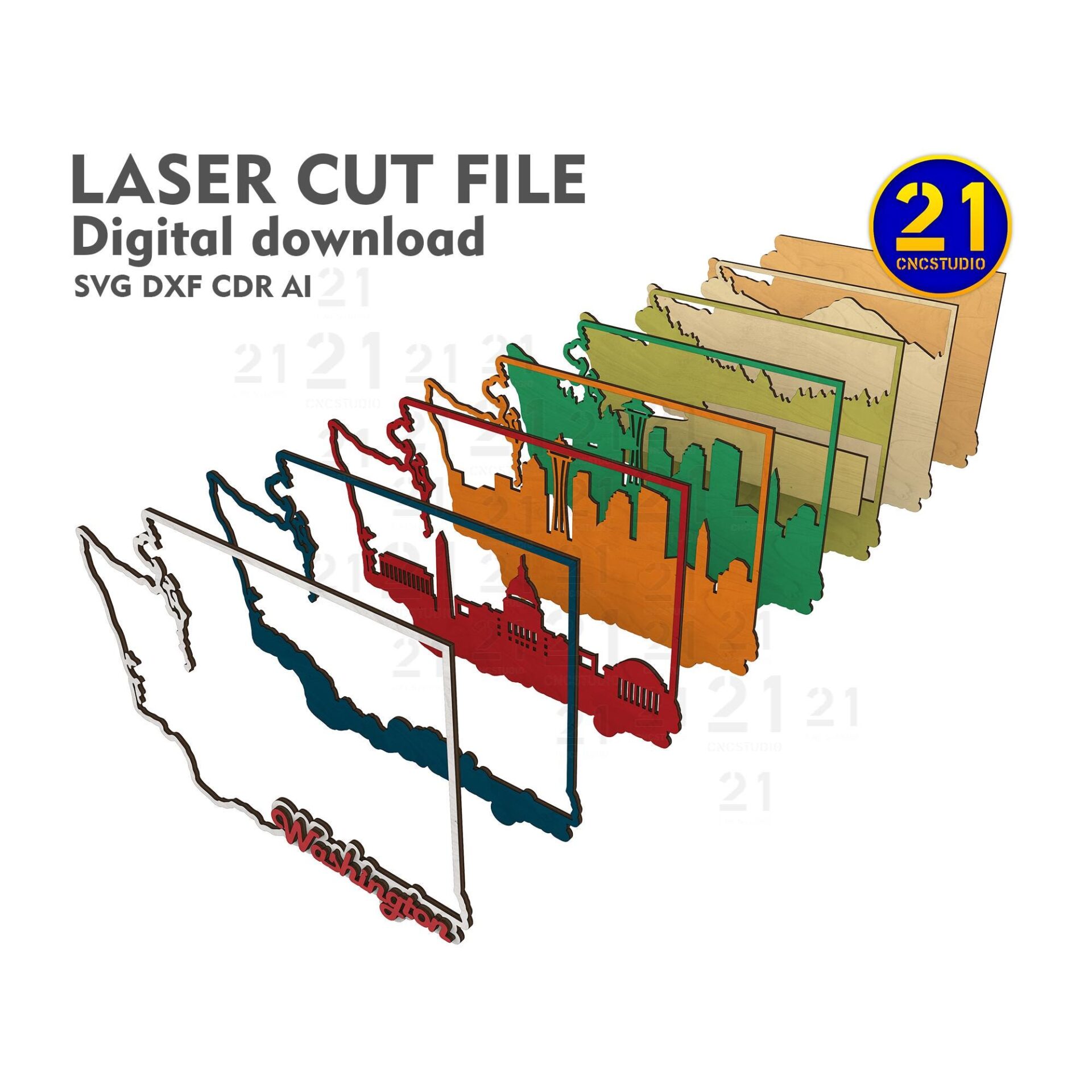

Separate the skyline, mountain backdrop and foreground.
Named landmarks
The author identifies the Space Needle and Mount Rainier in this design.
State-outline artwork
The Washington State silhouette frames the scene.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Inspect the narrow Space Needle, skyline and state-edge connections at your chosen size. Keep all eight layers at the same scale, cut a test section and check their order before fixing the artwork.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Eight-layer Washington State artwork
- Landmarks
- Space Needle and Mount Rainier
- Vector formats
- SVG, DXF, AI, CDR
- Recommended size
- 260 × 175 mm
Is this the Washington street-map design?
This is Washington State-shaped artwork with the Space Needle and Mount Rainier. The street-map design is a separate product with road detail and round, square or hexagonal frames.
What do I receive?
SVG, DXF, AI and CDR files for the eight-layer Washington State artwork. An assembly guide is not confirmed. No physical artwork or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Make your Washington State scene.
View the Washington State Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
