Tudor House / Laser-cut design
Tudor House.
SVG and DXF laser-cut files for a 1:27 Tudor-style house with a balcony and interior staircase. Choose open or closed side walls, then follow the PDF guide to assemble the model.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
Choose how the house is seen.

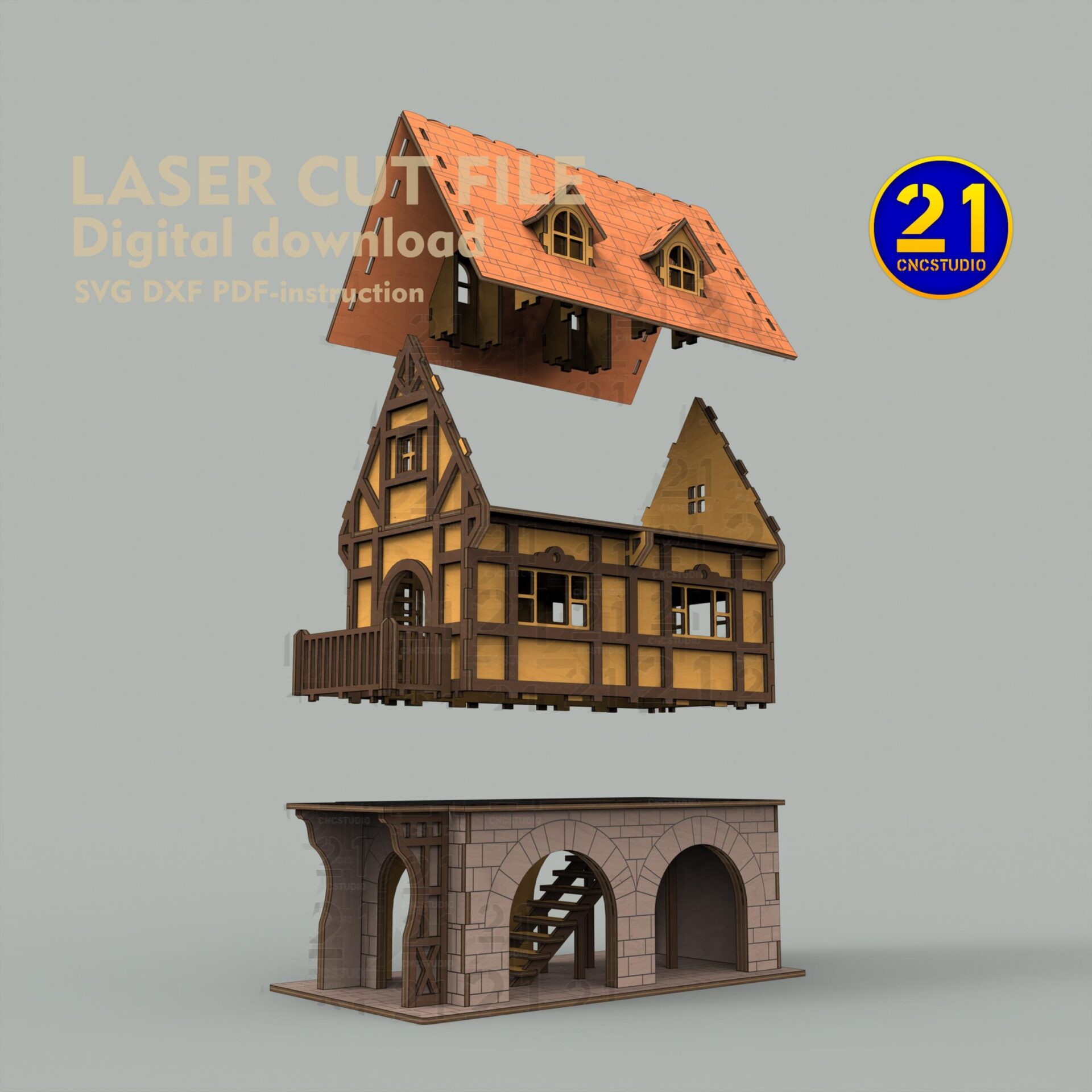

Dark framing divides the upper walls beneath a steep tiled-style roof. The balcony, chimney and arched lower level give the house detail at several heights.
The design includes an interior staircase and two side-wall approaches. Use the open option to show the inside, or the closed walls for a more enclosed architectural display.
Open or closed sides.
Choose the wall option that suits the way you want to display the interior.
Interior staircase.
The documented design includes stairs inside the house.
1:27 scale.
The 3 mm version measures 266 × 146 × 290 mm.
A real build
Made from the files.
A physical build, with the maker’s choice of materials and finish.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Decide which side-wall option you want before arranging the cut. Test a joint and use the guide to plan access to the interior while assembling the walls and staircase.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design files
- SVG + DXF
- Assembly guide
- PDF included
- Material versions
- 3 mm / 1/8 inch
- Scale
- 1:27
- Finished size at 3 mm
- 266 × 146 × 290 mm (W × L × H)
- Largest part
- 260 mm
- Side walls
- Open and closed options
- Interior detail
- Staircase; chimney and balcony
What are the dimensions with 3 mm material?
The assembled house is listed as 266 mm wide, 146 mm long and 290 mm high. The largest cut part is 260 mm. Rescaling changes the finished size.
What do I receive?
SVG and DXF cutting files for 3 mm and 1/8 inch material and a PDF assembly guide. The design includes open and closed side-wall options. No physical house or materials are shipped.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build the house, inside and out.
View the Tudor House file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
