Tennessee Layered Map / Laser-cut design
Tennessee. Seven layers.
SVG, DXF, AI and CDR files for seven-layer Tennessee artwork. An arched bridge, city buildings and trees run across the long state outline.
Digital design · SVG + DXF + AI + CDR
No physical model or materials are shipped.
01 /The design
A bridge through the long Tennessee shape.

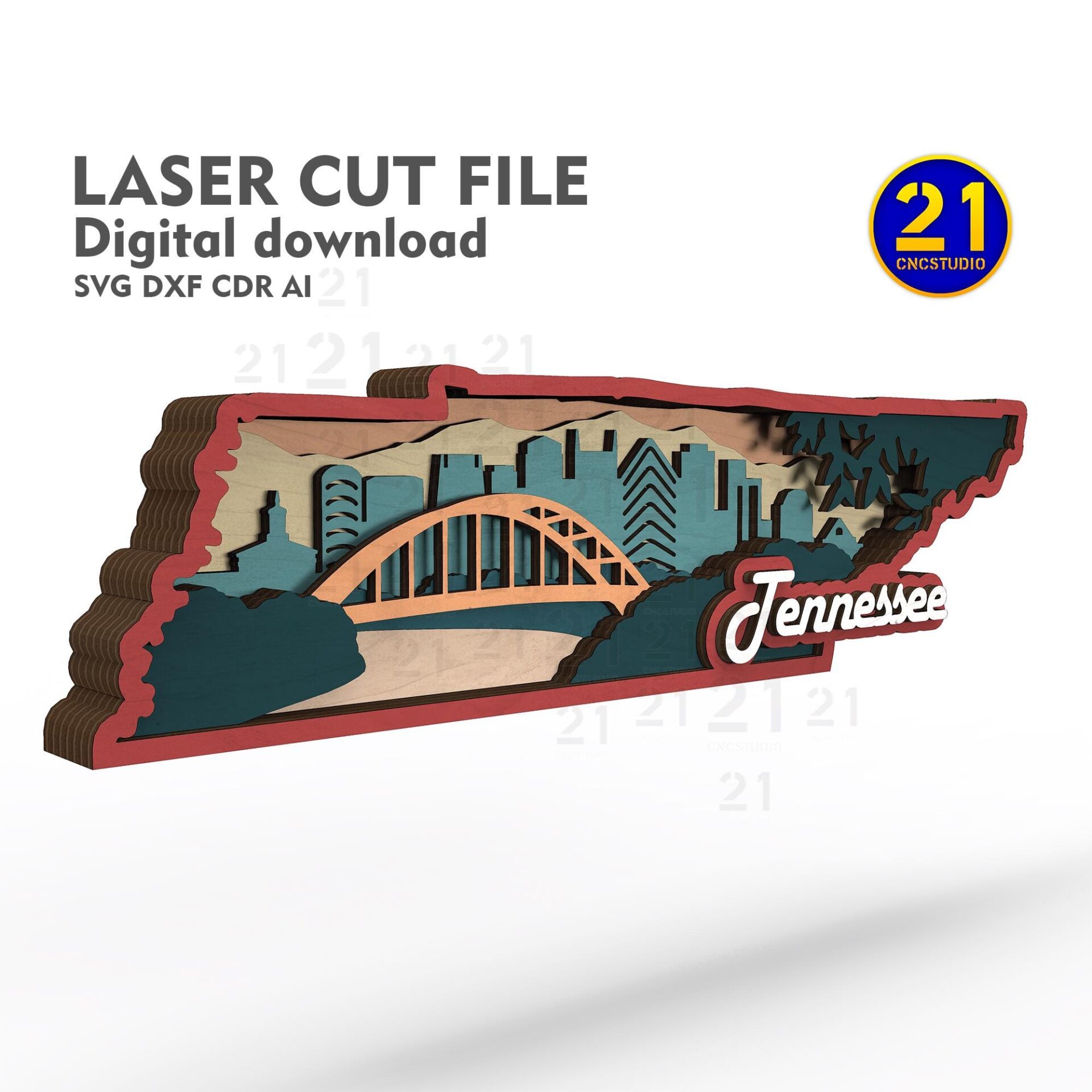

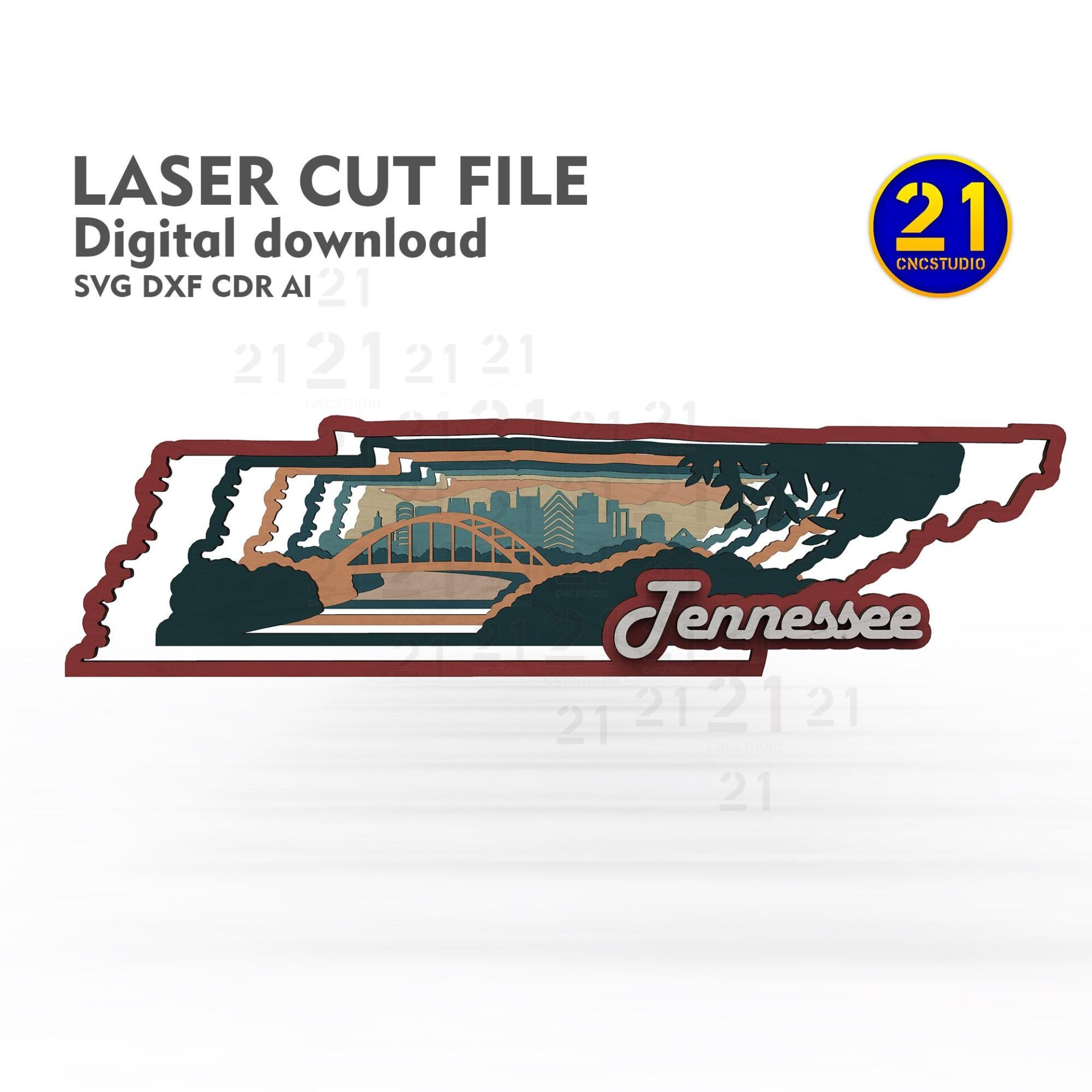

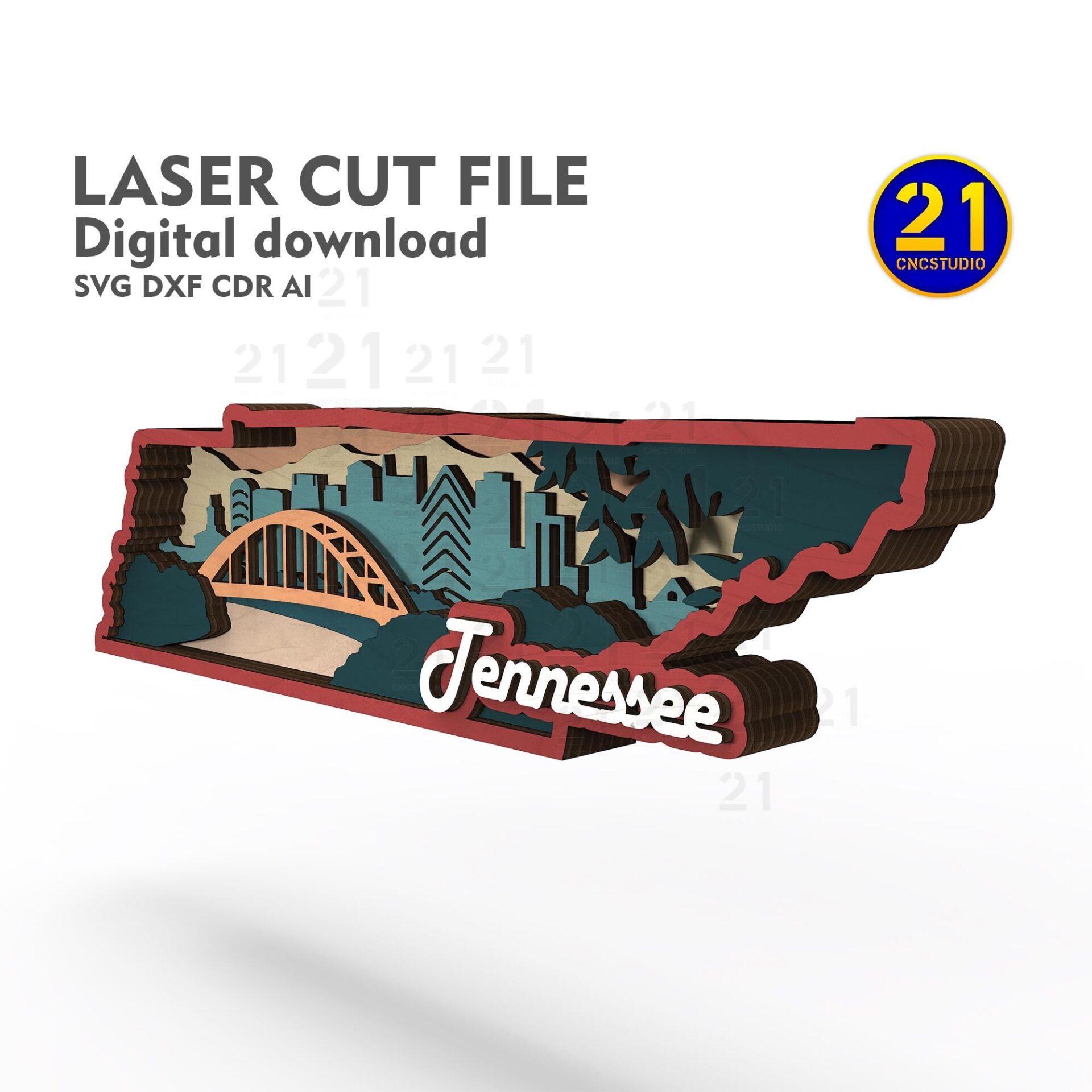

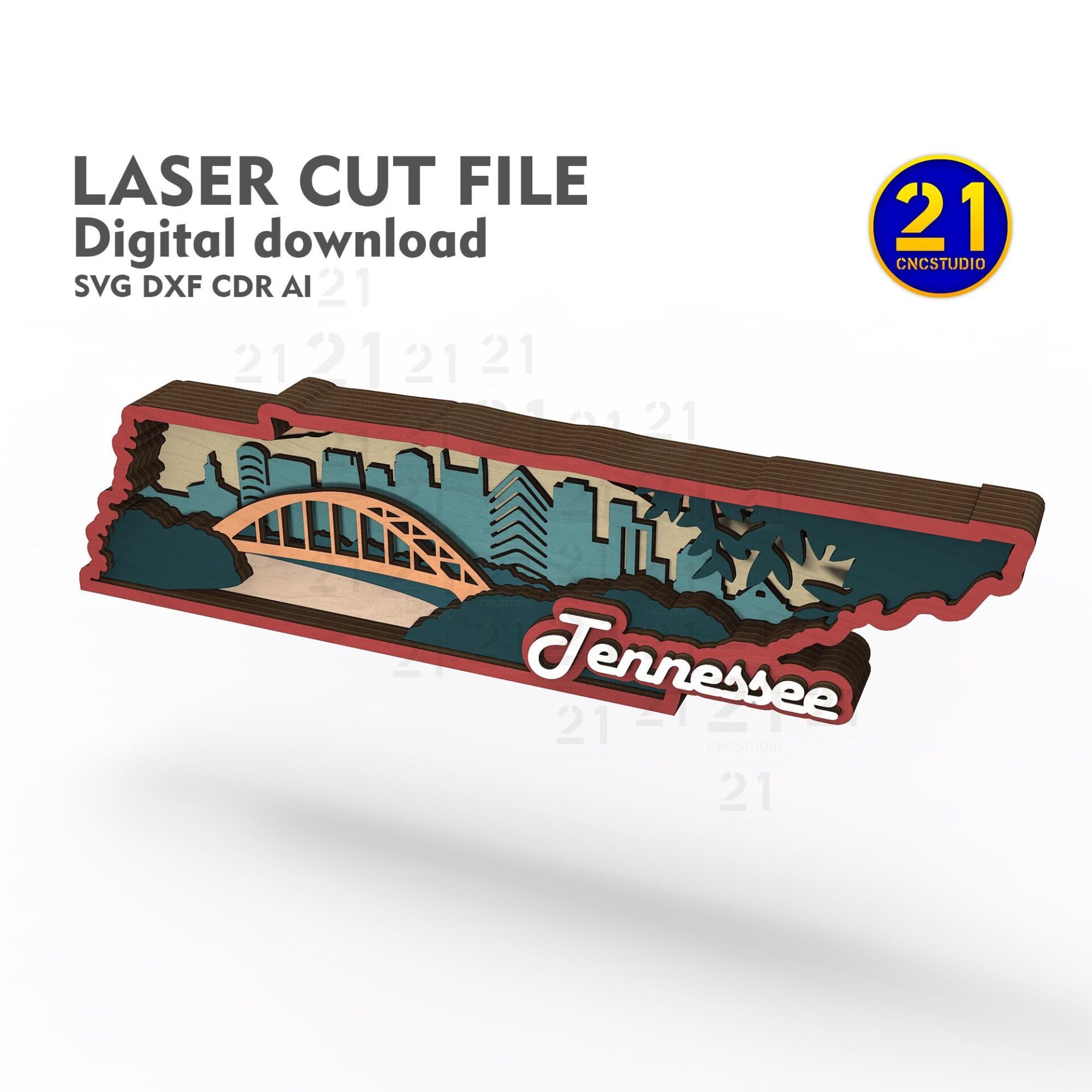

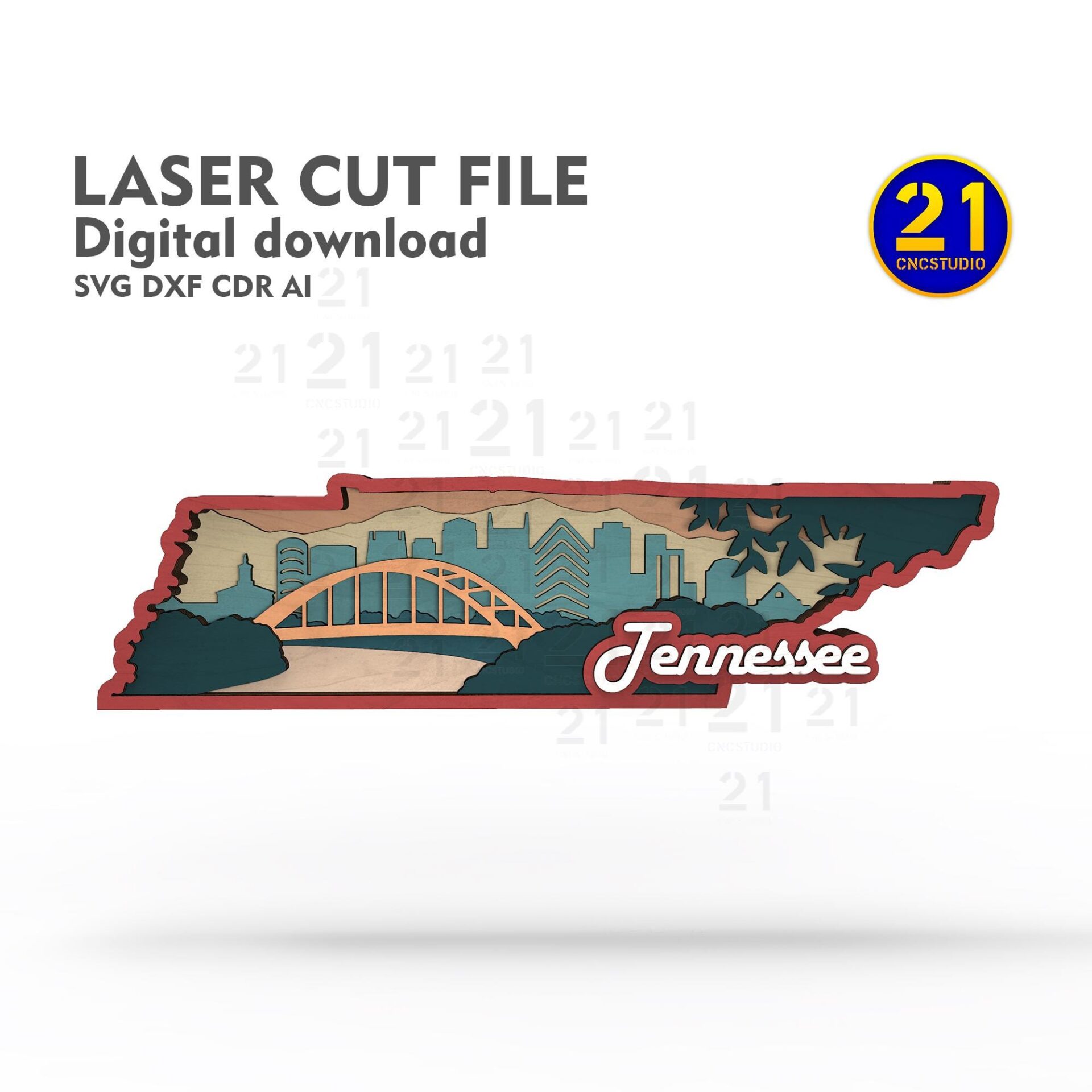

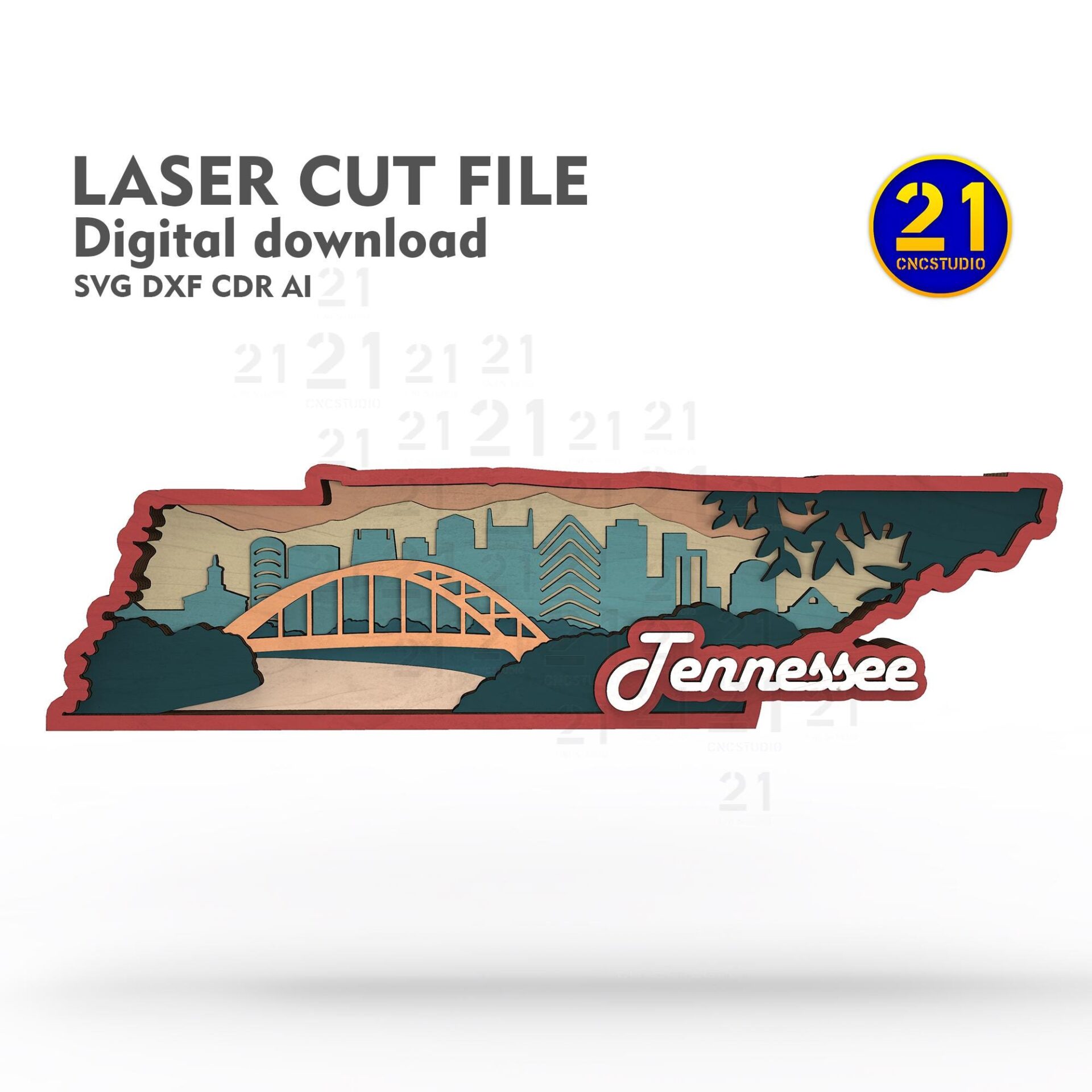

The arched bridge leads across the foreground, with buildings and trees behind it. Tennessee lettering sits over the lower-right part of the scene. A customer photograph shows a completed version in orange, green and pale wood.
The design uses seven layers at a recommended size of 260 × 70 mm. Keep the long, narrow shapes at a common scale throughout preparation and cutting.
Seven layers

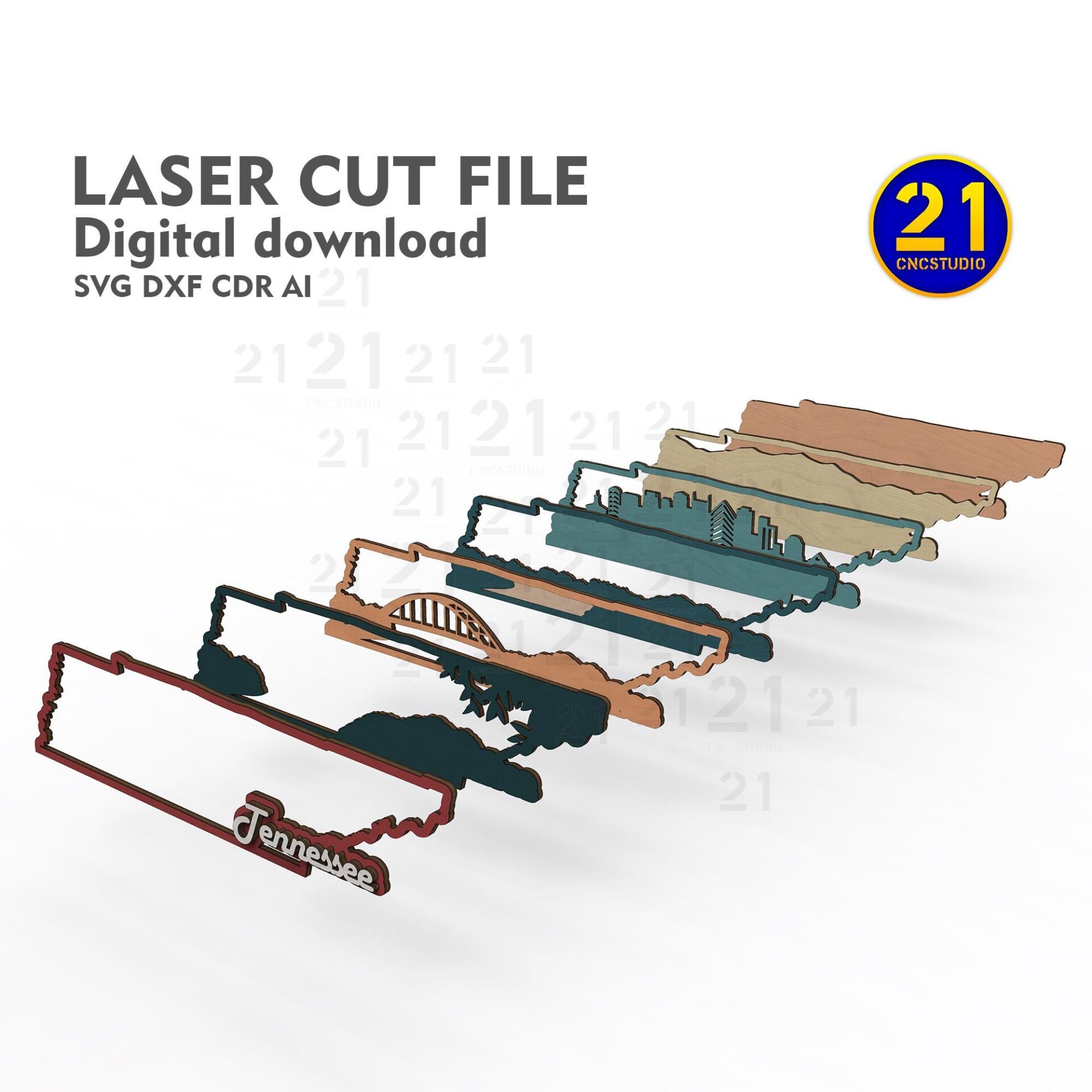

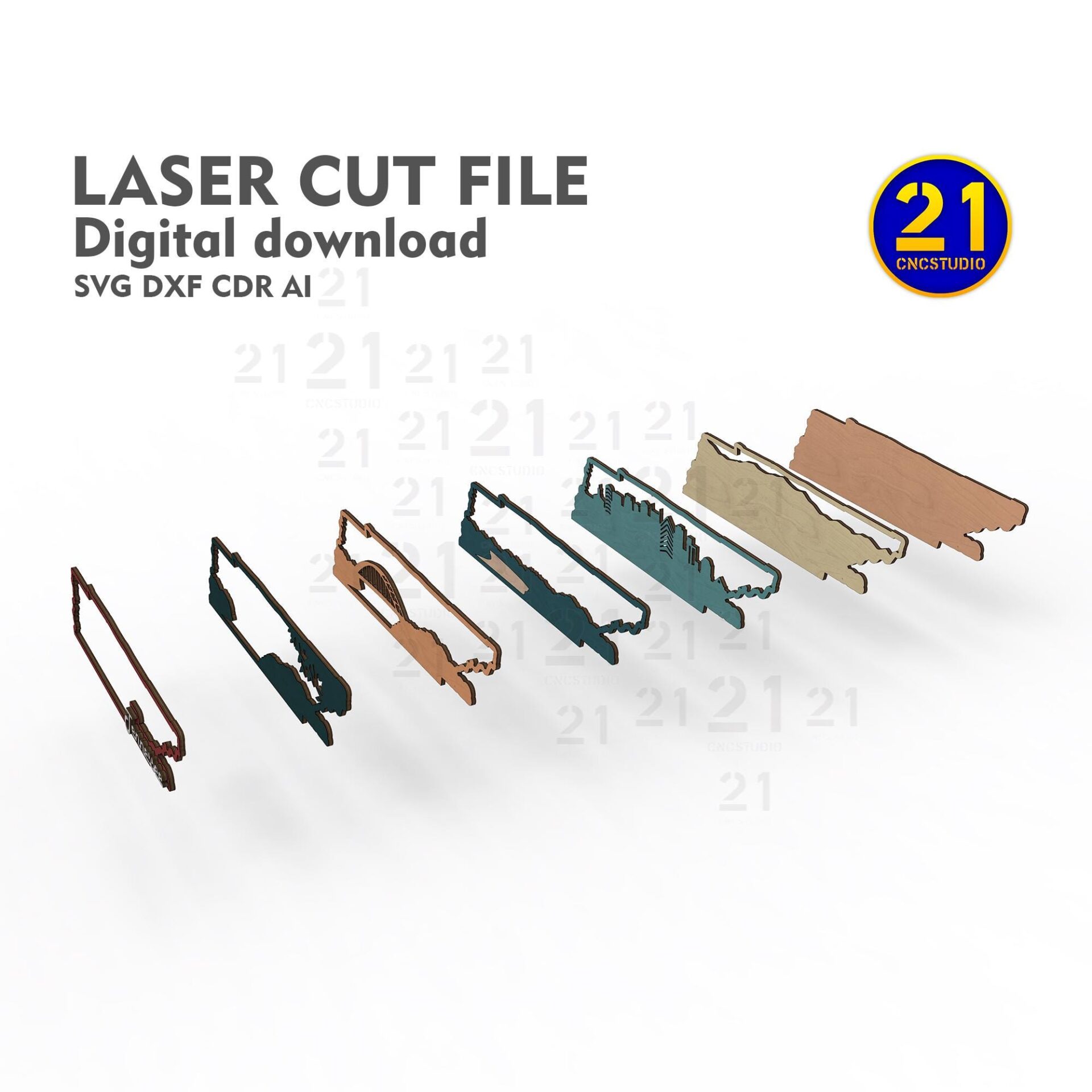

Stack the matching shapes to build the city and landscape.
A long state outline
The Tennessee silhouette defines the proportions of the artwork.
Customer finish
The physical build shows an alternative to the preview’s colour choices.
A real build
Made from the files.
A physical build, with the maker’s choice of materials and finish.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Pay attention to the narrow skyline, tree and bridge connections. Test a small detailed section at your chosen size, then dry-stack the seven layers to check their alignment.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Seven-layer Tennessee artwork
- Vector formats
- SVG, DXF, AI, CDR
- Recommended size
- 260 × 70 mm
What size is recommended for the Tennessee artwork?
The design lists 260 × 70 mm. Resizing changes the finished dimensions and small connections, so keep all seven layers at one scale and test before cutting the whole set.
What do I receive?
SVG, DXF, AI and CDR files for the seven-layer Tennessee artwork. An assembly guide is not confirmed. No physical wall art or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build your Tennessee scene.
View the Tennessee Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
