Santa Sleigh / Laser-cut design
Santa’s sleigh. Sixteen pieces.
SVG and DXF files for a small Santa sleigh made from 16 pieces. Cut the A4 layout and build the curled runners, seat and ornamental sides with the PDF assembly guide.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
Snowflake sides on curled runners.

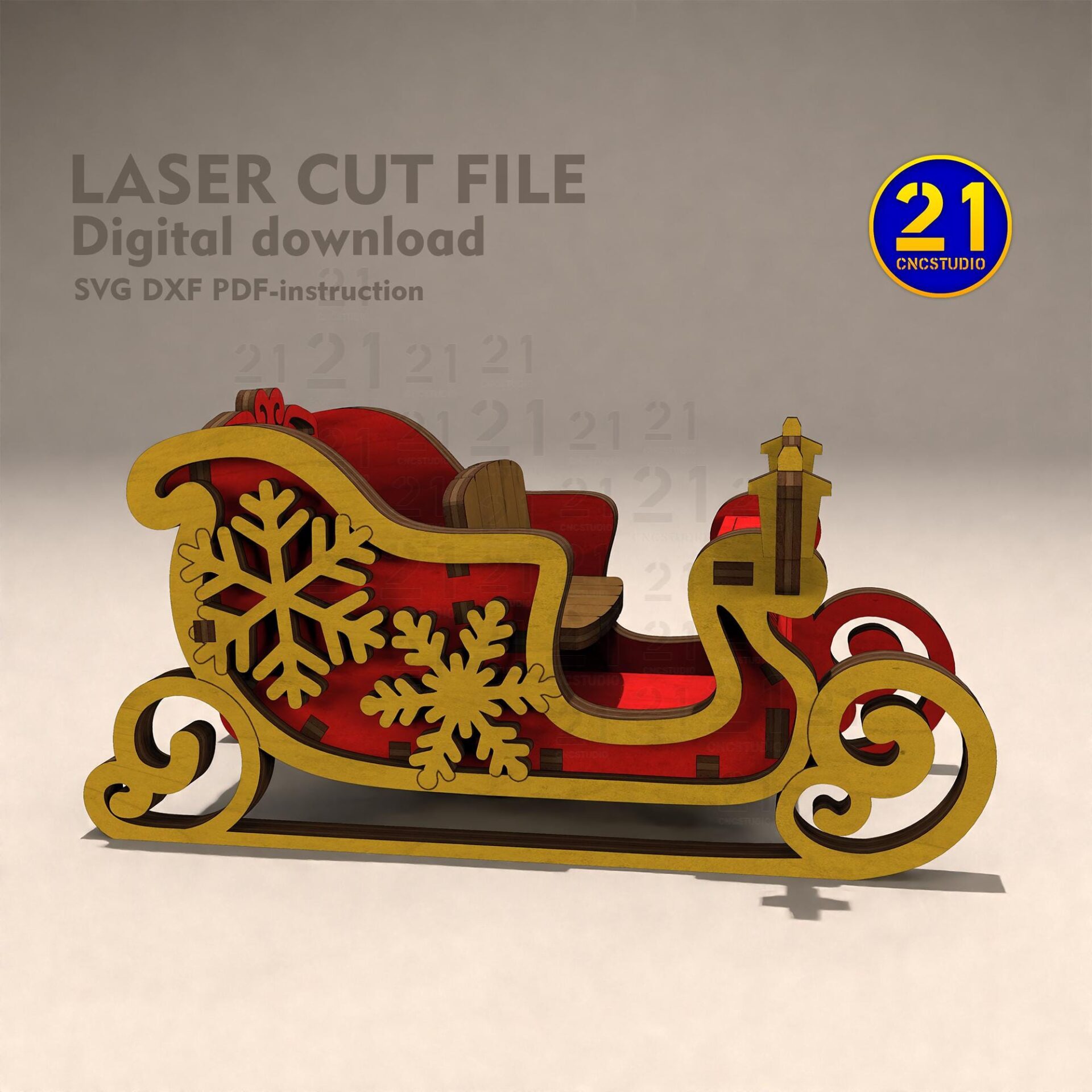

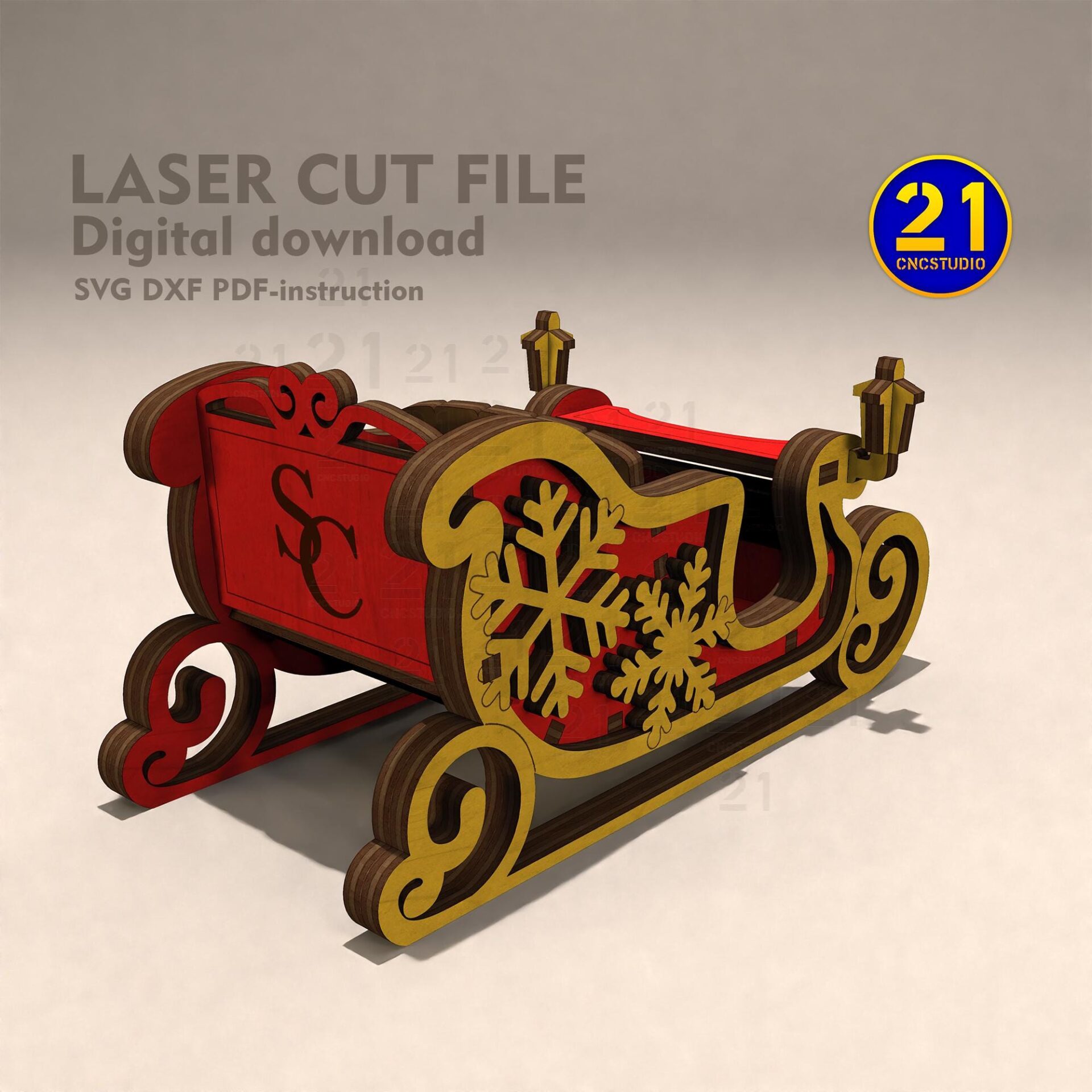

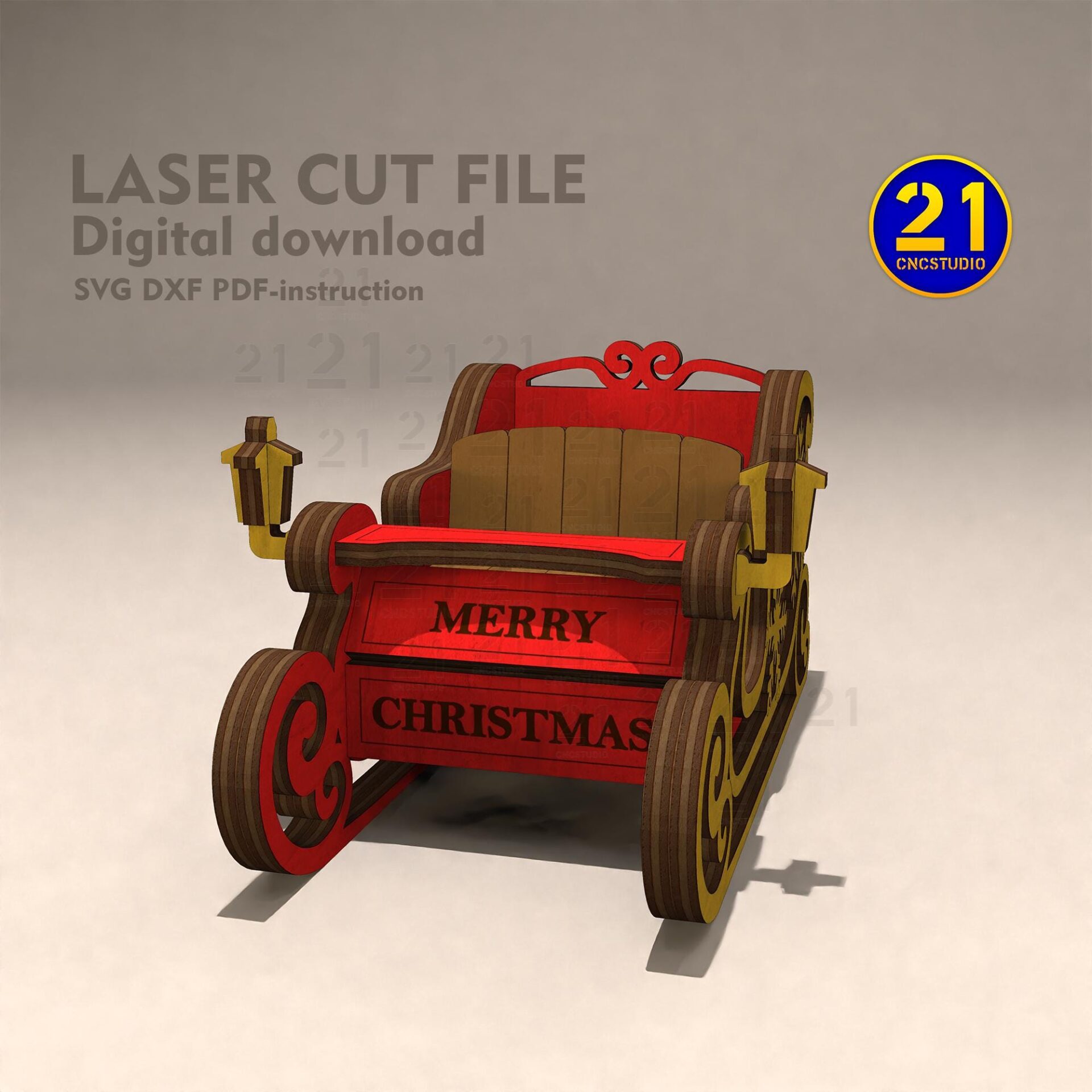

The ornamental side panels frame the sleigh seat, with curled runners below and Merry Christmas lettering at the front. Original renders show the rear, the seat from above and the parts separated.
With 3 mm material, the finished model measures 135 × 97 × 63 mm. Files for 3 mm and 1/8-inch plywood or MDF are included. The design assembles without glue when material thickness and kerf are correctly matched.
Sixteen pieces
Build a small model for a Christmas display.
A4 cutting layout
Check the layout against your usable work area before cutting.
Conditional glueless fit
Match the material and kerf, then test the connections.
Views & details
A closer look.
Original design renders from different angles. Select an image for a larger view.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Measure the actual material and test the fitted joints before cutting the full A4 layout. The glueless fit depends on thickness and kerf; follow the PDF and dry-fit the seat, sides and runners before finishing.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Parts
- 16
- Design files
- SVG + DXF
- Assembly guide
- PDF included
- Material versions
- 3 mm / 1/8 inch plywood or MDF
- Finished size at 3 mm
- 135 × 97 × 63 mm
- Cutting layout
- A4 sheet
- Fit
- Glueless assembly when material and kerf are correctly matched
Can the sleigh be assembled without glue?
The design is intended to assemble without glue when the material thickness and kerf are correctly matched. Make a fit test first; do not assume every nominal 3 mm sheet will produce the same connection.
What do I receive?
SVG and DXF cutting designs with PDF assembly instructions, prepared for 3 mm and 1/8-inch plywood or MDF. No physical sleigh, figures, material or hardware is supplied.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build a sleigh for Christmas.
View the Santa Sleigh file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
