Fort Knox Piggy Bank / Laser-cut design

Fort Knox. A little bank.

A miniature building with a coin-bank purpose. Make the Fort Knox-style piggy bank from SVG and DXF files, guided by the included assembly PDF.

Get the filesExplore the model

Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.

Three-quarter visualization of a Fort Knox-style wooden piggy bank with two stepped building levels and rows of windows
AI-assisted model visualization based on 21CNCStudio design renders.

01 /The design

A small building for spare change.

Two stepped building levels, rows of windows and the Fort Knox entrance lettering give the piggy bank its architectural character. The gallery shows the rear, entrance detail and underside access panel.

At the 3 mm material scale, the finished bank is 200 mm wide, 200 mm long and 102 mm high. The package includes cutting files for 3 mm and 1/8-inch plywood and a PDF assembly guide.

Building-shaped bank

The design turns a miniature building into a piggy bank.

Details on every side

Window patterns and the stepped roof carry around the model.

Assembly PDF

Follow the supplied guide to identify the parts and construction sequence.

Views & details

Original design renders from different angles. Select an image for a larger view.

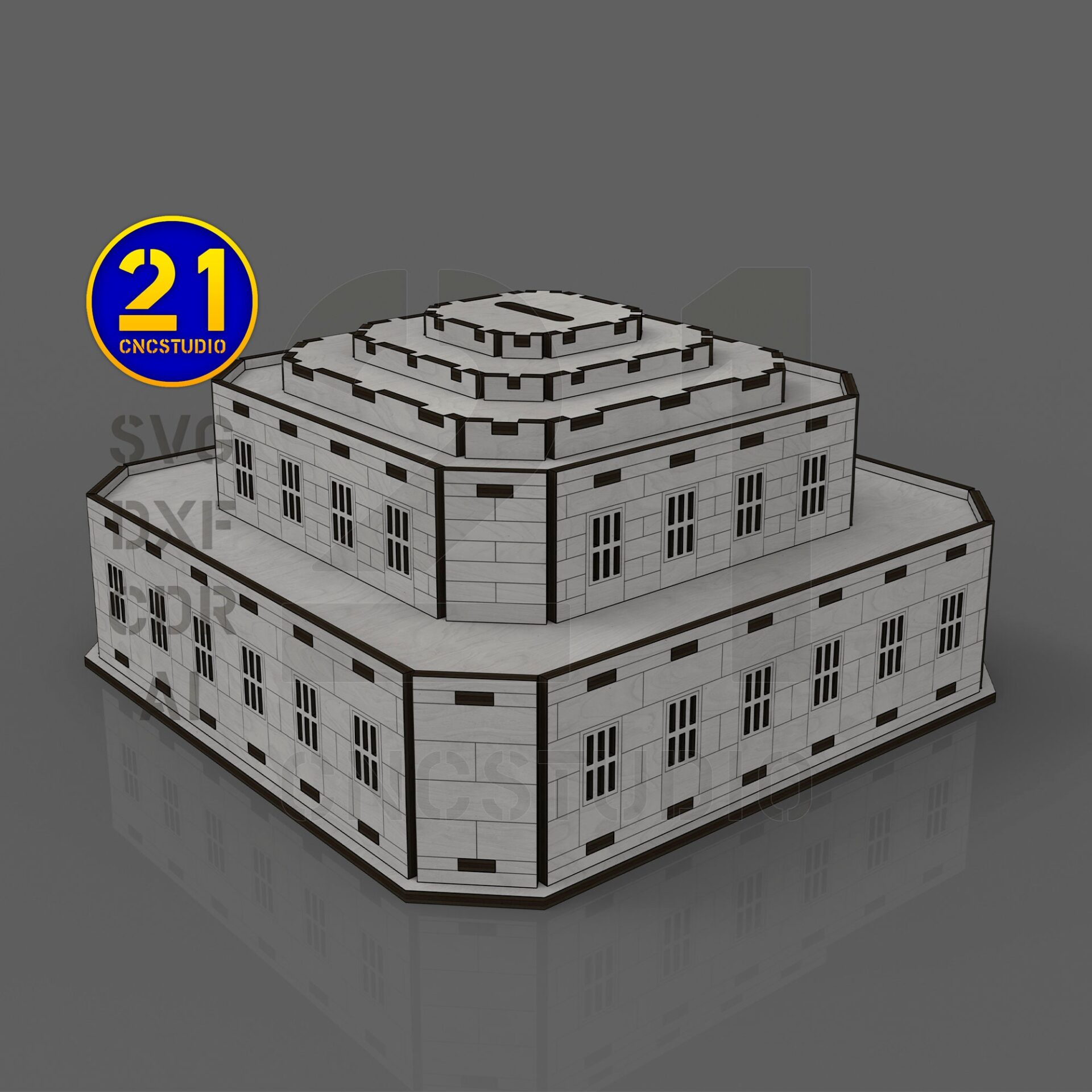

Rear three-quarter render of the Fort Knox-style piggy bank with two stepped building levels.
Original 21CNCStudio design render. Rear three-quarter render of the Fort Knox-style piggy bank with two stepped building levels.
Front detail render of the Fort Knox piggy bank entrance and window pattern.
Original 21CNCStudio design render. Front detail render of the Fort Knox piggy bank entrance and window pattern.
Underside render of the Fort Knox piggy bank showing the round access panel.
Original 21CNCStudio design render. Underside render of the Fort Knox piggy bank showing the round access panel.

02 /At your workbench

Choose your material.Make it fit.

01 /

Measure first.

Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.

02 /

Check the layout.

Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.

03 /

Follow the guide.

Use the PDF assembly guide to identify the parts and work through the construction sequence.

Plan this build.

Measure your plywood and use the matching version. Test the fitted connections and access panel before finishing the model, then follow the guide through assembly.

At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.

Before you start.

Design
Fort Knox-style piggy bank
Design files
SVG + DXF
Assembly guide
PDF included
Material versions
3 mm / 1/8 inch plywood
Finished size at 3 mm
200 × 200 × 102 mm (W × L × H)
Is this a working safe?

It is a wooden piggy-bank model styled after Fort Knox. It is not specified as a lockable safe or secure storage device.

What do I receive?

Digital SVG and DXF design files and a PDF assembly guide. No physical model, material or hardware is shipped.

Can I change the scale?

Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.

Can I use the design commercially?

Contact 21CNCStudio to discuss permission before commercial use. Do not redistribute the digital files without the author’s permission.

03 /From the studio to your workbench

Build your little bank.

View the Fort Knox Piggy Bank file package and its current terms on Etsy.

View files on EtsyDigital design files.
No physical model, material or hardware is shipped.
