RPG HP Counter / Laser-cut design
Keep count.
Keep hit points in view with a small tabletop counter. Laser-cut files for three rotating number rings and a choice of ten centre icons.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
Turn the rings. Keep playing.

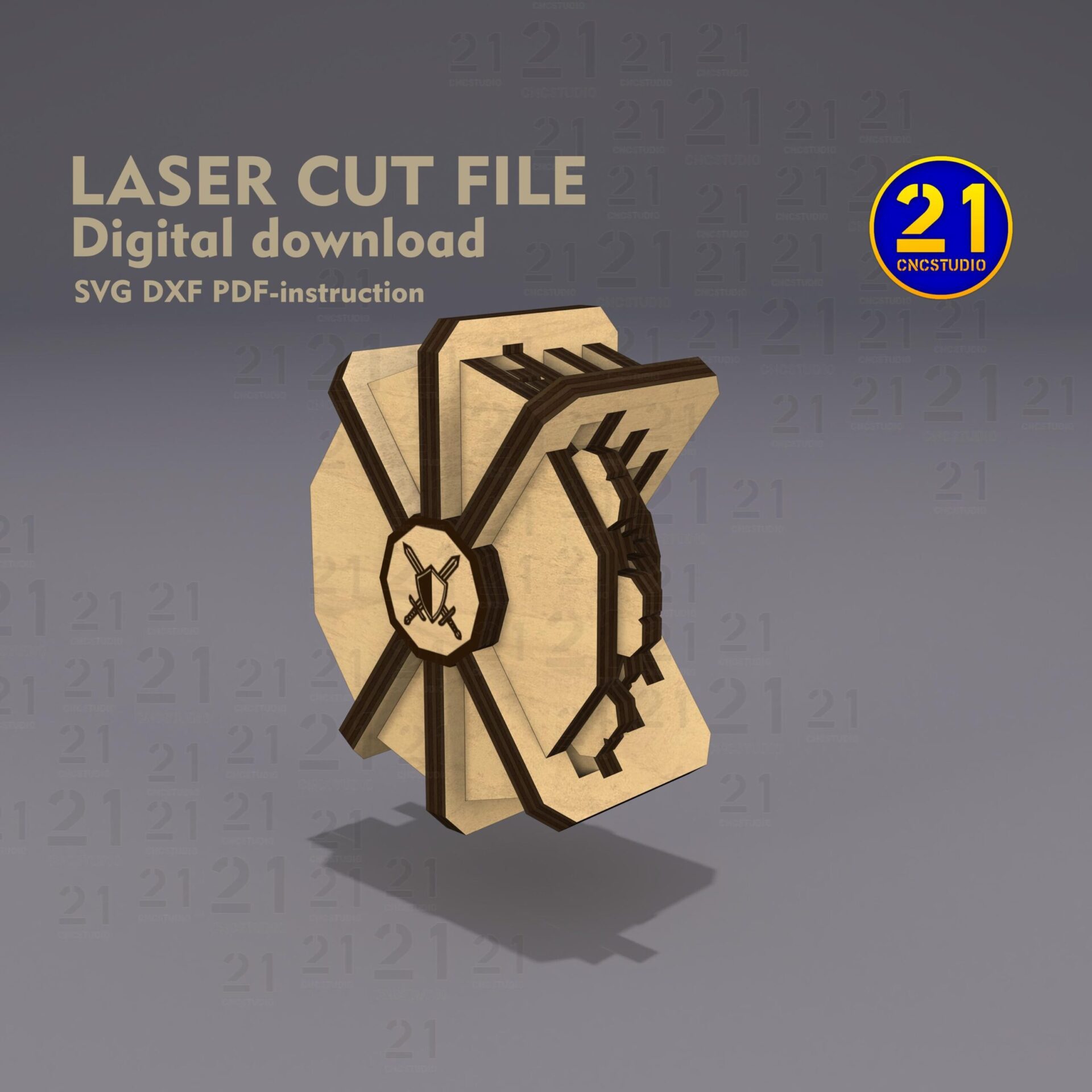

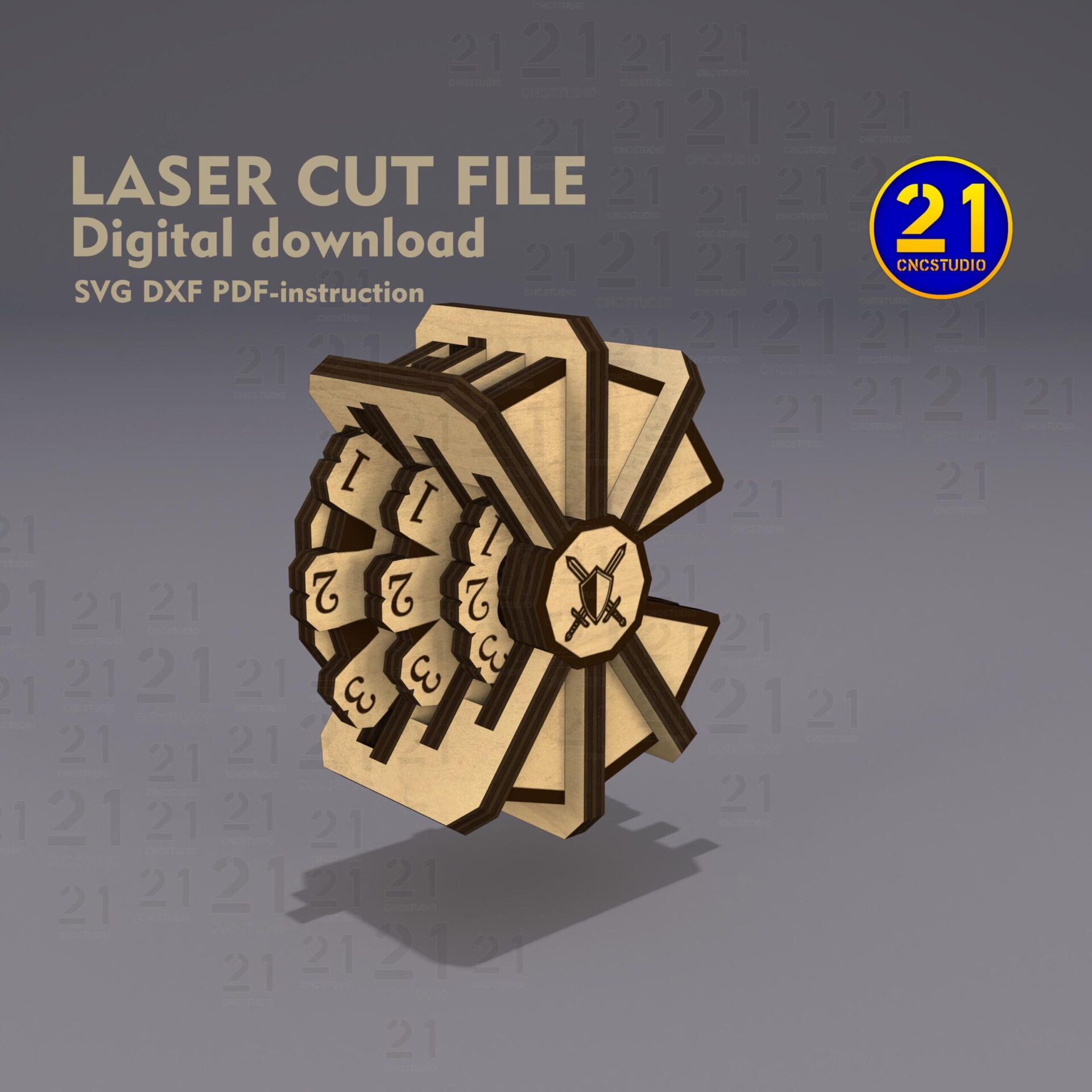

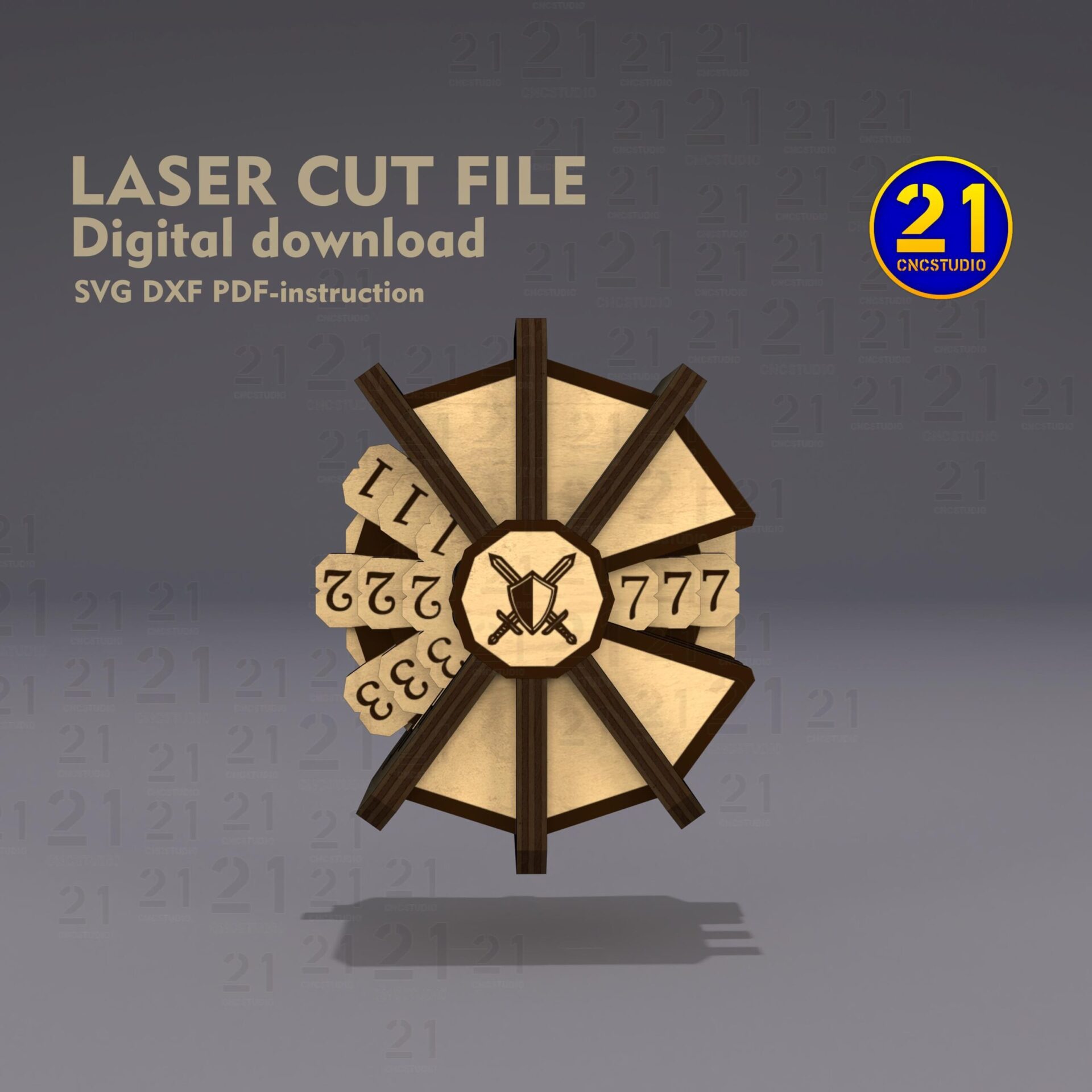

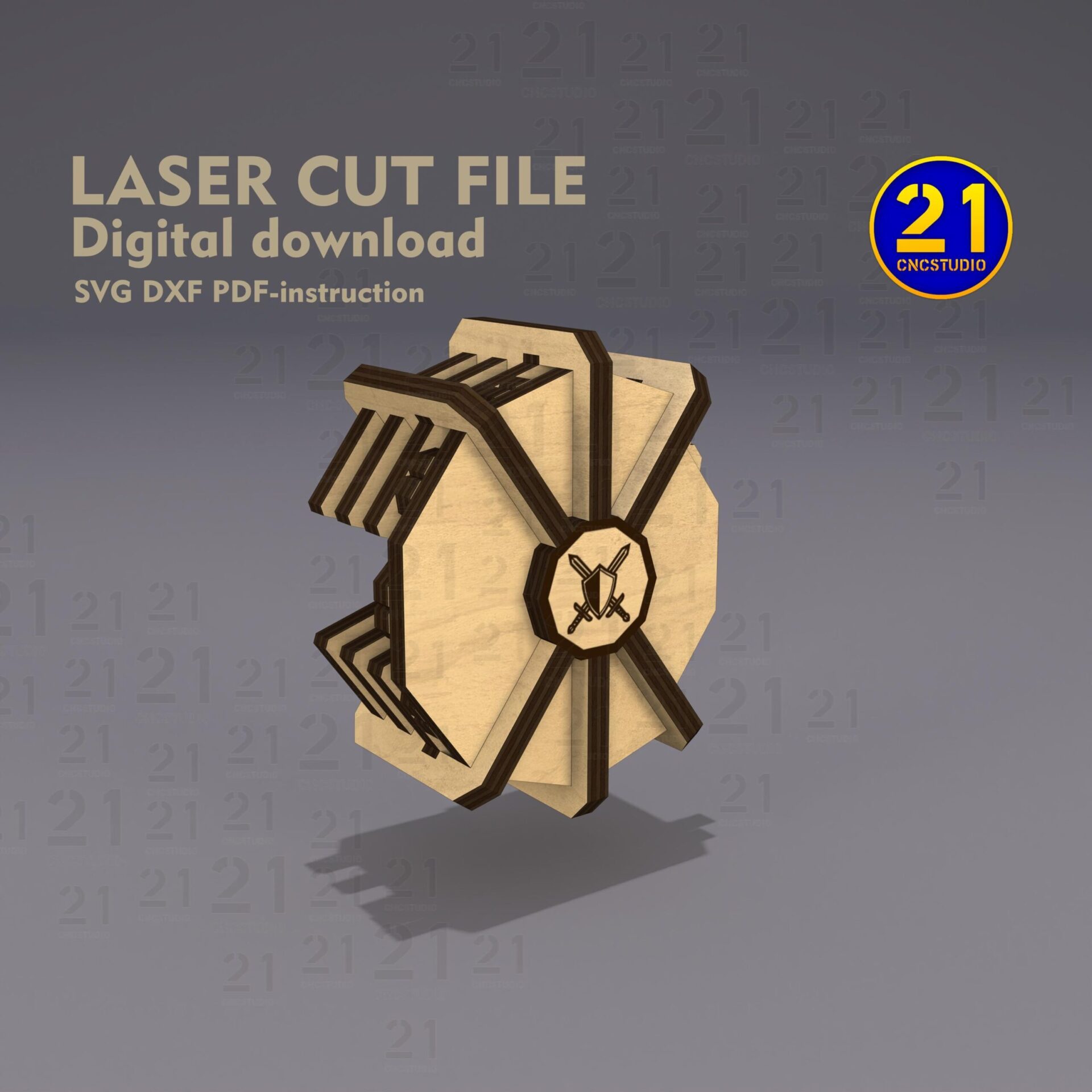

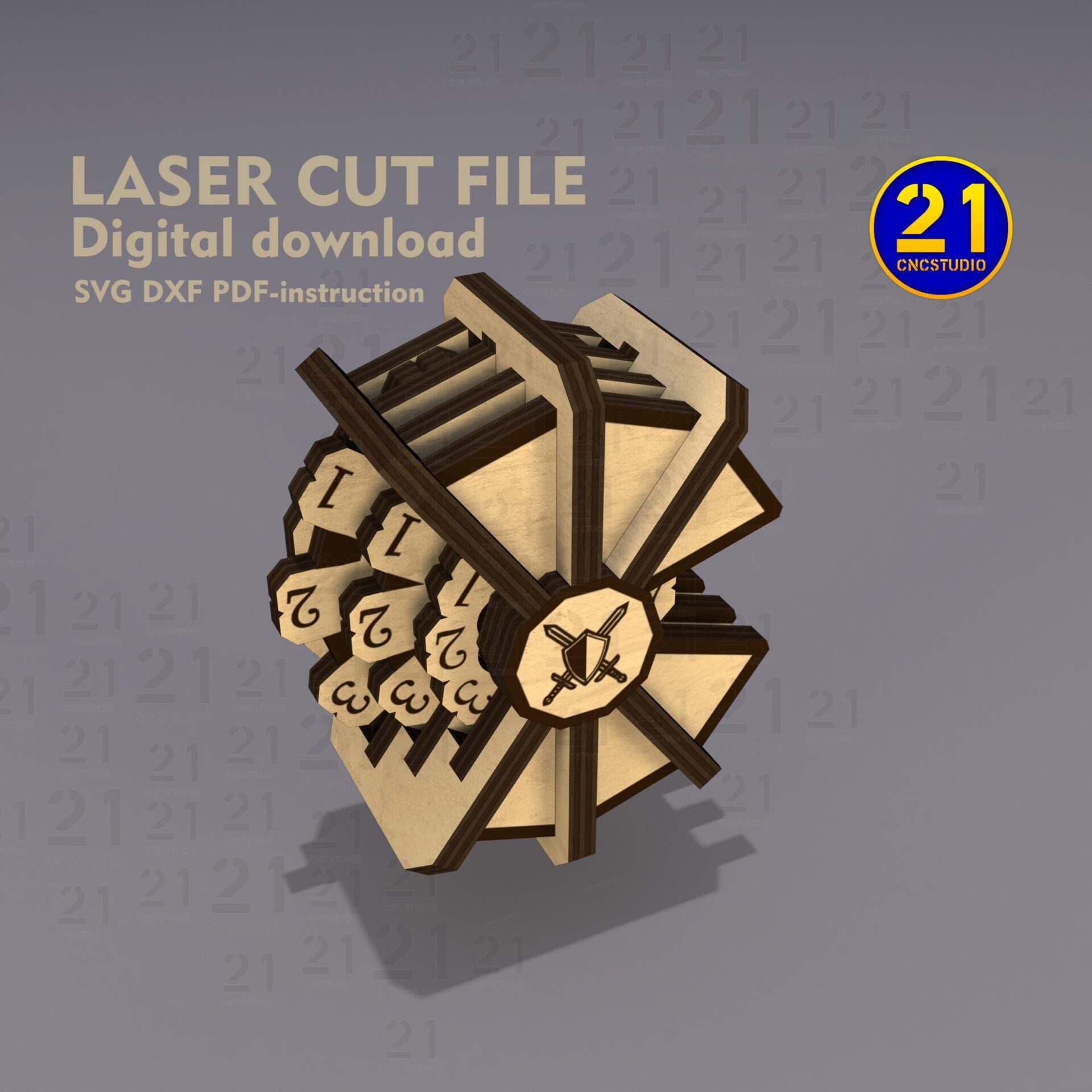

Three number rings sit around a central icon, keeping the current value on a small physical counter beside your game. Choose from ten centre designs to suit the character or table.
The listed finished size is 46 × 55 × 28 mm. Plywood, MDF and acrylic are listed materials; choose a material your laser supports and check the fit of the moving rings before finishing the assembly.
Three rings
Rotate the number rings as the value changes during a game.
10 icons
Choose the centre design when preparing your cut.
Tabletop sized
A compact 46 × 55 × 28 mm counter that sits alongside your gaming pieces.
A real build
Made from the files.
A physical build, with the maker’s choice of materials and finish.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Cut and test the ring fit in your chosen material before making a batch. Actual thickness, kerf and any finishing layers affect how freely the rings turn.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design files
- SVG + DXF
- Assembly guide
- PDF included
- Material
- Plywood, MDF or acrylic
- Designed material thicknesses
- 3 mm / 1/8 inch
- Listed finished size
- 46 × 55 × 28 mm
- Number rings
- Three rotating rings
- Centre designs
- 10 icons
Is this a set of finished counters?
No. You receive digital design files and a PDF assembly guide. Choose a centre icon, cut the parts in suitable material and assemble the counter yourself.
What do I receive?
Digital SVG and DXF design files and a PDF assembly guide. No physical model, material or hardware is shipped.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
For personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Make your HP counter.
View the RPG HP Counter file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
