Modular Space Station / Laser-cut design
A station. Your layout.
SVG and DXF files for a modular sci-fi space station for 28–32 mm miniatures. Build rooms, opening doors and interior equipment, then arrange the modules around your tabletop game.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
Arrange the rooms around your game.

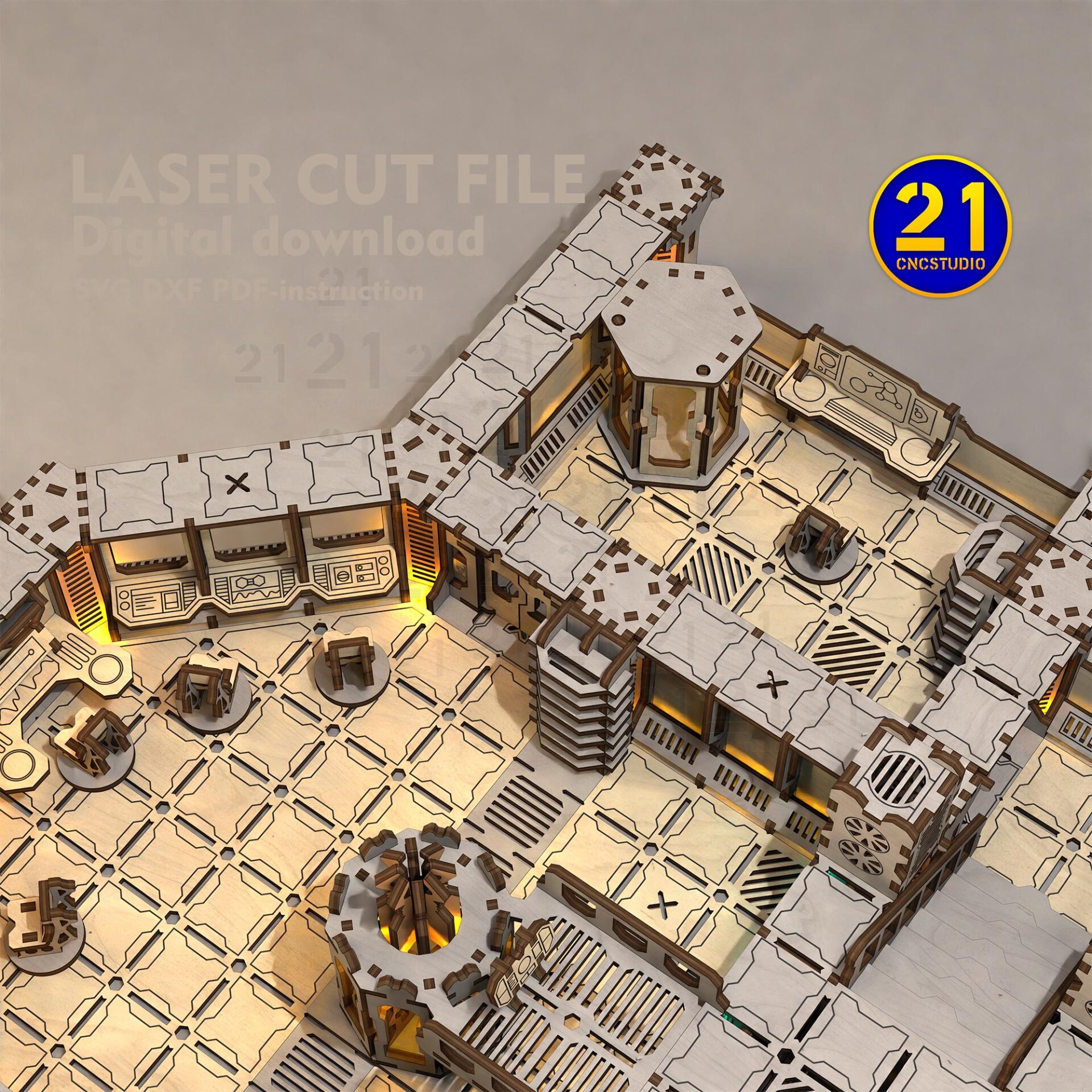

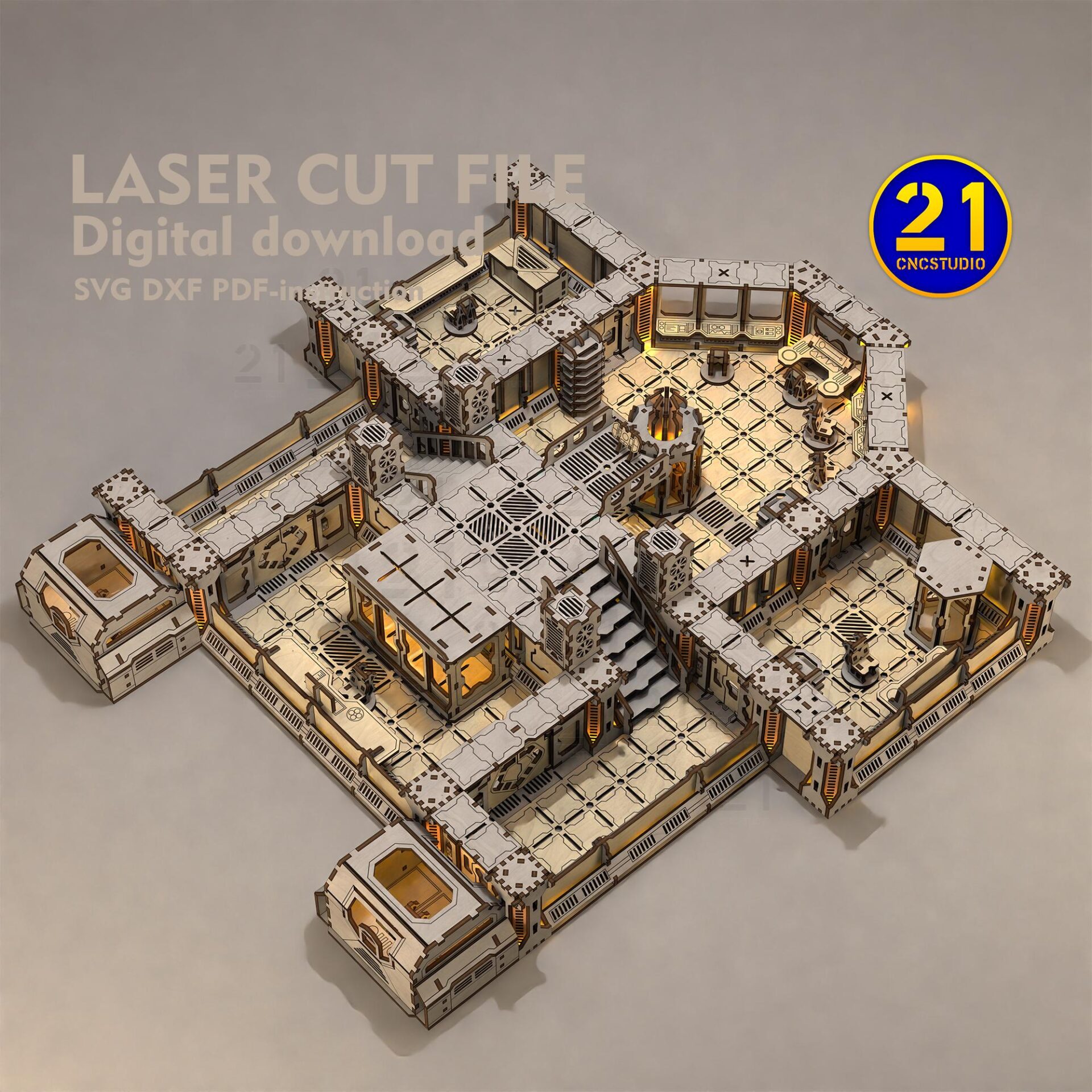

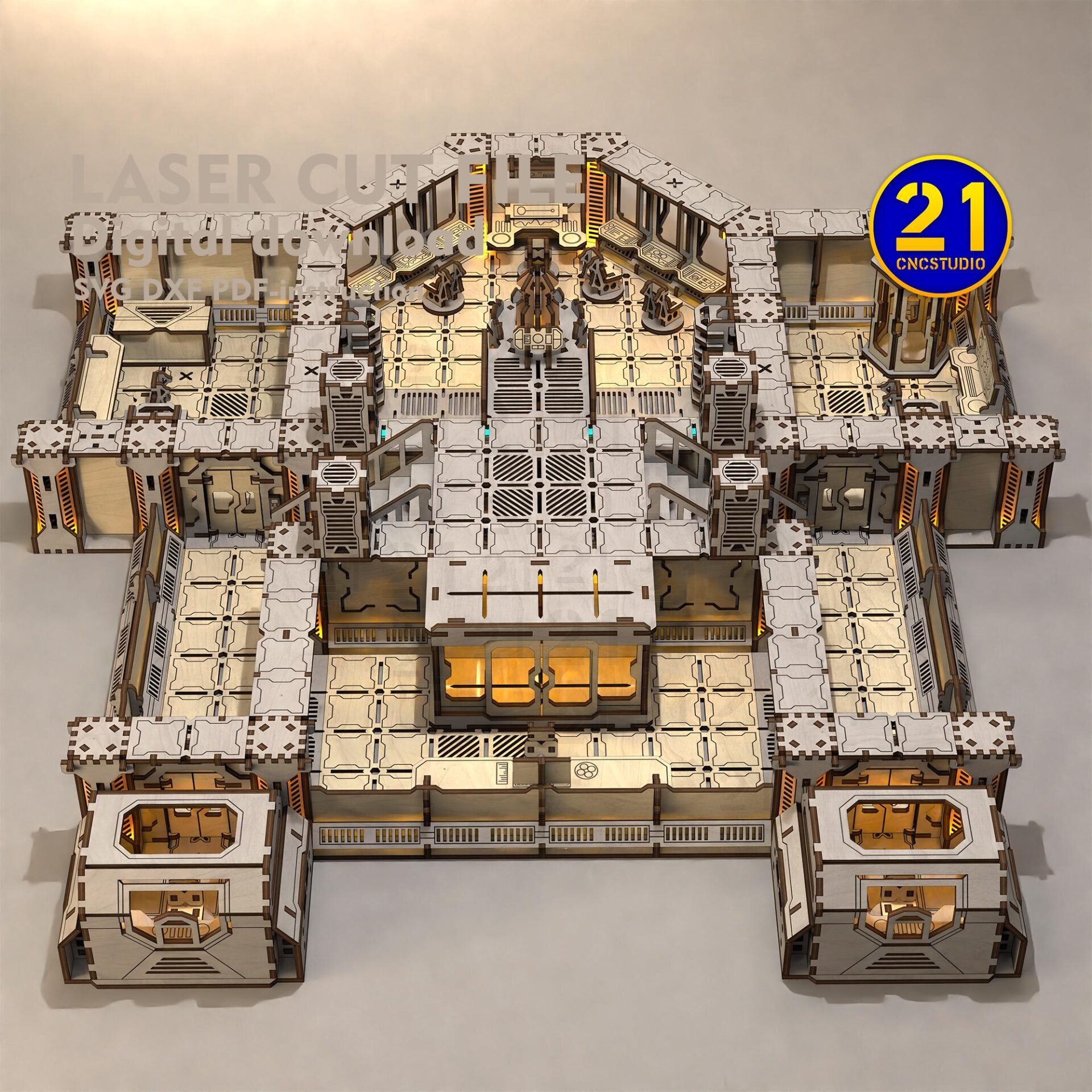

Walls, opening doors, stairs and floor tiles form the structure. Furniture, lab equipment, crates and a generator add detail within it. Rearrange or expand the modules to suit the scene you want to play.

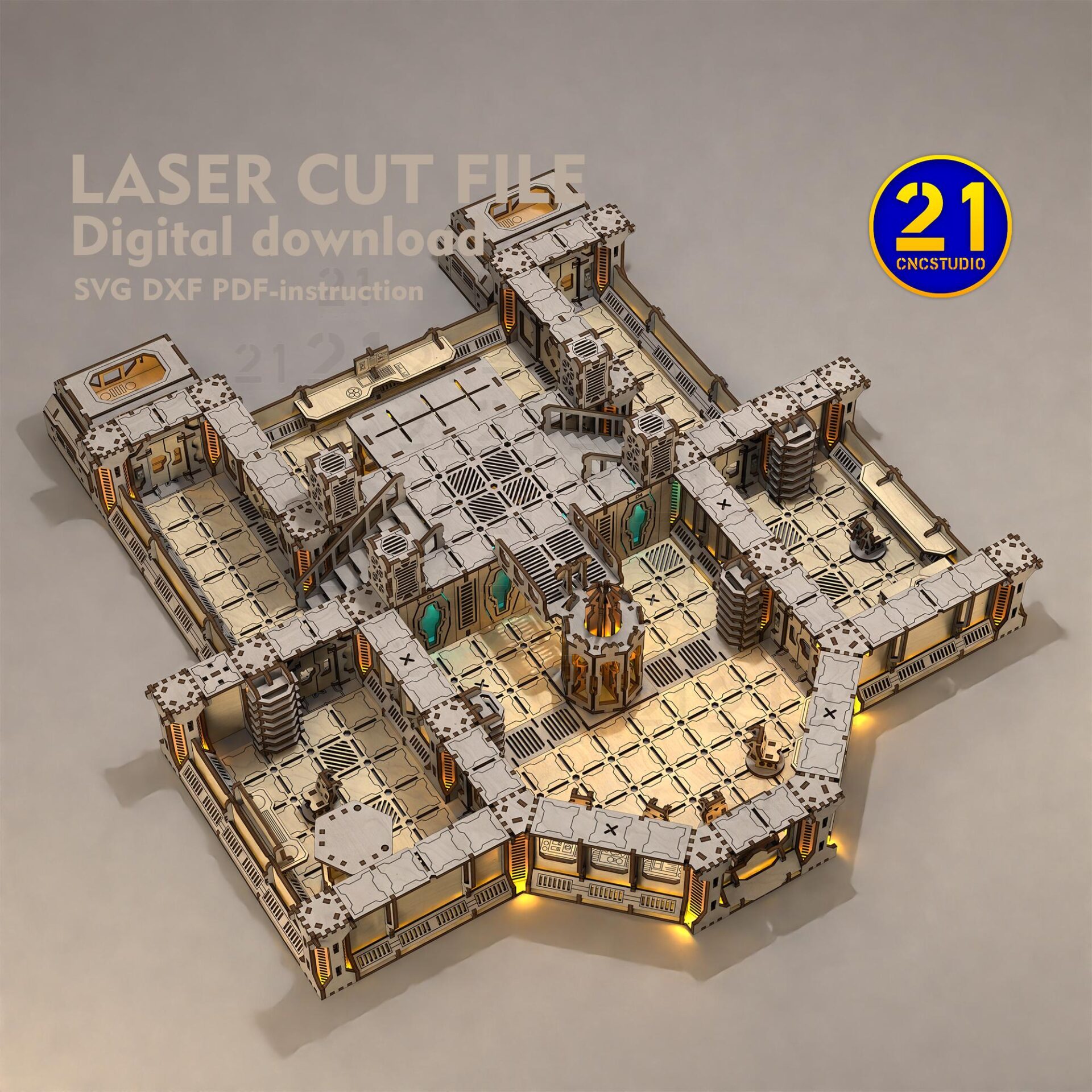

The example layout measures 591 × 546 mm, with a 27 × 27 mm floor grid and 70 mm walls. That footprint describes one arrangement, not a fixed size for every station you build.
Modular layout
Rearrange the sections to change rooms and routes through the station.
27 mm grid
The listed floor grid for 28–32 mm miniature setups.
Equipment included

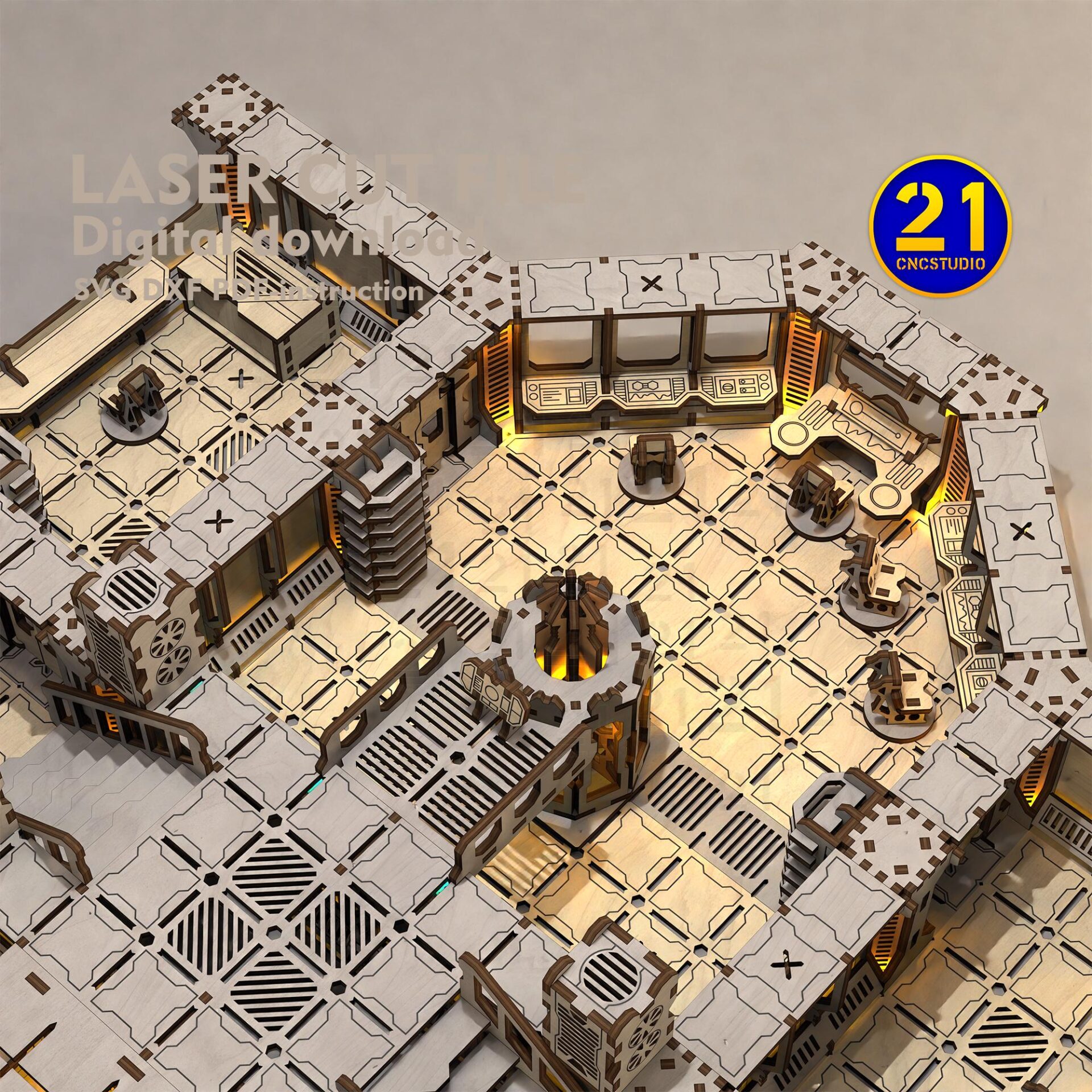

Build furniture, lab equipment, crates and a generator for the interior.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Plan the arrangement before cutting repeated modules. Check the floor-grid dimensions against the bases used in your own miniature collection.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design files
- SVG + DXF
- Assembly guide
- PDF included
- Material versions
- 3 mm / 1/8 inch plywood or MDF
- Miniatures
- 28–32 mm
- Example layout footprint
- 591 × 546 mm
- Floor grid
- 27 × 27 mm
- Wall height
- 70 mm
Does the station have to match the pictured layout?
No. The 591 × 546 mm footprint is an example arrangement. The modular design lets you expand or rearrange the sections for your own tabletop layout.
What do I receive?
Digital SVG and DXF design files and a PDF assembly guide. No physical model, material or hardware is shipped.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
For personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build your space station.
View the Modular Space Station file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
