Philadelphia Street Map / Laser-cut design
Philadelphia. Three frame shapes.
SVG, DXF and CDR files for a four-layer Philadelphia street map. Cut the road pattern and river within a round, square or hexagonal outline.
Digital design · SVG + DXF + CDR
No physical model or materials are shipped.
01 /The design
The river runs through the street pattern.

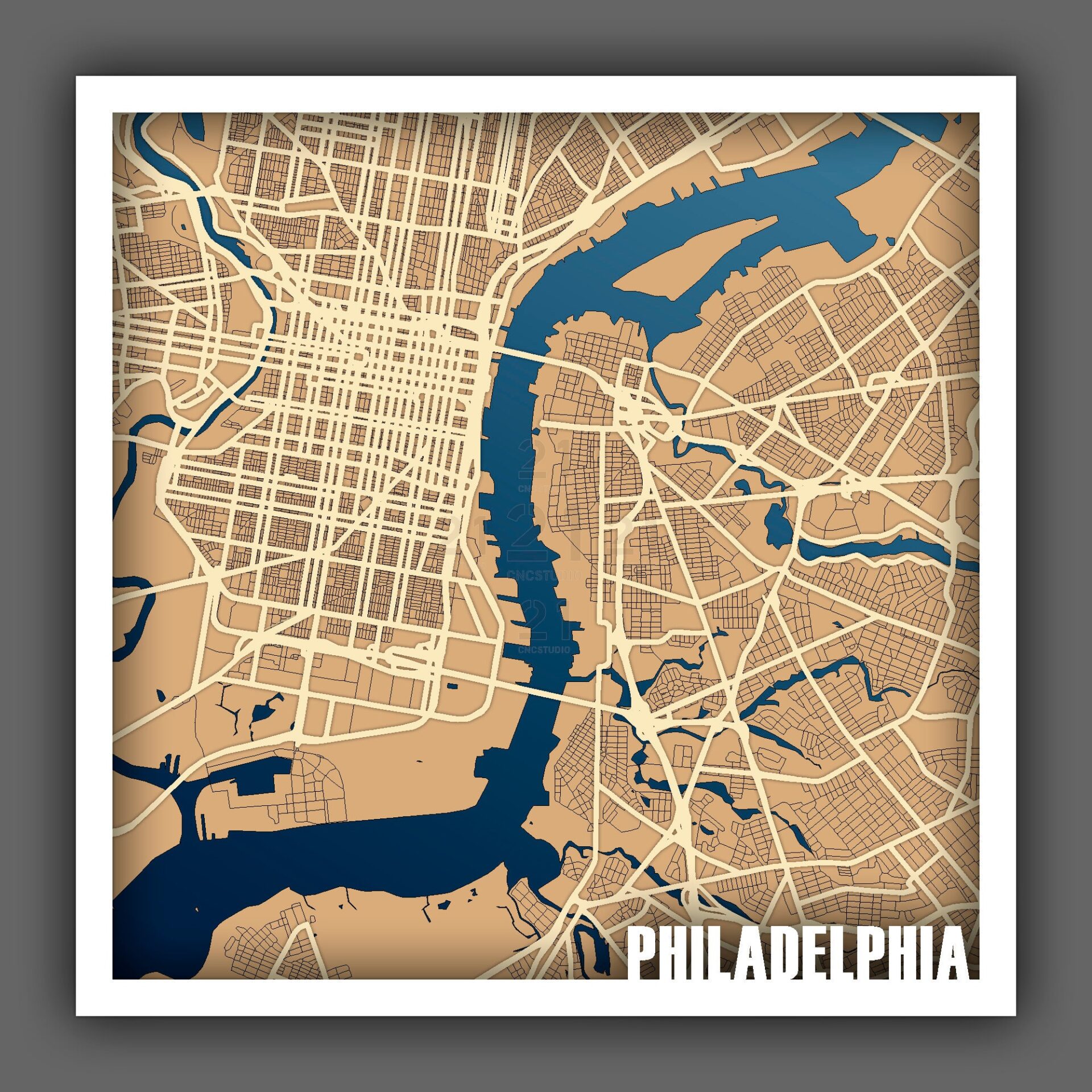

Blue water cuts through the dense road detail, with Philadelphia lettering along the map’s lower edge. The three frame shapes give you different outlines for the same city theme.
The digital package contains SVG, DXF and CDR files. Prepare the matching layers for your chosen frame together and keep their scale consistent.
Four-layer street map
The stacked shapes separate the map detail from its backing.

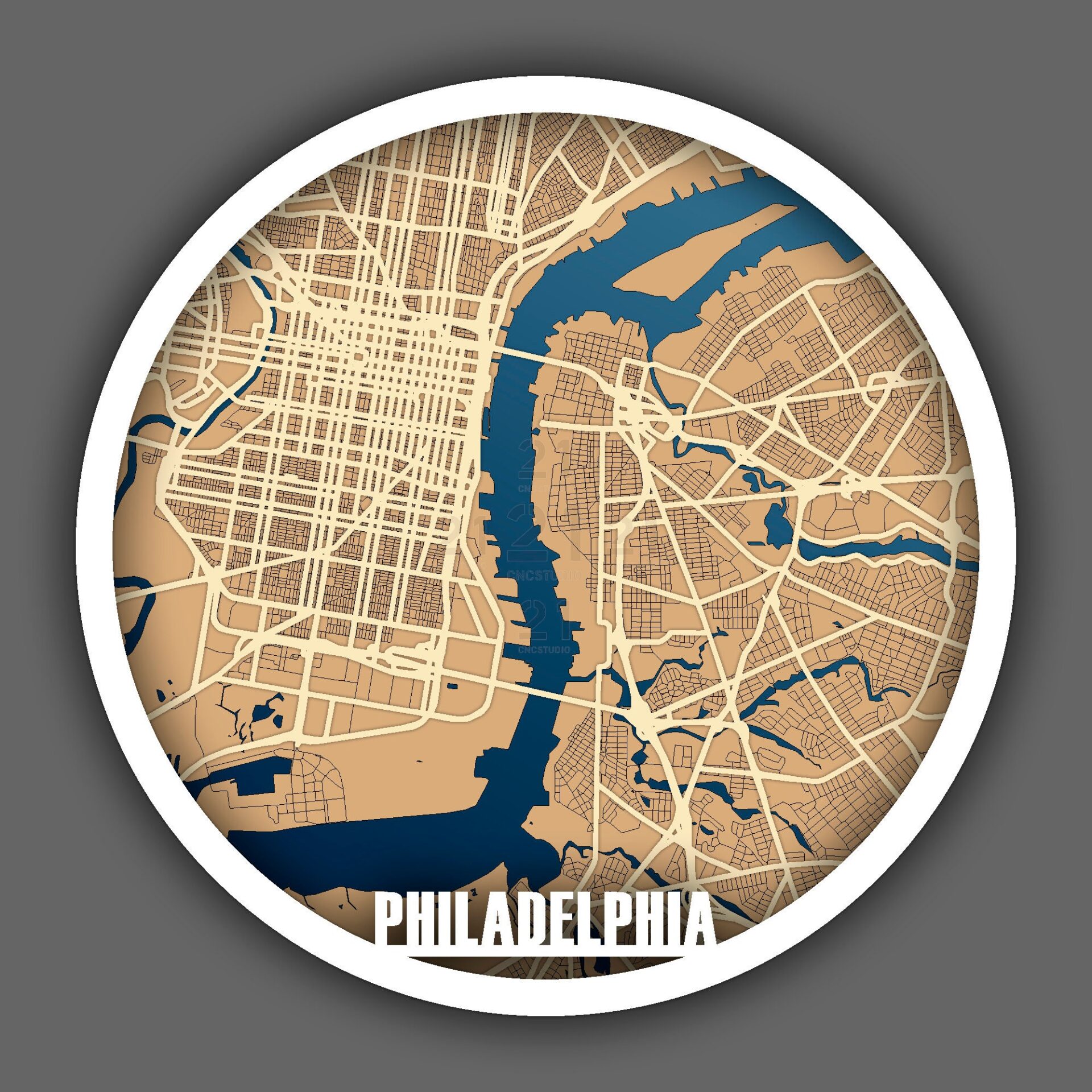

Round, square or hexagonal
Compare the three frame options in the preview.
Three vector formats
Use SVG, DXF or CDR in compatible preparation software.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Check the current dimensions and minimum-size guidance before setting up the cut. Test fine street details at your intended scale and dry-stack the four layers before fixing the map together.
Before you start.
- Design
- Four-layer Philadelphia street map
- Vector formats
- SVG, DXF, CDR
- Frame options
- Round, square or hexagonal
Is this a skyline design or a street map?
This artwork uses road and water detail in four layers. Choose one of the three frame shapes, then keep its layers together throughout preparation and cutting.
What do I receive?
SVG, DXF and CDR files for the four-layer Philadelphia street map with three frame options. An assembly guide is not confirmed. No physical map or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
Contact 21CNCStudio to discuss permission before commercial use. Do not redistribute the digital files without the author’s permission.
03 /From the studio to your workbench
Make your Philadelphia map.
View the Philadelphia Street Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
