Pennsylvania Layered Map / Laser-cut design
Pennsylvania. Six layers.

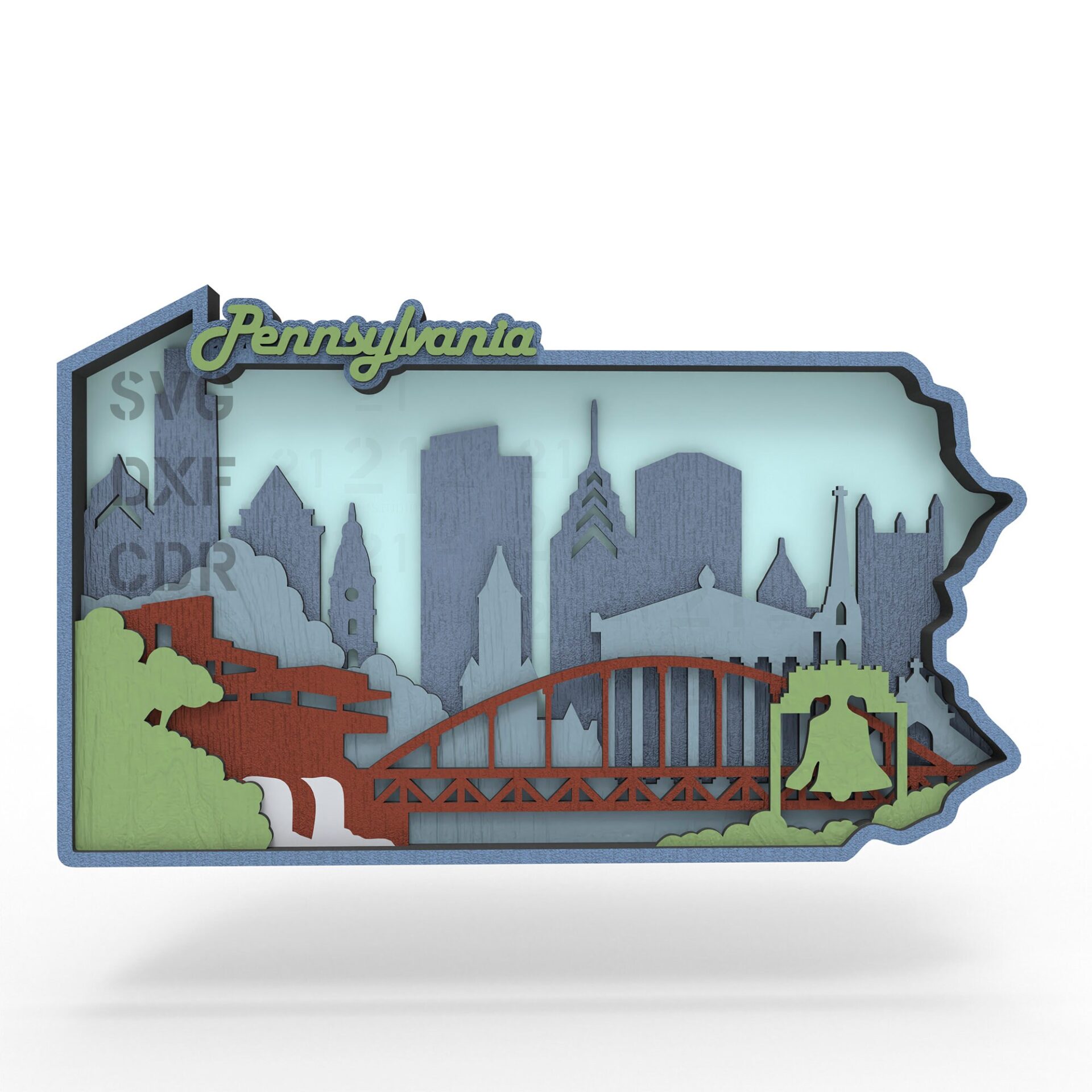

A red bridge below a city skyline, framed by the Pennsylvania outline. Six layers separate the foreground, buildings and backdrop.
Digital design · SVG + DXF + AI + CDR + EPS
No physical model or materials are shipped.
01 /The design
A bridge beneath the skyline.

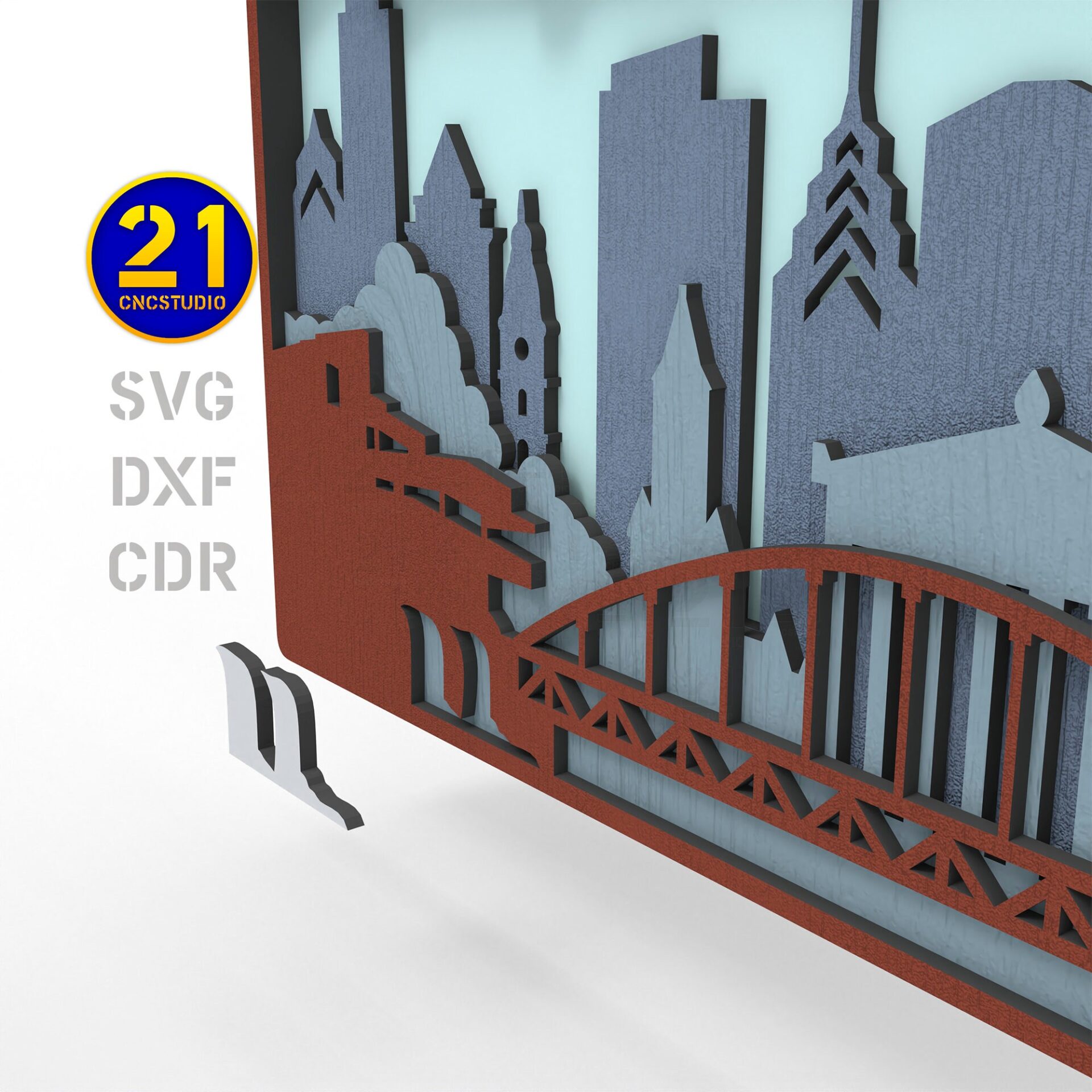

The bridge runs across the lower part of the artwork, with tall buildings behind it and trees near the edge. Pennsylvania lettering follows the upper-left border.
The recommended minimum size is 260 × 155 mm, using 3 mm plywood. SVG, DXF, AI, CDR and EPS design files are included.

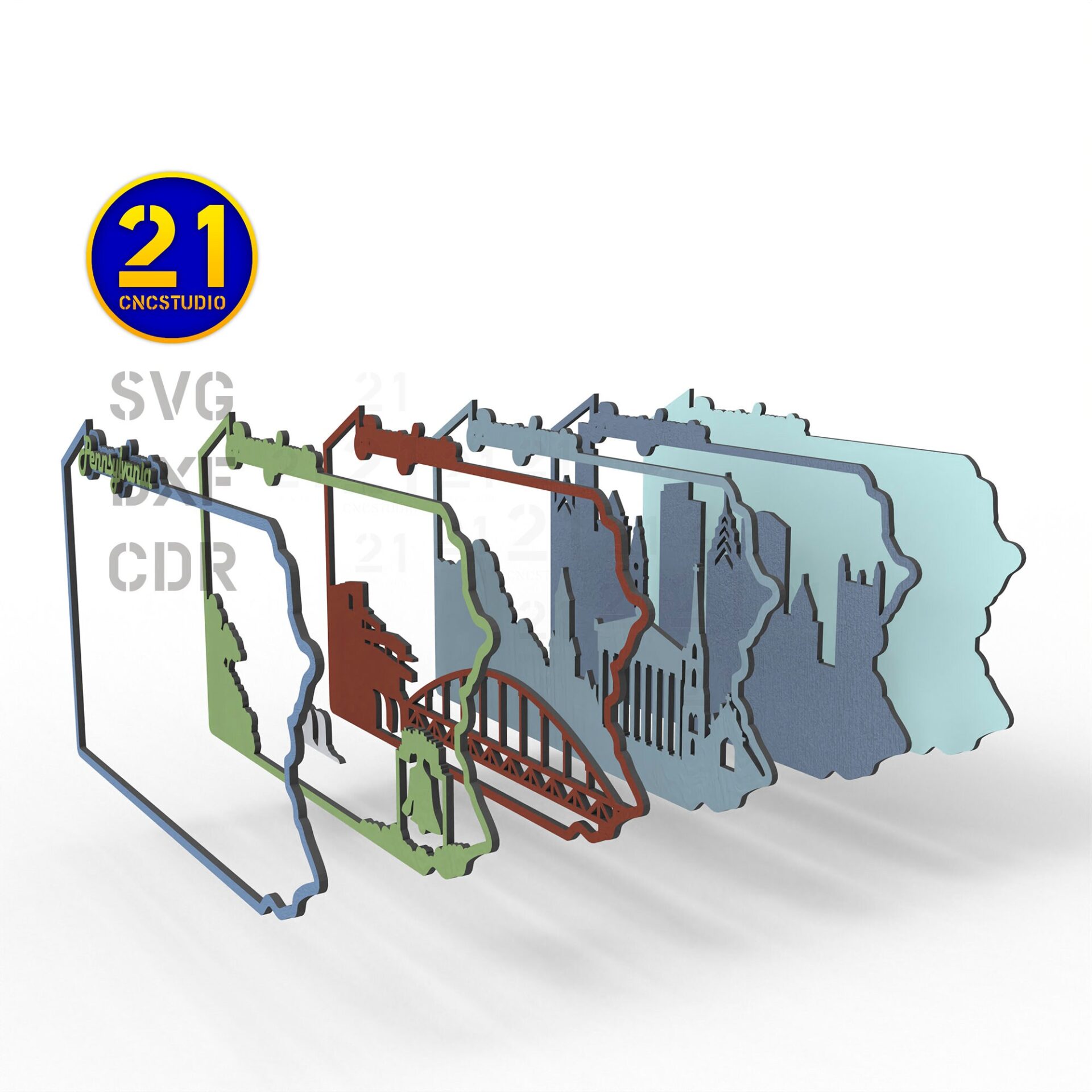

Six layers
Arrange the matching layers to build the city scene.
State outline
The Pennsylvania silhouette frames the skyline and bridge.
Your colour choices
Contrasting finishes keep the foreground and background readable.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Respect the minimum-size recommendation and test the thin bridge and building details. Keep every layer at one scale and dry-stack the cut parts to check the order and alignment.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Six-layer Pennsylvania artwork
- Vector formats
- SVG, DXF, AI, CDR, EPS
- Recommended minimum size
- 260 × 155 mm
- Material
- 3 mm plywood
What material is the Pennsylvania design intended for?
The listing specifies 3 mm plywood. Measure the actual material and test the small bridge and skyline details before preparing the full set of layers.
What do I receive?
SVG, DXF, AI, CDR and EPS files for the six-layer artwork. An assembly guide is not confirmed. No physical artwork or plywood is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Make your Pennsylvania skyline.
View the Pennsylvania Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
