Missouri Layered Map / Laser-cut design
Missouri. Seven layers.
SVG, DXF, AI, CDR and EPS files for seven-layer Missouri artwork. Build the Gateway Arch above an orange skyline and green foreground within the state outline.
Digital design · SVG + DXF + AI + CDR + EPS
No physical model or materials are shipped.
01 /The design
The Gateway Arch above the skyline.

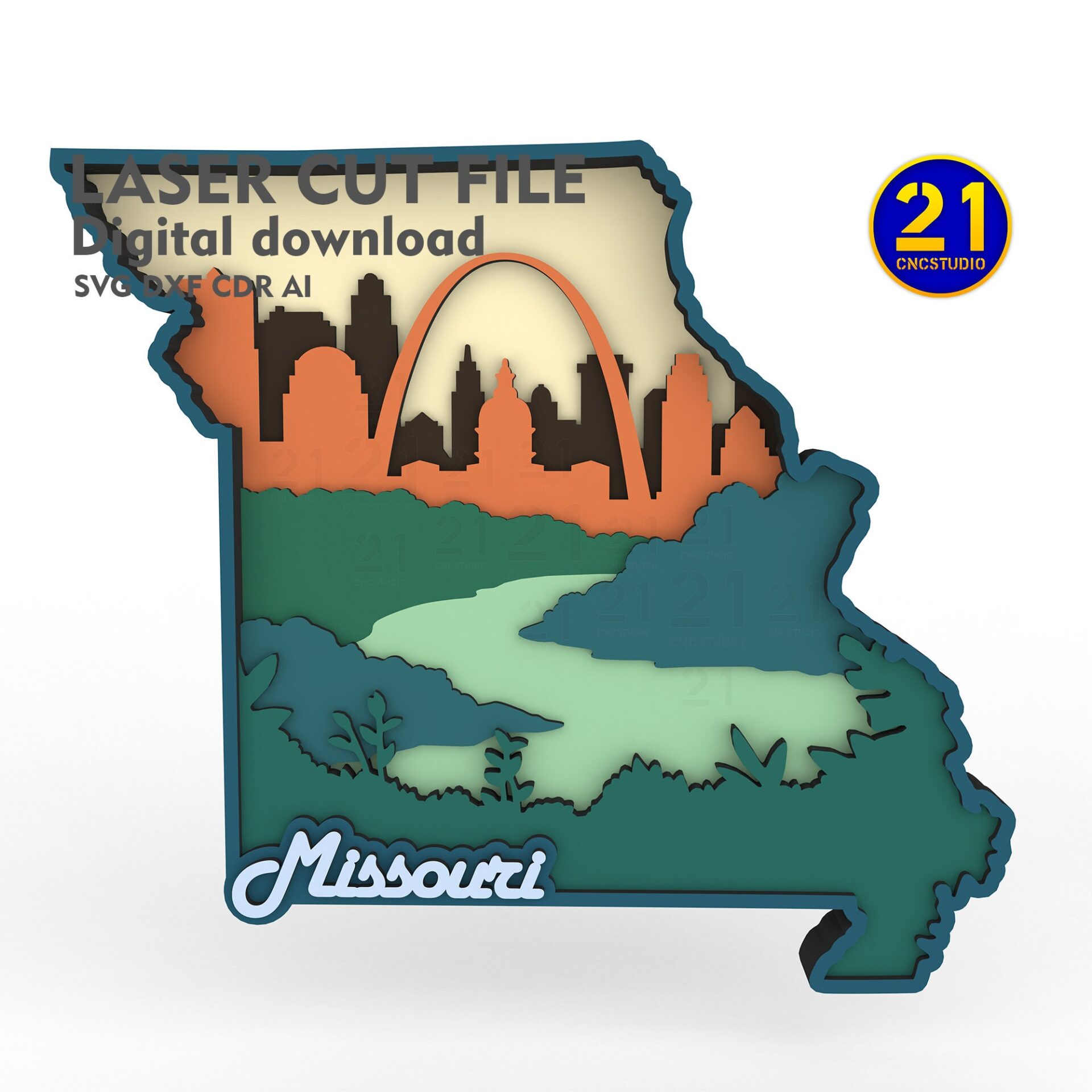

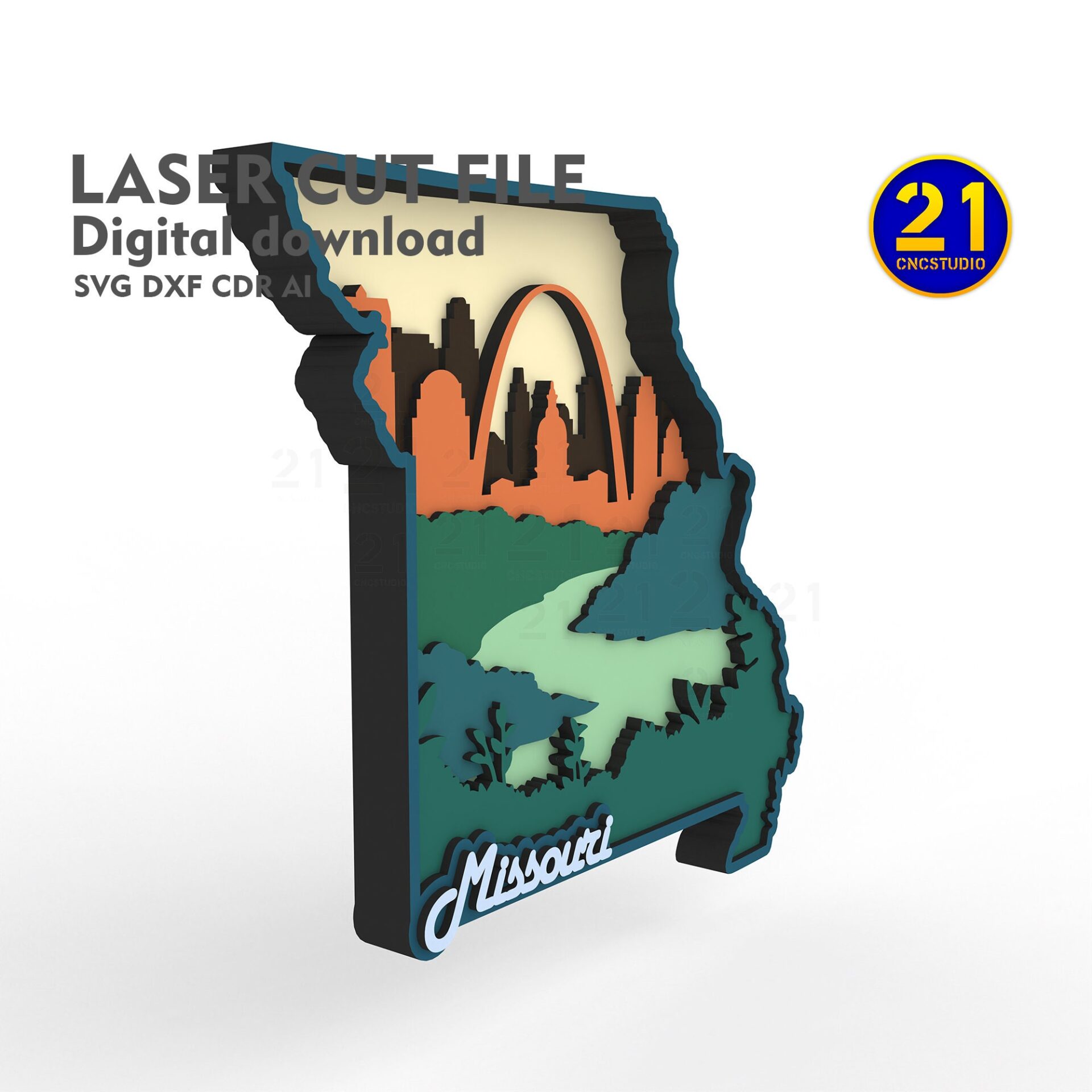

The pale arch rises over the buildings, with green landscape shapes stretching across the lower scene. Missouri lettering sits near the lower-left edge of the state silhouette.
The design uses seven layers at a listed size of 260 × 230 mm. Use contrasting finishes to keep the arch, skyline and foreground separate in the finished display.
Seven-layer artwork

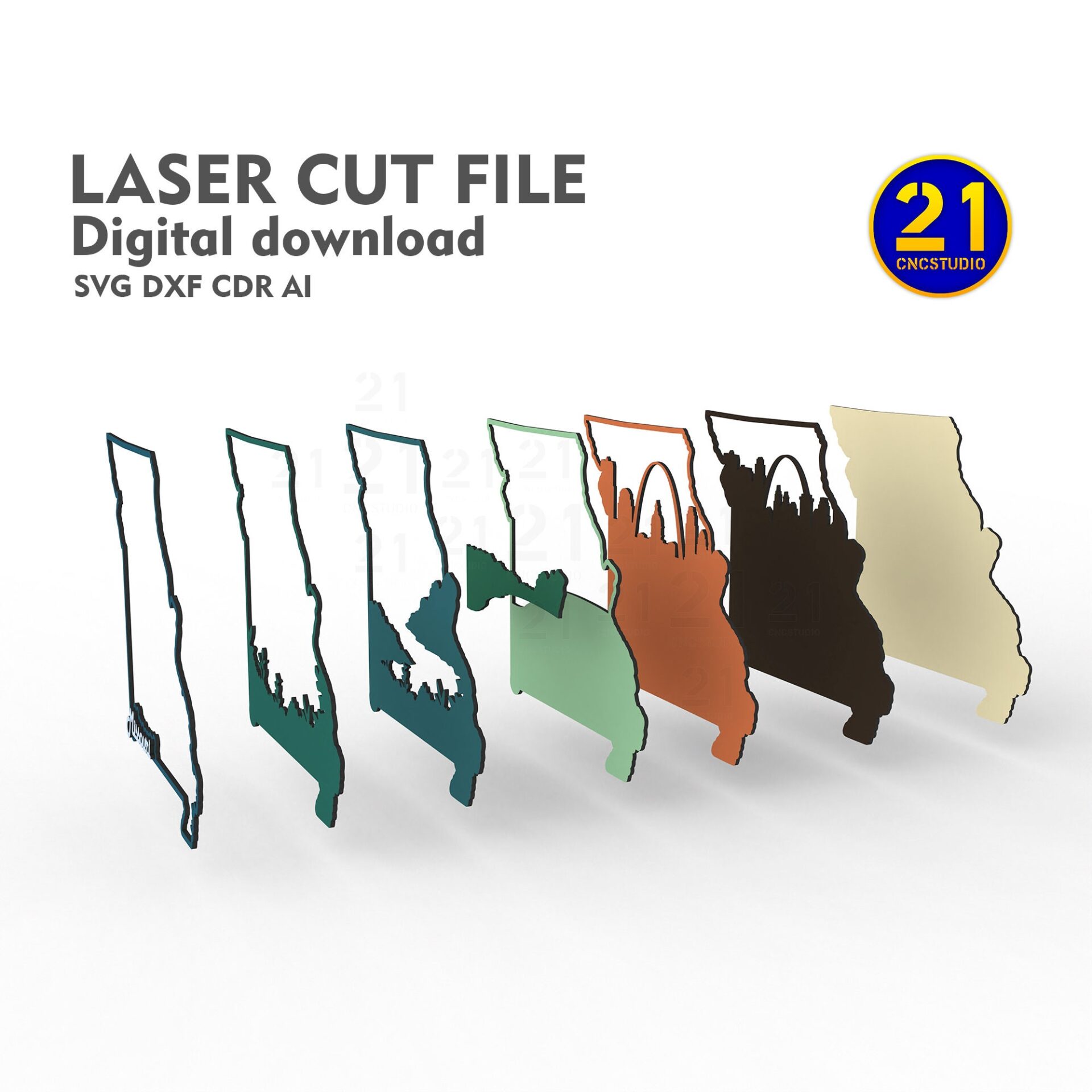

Stack the matching shapes to build the city and landscape.
Gateway Arch
The author identifies this landmark in the Missouri design.
Five vector formats
SVG, DXF, AI, CDR and EPS files are supplied.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Inspect the narrow arch, skyline and state-edge connections at your intended size. Keep all seven layers at a common scale, test a detailed section and check the stack before fixing it together.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Seven-layer Missouri artwork
- Landmark
- Gateway Arch
- Vector formats
- SVG, DXF, AI, CDR, EPS
- Design size
- 260 × 230 mm
Is this a Missouri street map?
This is a layered landmark scene inside the state outline, featuring the Gateway Arch. It is not presented as a road network or topographic map.
What do I receive?
SVG, DXF, AI, CDR and EPS files for the seven-layer Missouri artwork. An assembly guide is not confirmed. No physical wall art or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build your Missouri scene.
View the Missouri Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
