Mexico City Street Map / Laser-cut design
Mexico City. Four layers.
The street pattern of Mexico City, built in four layers. Choose a round, square or hexagonal frame from this SVG laser-cut design.
Digital design · SVG
No physical model or materials are shipped.
01 /The design
A street map with a choice of frame.

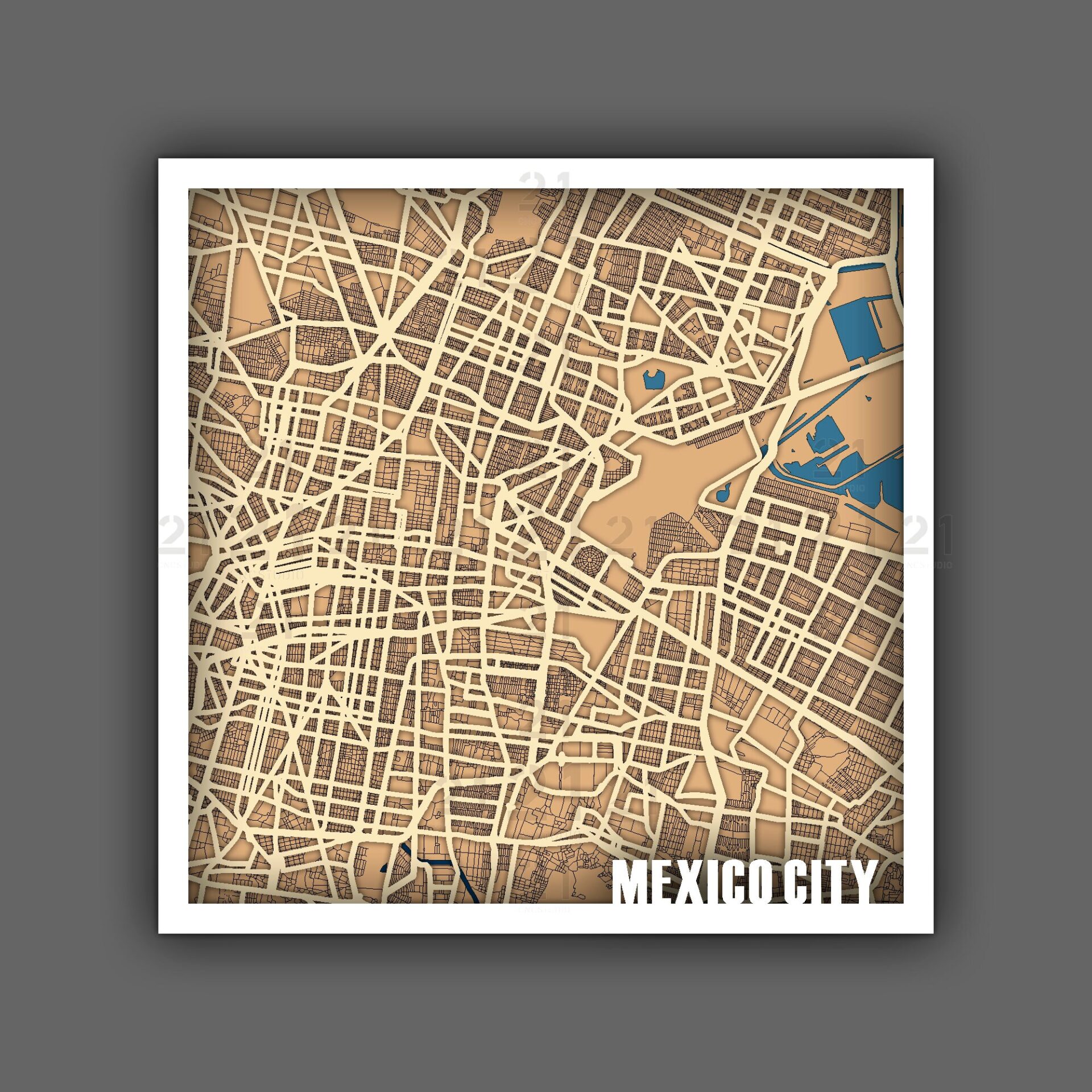

Four layers turn the Mexico City street network into relief. The file set offers round, square and hexagonal frames, so you can choose the outline that suits the display.
The design includes road layouts drawn as lines and as shapes. Review the intended size and operations for the layout you choose; the fine detail does not behave identically in both versions.
Four-layer relief
Align and stack the layers to separate the street detail from its backing.

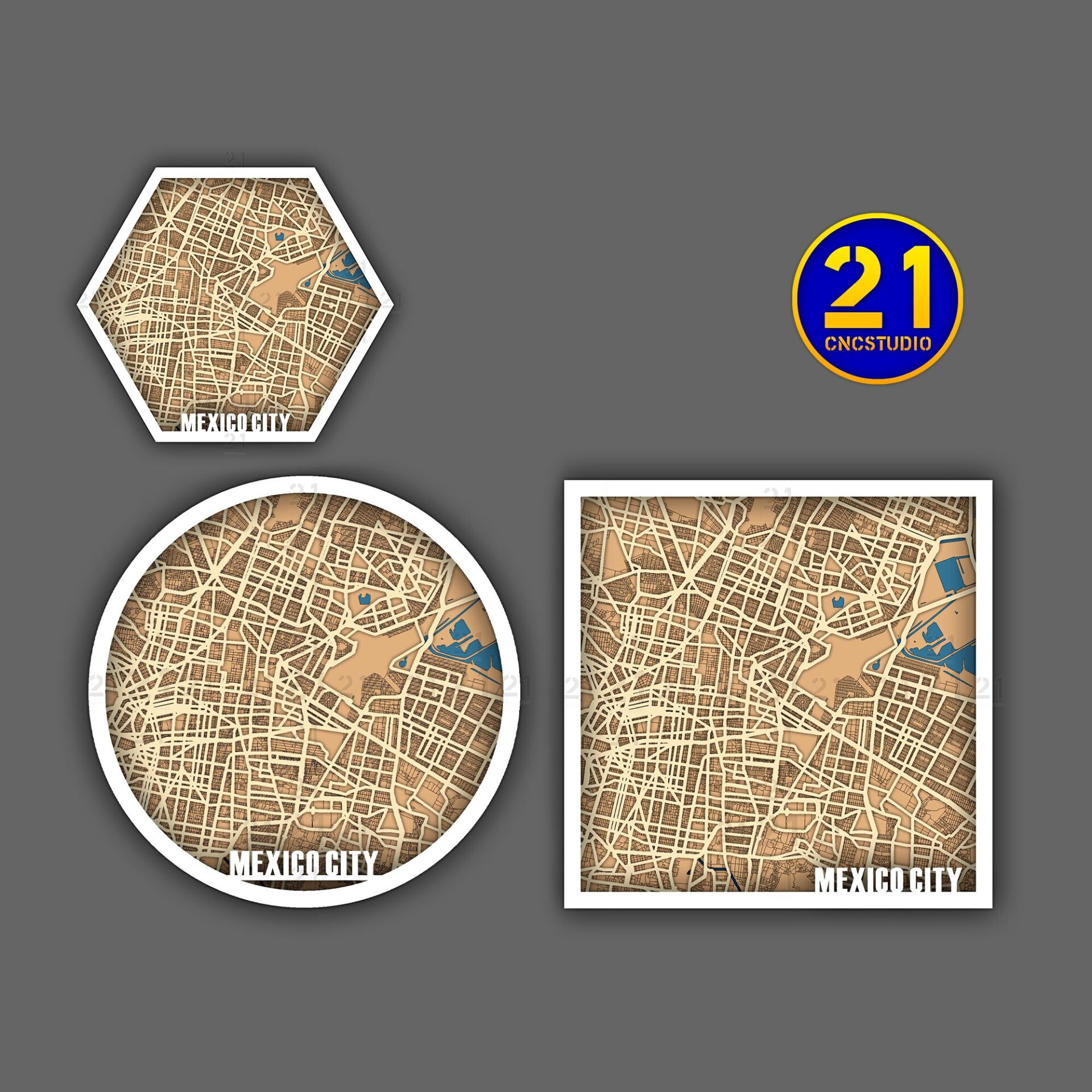

Three frame shapes

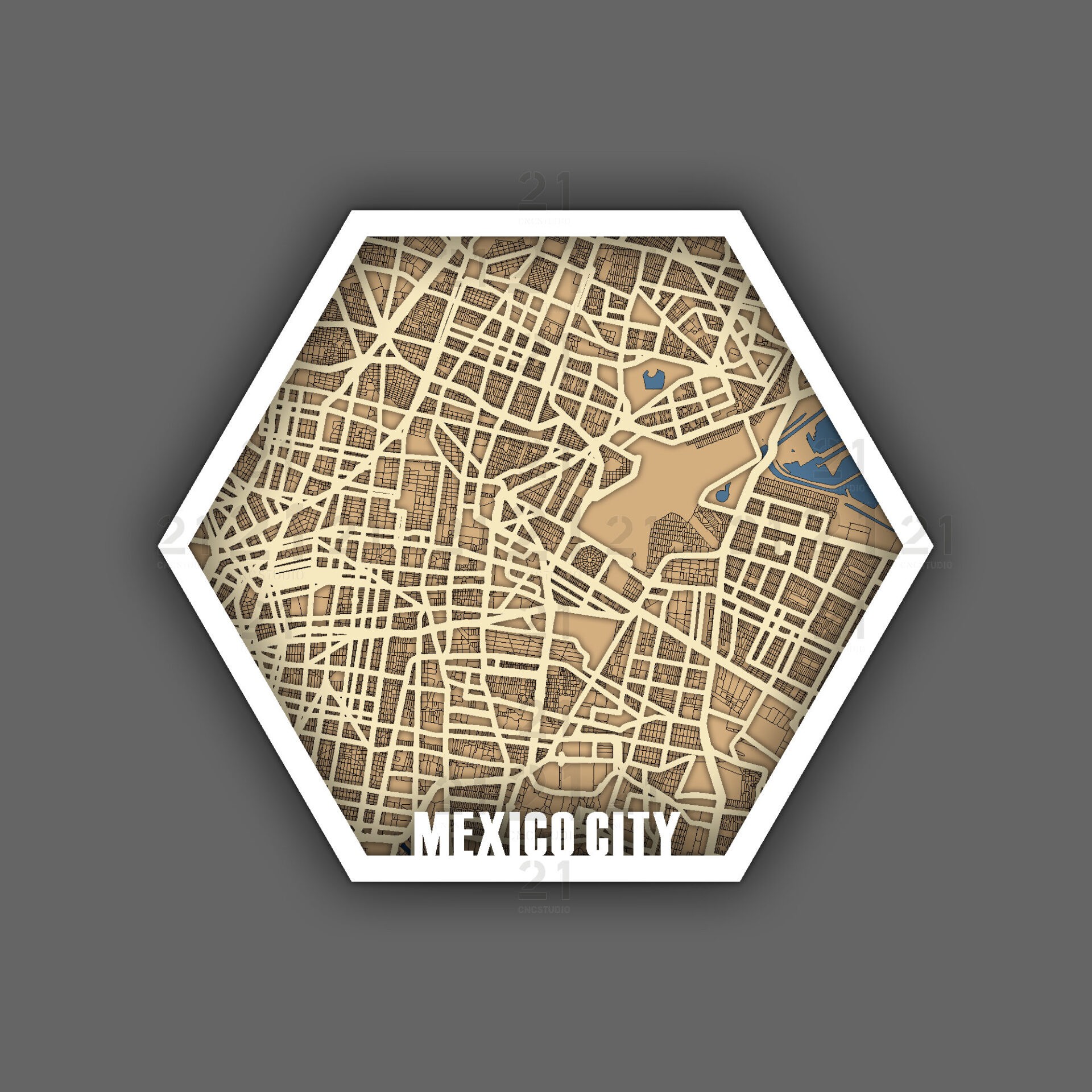

Choose a round, square or hexagonal outline.
Two road treatments
Inspect the line-based and shape-based layouts before choosing your cut preparation.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Check the current package’s recommended size and the small street details before resizing. Keep every layer at one scale and review the cut and line operations in your laser software before starting.
Before you start.
- Design
- Four-layer Mexico City street map
- Confirmed file format
- SVG
- Frame shapes
- Round, square and hexagonal
- Road treatments
- Line-based and shape-based layouts
Can I choose the frame shape?
Yes. The design offers round, square and hexagonal frame shapes. Use the matching layers for the version you choose and keep them at the same scale.
What do I receive?
The current listing confirms SVG design files for the four-layer map. An assembly guide is not confirmed. No physical map, material or frame is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
Contact 21CNCStudio to discuss permission before commercial use. The digital files may not be distributed without the author’s permission.
03 /From the studio to your workbench
Choose your Mexico City map.
View the Mexico City Street Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
