Lighthouse / Laser-cut design

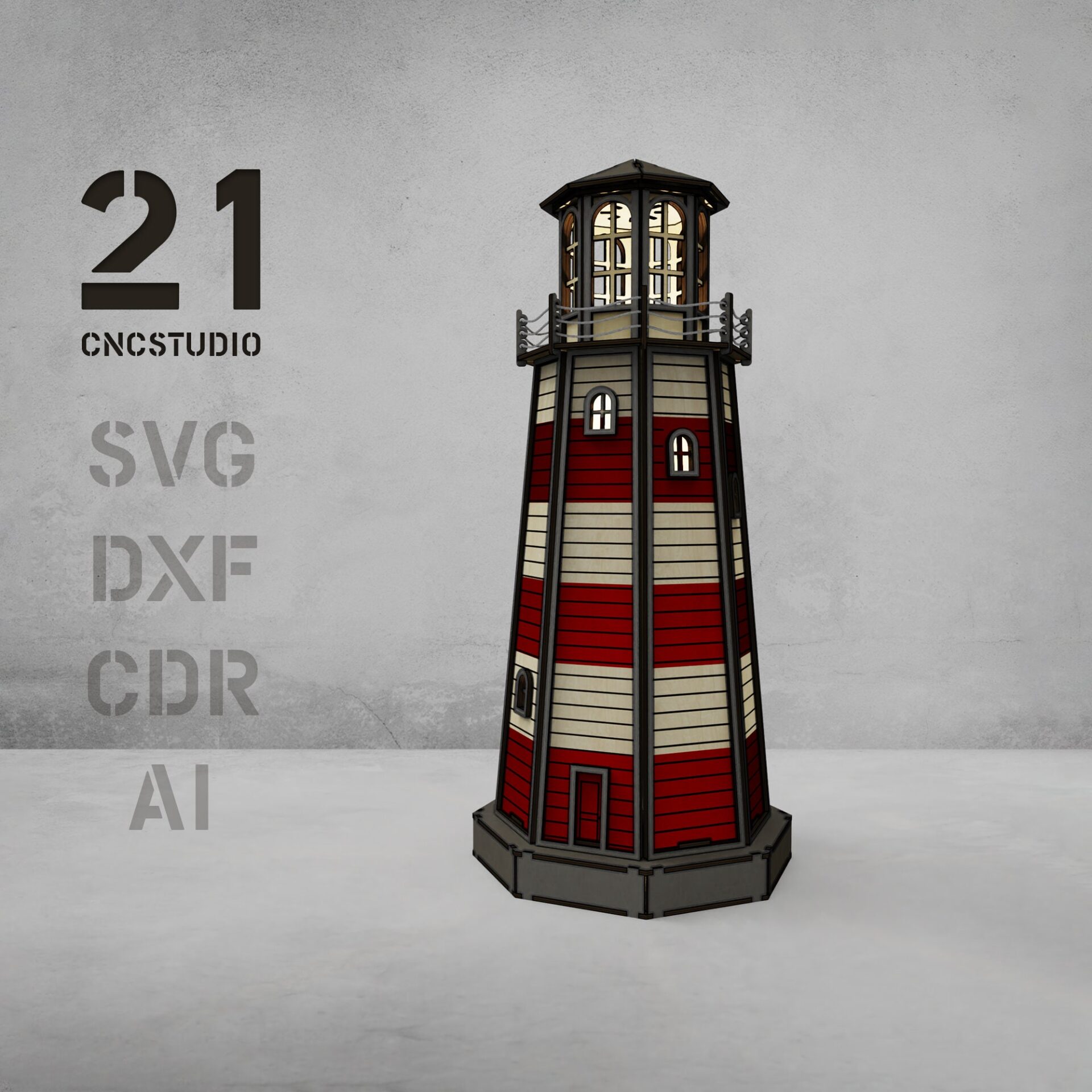

Coastal Lighthouse.
A striped tower, wraparound balcony and lantern room make this lighthouse a tall wooden display. Cutting files include a PDF assembly guide, with formats listed by material version.
Digital design · SVG + DXF + CDR · PDF guide
No physical model or materials are shipped.
01 /The design
A landmark for the shelf.

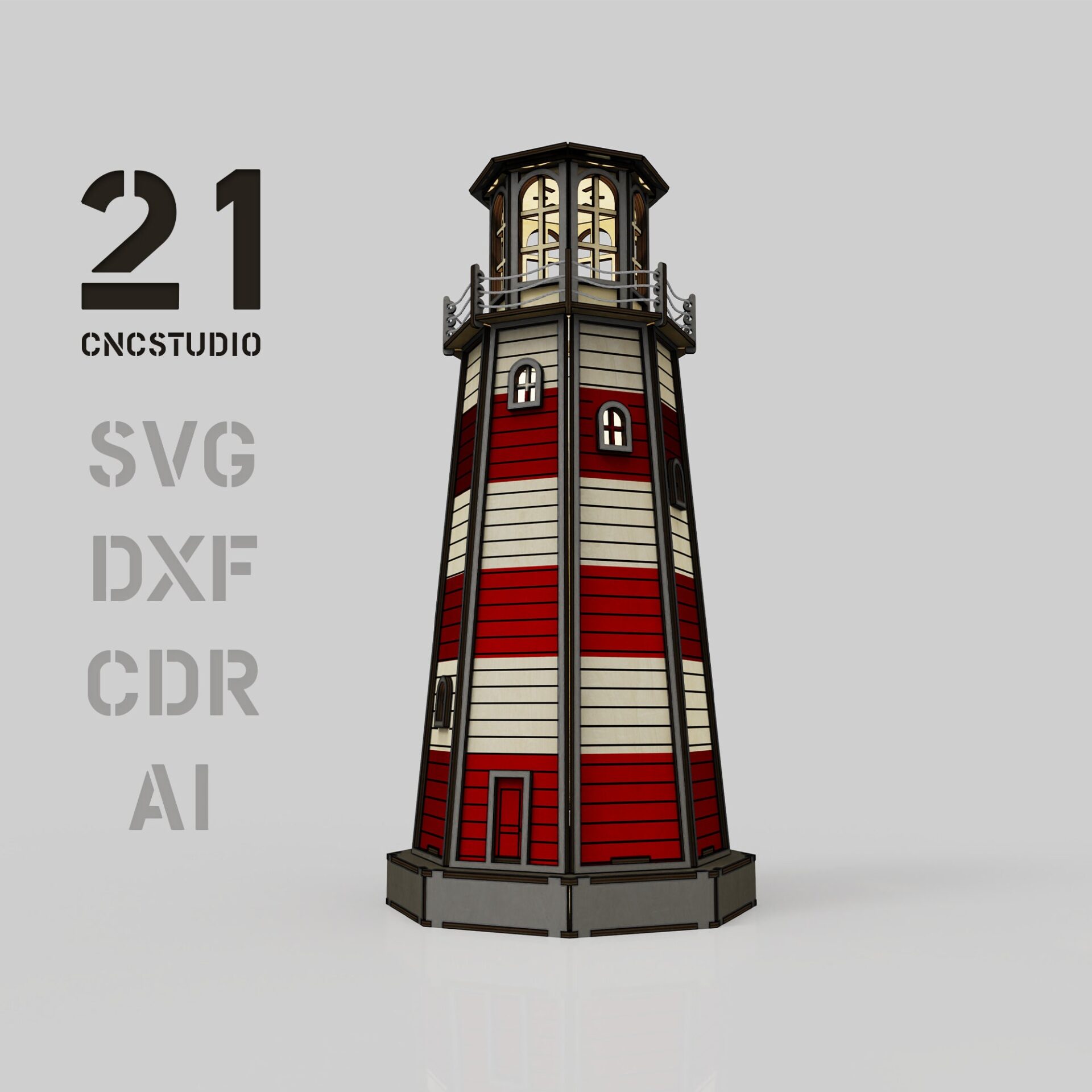

The narrow tower rises to a balcony and an open-sided lantern room. Contrasting bands make the height easy to read, while the roof and railing finish the top of the model.
The listed assembled size is 180 × 180 × 420 mm. The largest part requires a 280 mm work-area dimension; compare the actual layout with both dimensions of your machine.

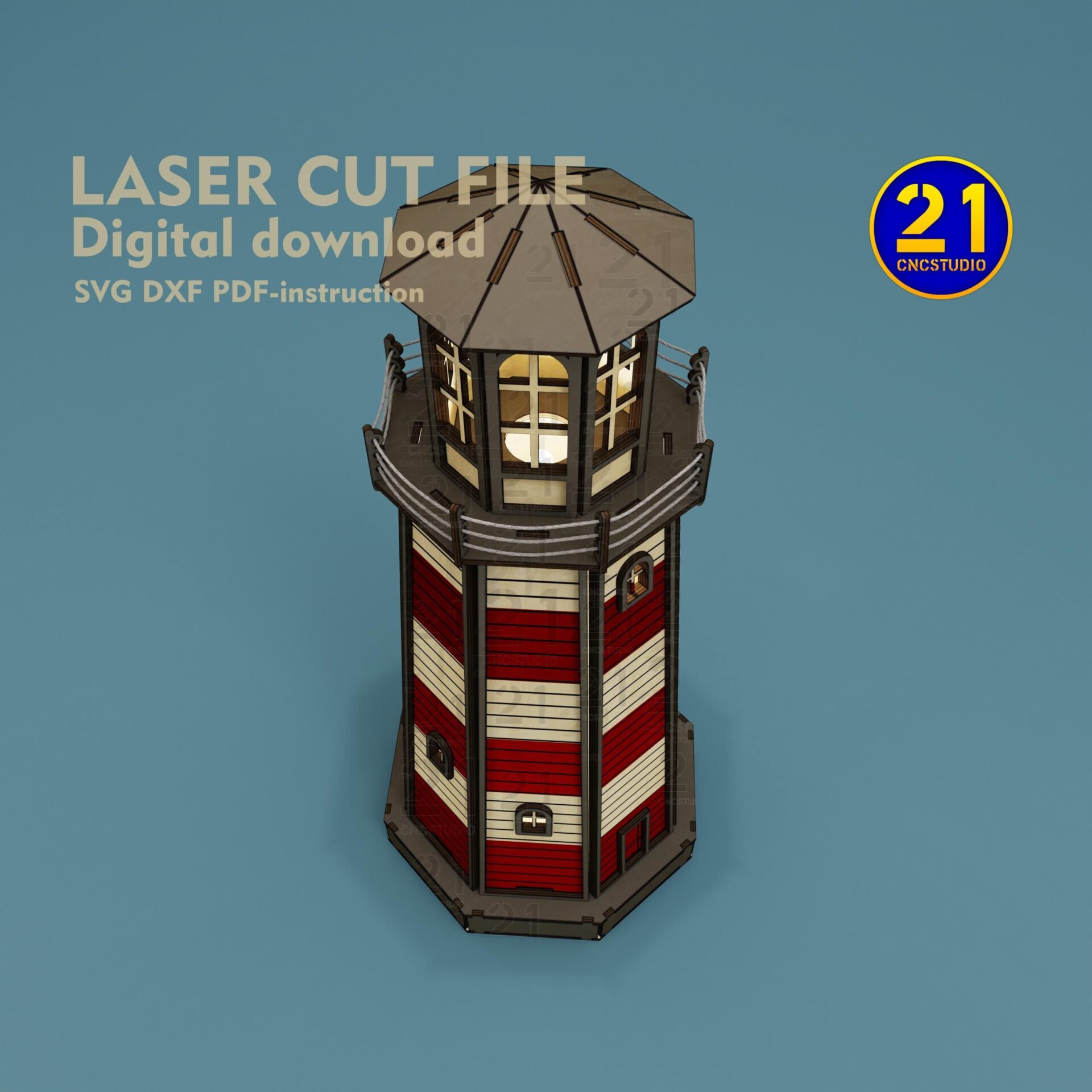

Tower and balcony.
The structure steps out to a railing below the lantern room.
Formats by thickness.
The 3 mm cutting files are SVG and DXF; the 1/8 inch version is SVG.
PDF instructions.
The package includes an assembly guide for the lighthouse.
A real build
Made from the files.
A physical build, with the maker’s choice of materials and finish.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Choose the material version first, then check that your software opens its supplied format. Leave room for the 420 mm tall finished model when choosing a display location.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Listed design formats
- SVG, DXF, CDR
- 3 mm cutting files
- SVG + DXF
- 1/8 inch cutting files
- SVG
- Assembly guide
- PDF included
- Listed finished size
- 180 × 180 × 420 mm (W × L × H)
- Largest part
- 280 mm
Does every material version have the same formats?
No. The listing specifies SVG and DXF for 3 mm, and SVG for 1/8 inch. CDR is also listed among the package formats, without a separate thickness assignment.
What do I receive?
The listed package includes SVG, DXF and CDR design files and PDF assembly instructions. Cutting formats are specified as SVG/DXF for 3 mm and SVG for 1/8 inch. No physical lighthouse or lighting hardware is supplied.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build a coastal landmark.
View the Lighthouse file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
