Windmill / Laser-cut design
Wooden Windmill.

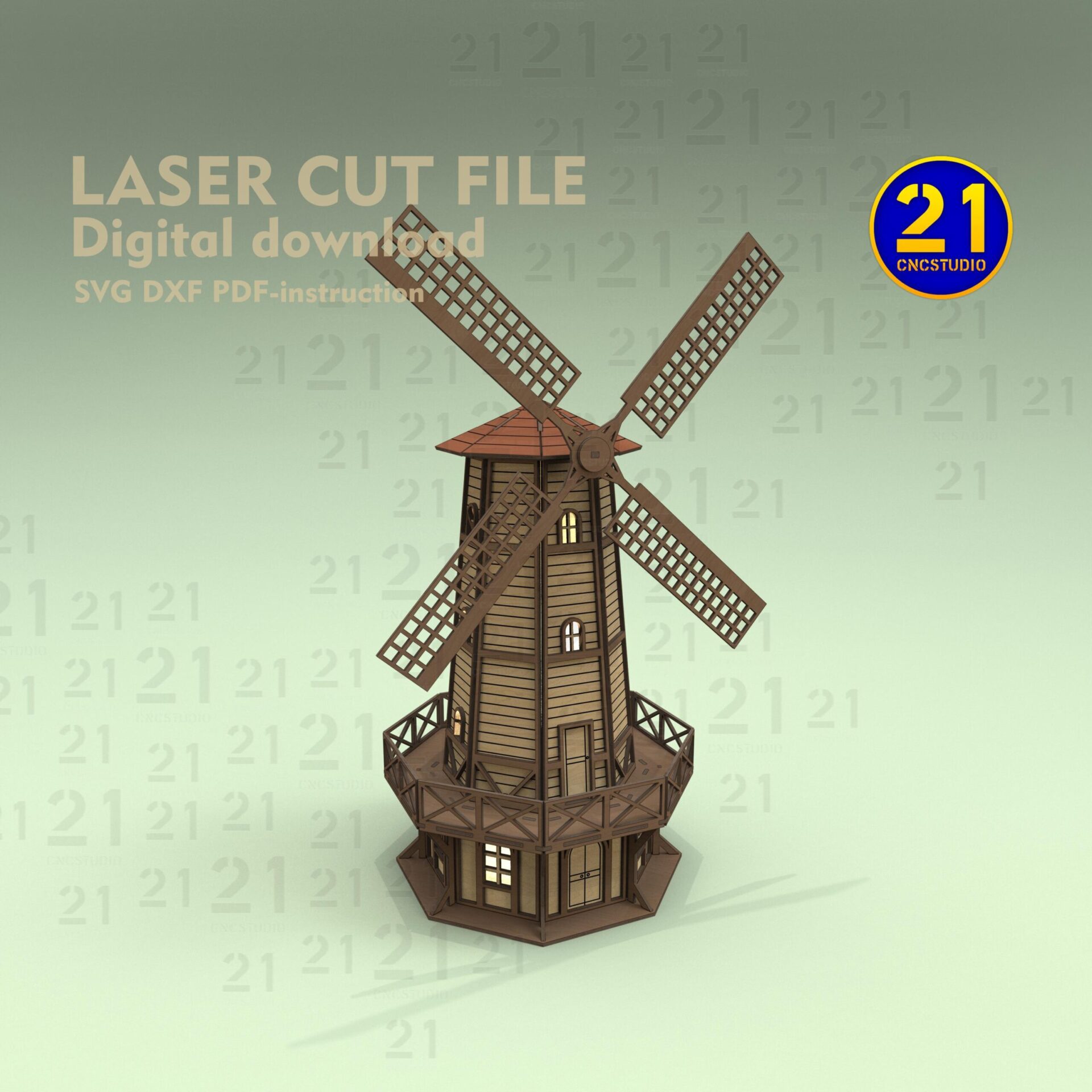

Cut and assemble a wooden windmill with rotating lattice blades and a wraparound balcony. SVG and DXF files for 3 mm and 1/8-inch plywood come with a PDF assembly guide.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
A tall tower with room to turn.
The four blades extend beyond the tower, with small openings that keep their lattice structure visible. Beneath them, the balcony wraps around the narrowing body of the windmill.
The listed model is 532 mm tall with an overall width and length of 310 mm. The blades are designed to rotate; check clearances and fit during assembly.
Rotating blades.
The design includes a rotating blade assembly.
Balcony detail.
Railings and supports run around the middle of the tower.
A 280 mm largest part.
The finished model is larger than an individual cut piece.
A real build
Made from the files.
A physical build, with the maker’s choice of materials and finish.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Allow clearance around the blades when planning the display. Test the fit on your measured plywood and follow the PDF before fixing parts around the rotating assembly.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design files
- SVG + DXF
- Assembly guide
- PDF included
- Material versions
- 3 mm / 1/8 inch plywood
- Listed finished size
- 310 × 310 × 532 mm (W × L × H)
- Largest part
- 280 mm
- Design feature
- Rotating blades
Is a motor included?
No physical hardware is supplied. The design has rotating blades, but this listing does not describe a powered mechanism or include a motor.
What do I receive?
SVG and DXF cutting files for 3 mm and 1/8 inch plywood, plus PDF assembly instructions. No physical windmill, plywood, motor or other hardware is shipped.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Make space for the windmill.
View the Windmill file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
