Georgia Layered Map / Laser-cut design
Georgia. A layered scene.
SVG, DXF, AI and CDR files for layered Georgia artwork, with PNG images. Build the orange skyline above green wooded scenery inside the state outline.
Digital design · SVG + DXF + AI + CDR + PNG
No physical model or materials are shipped.
01 /The design
City shapes above a wooded foreground.

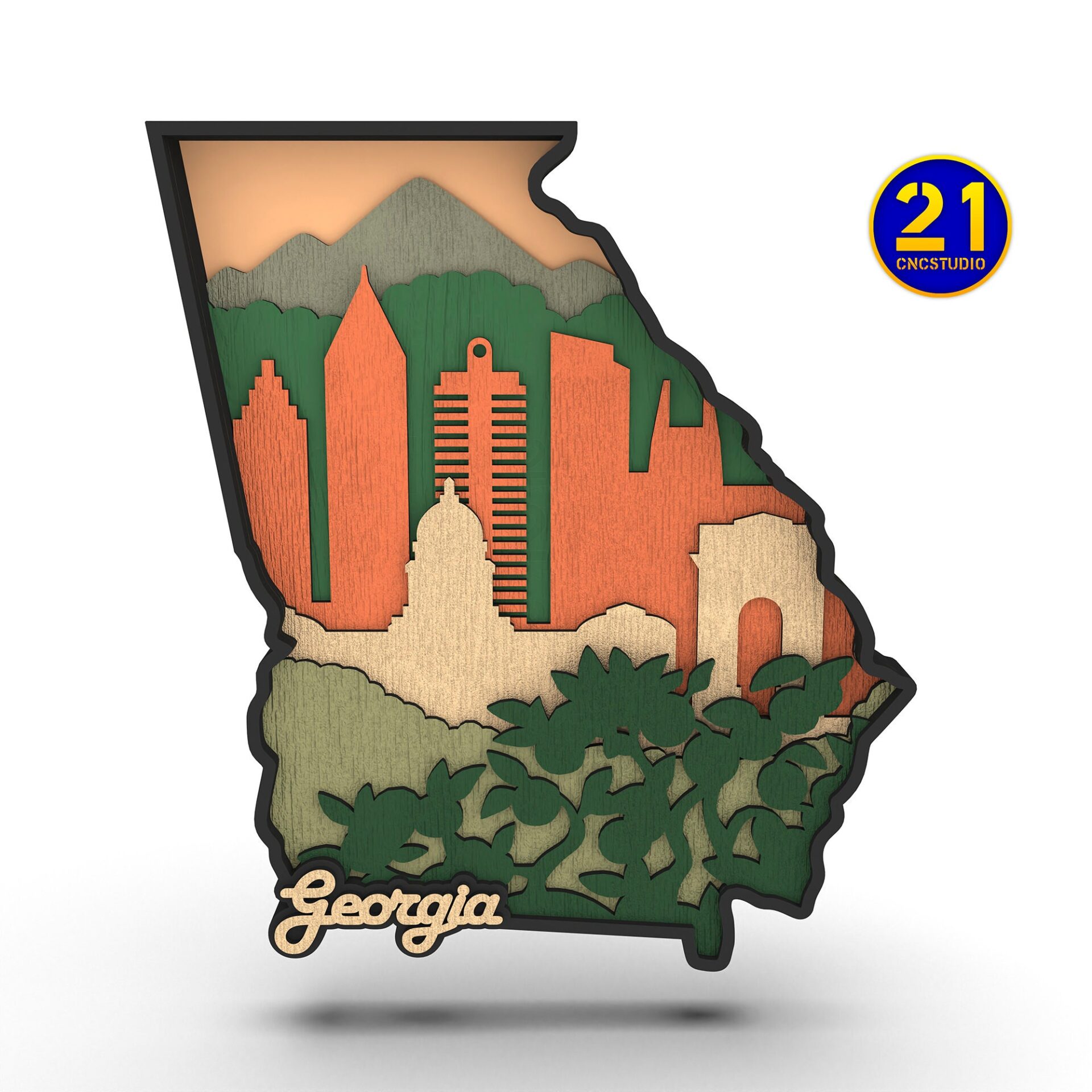

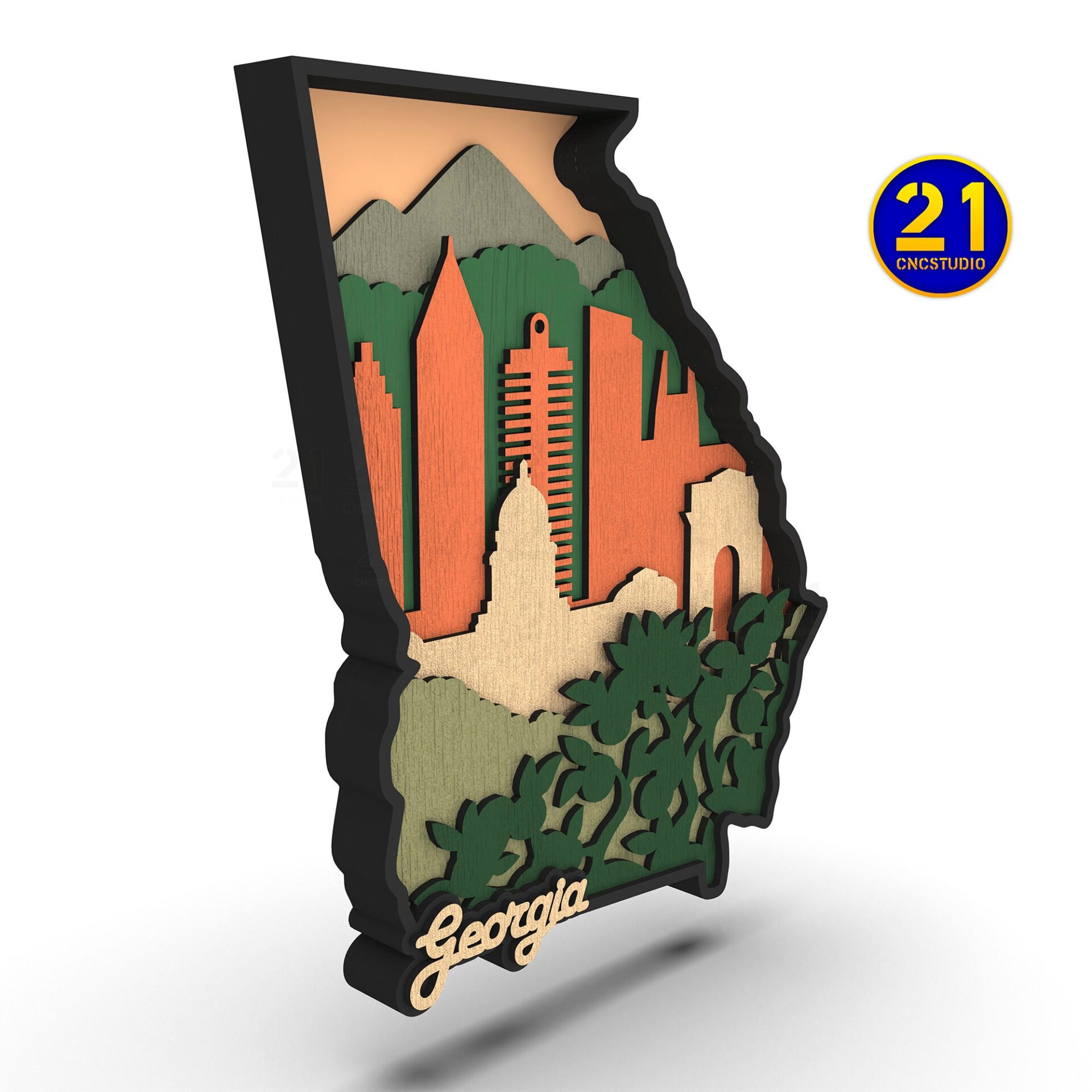

Tall orange buildings rise in front of mountain shapes, with dense green scenery across the lower portion. Georgia lettering follows the bottom edge of the state silhouette.
Files are prepared for 3 mm and 1/8-inch plywood or MDF. The package includes four vector formats and PNG image files; a layer count, design size and assembly guide are not confirmed.
Georgia outline
The state shape frames the city and landscape composition.
Contrasting scenery
Different finishes separate the wooded foreground from the buildings.
Vector and image files
Use SVG, DXF, AI or CDR for preparation and inspect the supplied PNG images.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.

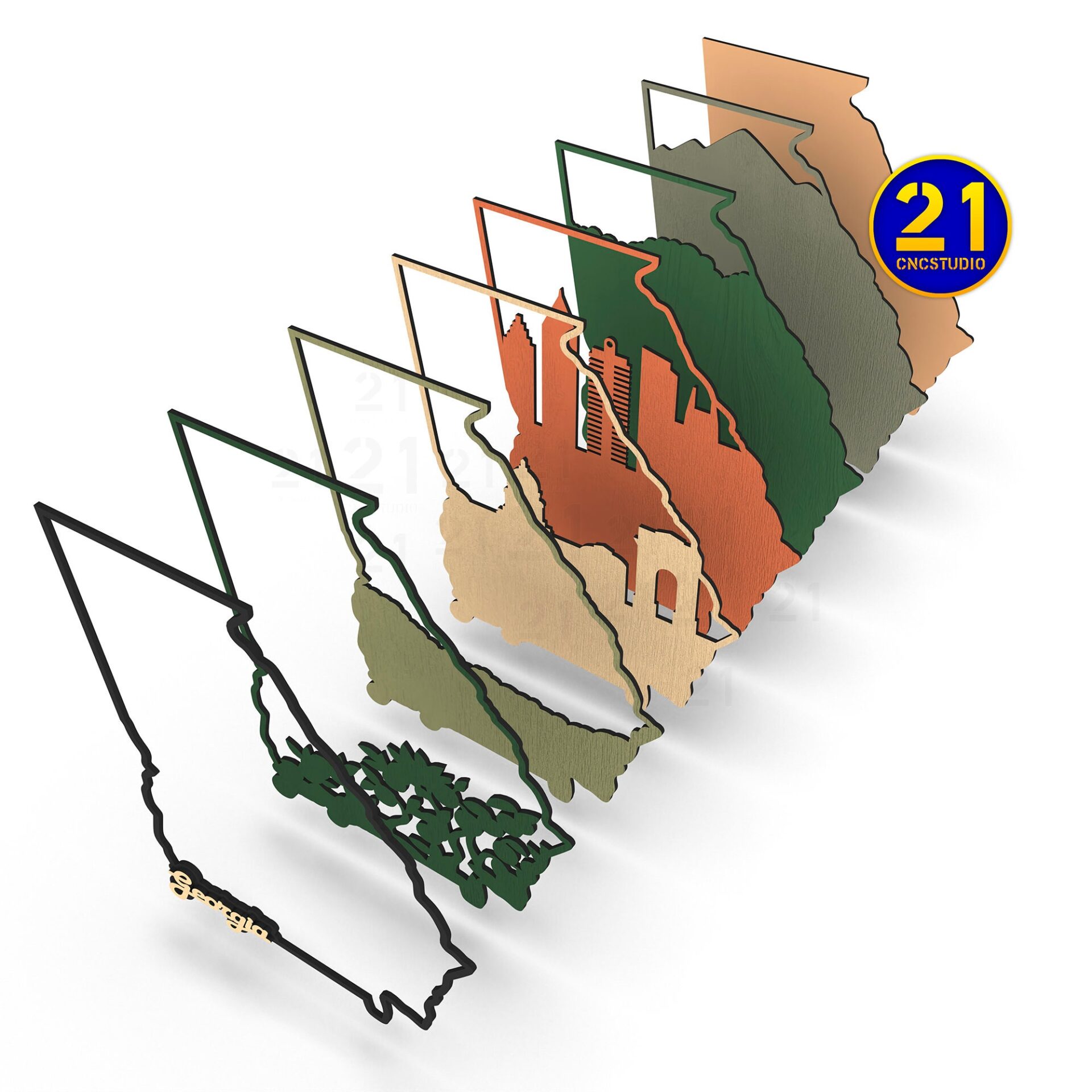

Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Review the current dimensions before choosing sheets. Inspect the narrow building and tree details, scale every layer equally and cut a detailed test section before preparing the full artwork.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Layered Georgia state artwork
- Vector formats
- SVG, DXF, AI, CDR
- Additional format
- PNG image files
- Material versions
- 3 mm / 1/8 inch plywood or MDF
Is this a Georgia street map?
This design uses city and landscape shapes inside the state outline. It is a layered scenery artwork rather than a street network or topographic map.
What do I receive?
SVG, DXF, AI and CDR design files plus PNG images, with versions for 3 mm and 1/8-inch plywood or MDF. An assembly guide is not confirmed. No physical artwork or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Make your Georgia scene.
View the Georgia Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
