South Carolina Layered Map / Laser-cut design
South Carolina. A layered landscape.
SVG, DXF, AI, CDR and EPS files for South Carolina state-shaped layered art in 3 mm plywood. Cut the large wheel, buildings and landscape, then choose a finish for each layer.
Digital design · SVG + DXF + AI + CDR + EPS
No physical model or materials are shipped.
01 /The design

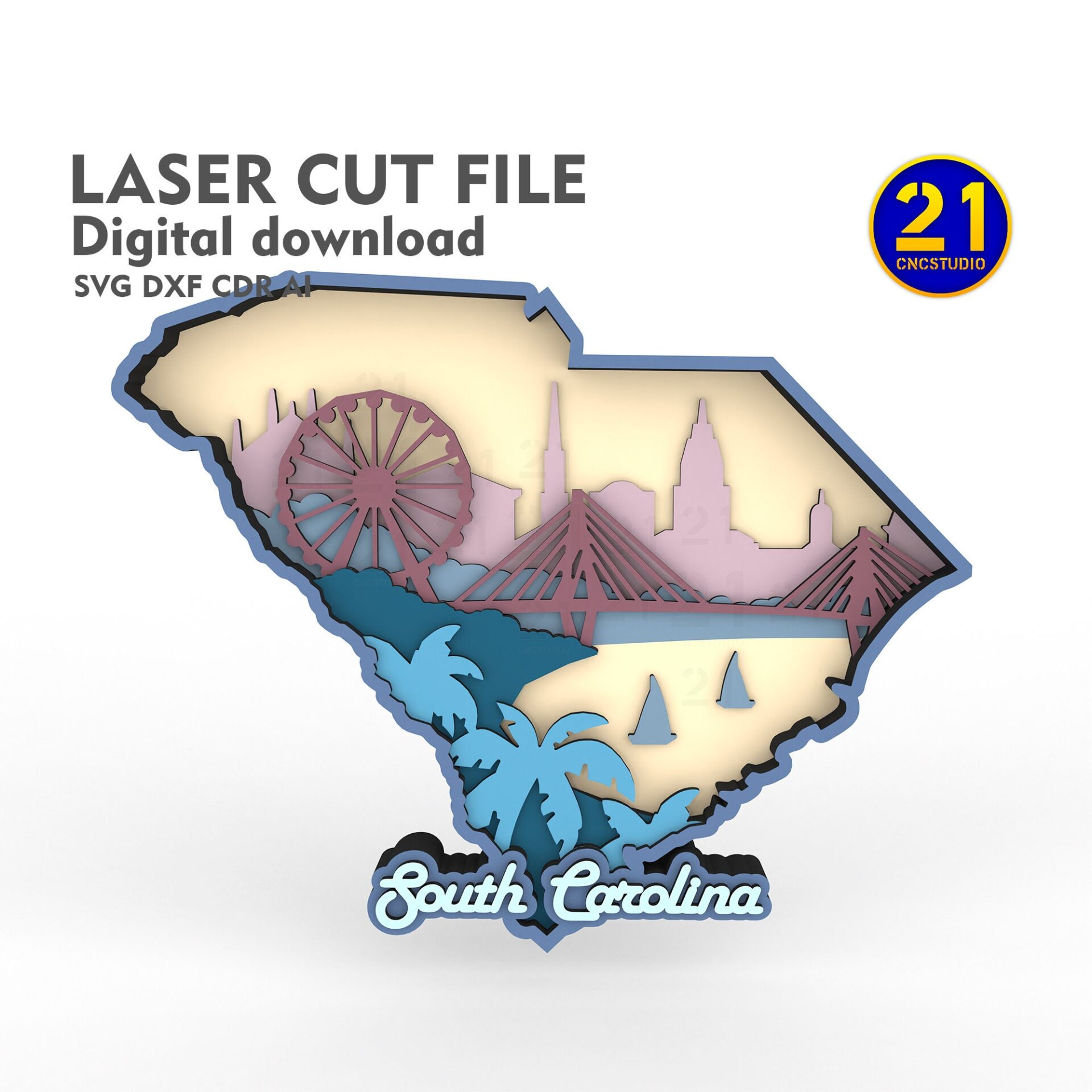

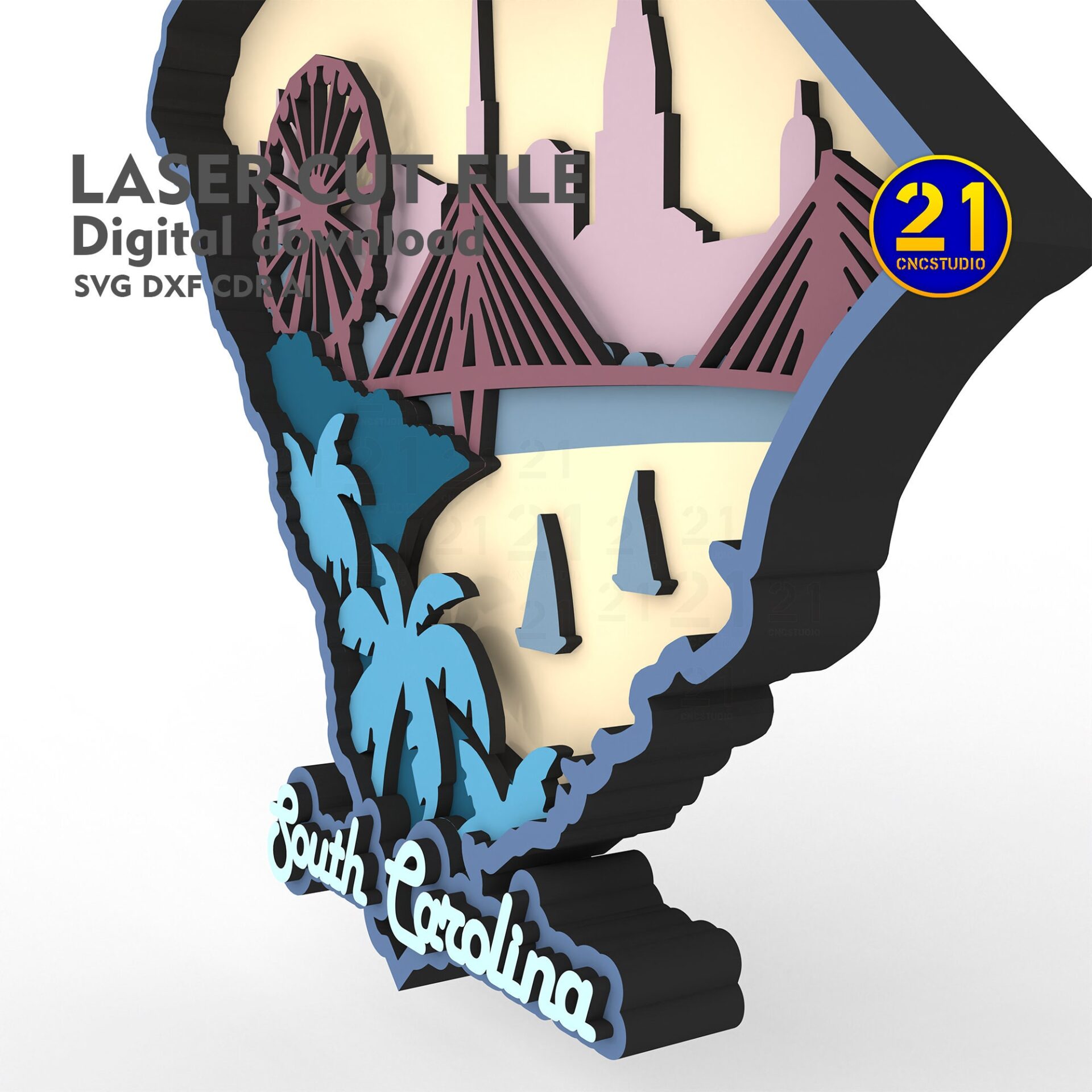

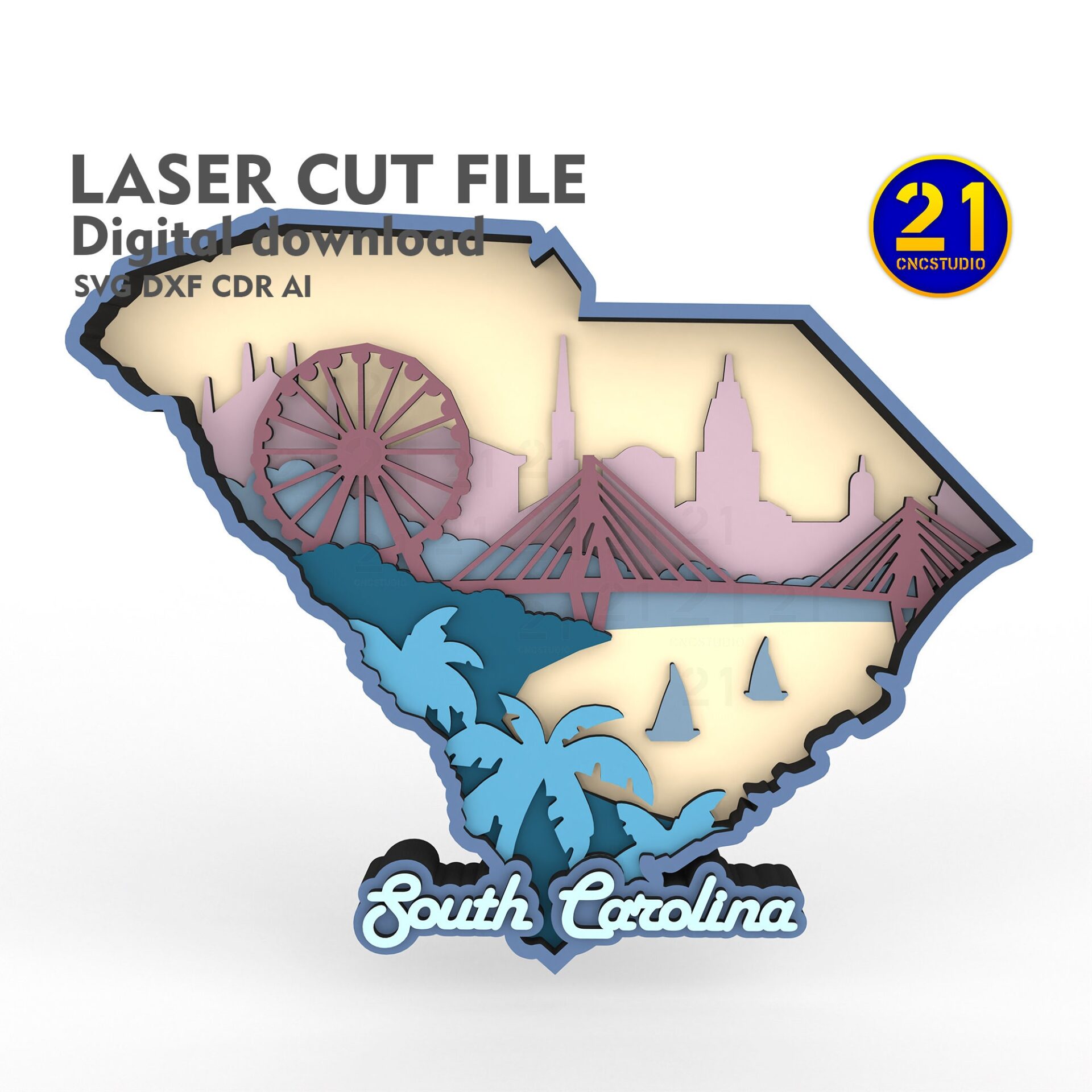

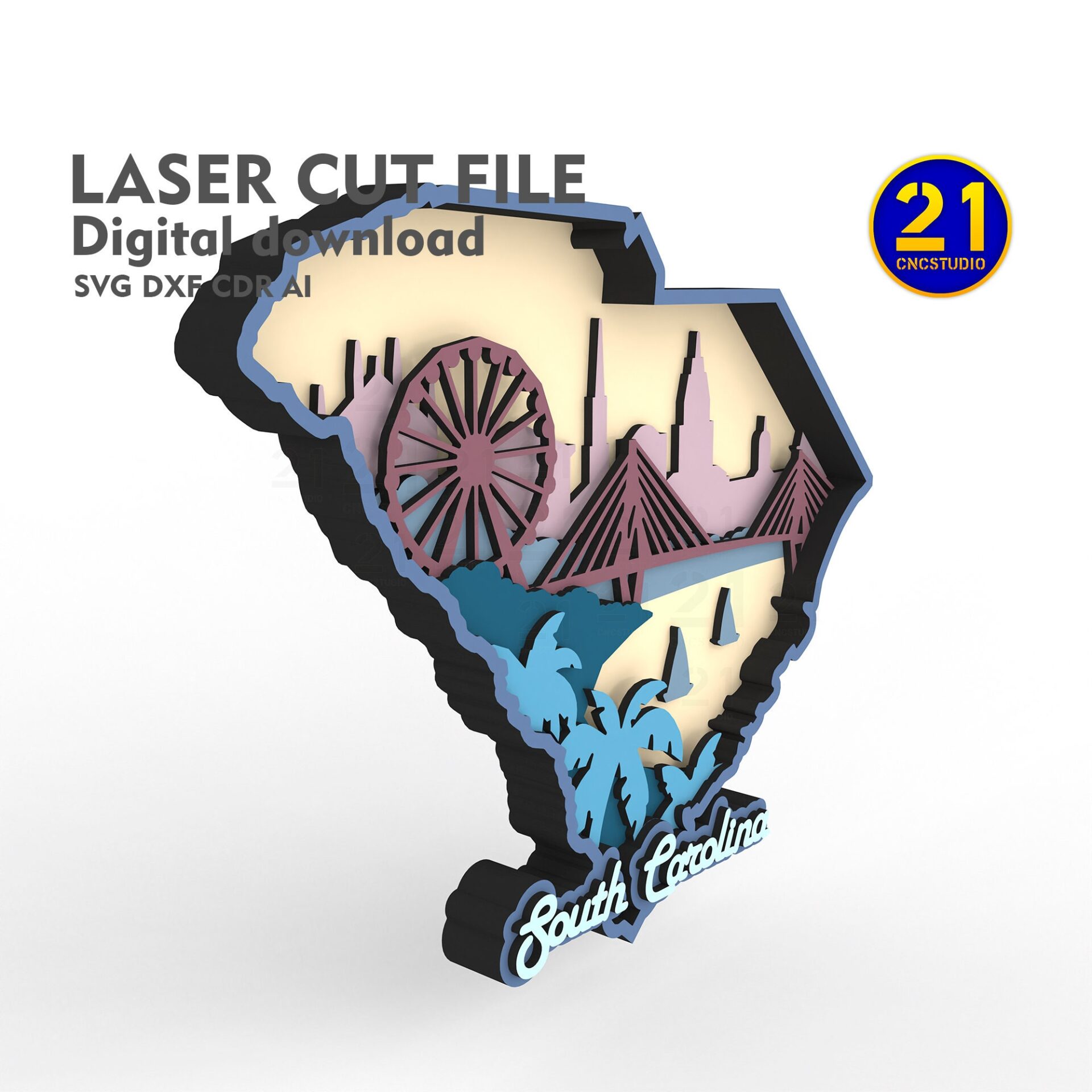

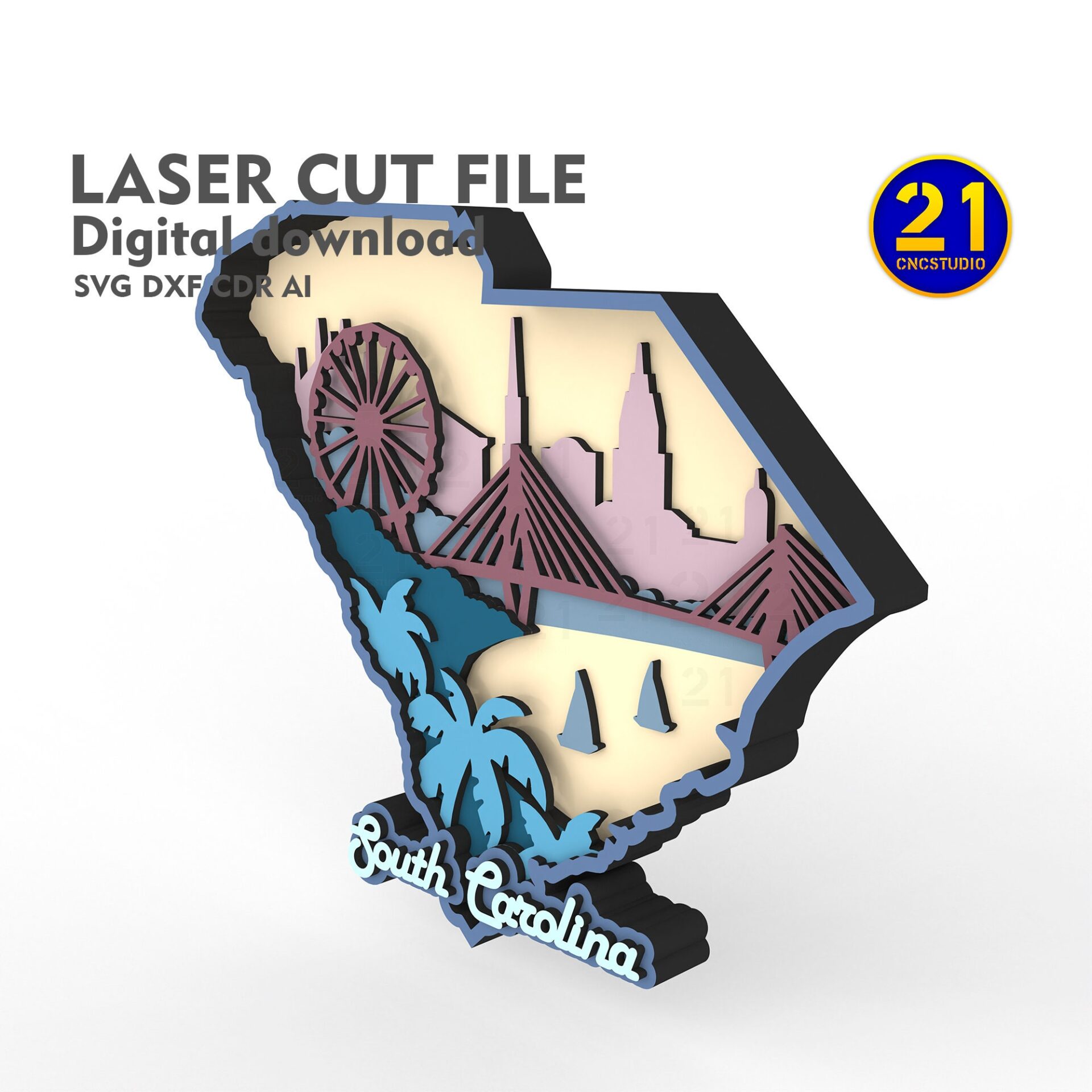

A wheel above the foreground shapes.
The wheel fills the left side of the composition, with buildings rising behind the landscape detail. South Carolina lettering sits along the lower edge of the state silhouette.
The recommended minimum size is 260 × 210 mm, using 3 mm plywood. The supplied formats are SVG, DXF, AI, CDR and EPS.
South Carolina outline
The state silhouette holds the layered scene.
Architectural detail
A large wheel and buildings give the composition its character.
Five vector formats
Choose a file your preparation software can open.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.

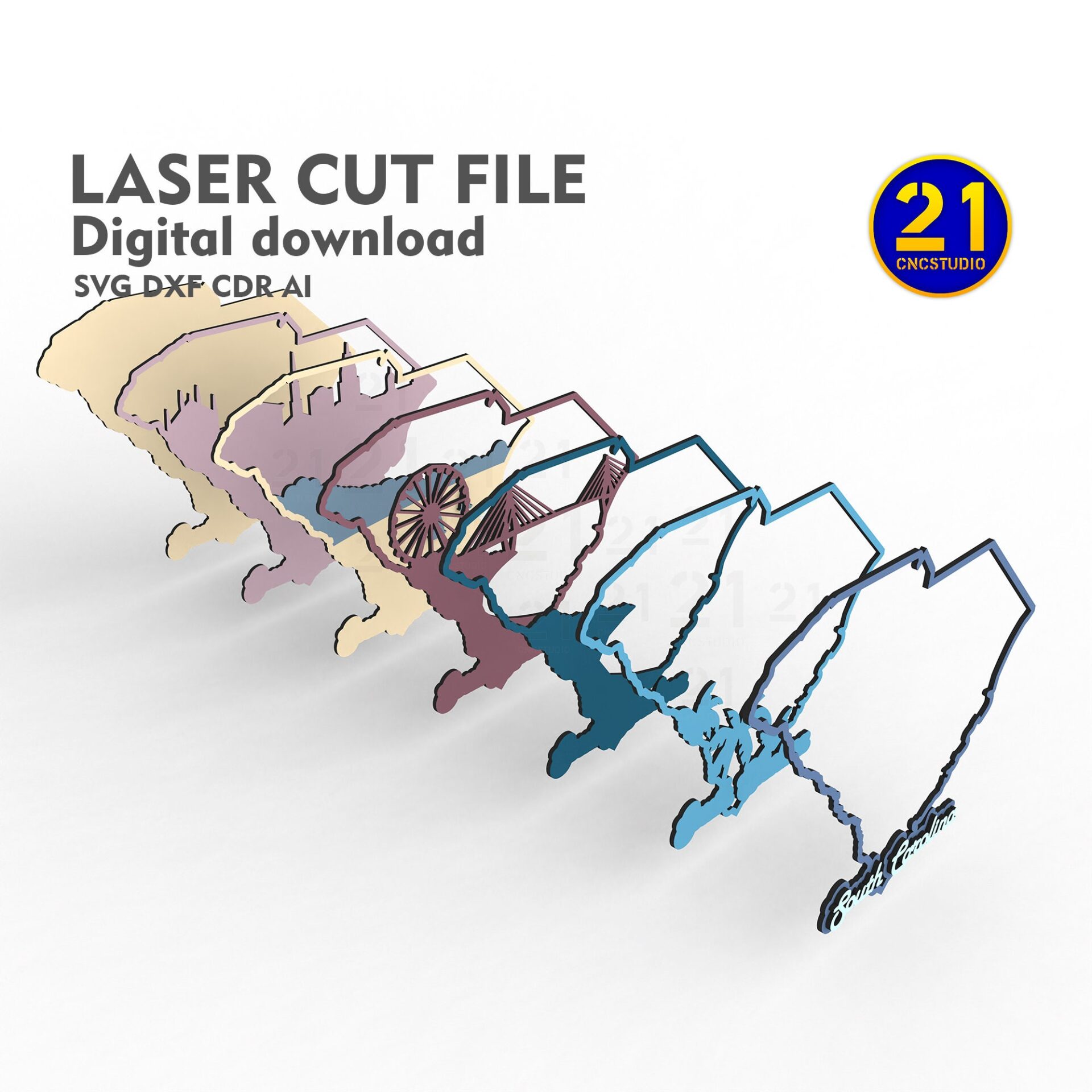

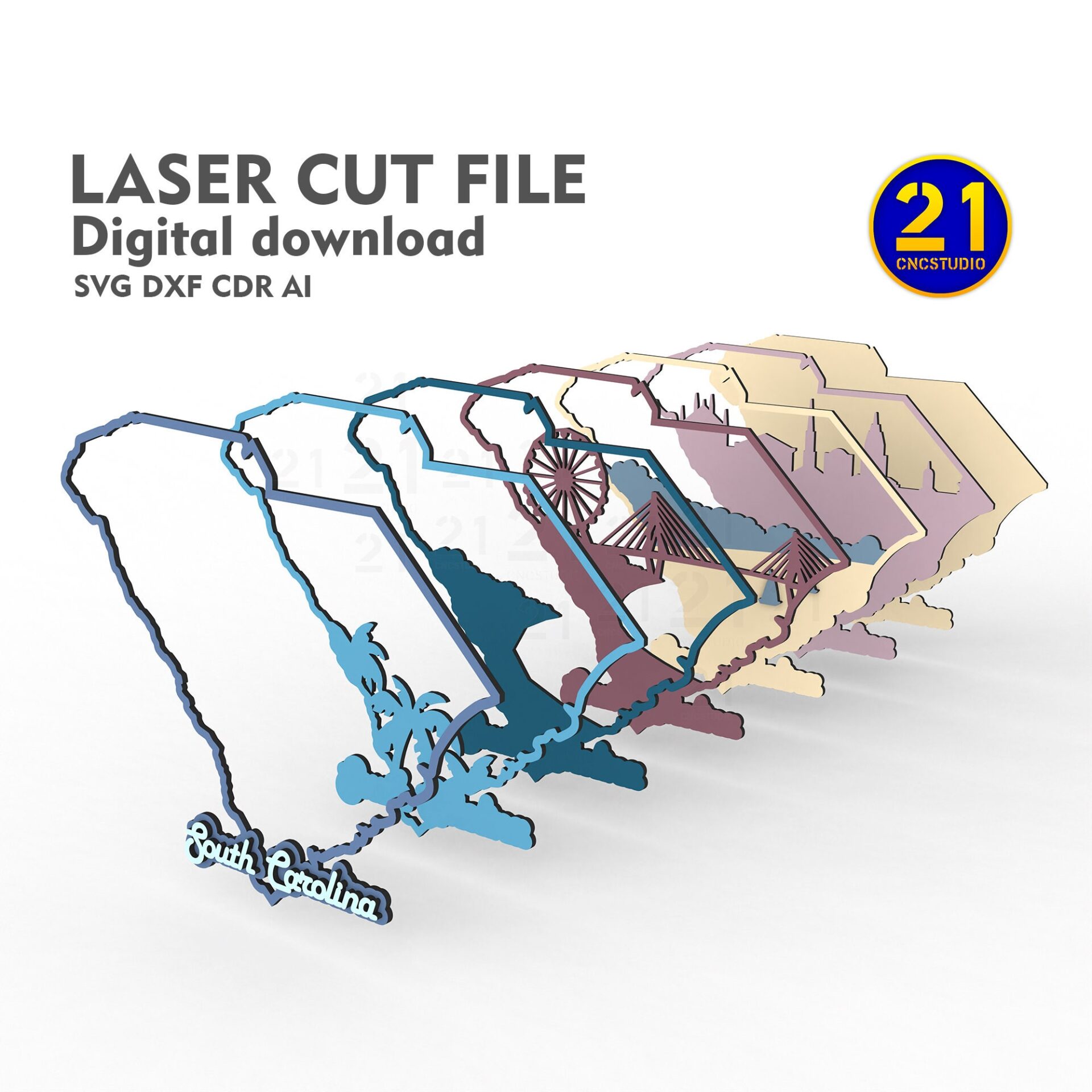

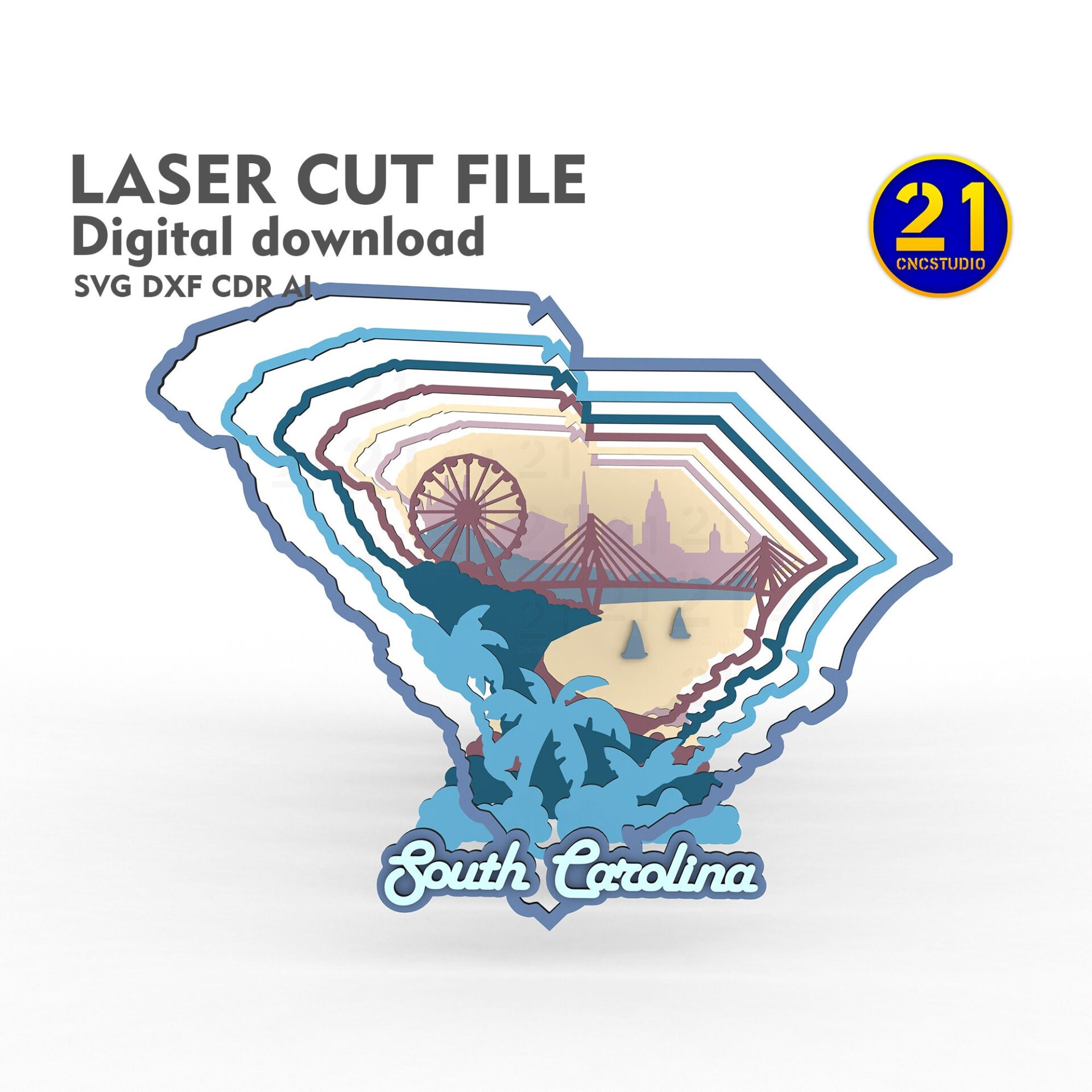

Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Inspect the wheel spokes and small building openings before cutting. Keep all layers at one scale, test a detailed area and dry-stack the finished parts to check alignment.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Layered South Carolina artwork
- Vector formats
- SVG, DXF, AI, CDR, EPS
- Recommended minimum size
- 260 × 210 mm
- Material
- 3 mm plywood
What size should I prepare the South Carolina design at?
The recommended minimum is 260 × 210 mm. Keep the layers at the same scale and test the narrow wheel and building details before cutting the full artwork.
What do I receive?
SVG, DXF, AI, CDR and EPS design files for the layered artwork. An assembly guide is not confirmed. No physical artwork or plywood is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Make your South Carolina scene.
View the South Carolina Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
