Connecticut Layered Map / Laser-cut design
Connecticut. Seven layers.
A skyline, trees and water inside the Connecticut outline. Cut seven layers of state-themed artwork and choose the colours for your display.
Digital design · SVG + DXF + AI + CDR
No physical model or materials are shipped.
01 /The design
A city scene within the state outline.

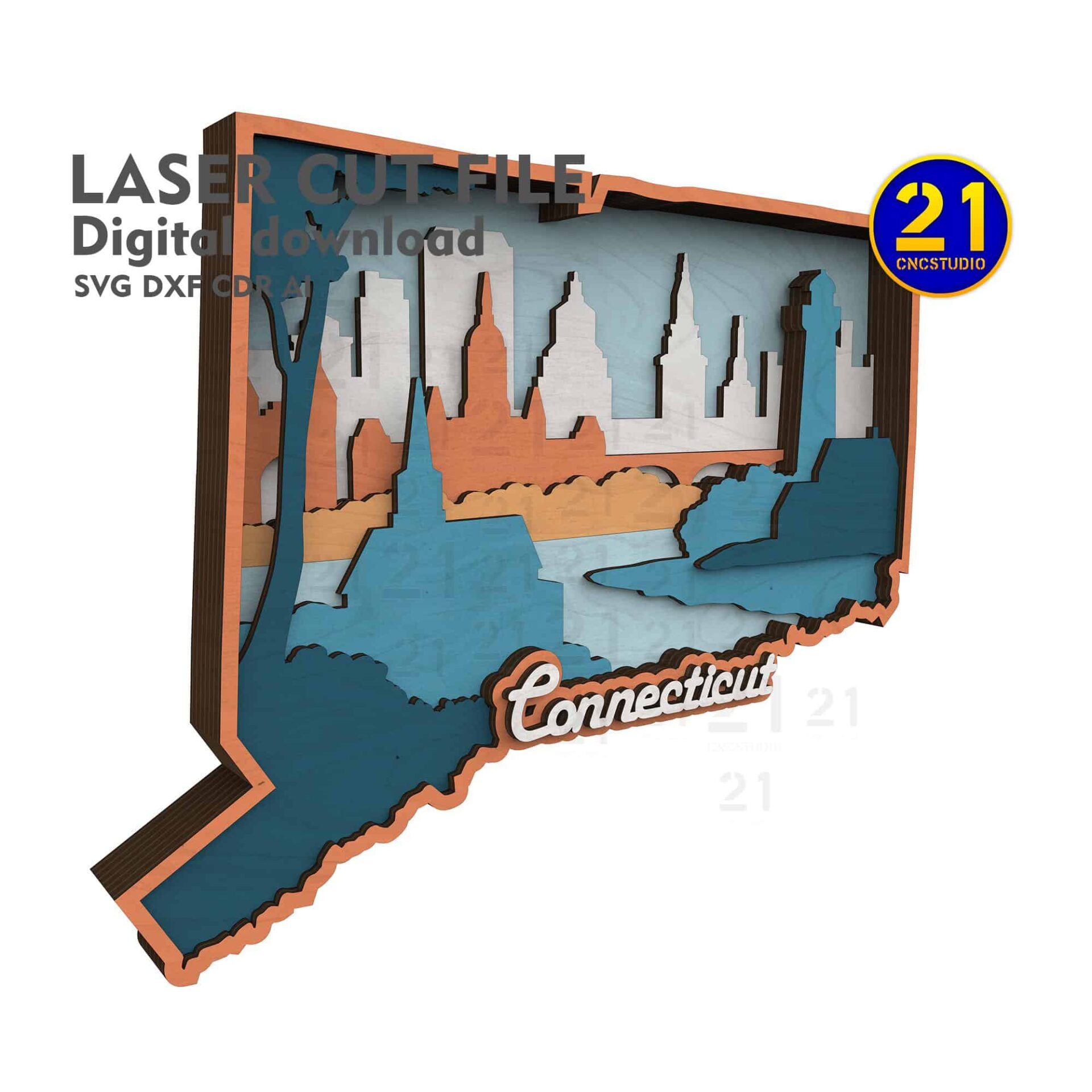

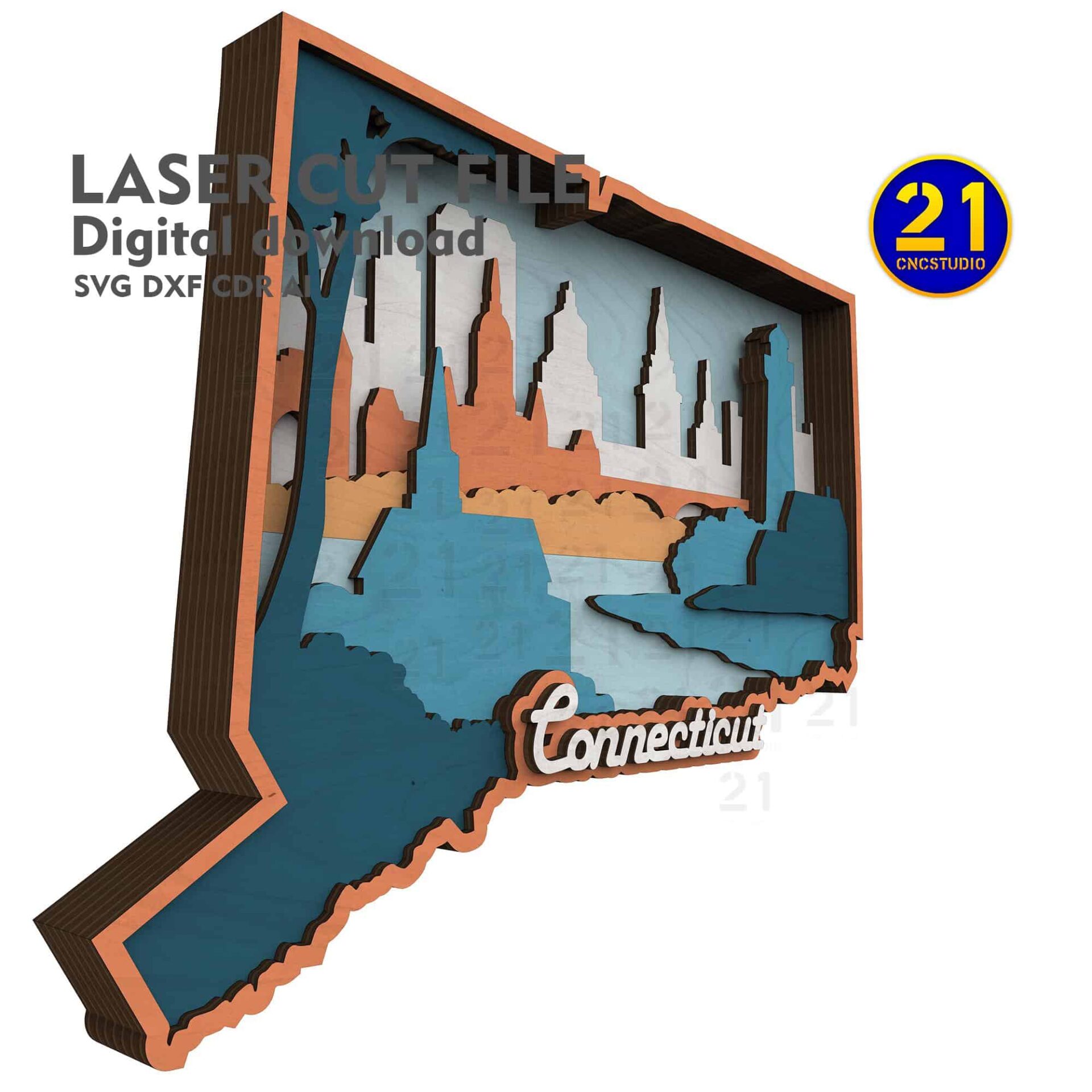

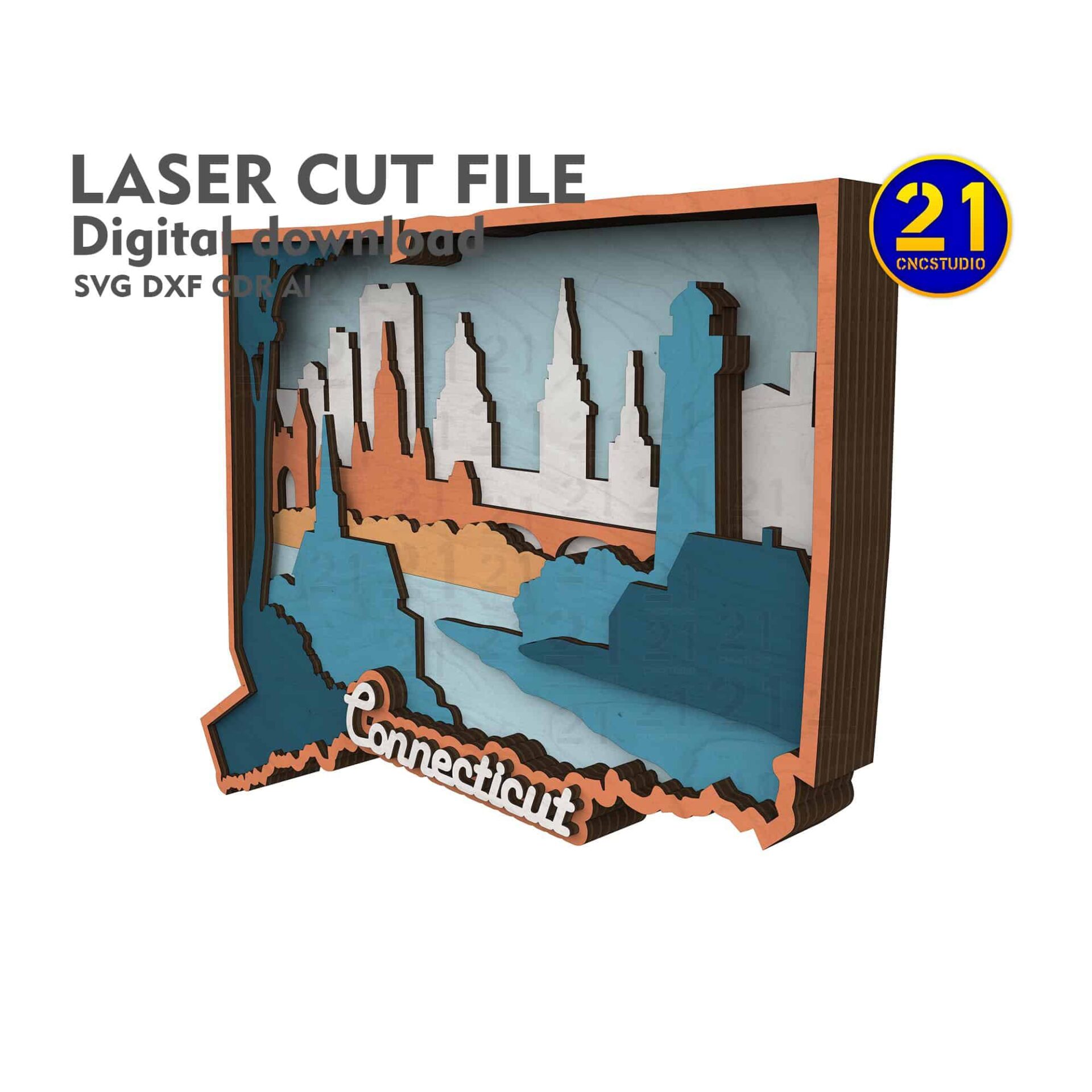

The skyline rises across the upper part of the composition, with water and wooded shapes below. Connecticut lettering sits along the lower edge of the state silhouette.
The digital package includes SVG, DXF, AI and CDR design files. Its recommended size is 262 × 192 mm; keep the small openings and connecting bridges in mind when preparing the cut.
Seven layers

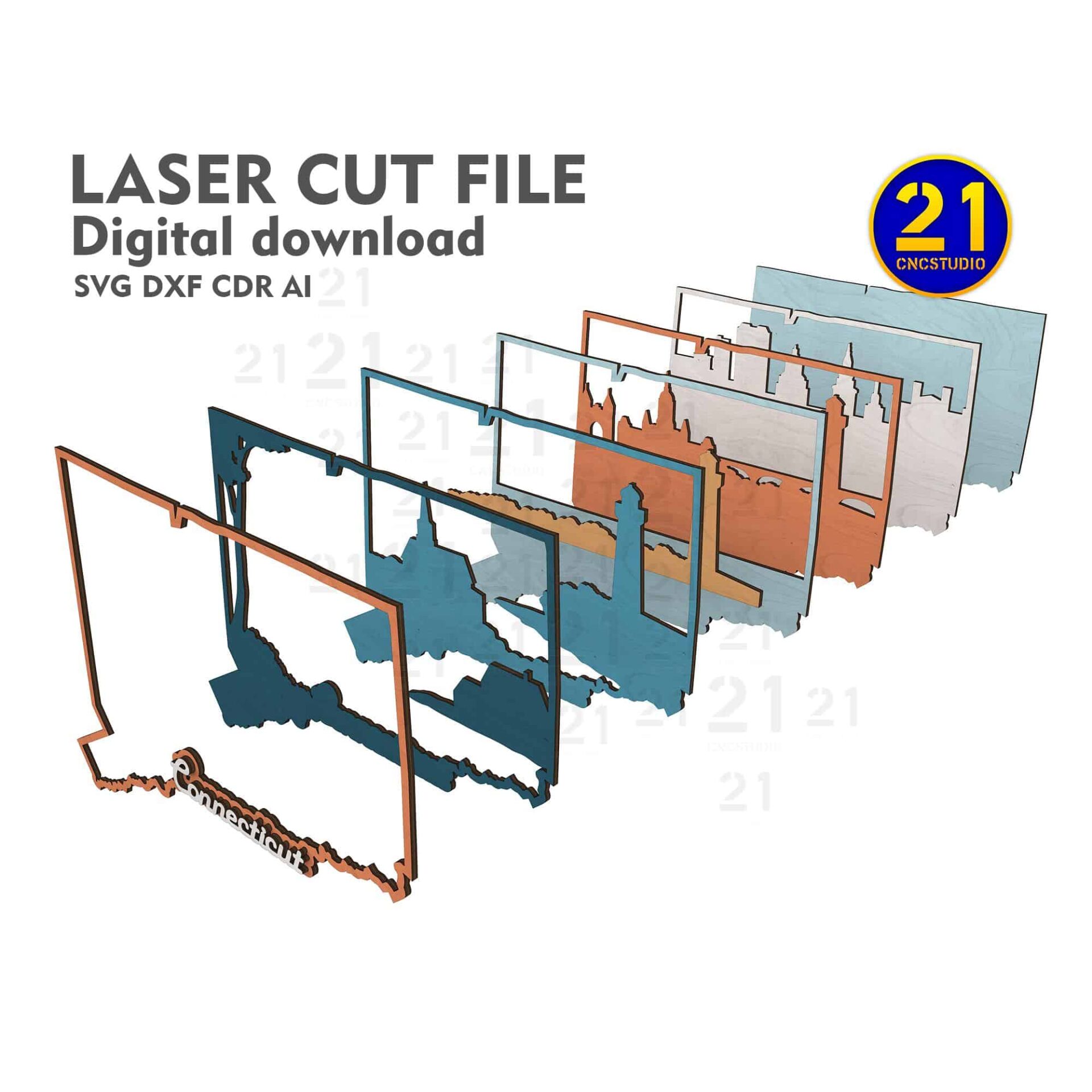

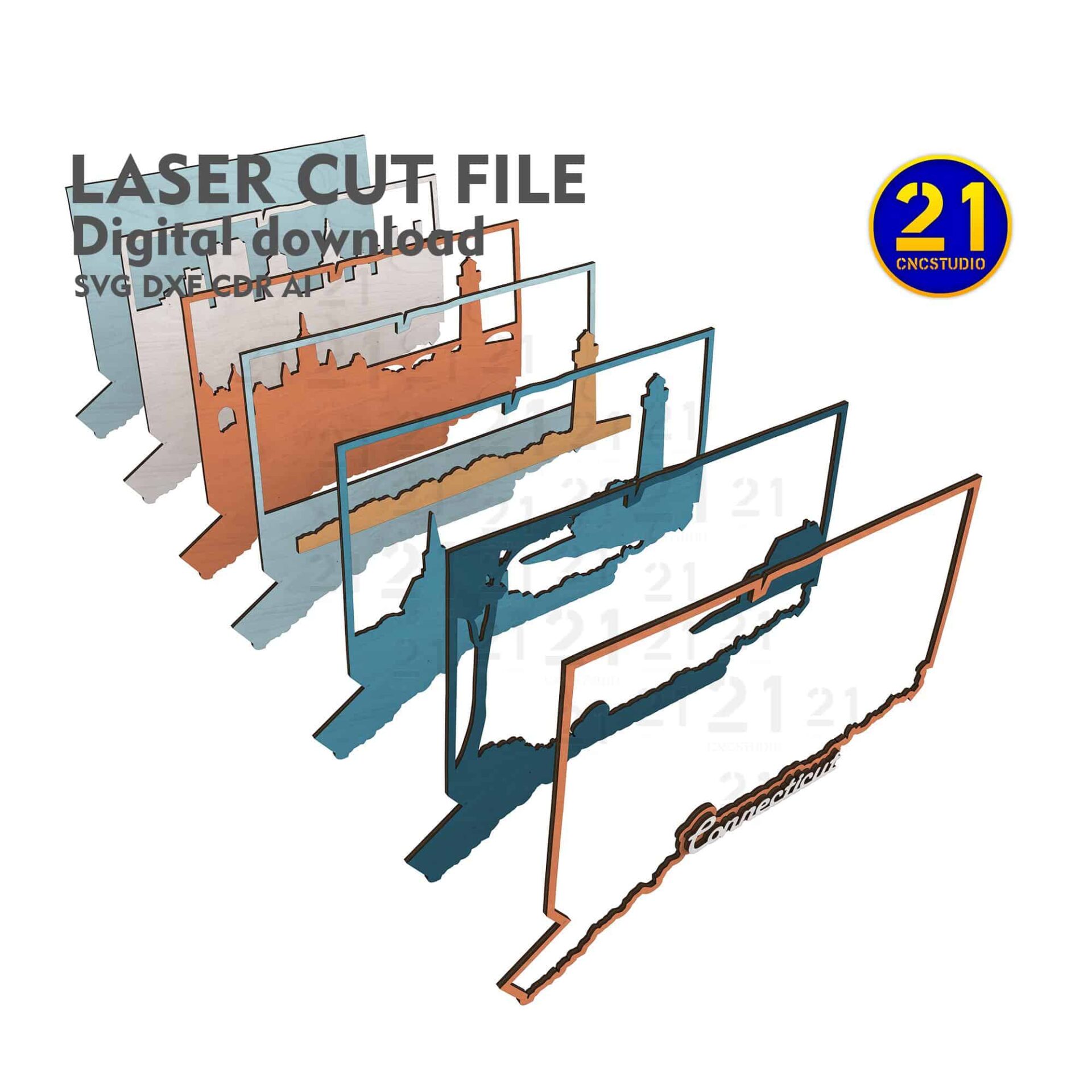

Stack the matching layers to separate the scenery.
Connecticut outline
The state shape holds the city and landscape composition.
Four vector formats
Choose a format that your preparation software supports.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Inspect the smallest skyline openings before resizing. Keep all layers at one scale, test the finest section and check the order and alignment before fixing them together.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Seven-layer Connecticut state art
- Vector formats
- SVG, DXF, AI, CDR
- Recommended size
- 262 × 192 mm
How large is the Connecticut artwork?
The recommended design size is 262 × 192 mm. Resizing changes the finished dimensions and fine detail, so scale all seven layers together and test before cutting.
What do I receive?
SVG, DXF, AI and CDR design files for the seven-layer artwork. An assembly guide is not confirmed. No physical artwork or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Layer your Connecticut scene.
View the Connecticut Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
