Massachusetts Layered Map / Laser-cut design
Massachusetts. A layered scene.
A skyline above green landscape shapes inside the Massachusetts outline. Cut the layers and choose contrasting finishes for the scene.
Digital design · SVG + DXF + AI + CDR + EPS
No physical model or materials are shipped.
01 /The design

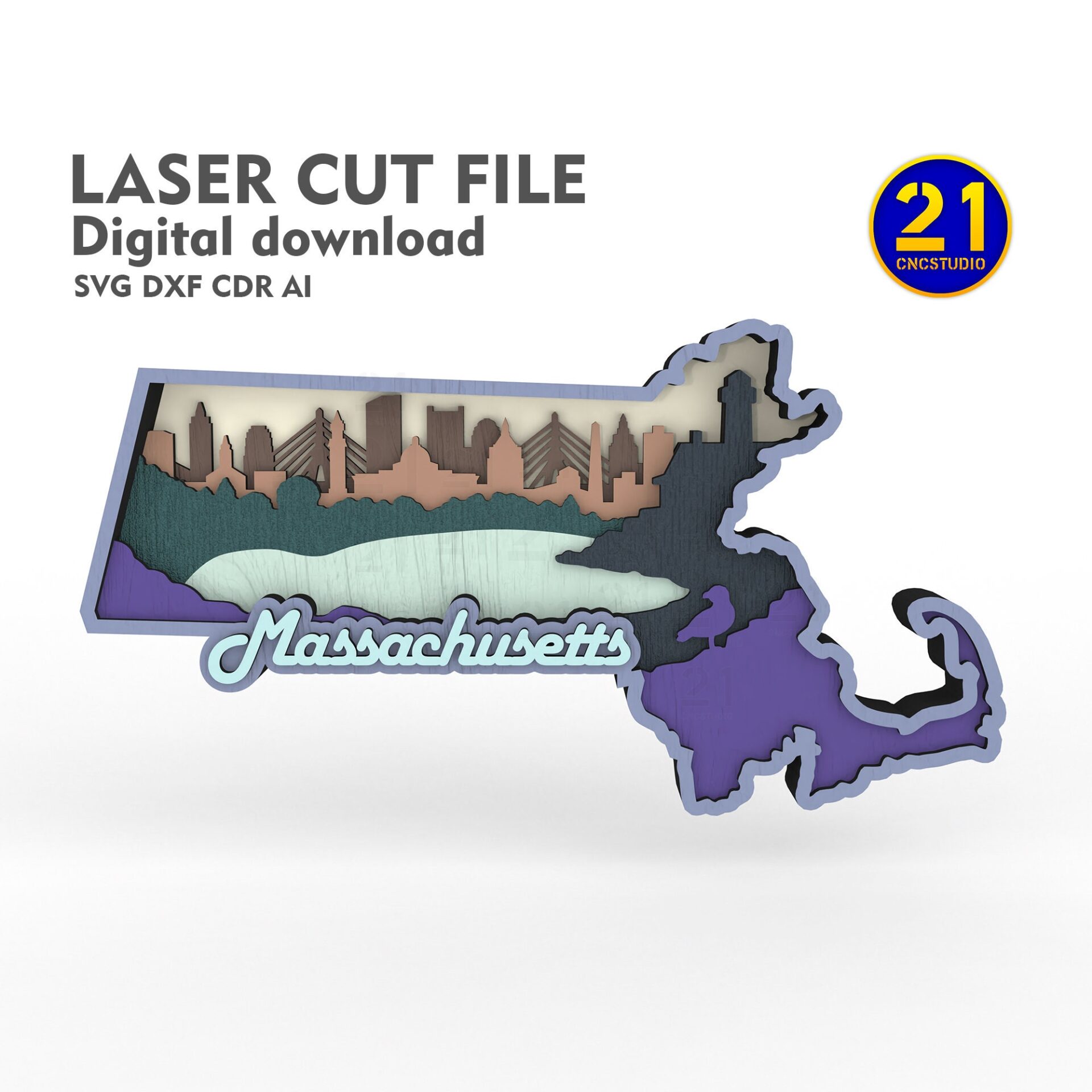

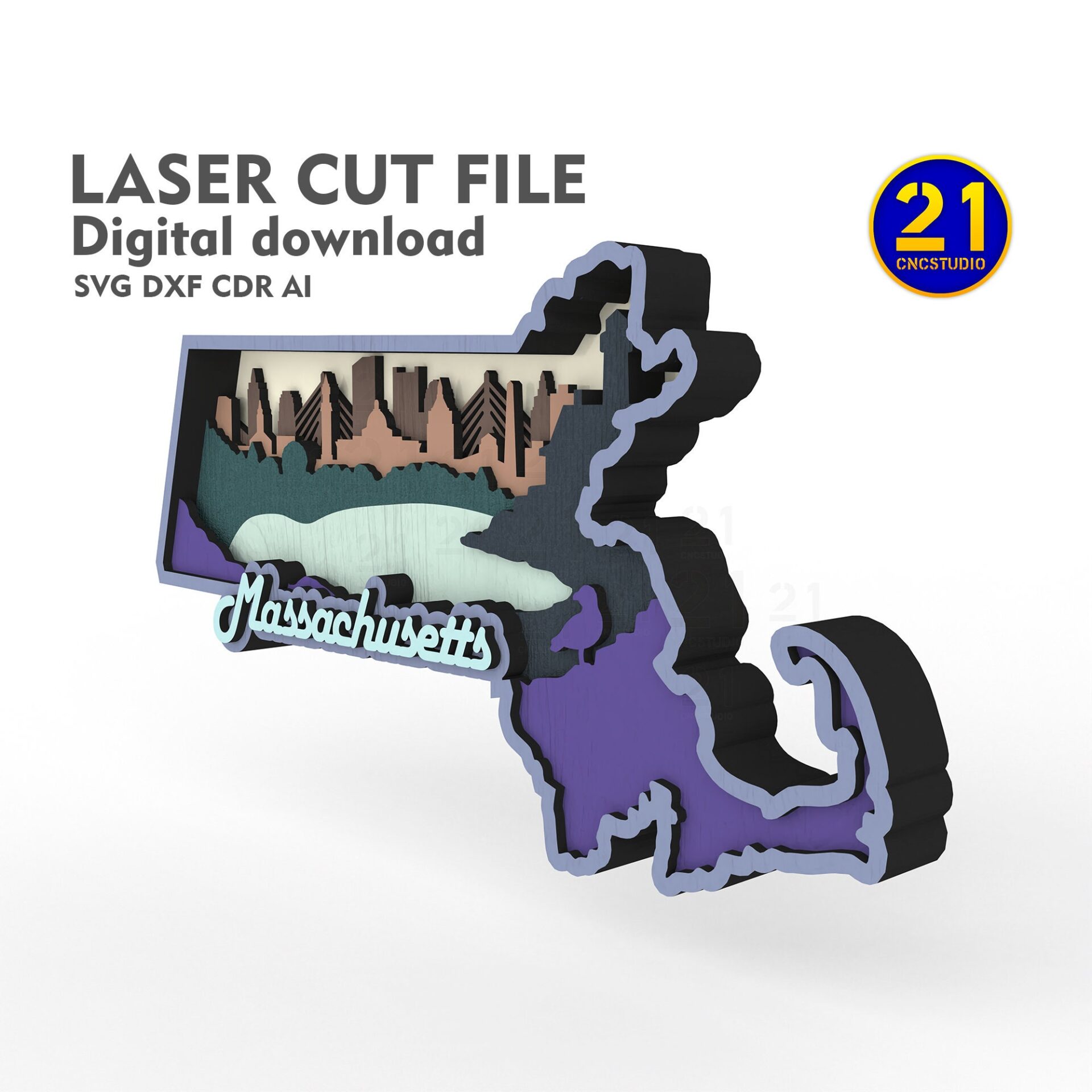

The skyline follows the state shape.
Buildings stretch across the broad western portion of the composition, with landscape shapes below and the state outline continuing towards the coast. Massachusetts lettering sits along the lower edge.
The recommended minimum size is 260 × 140 mm, using 3 mm plywood. The package includes SVG, DXF, AI, CDR and EPS design files.
State-shaped artwork
The Massachusetts outline frames the city and landscape details.
Contrasting layers
Different finishes help the foreground stand apart from the skyline.
Five vector formats
Choose a supplied format that your preparation software supports.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.

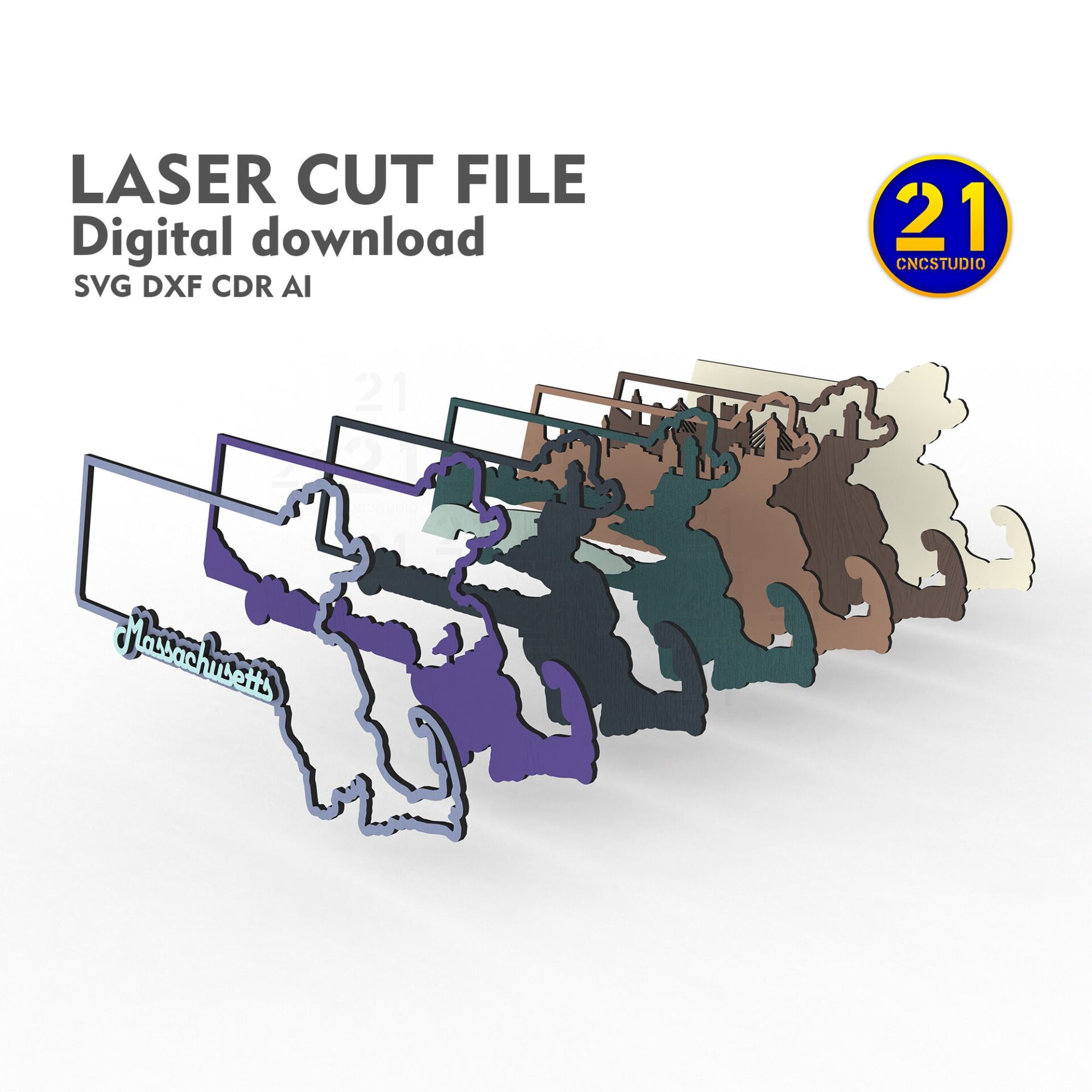

Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Check the narrow coastal shapes and small skyline openings before resizing. Keep every layer at one scale, test the fine detail and dry-stack the parts before fixing them together.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Layered Massachusetts artwork
- Vector formats
- SVG, DXF, AI, CDR, EPS
- Recommended minimum size
- 260 × 140 mm
- Material
- 3 mm plywood
What material and size are recommended?
The design specifies 3 mm plywood and a recommended minimum size of 260 × 140 mm. Measure your material and test the small details at your intended size.
What do I receive?
SVG, DXF, AI, CDR and EPS design files for the layered artwork. An assembly guide is not confirmed. No physical artwork or plywood is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Make your Massachusetts scene.
View the Massachusetts Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
