New York State / Laser-cut design
New York State. A layered scene.
Tall buildings, a bridge and water inside the New York State outline. Build a layered scene that combines the state shape with city detail.
Digital design · SVG + DXF + AI + CDR + EPS
No physical model or materials are shipped.
01 /The design

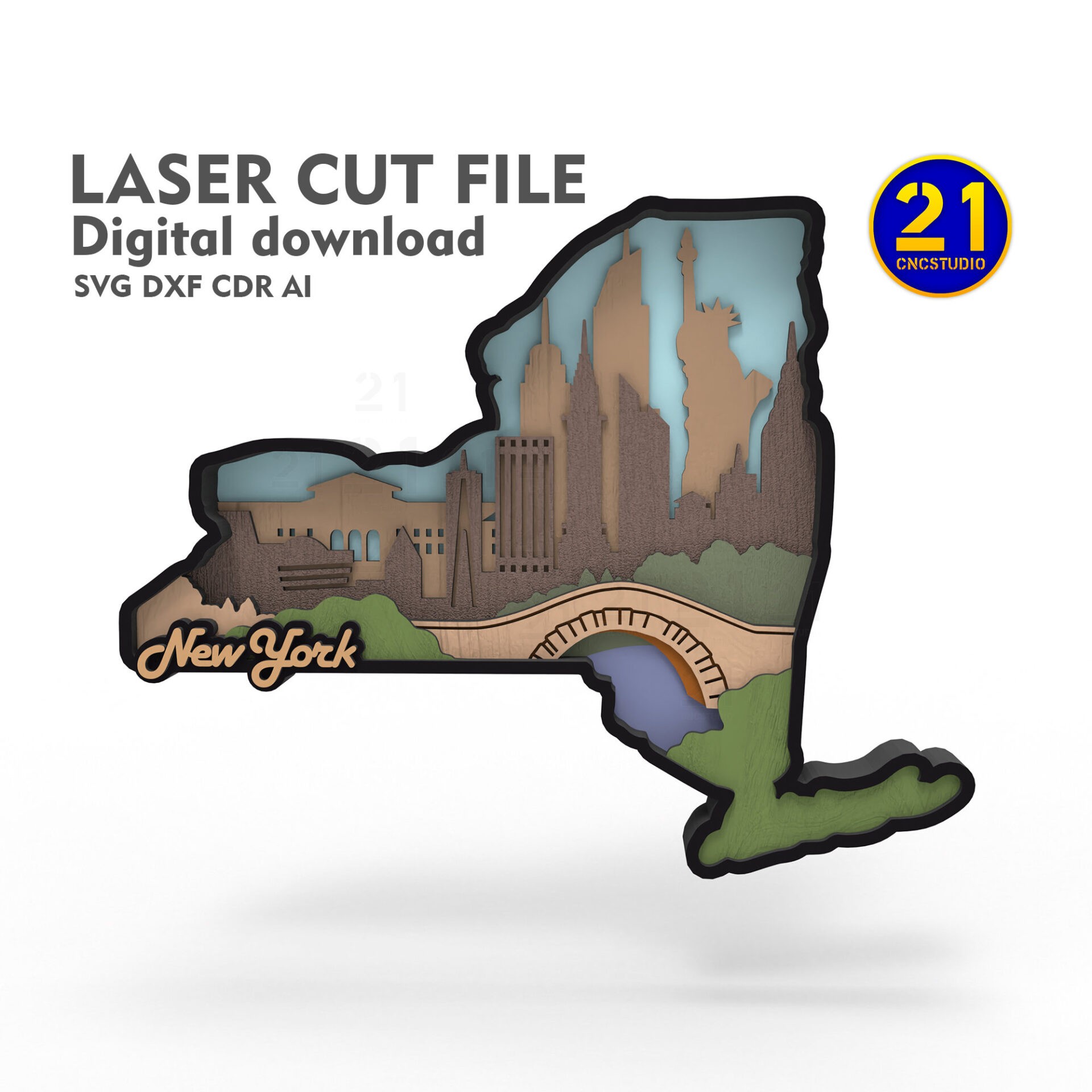

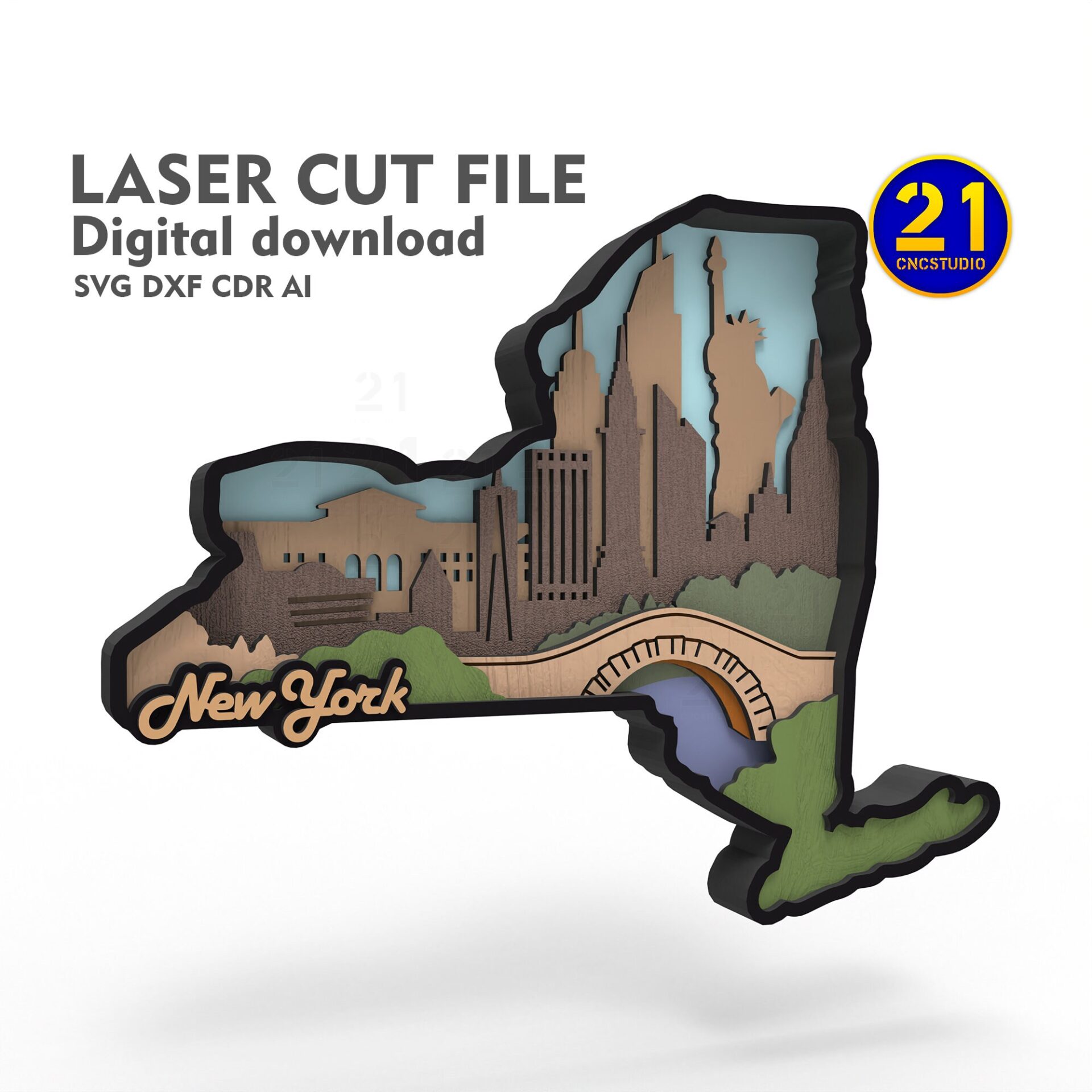

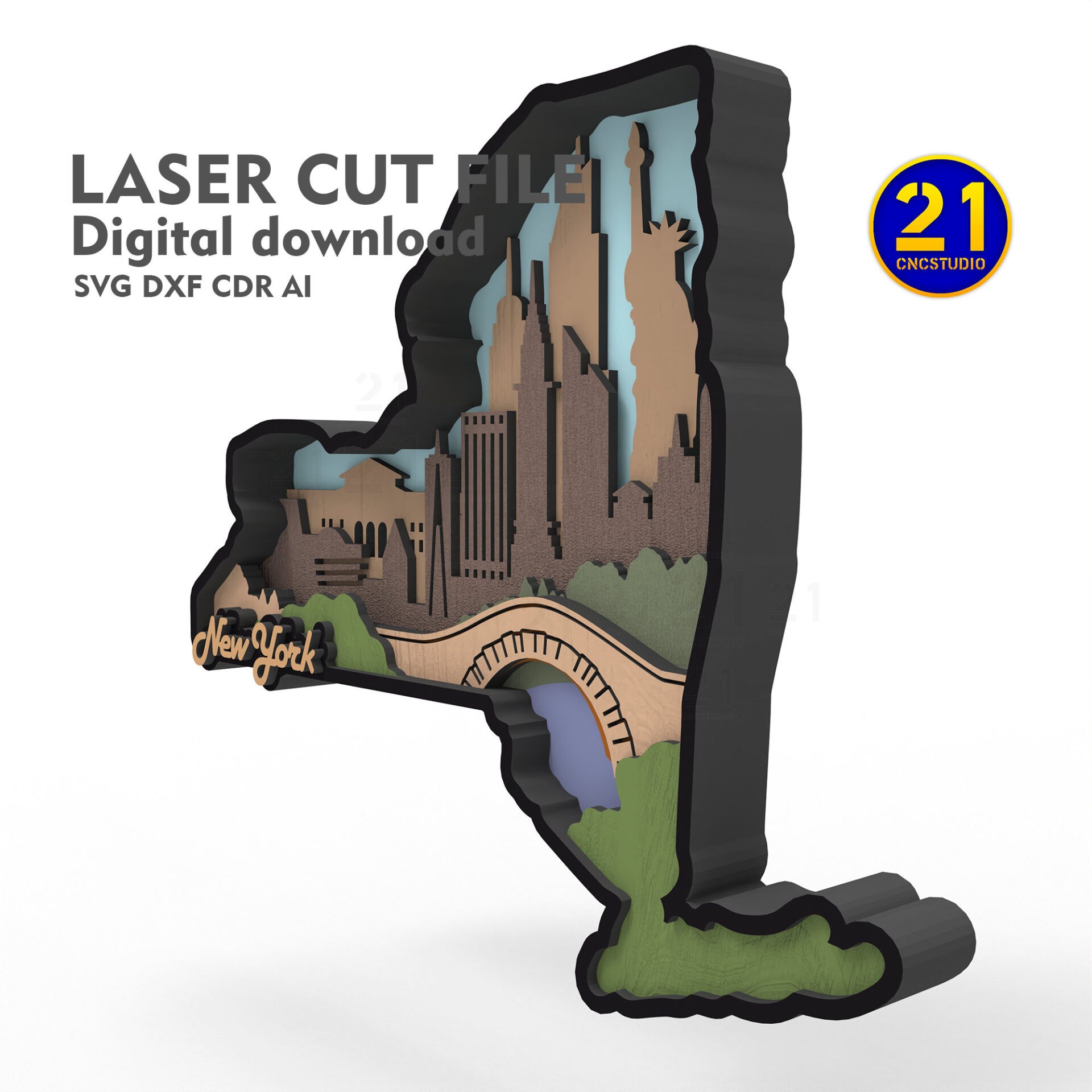

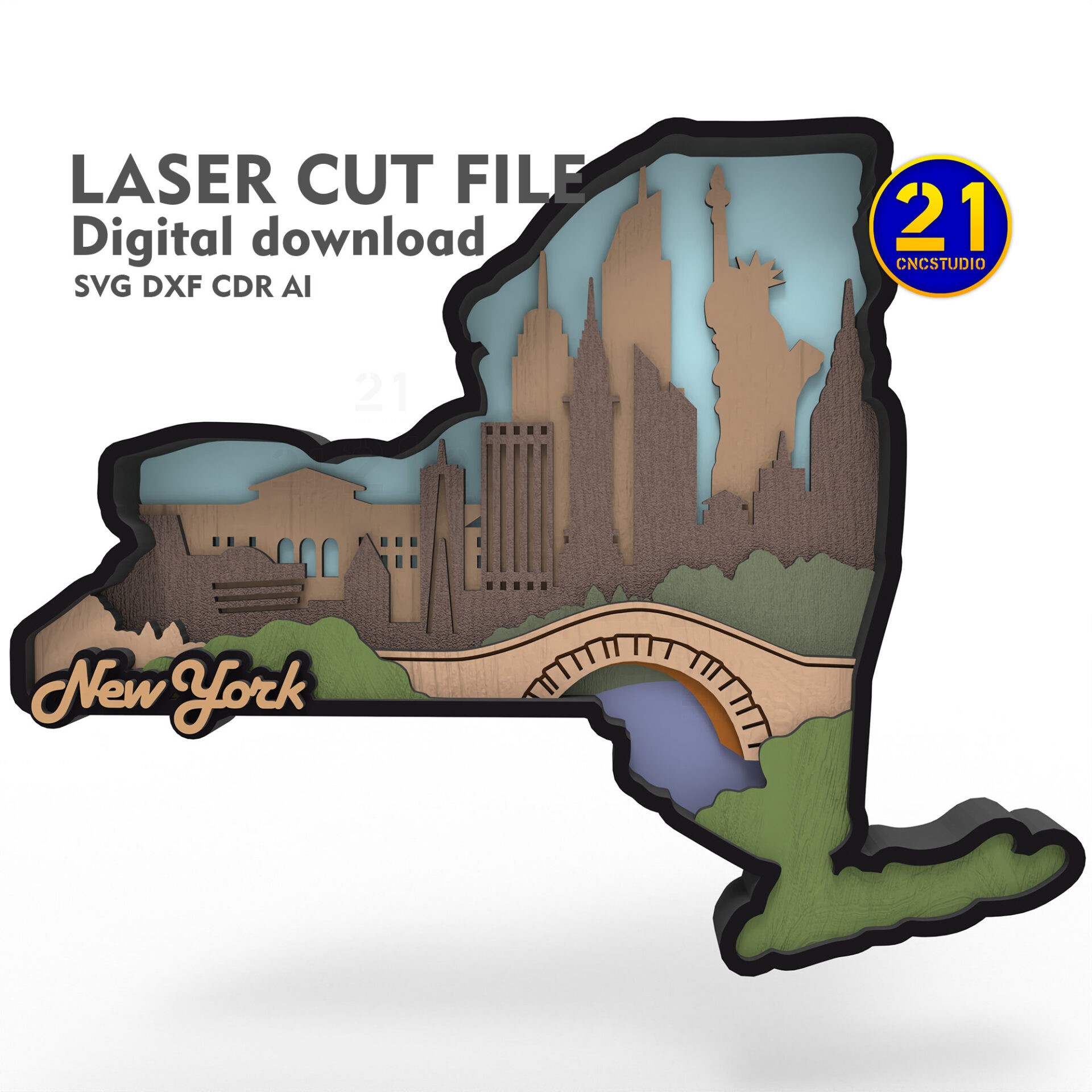

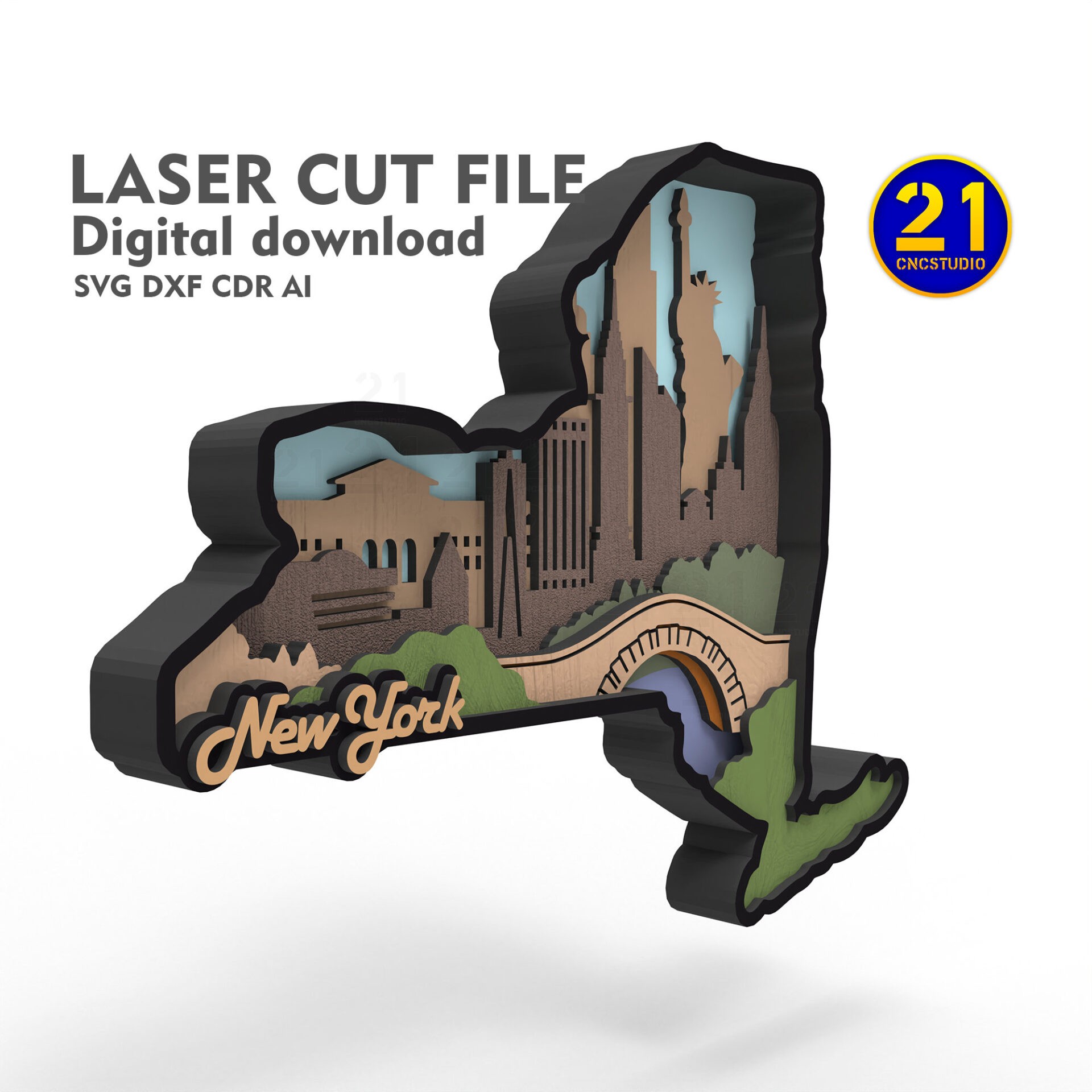

The state outline frames the skyline.
The buildings rise through the tall part of the silhouette, with the bridge and water below. New York lettering sits across the lower-left portion of the artwork.
The design is intended for 3 mm plywood at a recommended minimum size of 261 × 206 mm. SVG, DXF, AI, CDR and EPS files give you a choice of preparation formats.
New York State outline
The silhouette frames the city and landscape composition.
Buildings and bridge
Overlapping shapes separate the skyline from the foreground.
Five vector formats
Choose the format your laser preparation software supports.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.

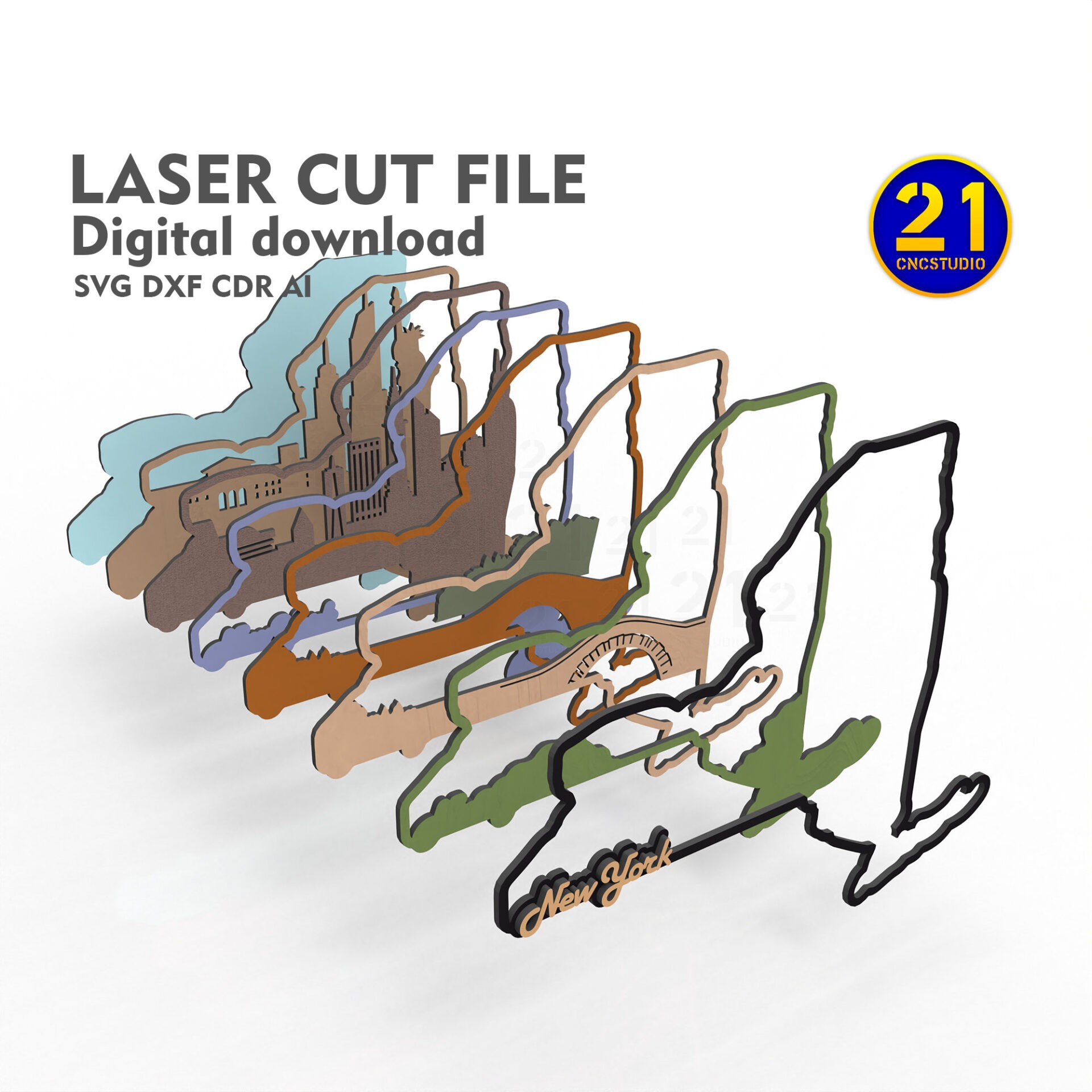

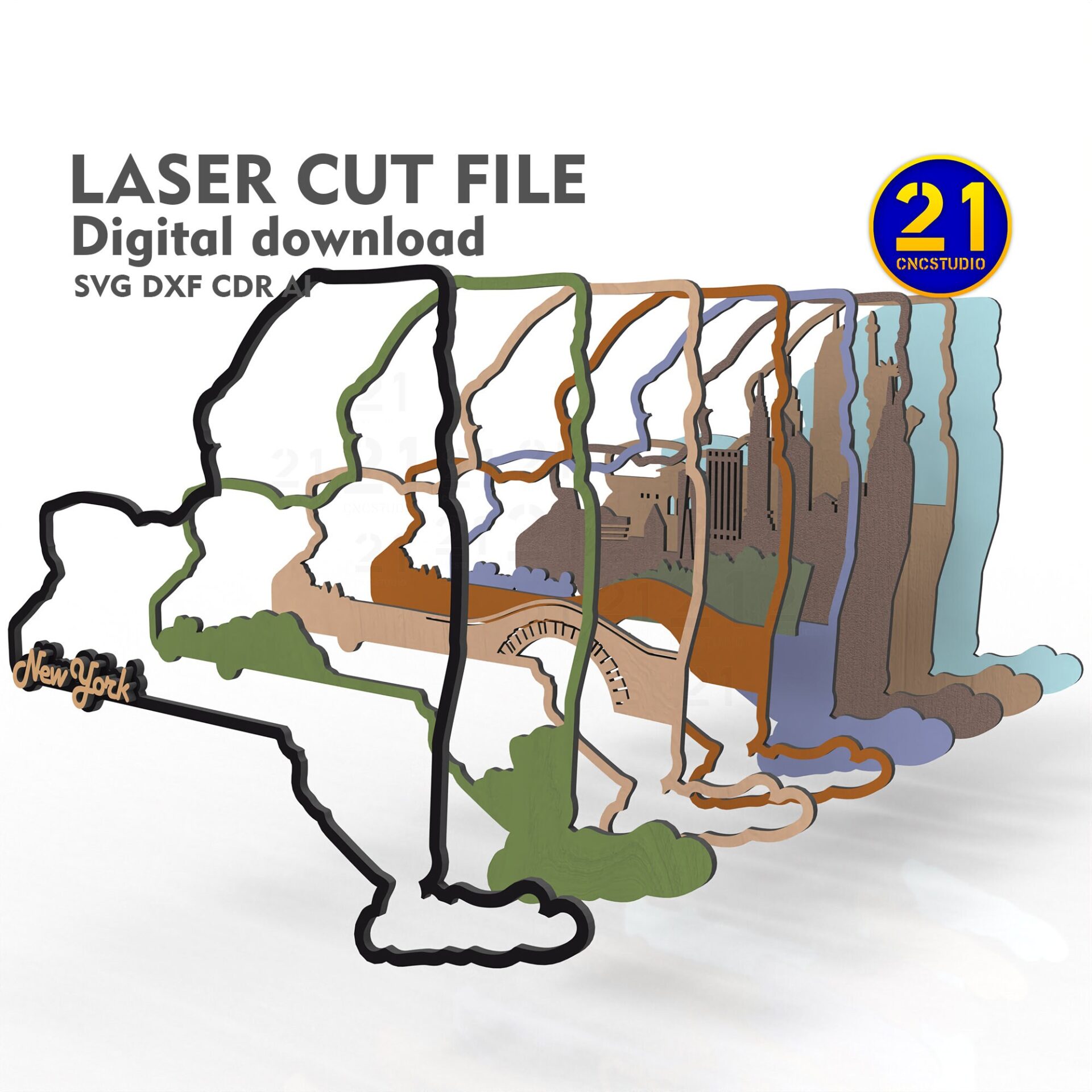

Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Respect the recommended minimum size and inspect the narrow outline and skyline details. Scale all layers together, test the fine connections and check their alignment before fixing the stack.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Layered New York State artwork
- Vector formats
- SVG, DXF, AI, CDR, EPS
- Recommended minimum size
- 261 × 206 mm
- Material
- 3 mm plywood
Is this the same as the New York street-map design?
No. This artwork places a scene inside the outline of New York State. The separate New York street map uses road and water detail within round, square or hexagonal frames.
What do I receive?
SVG, DXF, AI, CDR and EPS design files for the layered artwork. An assembly guide is not confirmed. No physical artwork or plywood is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build your New York State scene.
View the New York State file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
