Classic Truck / Laser-cut design
Classic truck. An open-bed build.
An enclosed cabin, six wheels and an open cargo bed. Build the Classic Truck from SVG and DXF designs, with a PDF guide for the assembly.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
From the cabin to the cargo bed.

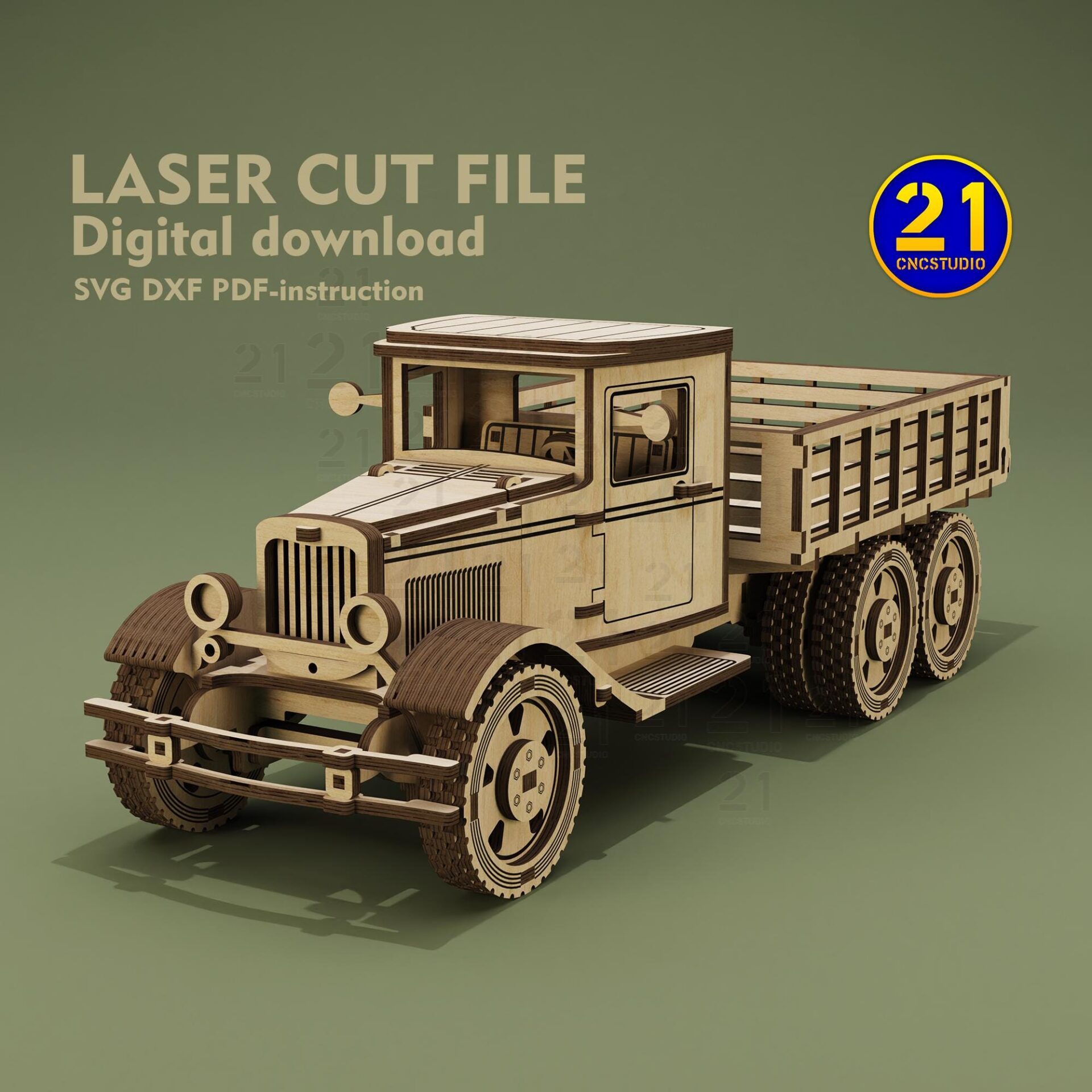

The truck’s cabin includes seats, steering and pedal detail, with an engine beneath the bonnet. Rear and overhead gallery views show the open cargo bed, alongside a customer-built example in natural wood.
At the 3 mm material scale, the finished model measures 329 mm long, 127 mm wide and 117 mm high. The supplied cutting layout uses five 300 × 300 mm sheets.
Detailed cabin
Seats, steering and pedals form part of the interior.
Cabin and cargo views
The gallery shows the cabin, raised bonnet and open rear body.
Two material versions
Choose the 3 mm or 1/8-inch files to match your material.
Views & details
A closer look.
Different views, details and a physical build. Select an image for a larger view.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
The five 300 × 300 mm sheets describe the cutting layout, not the size of an individual part. Check the layout against your usable cutting area, measure the material and test the joints before cutting the full truck.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design files
- SVG + DXF
- Assembly guide
- PDF included
- Material versions
- 3 mm / 1/8 inch
- Finished size at 3 mm
- 329 × 127 × 117 mm (L × W × H)
- Cutting layout
- Five 300 × 300 mm sheets
How large is the finished truck?
With 3 mm material, the assembled truck is 329 × 127 × 117 mm in length, width and height. Changing the design scale also changes the material thickness needed for its slots.
What do I receive?
Digital SVG and DXF design files and a PDF assembly guide. No physical model, material or hardware is shipped.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build the Classic Truck.
View the Classic Truck file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
