Vintage Fire Truck / Laser-cut design
Vintage Fire Truck.
A long ladder, three axles and an engine beneath the hood. Make this vintage fire truck from SVG and DXF files, with a PDF guide for the build.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
More to see beneath the hood.

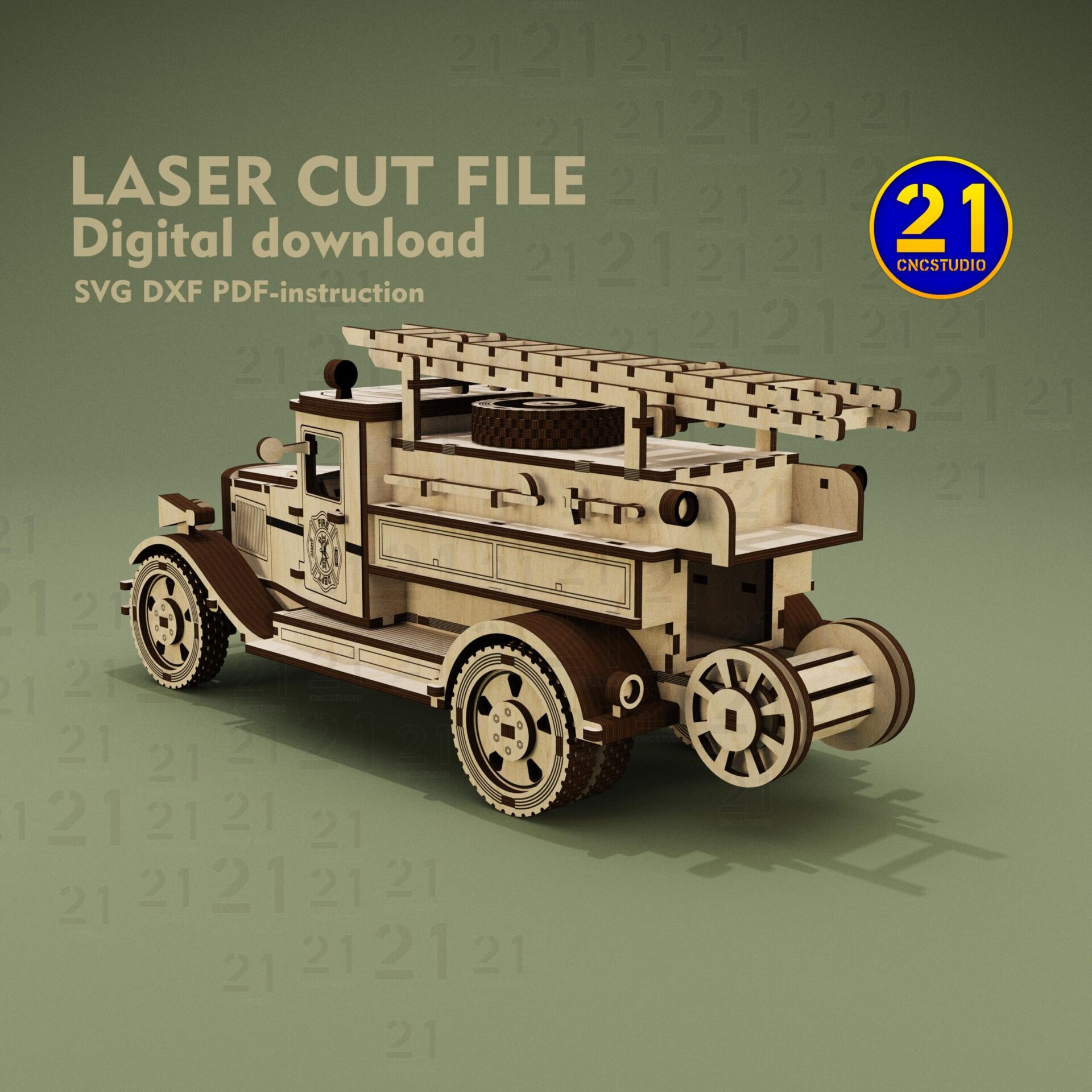

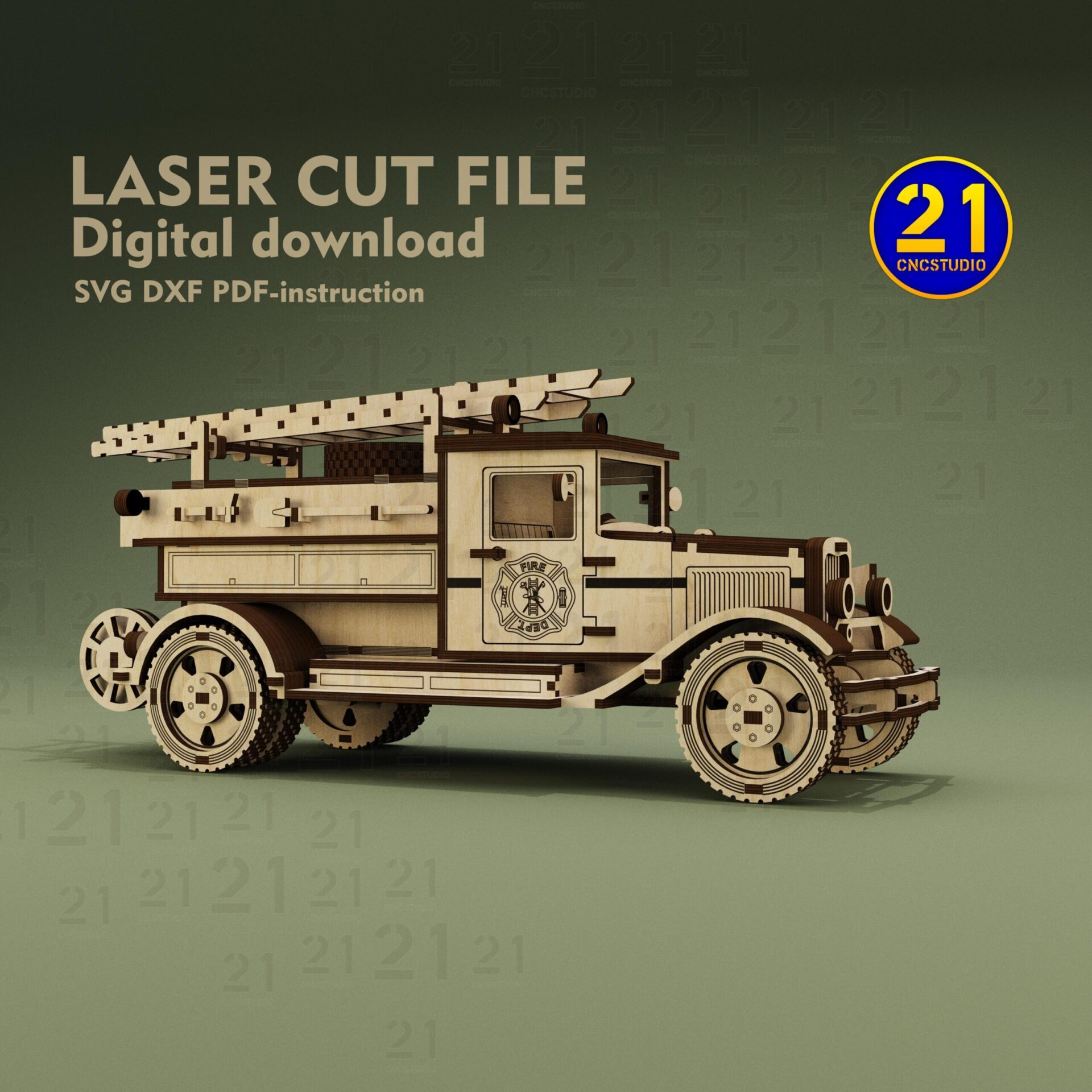

The roof-mounted ladder and long rear body give this fire truck its silhouette. Look closer and there is a wooden engine beneath the opening hood, plus detail inside the cab.
The listed model measures 325 × 125 × 140 mm. Original renders show the body from several angles; the customer photograph shows a finished build with its maker’s own choice of material and finish.
Opening hood
Lift the hood to reveal the wooden engine.
Cab interior
The cab adds another stage of detail to the assembly.
Ladder-truck body
The long rear body and roof-mounted ladder distinguish this design from the separate fire tank truck.
Views & details
A closer look.
Different views, details and a physical build. Select an image for a larger view.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Choose the file version that matches your measured material thickness. Test the joints before cutting the complete body, and use the PDF to keep the small engine and cab parts in order.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design files
- SVG + DXF
- Assembly guide
- PDF included
- Material versions
- 3 mm / 1/8 inch plywood or MDF
- Listed finished size
- 325 × 125 × 140 mm (L × W × H)
- Design features
- Opening hood; wooden engine; cab interior
Is this the same design as the fire tank truck?
No. This page is for the ladder-equipped Vintage Fire Truck. The Classic Fire Tank Truck has a separate enclosed tank body and its own design files.
What do I receive?
Digital SVG and DXF design files and a PDF assembly guide. No physical model, material or hardware is shipped.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
Check the current listing licence before making items for sale. The digital files may not be redistributed or resold; contact the studio if your intended use needs permission.
03 /From the studio to your workbench
Make room for the fire truck.
View the Vintage Fire Truck file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
