Vintage Truck & Trailer / Laser-cut design
A vintage truck. A removable rack.
SVG and DXF files for a vintage truck and trailer, with a PDF assembly guide. Build it for display with an empty cargo bed, or fit the removable rack to hold a bottle.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
A truck model with an optional bottle rack.

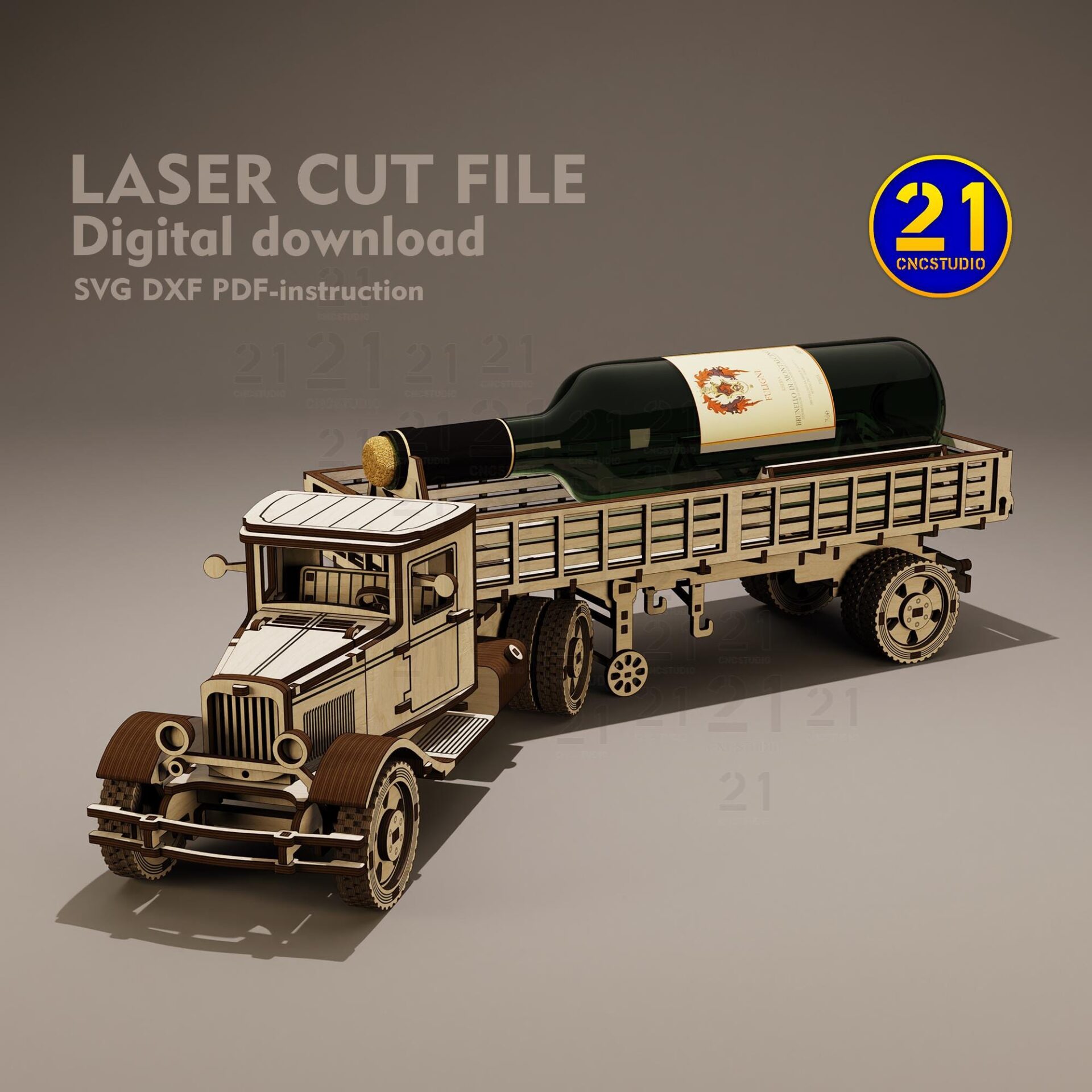

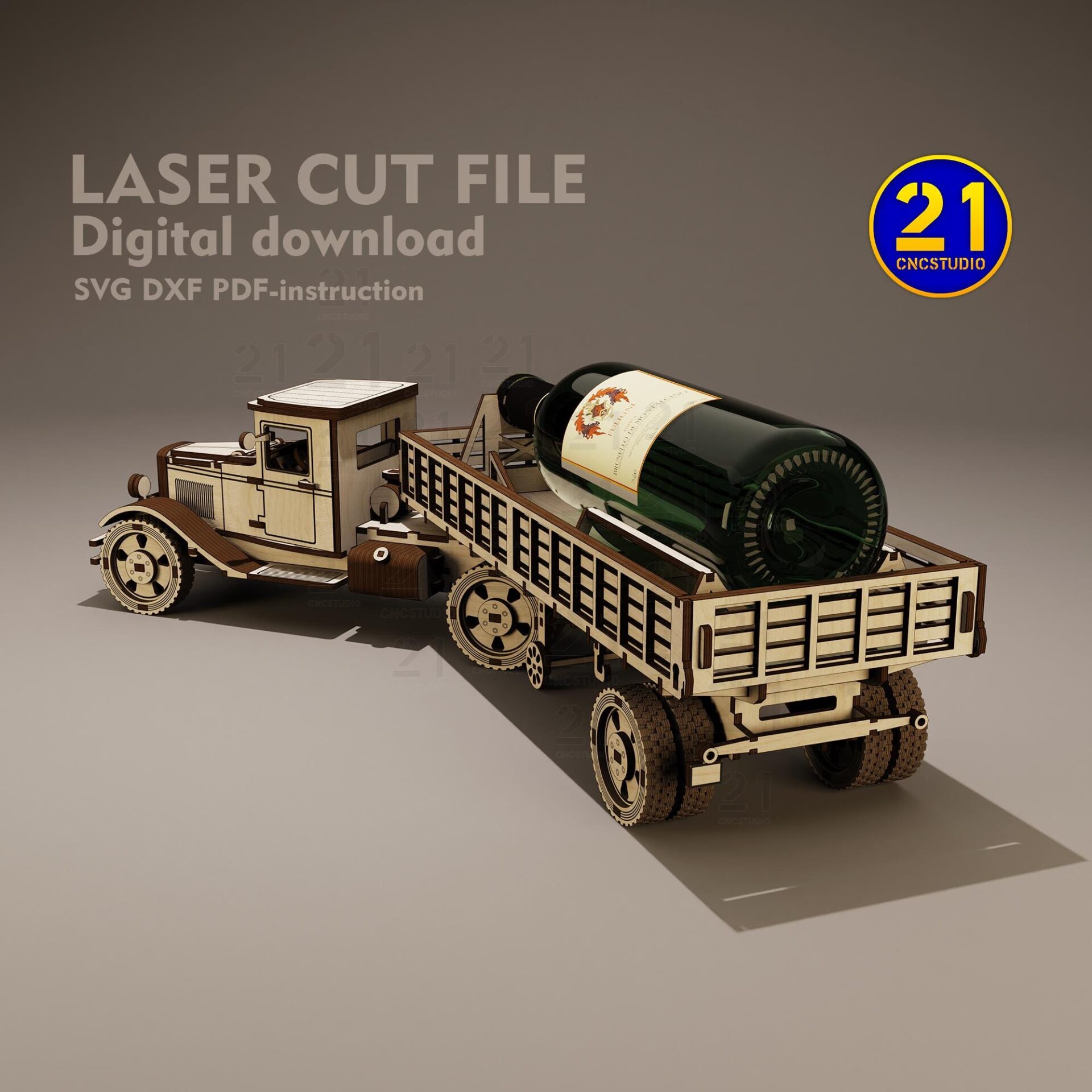

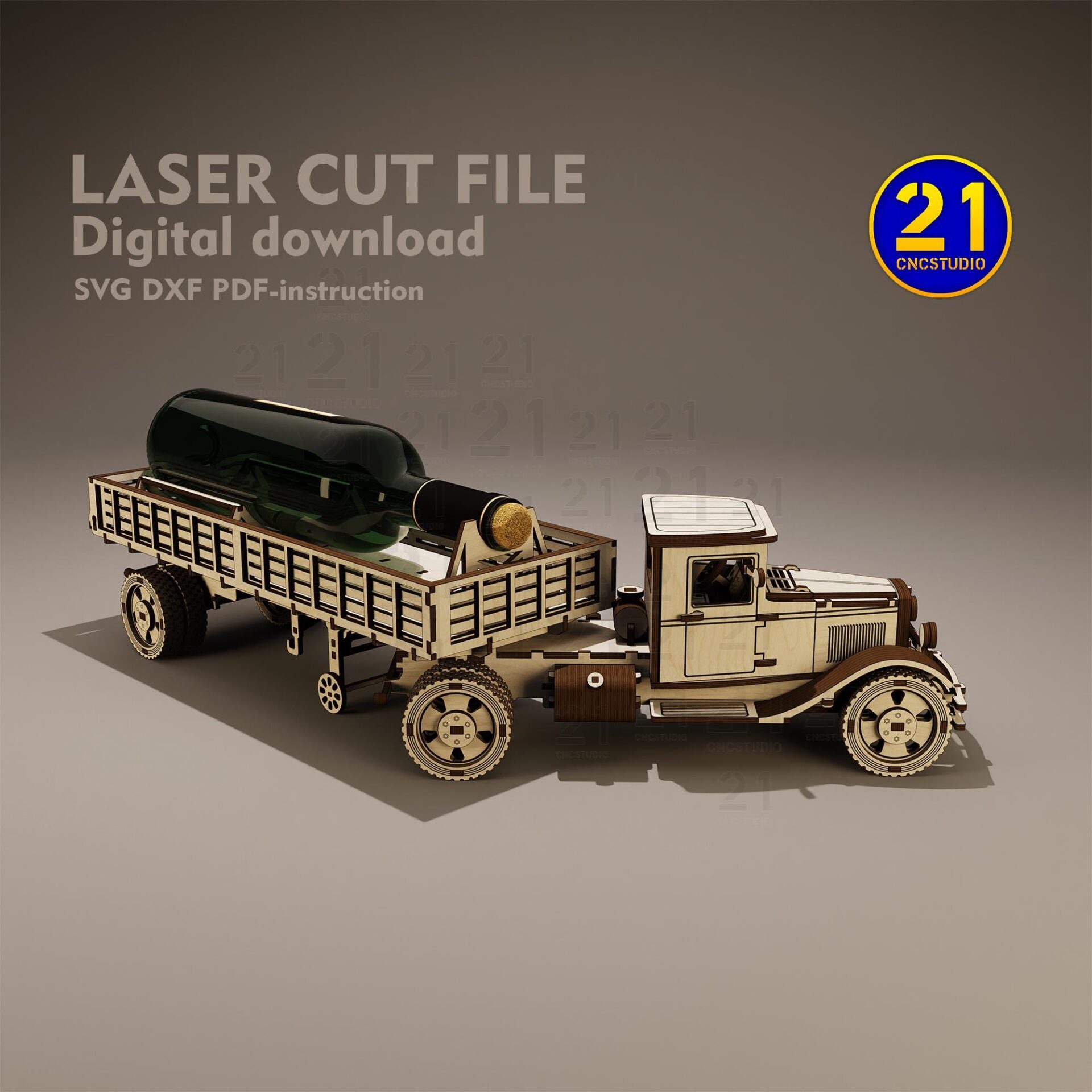

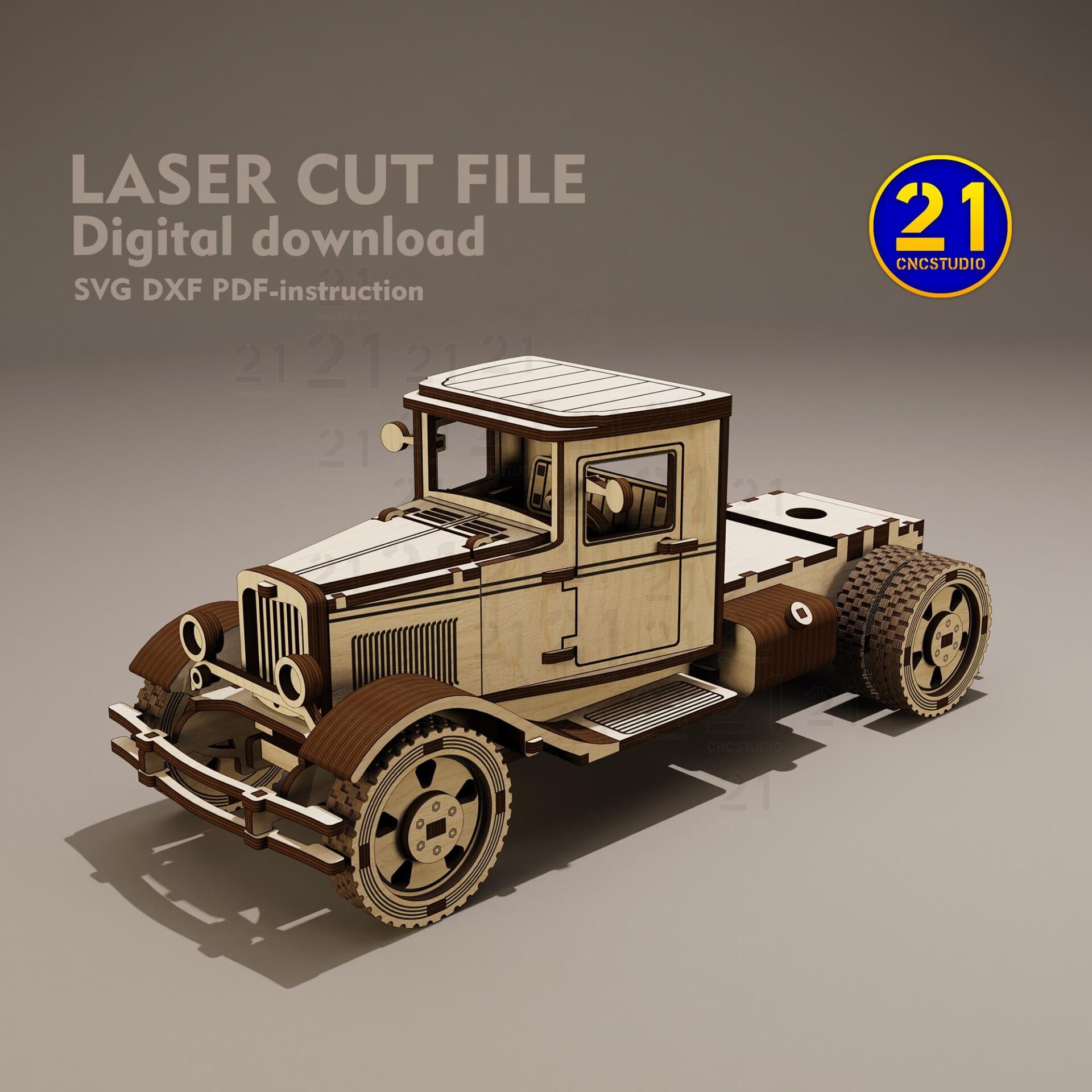

The tractor unit has engine detail beneath the bonnet and a cabin interior. The gallery shows the tractor, detached trailer and complete model without a bottle, as well as an overhead view of the rack in use.
The listed finished size is 524 × 121 × 121 mm. Files are prepared for 3 mm and 1/8-inch plywood, with a PDF assembly guide. The bottle shown in the images is a display prop.
Removable rack
Display the truck with an empty trailer or fit the bottle rack.
Cabin and engine
Interior and under-bonnet details give the tractor unit its character.
Separate views
Inspect the tractor, trailer and assembled model in the gallery.
Views & details
A closer look.
Different views, details and a physical build. Select an image for a larger view.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Measure the plywood and test the fitted connections before cutting the full model. If using the rack, check your chosen bottle against it and check the finished assembly for fit and stability before use.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Vintage truck with removable bottle rack
- Design files
- SVG + DXF
- Assembly guide
- PDF included
- Material versions
- 3 mm / 1/8 inch plywood
- Finished size
- 524 × 121 × 121 mm (L × W × H)
- Details
- Engine under bonnet and cabin interior
Does the truck have to hold a bottle?
No. The rack is removable, so the truck can be displayed without a bottle. Check the rack against the bottle you intend to use; a bottle is not included.
What do I receive?
SVG and DXF cutting designs with a PDF assembly guide, prepared for 3 mm and 1/8-inch plywood. No physical truck, bottle, plywood or hardware is supplied.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build your vintage truck and trailer.
View the Vintage Truck & Trailer file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
