Cagliari Honeycomb Street Map / Laser-cut design
Cagliari. Three map layers.
SVG, DXF, AI and CDR files for a three-layer Cagliari street map. Cut the road pattern and blue coastal water within a hexagonal honeycomb-style outline.
Digital design · SVG + DXF + AI + CDR
No physical model or materials are shipped.
01 /The design
A coastal map within a hexagon.

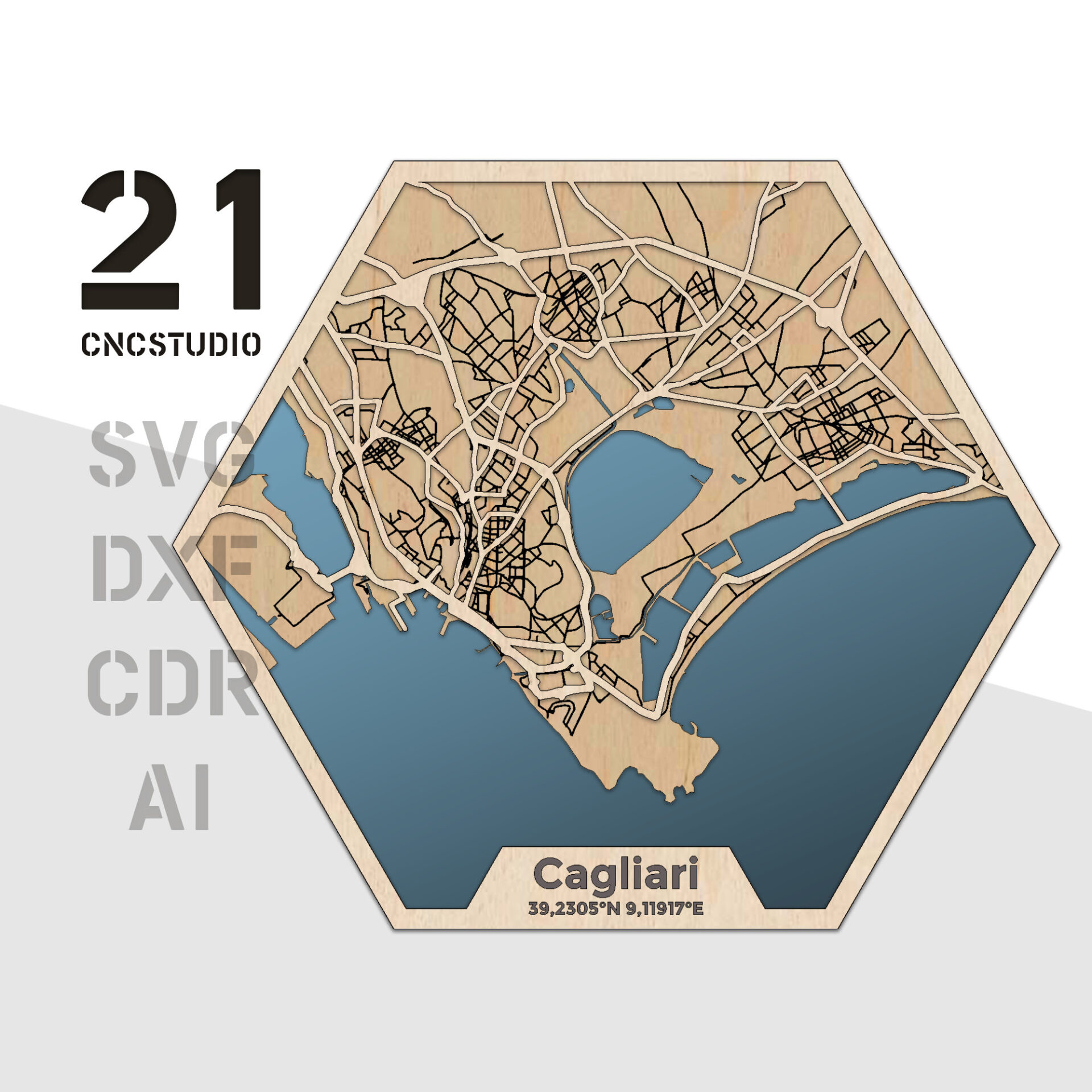

Pale roads and shoreline details sit above the blue water. The six-sided frame encloses the city pattern, with Cagliari lettering beneath the map.
This design uses three layers. SVG, DXF, AI and CDR formats are supplied; inspect the current dimensions and smallest road details before preparing your cutting layout.
Three-layer map
Cut and stack the matching layers in order.
Honeycomb outline
A hexagonal frame surrounds the road and water pattern.
Four vector formats
Choose SVG, DXF, AI or CDR in compatible preparation software.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Check the current files at your intended output size, especially the finest roads and shoreline connections. Keep every layer at the same scale and dry-stack the cut shapes before fixing them together.
Before you start.
- Design
- Three-layer Cagliari street map
- Frame
- Hexagonal honeycomb-style outline
- Vector formats
- SVG, DXF, AI, CDR
Does this include round and square frames too?
This Cagliari design is the three-layer honeycomb-style map in a hexagonal outline. It is a different product from the four-layer map designs that offer three frame shapes.
What do I receive?
SVG, DXF, AI and CDR design files for the three-layer Cagliari map. An assembly guide is not confirmed. No physical map or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
Contact 21CNCStudio to discuss permission before commercial use. Do not redistribute the digital files without the author’s permission.
03 /From the studio to your workbench
Make your Cagliari map.
View the Cagliari Honeycomb Street Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
