Rome Honeycomb Street Map / Laser-cut design
Rome. Three map layers.
Rome’s street pattern in a hexagonal outline. Three layers separate the map detail, river and backing in a city-themed display.
Digital design · SVG + DXF + AI + CDR
No physical model or materials are shipped.
01 /The design
A street map with Roma at its edge.

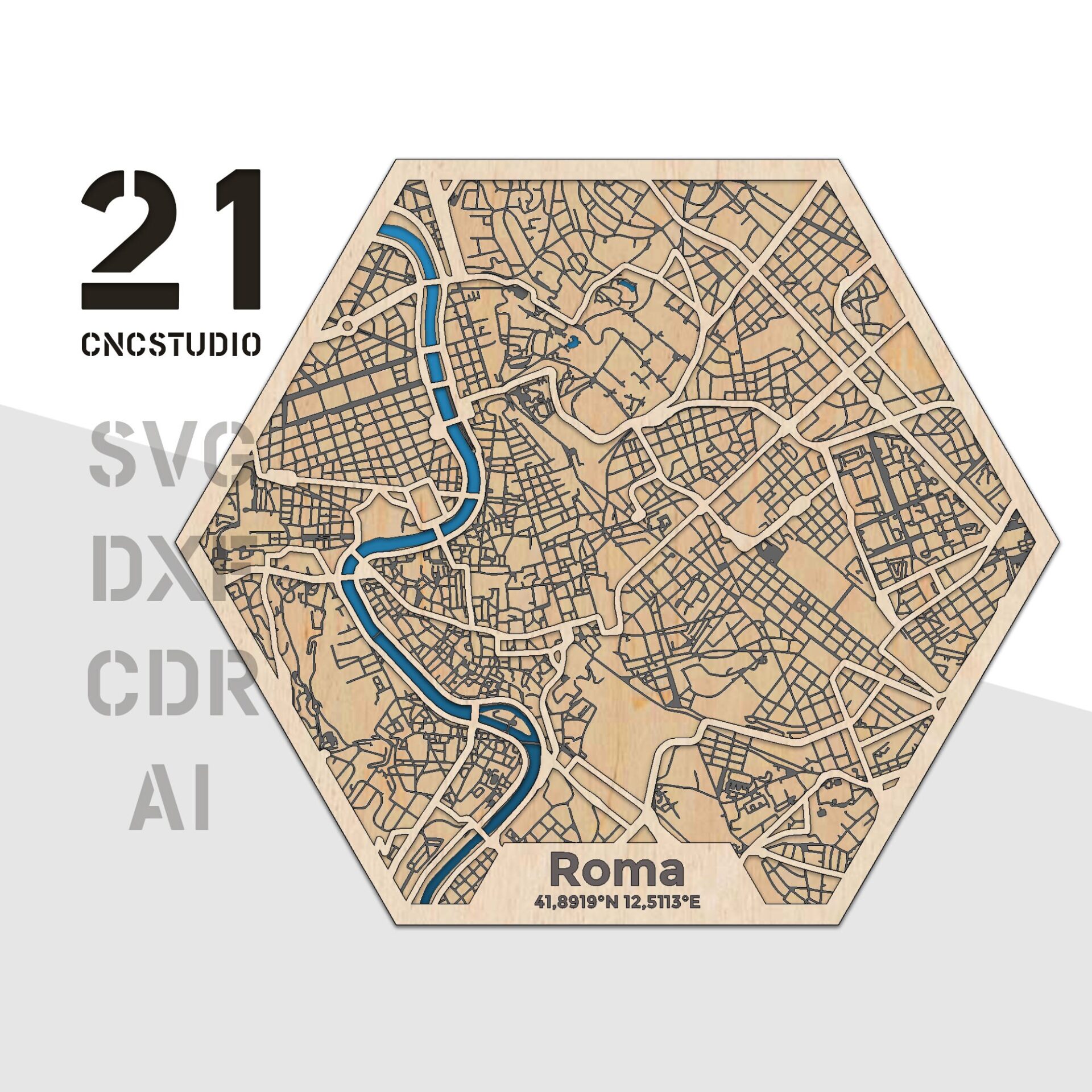

A winding river crosses the dense street pattern, framed by the honeycomb-style outline. Roma lettering appears along the bottom of the artwork.
The package includes SVG, DXF, AI and CDR files for the three-layer design. A customer photograph shows a natural-wood build with a blue river.

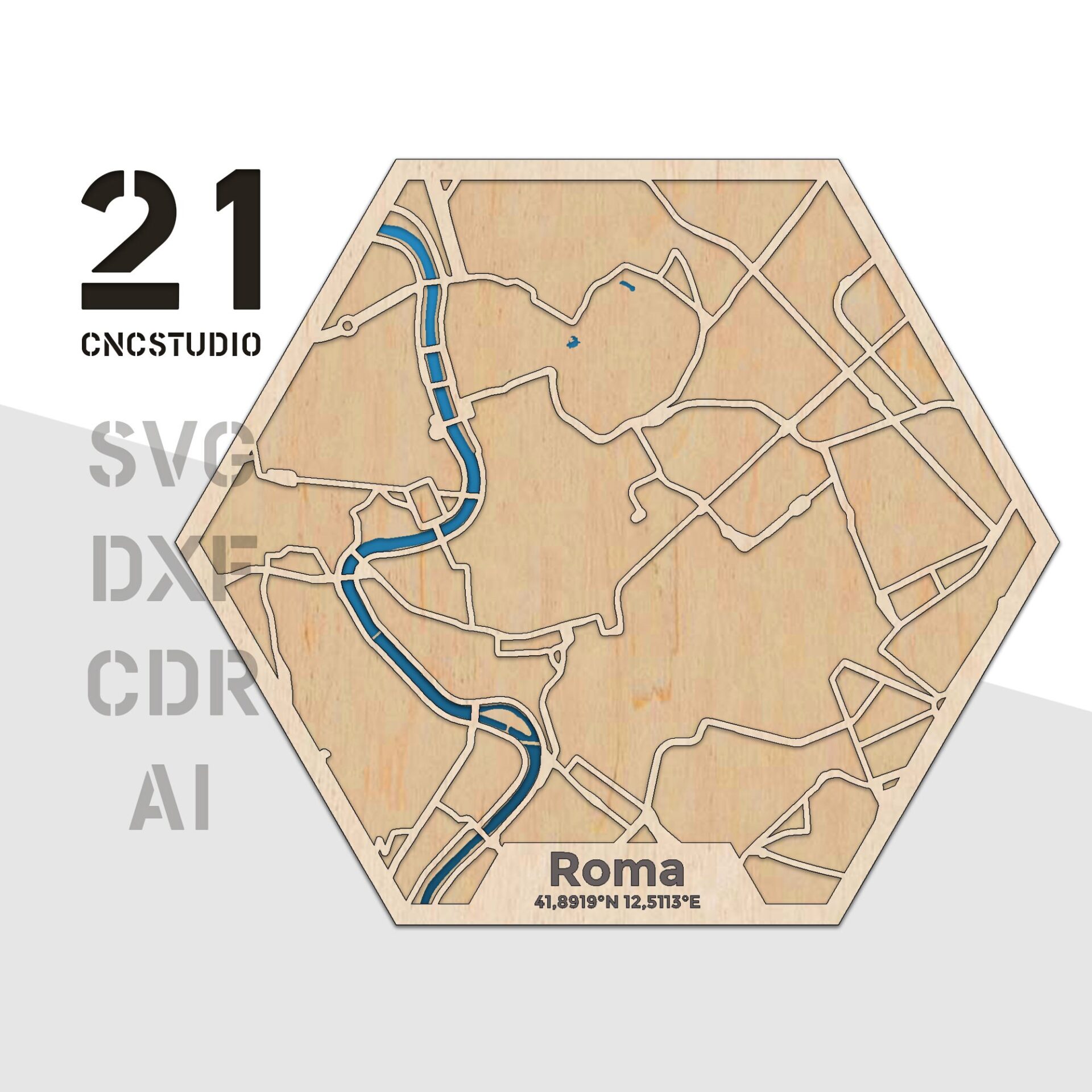

Three-layer map
Cut and stack the matching layers in order.
Hexagonal outline
The honeycomb-style frame surrounds the street pattern.
A finished example
The customer photograph shows how the road detail reads in natural wood.
A real build
Made from the files.
A physical build, with the maker’s choice of materials and finish.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Check the current file dimensions and recommended size before preparing your sheets. Test the finest street details and keep the three layers at one scale throughout the project.
Before you start.
- Design
- Three-layer Rome street map
- Vector formats
- SVG, DXF, AI, CDR
- Outline
- Honeycomb-style hexagon
Is this a skyline or a street-map design?
This is a street-map design within a hexagonal outline. It uses road detail and a river rather than a composition of skyline landmarks.
What do I receive?
SVG, DXF, AI and CDR design files for the three-layer map. An assembly guide is not confirmed. No physical map or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
Contact 21CNCStudio to discuss permission before commercial use. Do not redistribute the digital files without the author’s permission.
03 /From the studio to your workbench
Make the Rome street map.
View the Rome Honeycomb Street Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
