Paris Honeycomb Street Map / Laser-cut design
Paris. Three map layers.
A Paris street map in a honeycomb-style hexagonal outline. Cut three matching layers of road detail, river and backing to make a city-themed wall display.
Digital design · SVG + DXF + AI + CDR
No physical model or materials are shipped.
01 /The design
Street detail inside a hexagon.

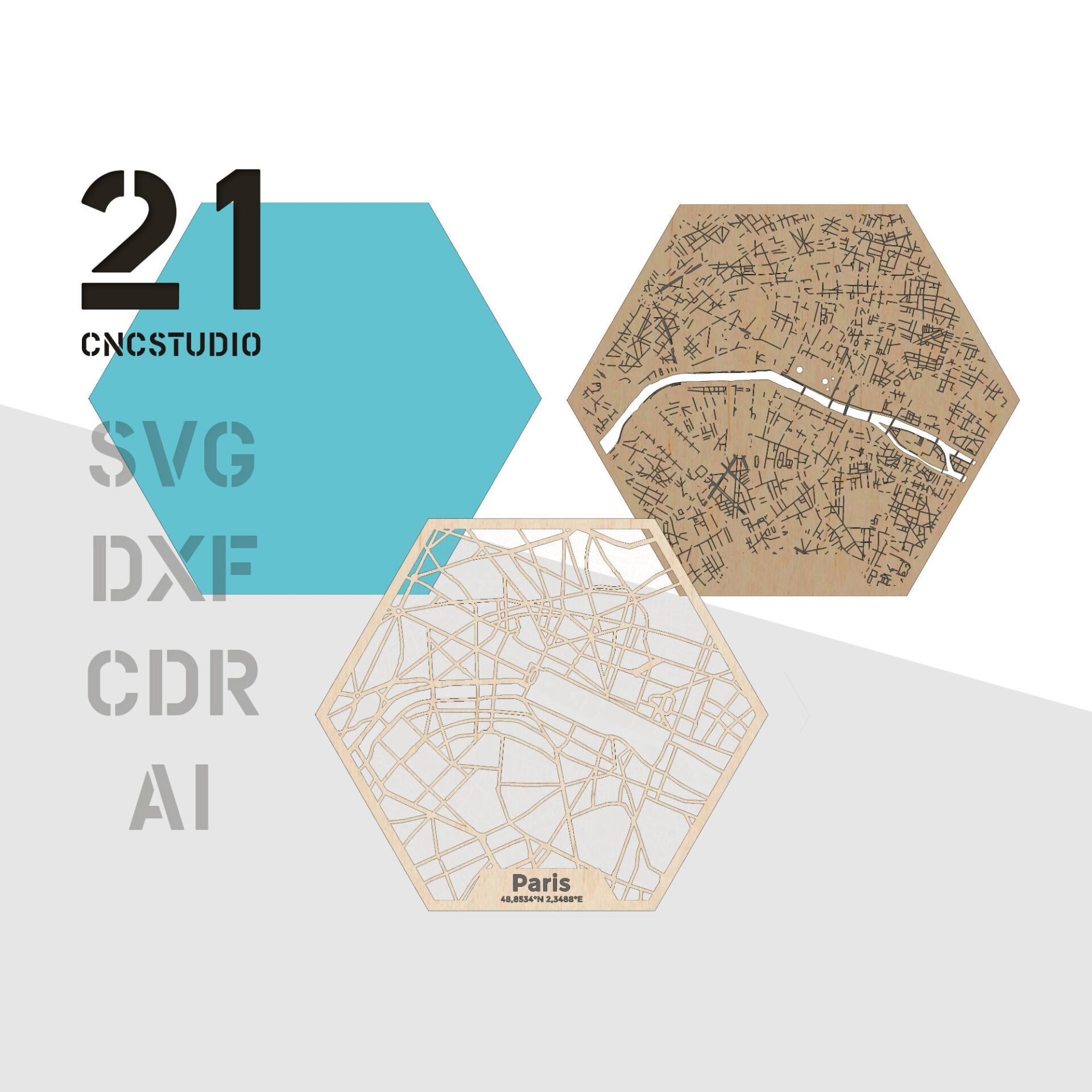

The hexagonal outline frames the city’s street pattern, with a river running across the map and Paris lettering beneath it. Three layers separate the fine detail from its backing.
The digital design is supplied in SVG, DXF, AI and CDR formats. Select the format your software supports and keep every layer at the same scale when preparing the project.
Three layers
Cut and stack the matching layers in order.
Honeycomb-style outline
A hexagonal frame gives the street map its outer shape.
Paris map artwork
The river, road pattern and lettering form a city-themed composition.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Review the current file dimensions before choosing your material. Test the narrow street details at the intended size, keep the layers aligned and dry-stack them before fixing the artwork together.
Before you start.
- Design
- Three-layer Paris street map
- Vector formats
- SVG, DXF, AI, CDR
- Outline
- Honeycomb-style hexagon
How does this differ from the Paris Skyline?
The Honeycomb Map uses a street pattern inside a hexagonal outline. The separate Paris Skyline design shows landmarks such as the Eiffel Tower and a Montmartre windmill.
What do I receive?
SVG, DXF, AI and CDR design files for the three-layer street map. An assembly guide is not confirmed. No physical map or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
Contact 21CNCStudio to discuss permission before commercial use. Do not redistribute the digital files without the author’s permission.
03 /From the studio to your workbench
Make the Paris street map.
View the Paris Honeycomb Street Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
