Armored Tanker Truck / Laser-cut design
An armored truck. A long tanker.
SVG and DXF files for an armored tractor and long tanker trailer, with a PDF assembly guide. Build the post-apocalyptic model with its front plow, cylindrical tank and roof details.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
Armour at the front, a long tank behind.

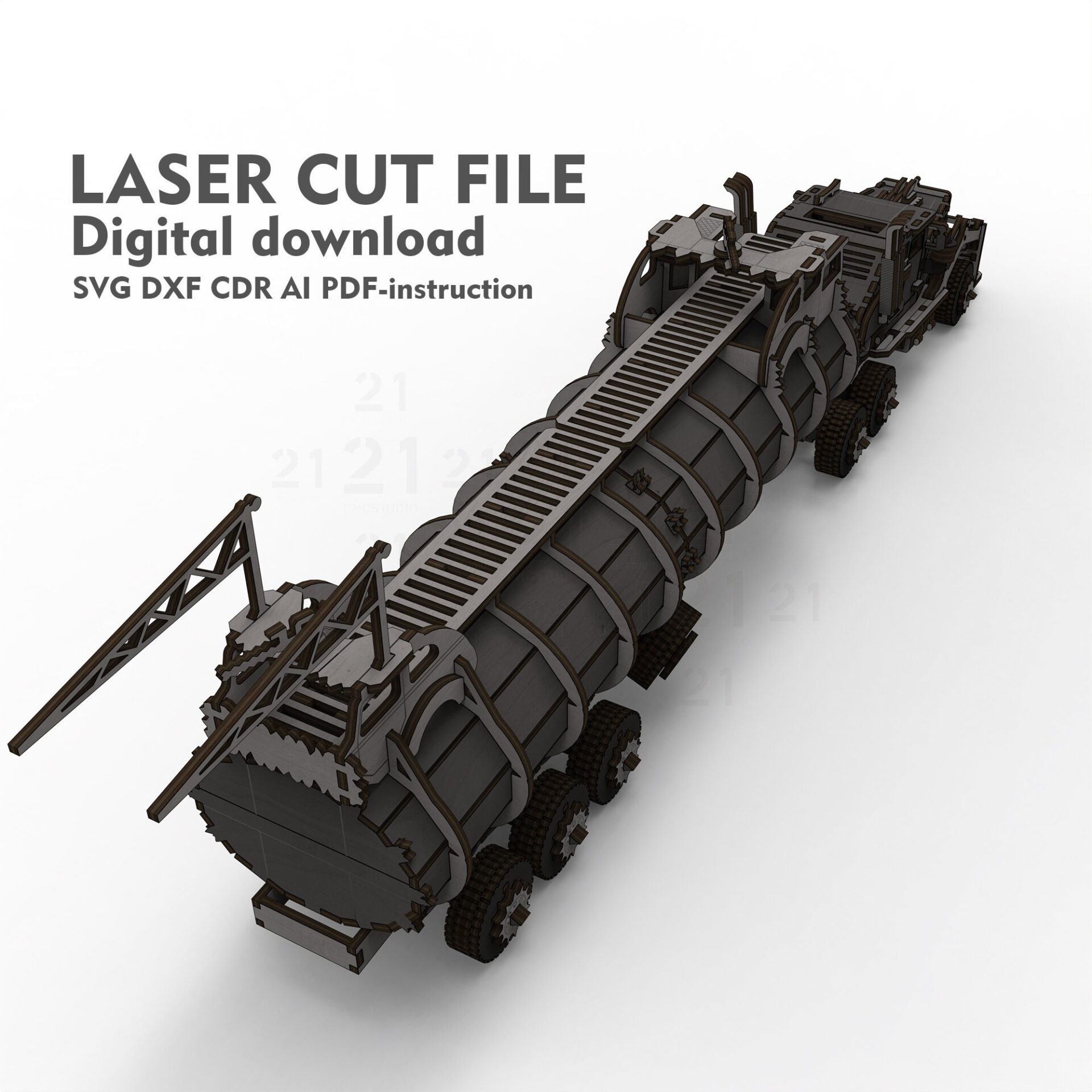

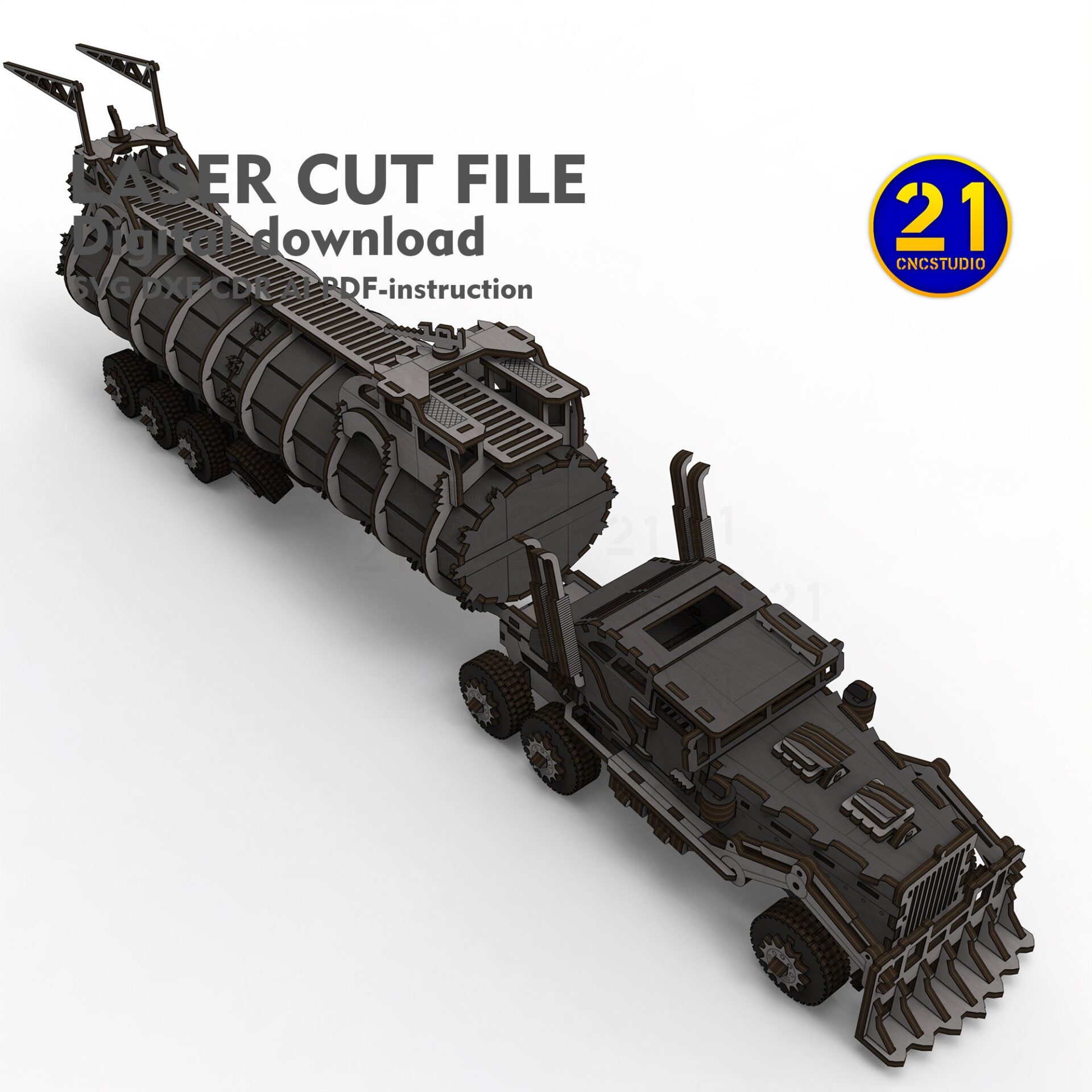

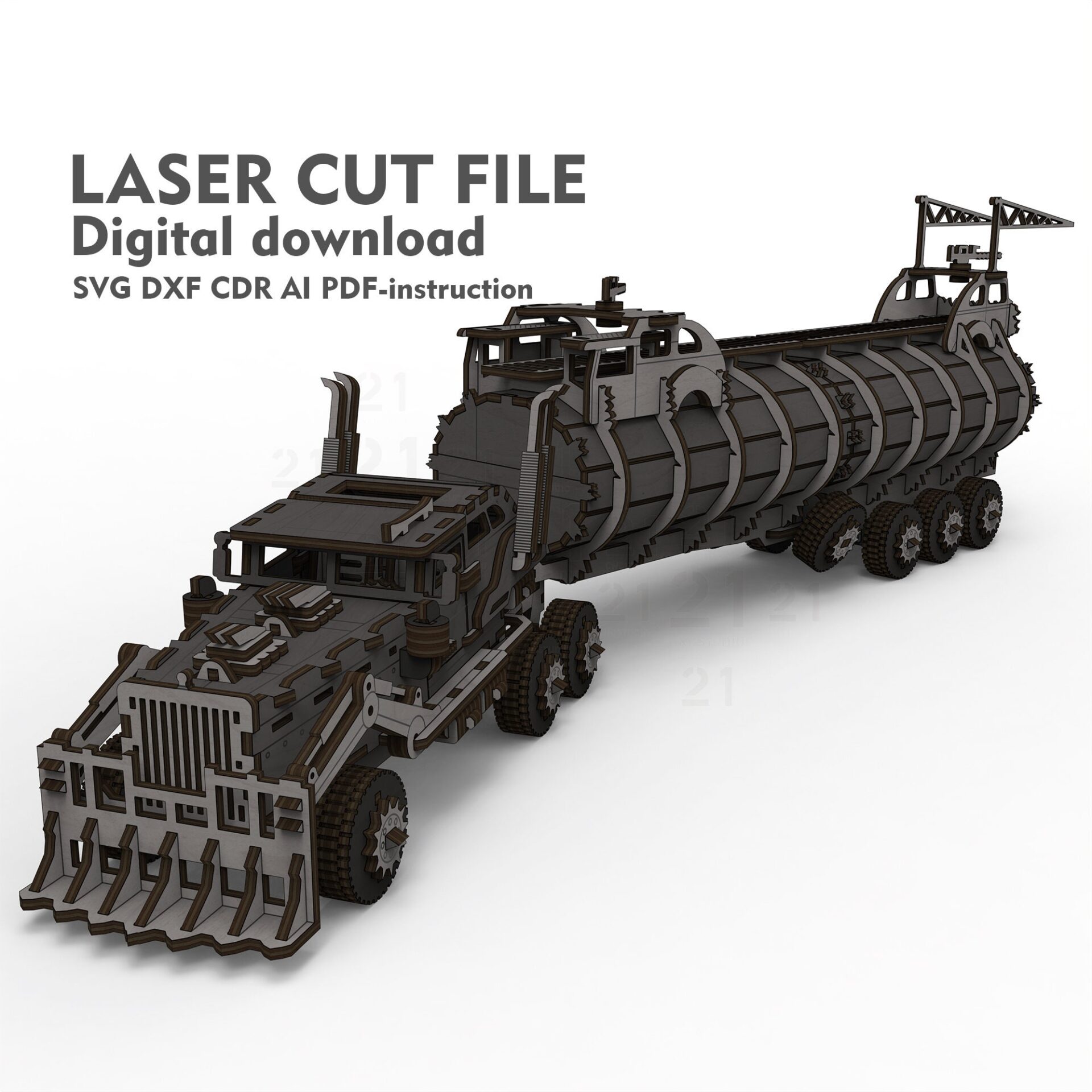

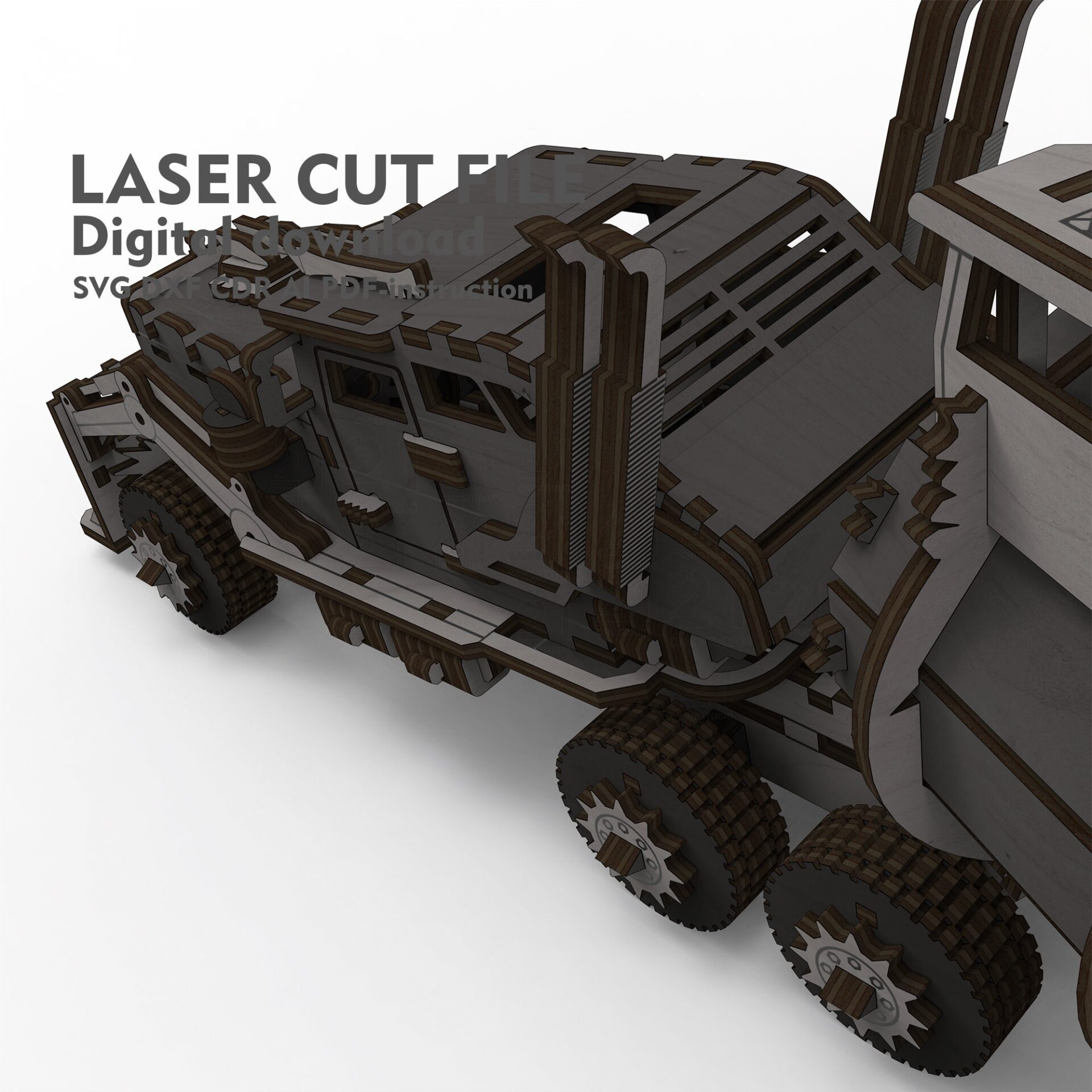

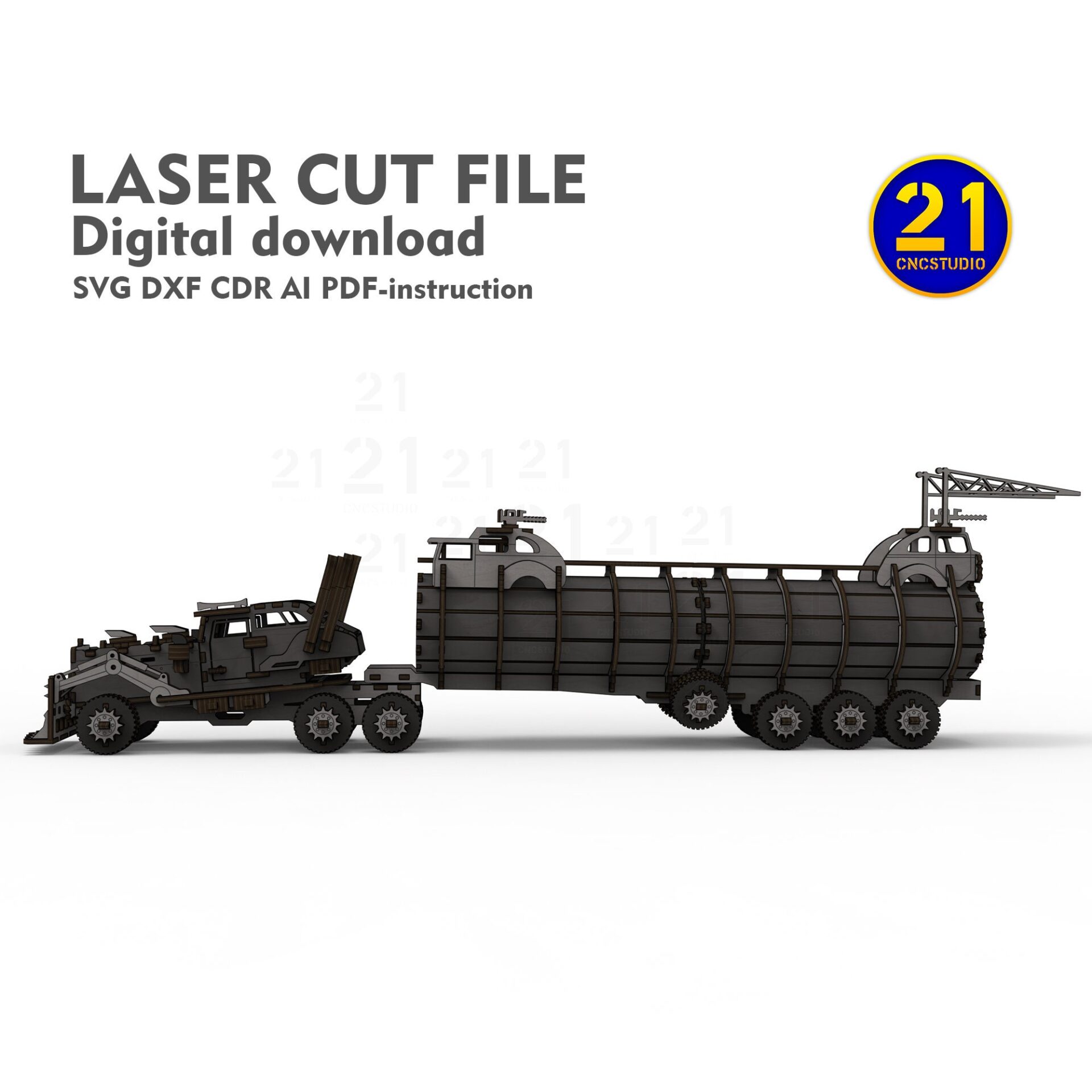

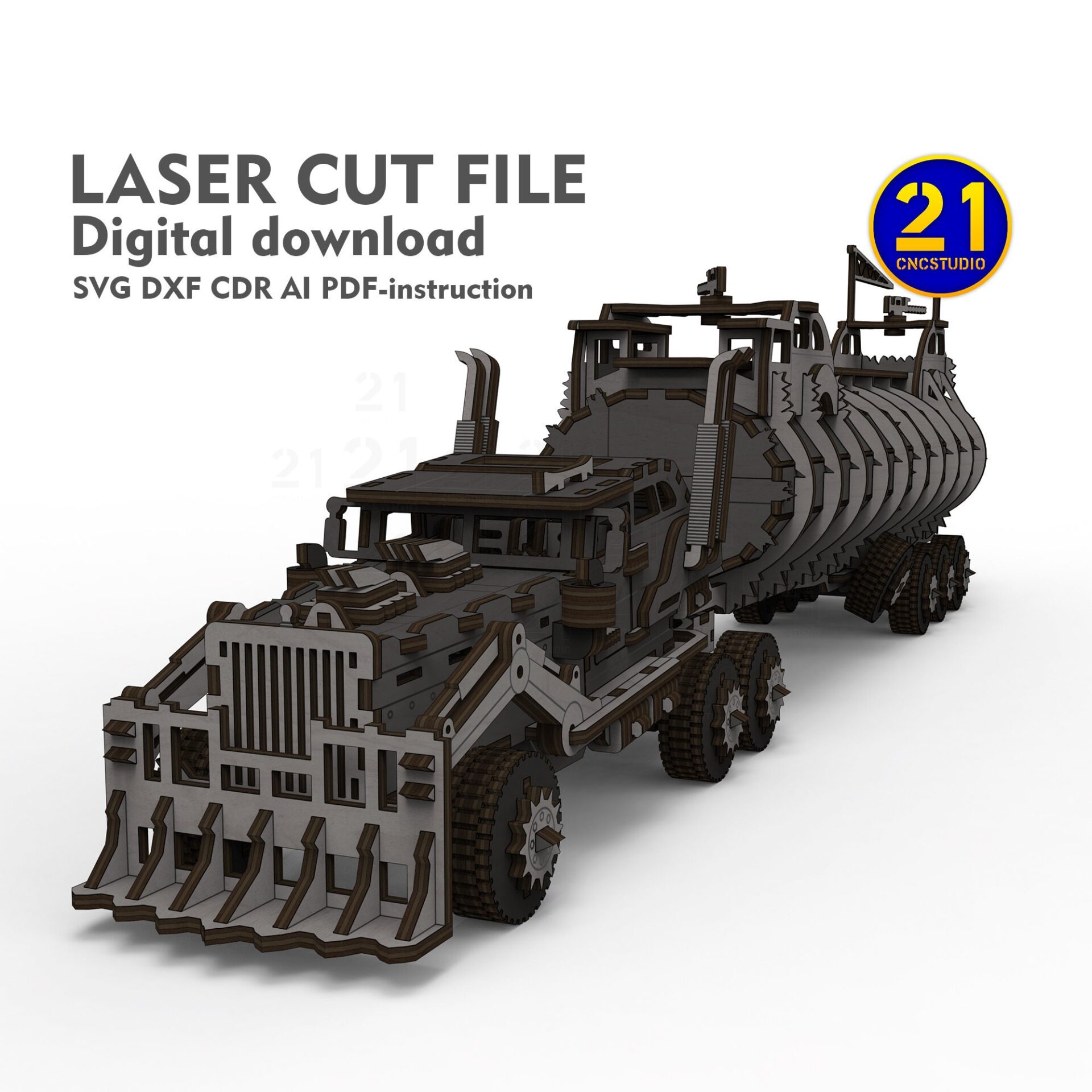

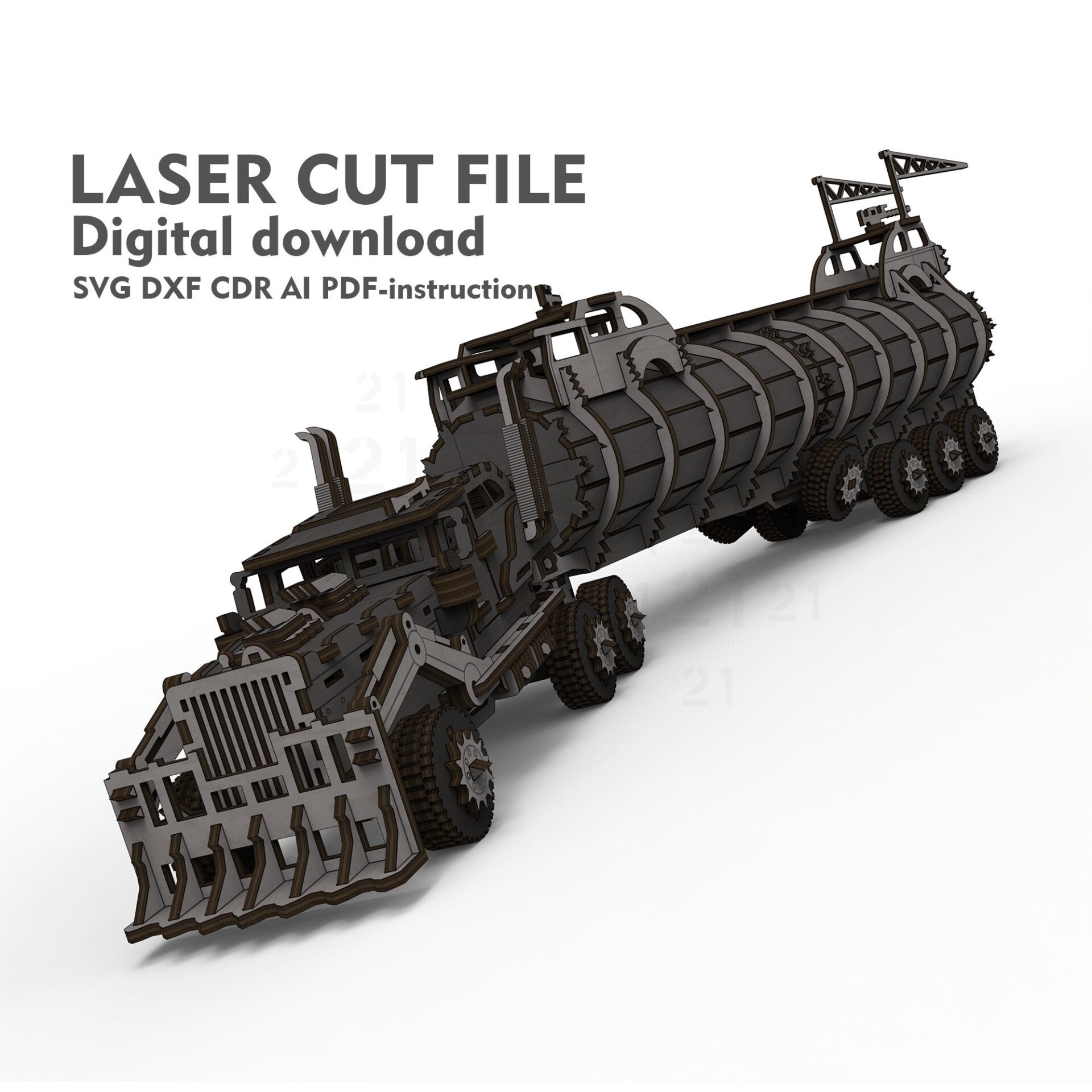

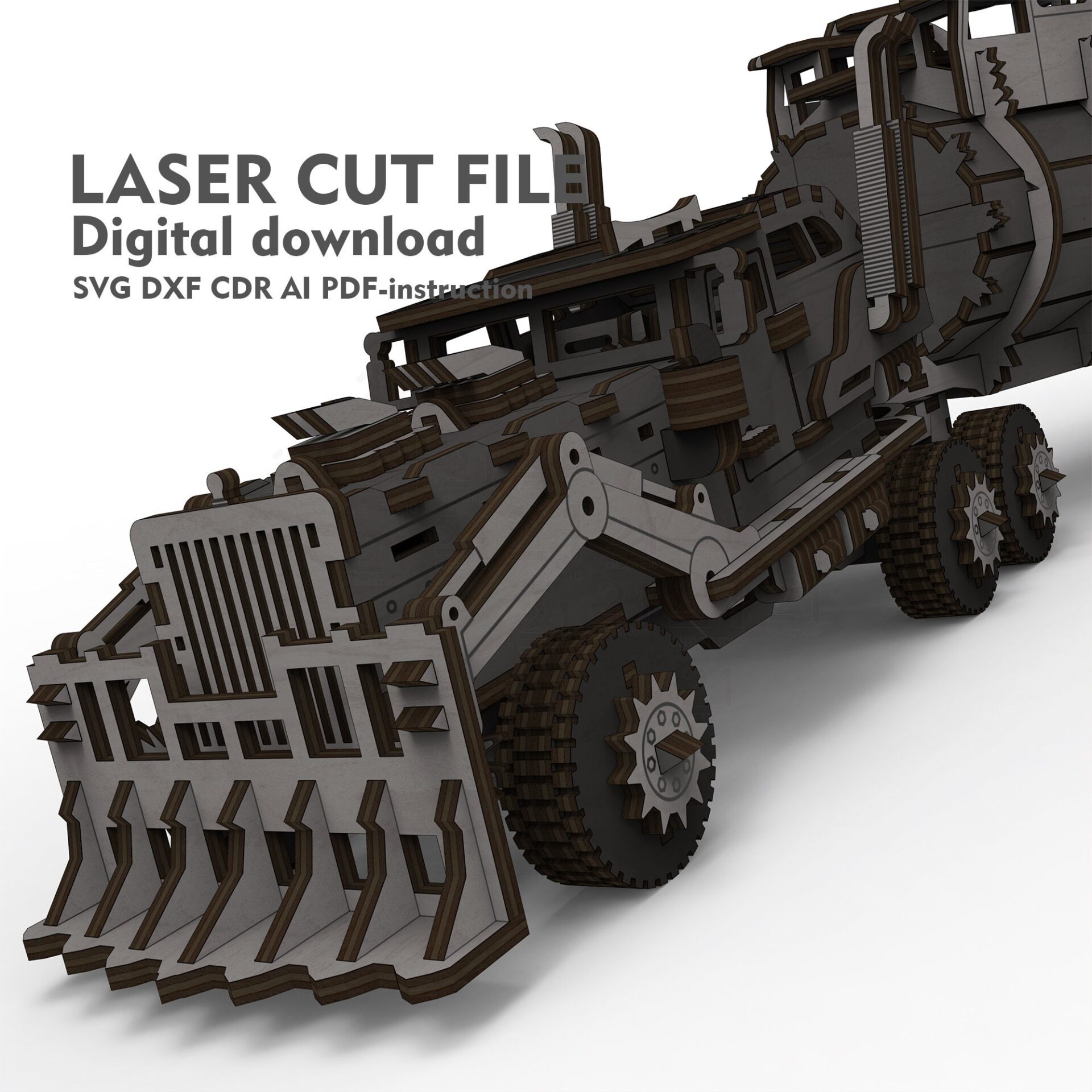

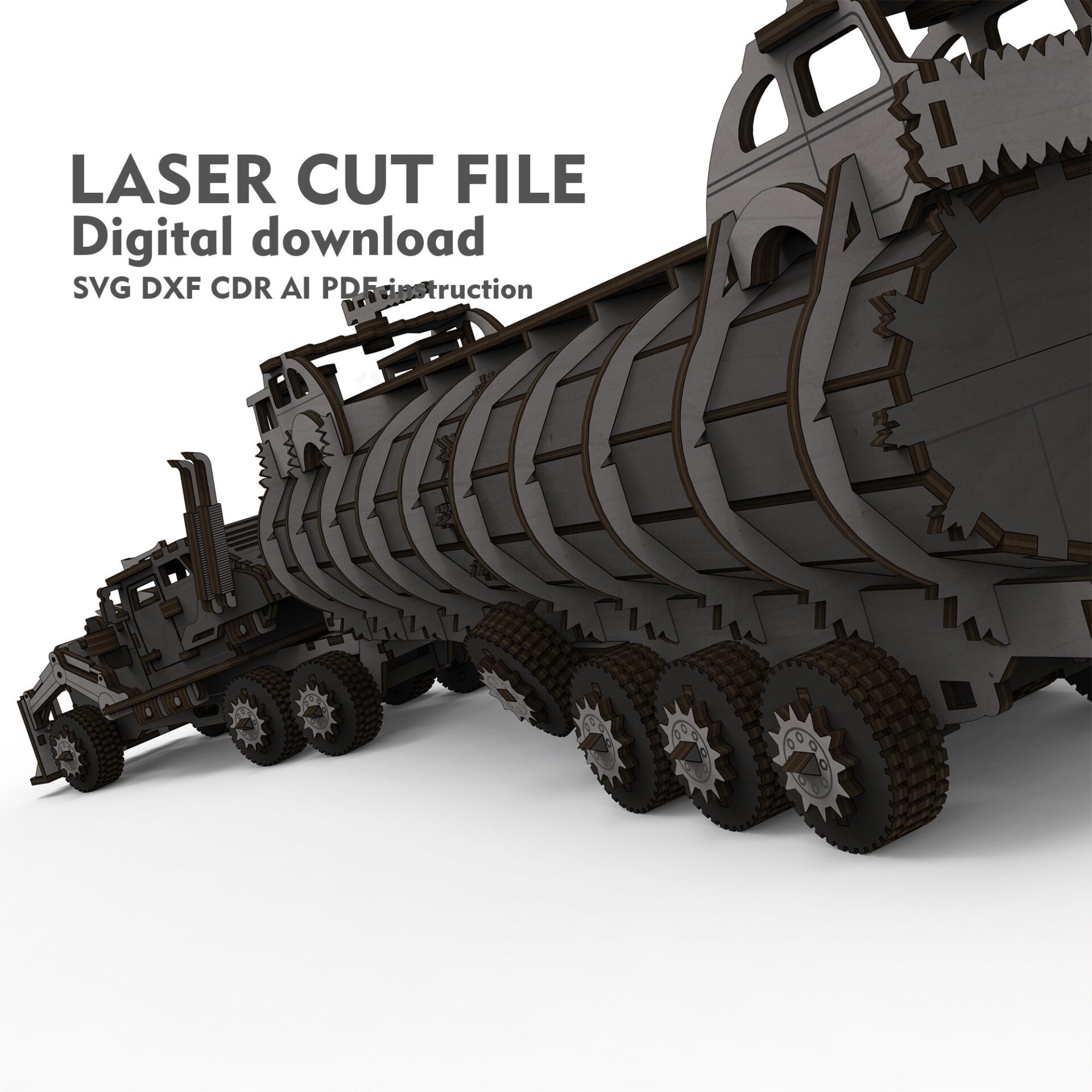

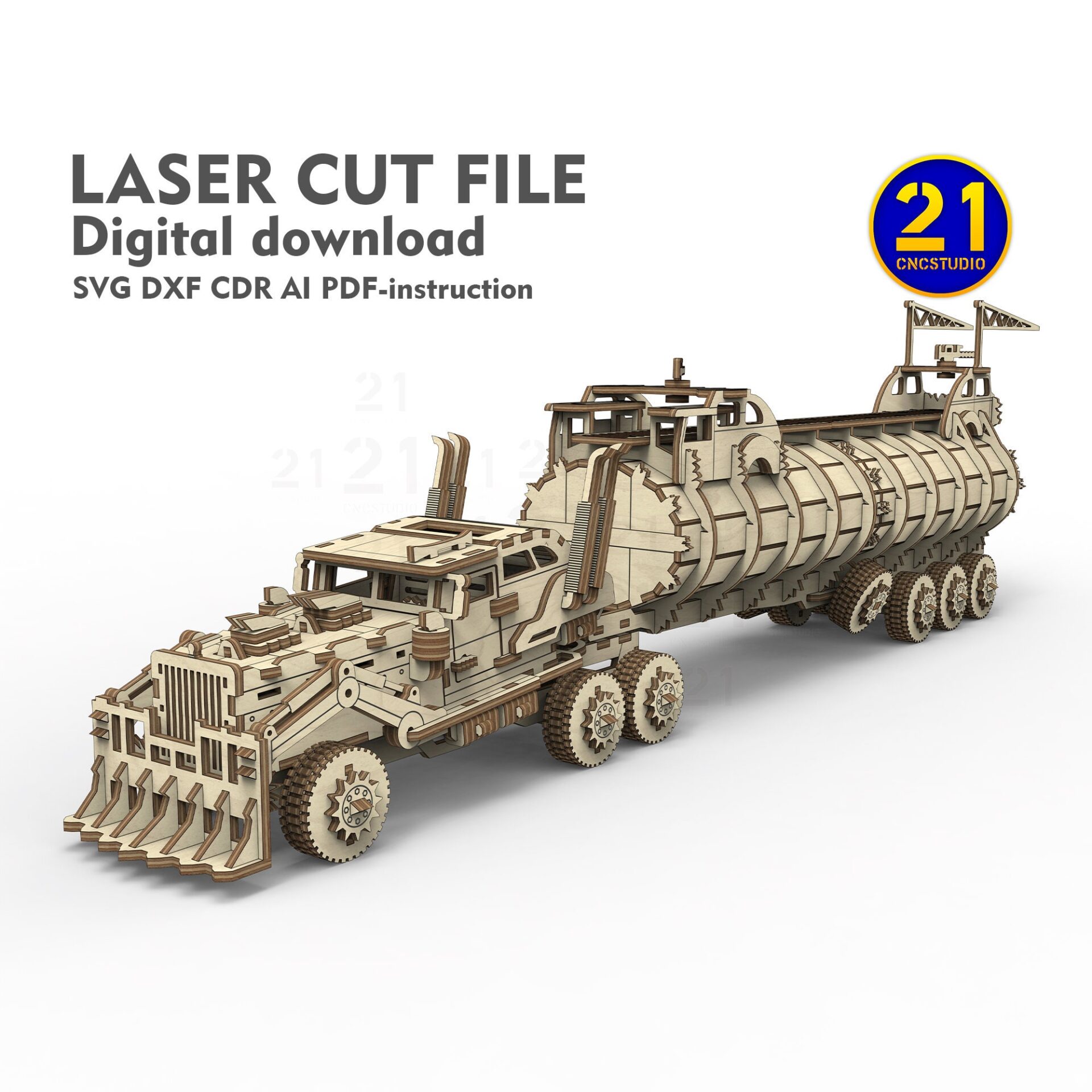

The front plow leads into a low tractor cab, while the cylindrical tank extends over rows of trailer wheels. Original renders show the side profile, rear construction and cab detail; a customer photograph shows a completed wooden build.
At the 3 mm material scale, the assembled model is 642 × 95 × 170 mm. The supplied 1/8-inch version is 679 × 100 × 180 mm. These dimensions describe the finished assembly.
Tractor and tanker
Build the matching front unit and cylindrical trailer.
Two material versions
Choose the 3 mm or 1/8-inch design for your actual material.
PDF assembly guide
Use the instructions to identify parts and follow the construction sequence.
Views & details
A closer look.
Different views, details and a physical build. Select an image for a larger view.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Plan space for the completed model as well as for sorting parts. Check the layouts against your usable cutting area, measure the material and test the fitted joints before cutting the whole design.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design files
- SVG + DXF
- Assembly guide
- PDF included
- Material versions
- 3 mm / 1/8 inch
- Finished size at 3 mm
- 642 × 95 × 170 mm (L × W × H)
- Finished size at 1/8 inch
- 679 × 100 × 180 mm (L × W × H)
Is the 642 mm length one long laser-cut part?
The 642 mm measurement is the length of the assembled 3 mm model. Check the individual parts and complete layouts in your laser software against the usable work area before cutting.
What do I receive?
SVG and DXF cutting designs with PDF assembly instructions. Versions for 3 mm and 1/8-inch material are supplied. No physical truck, material or hardware is shipped.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build the armored tanker.
View the Armored Tanker Truck file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
