Alabama Layered Map / Laser-cut design
Alabama. Eight layers.
An Alabama-shaped scene with a domed building, fields, water and cotton across the foreground. Cut and stack eight layers from SVG, DXF, AI or CDR files.
Digital design · SVG + DXF + AI + CDR
No physical model or materials are shipped.
01 /The design
A state outline filled with scenery.

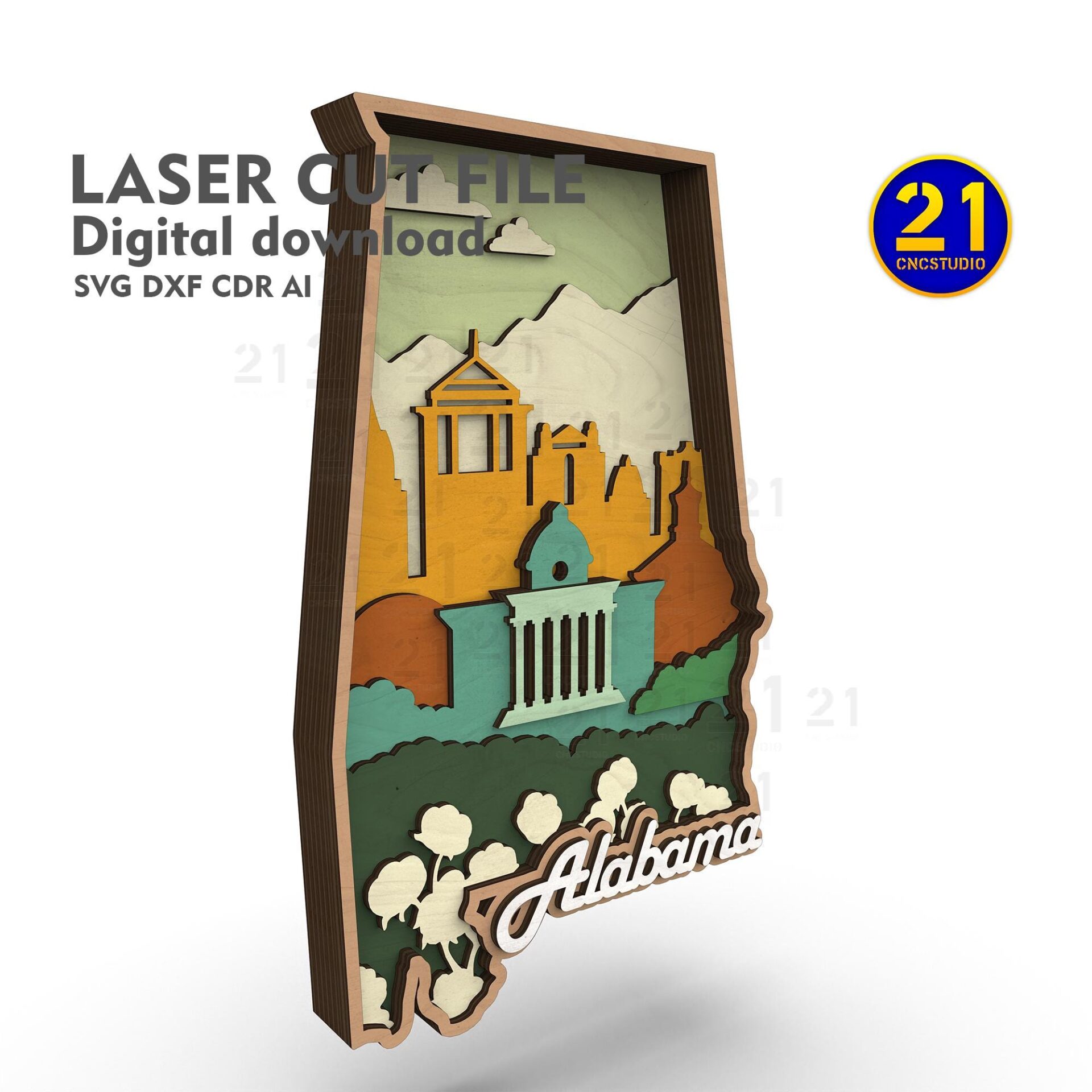

The tall Alabama outline frames a domed building, fields and water, with cotton shapes across the foreground. Stacked layers separate the details and give the scene its depth.
The design comes in SVG, DXF, AI and CDR formats. Its recommended size is 166 × 260 mm; review the fine cutouts before changing that scale.

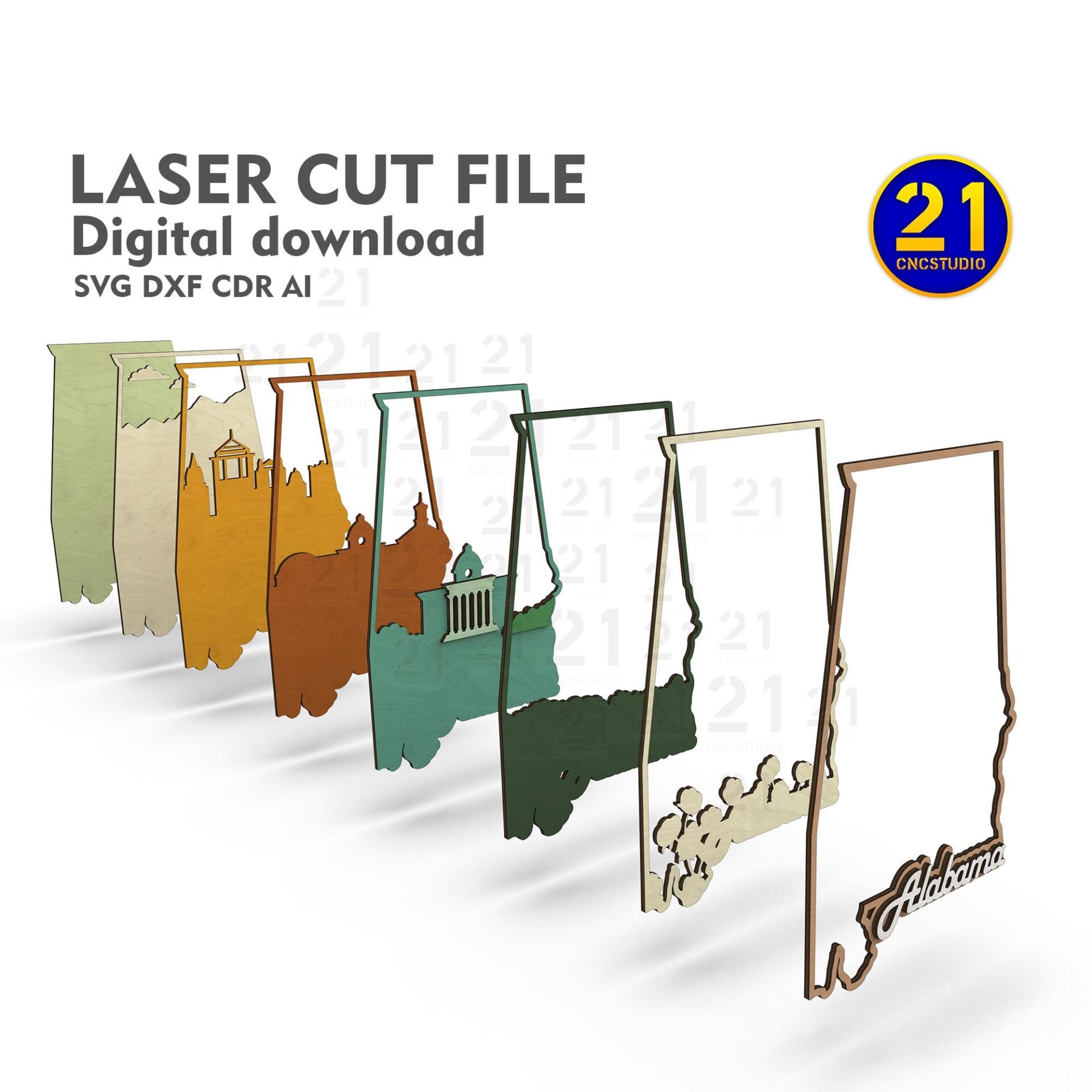

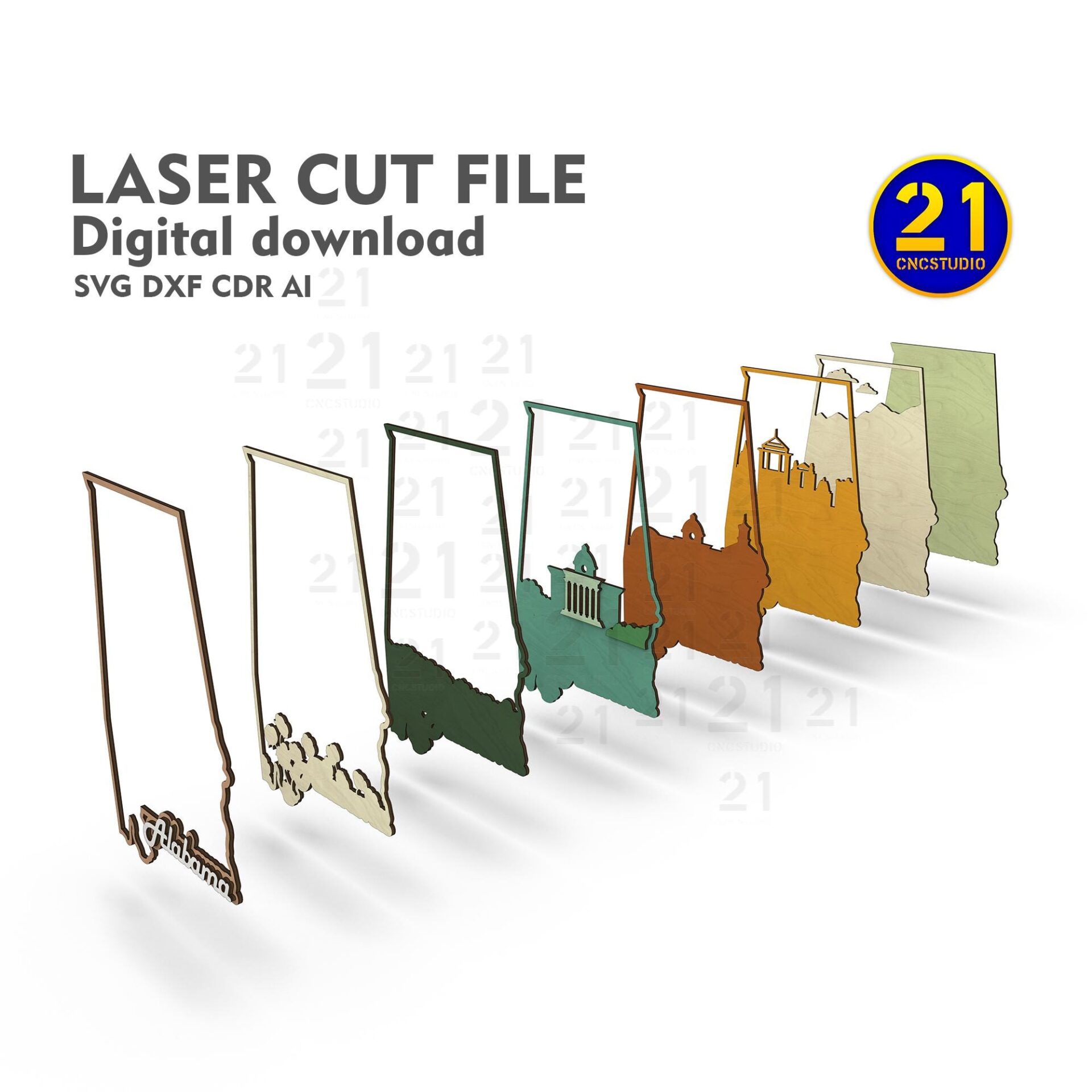

Eight layers
Keep all eight layers at the same scale and check their order before assembly.
Alabama outline
The state silhouette forms the outer shape of the artwork.
Your choice of finish
Use contrast between the layers to make the scenery easier to read.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Inspect the narrow bridges and small foreground details before cutting. Keep the layers aligned, test a small section at your chosen size and dry-stack the design before fixing it together.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Eight-layer Alabama state art
- Vector formats
- SVG, DXF, AI, CDR
- Recommended size
- 166 × 260 mm
How many layers does the Alabama design use?
The design uses eight layers. Scale them together and arrange them in the intended order before fixing the stack together.
What do I receive?
SVG, DXF, AI and CDR design files for the eight-layer artwork. An assembly guide is not confirmed. No physical artwork, material or hardware is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Make your Alabama display.
View the Alabama Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
