Nevada Layered Map / Laser-cut design
Nevada. Seven layers.
Seven-layer Nevada wall art with a Las Vegas skyline and desert details inside the state outline. Cut and stack the scene from SVG, DXF, AI or CDR files.
Digital design · SVG + DXF + AI + CDR
No physical model or materials are shipped.
01 /The design
Nevada as a layered display.

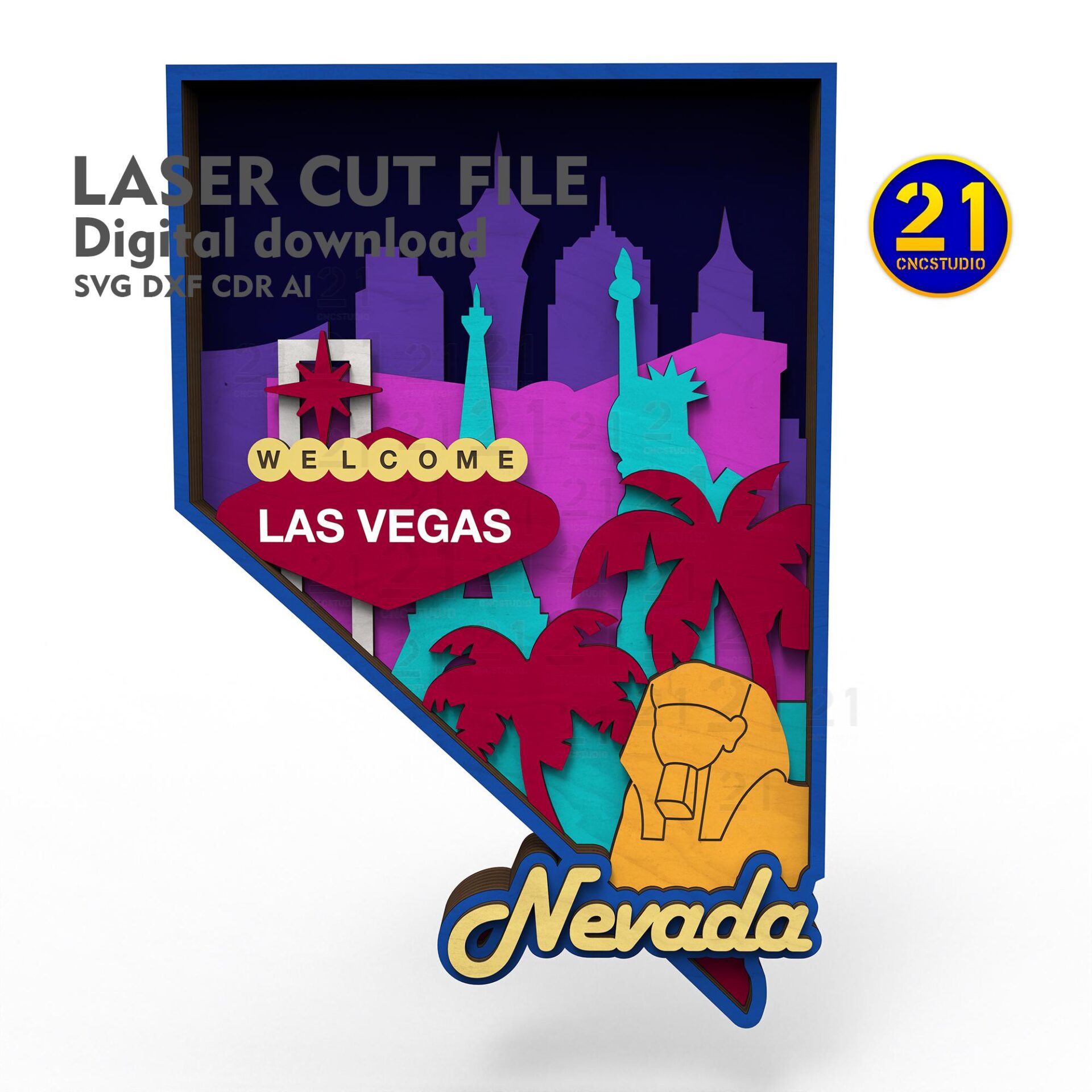

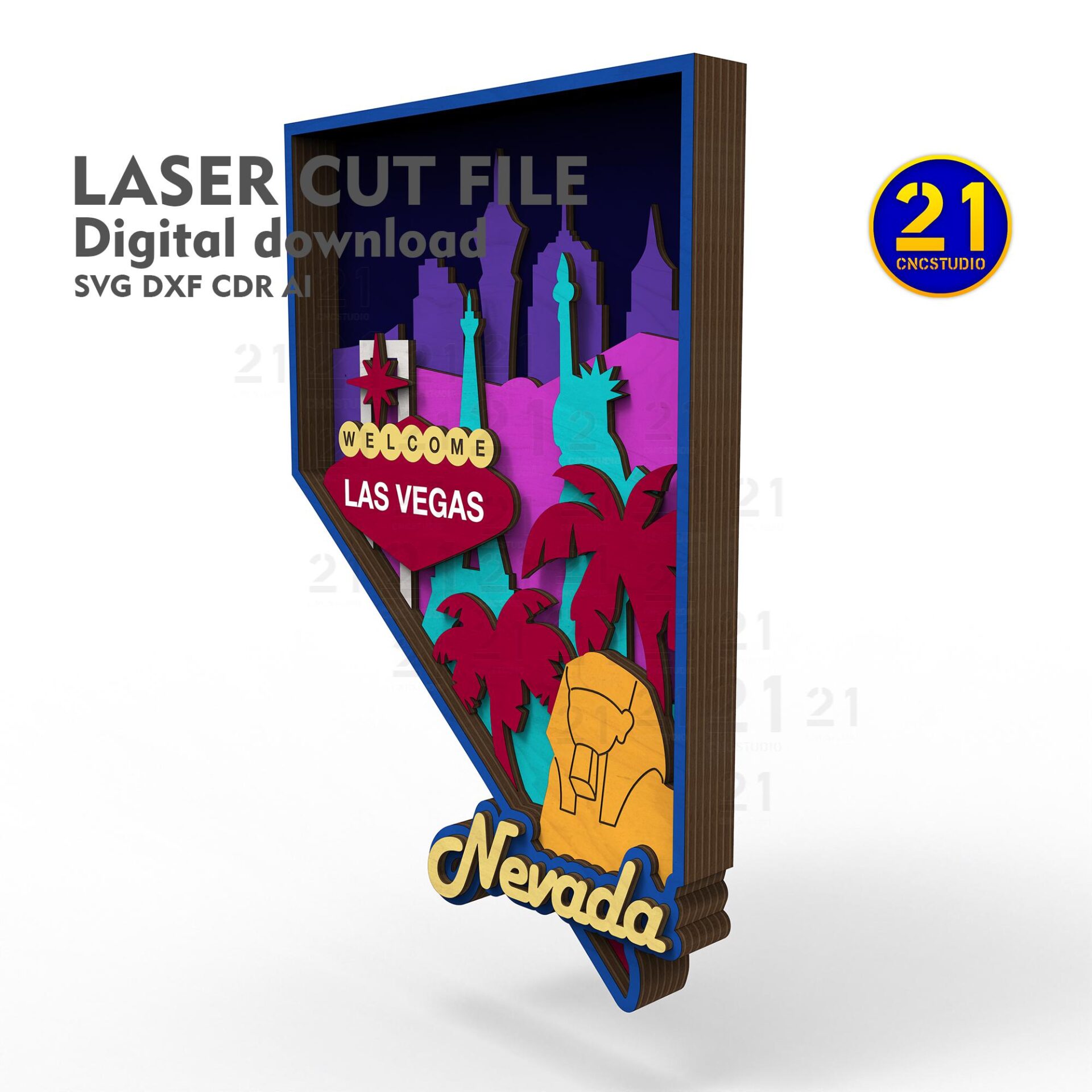

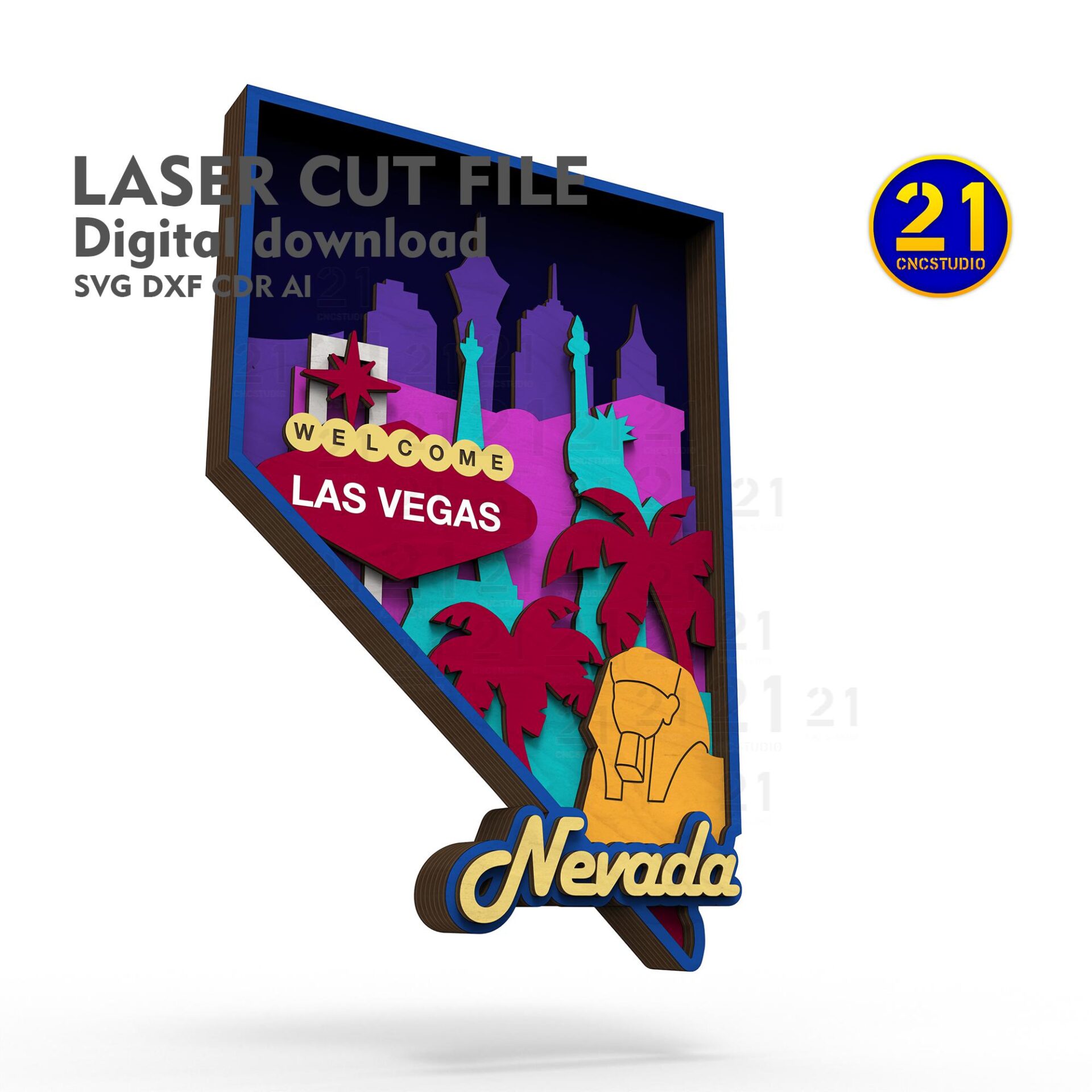

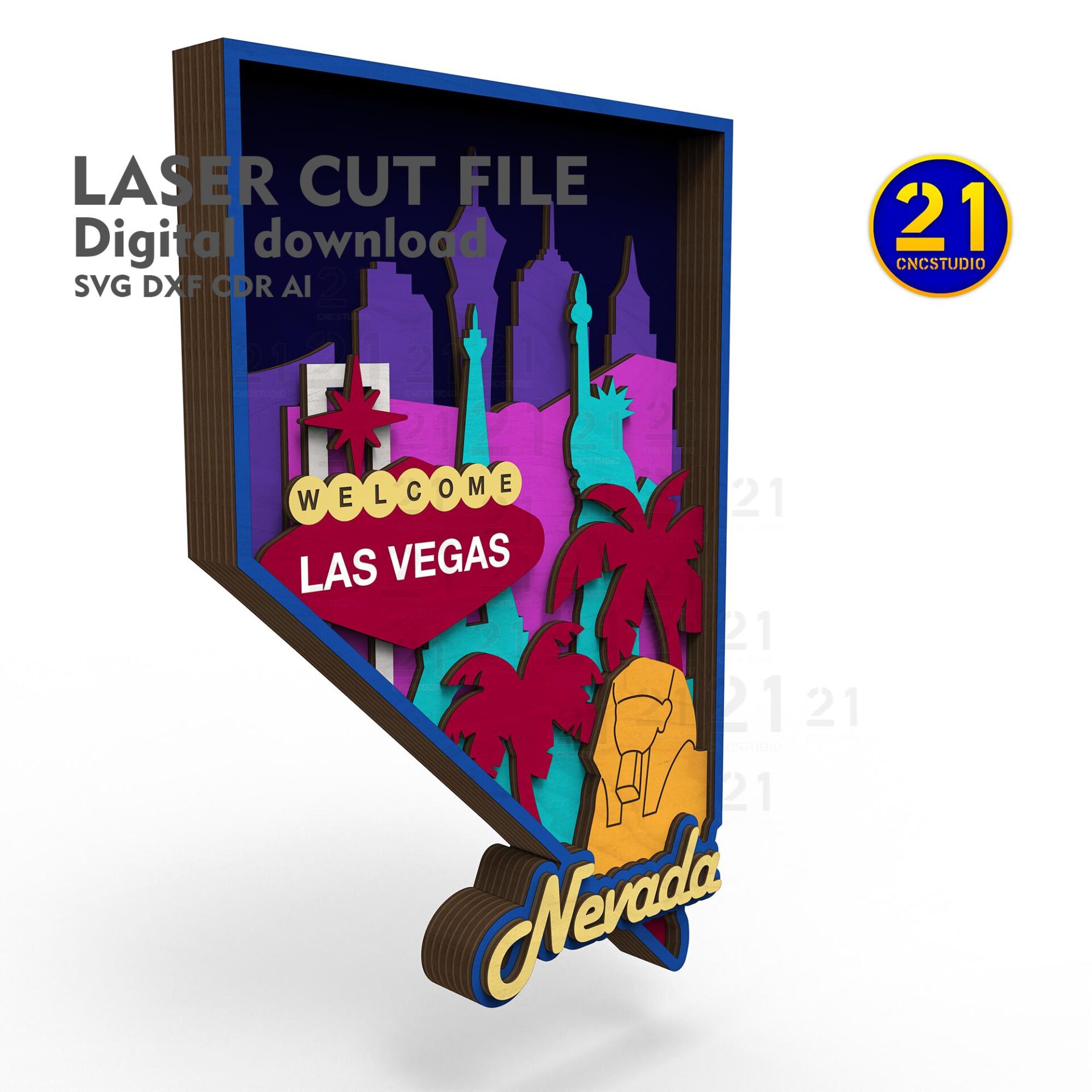

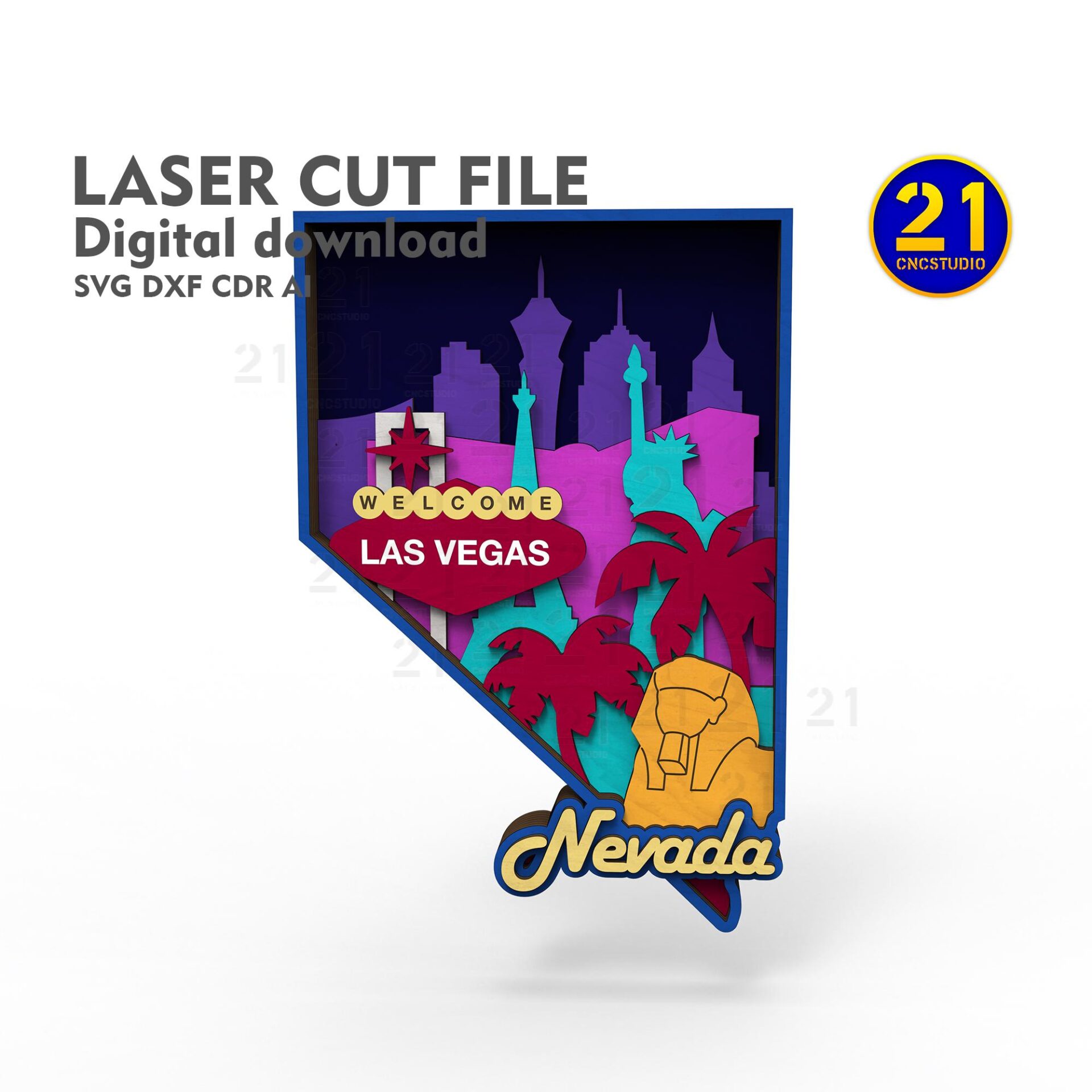

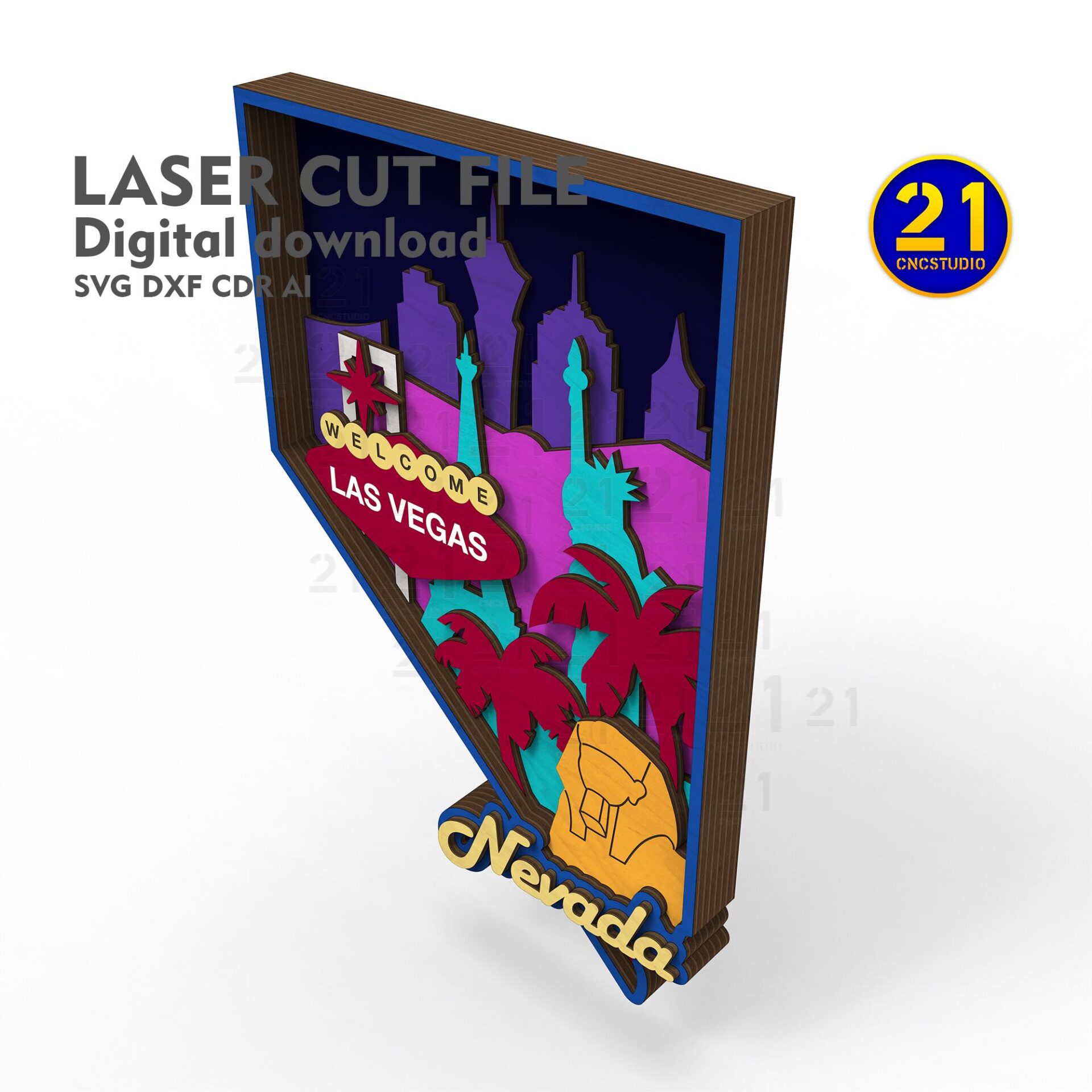

The state outline contains a Las Vegas skyline and desert-themed detail, with Nevada lettering along the lower edge. Seven layers separate the scene into surfaces you can finish before assembly.
The current file set lists SVG, DXF, AI and CDR formats and a recommended size of 255 × 170 mm. This is decorative state artwork, rather than a street map or a map for navigation.
State-shaped frame
The Nevada outline defines the artwork.

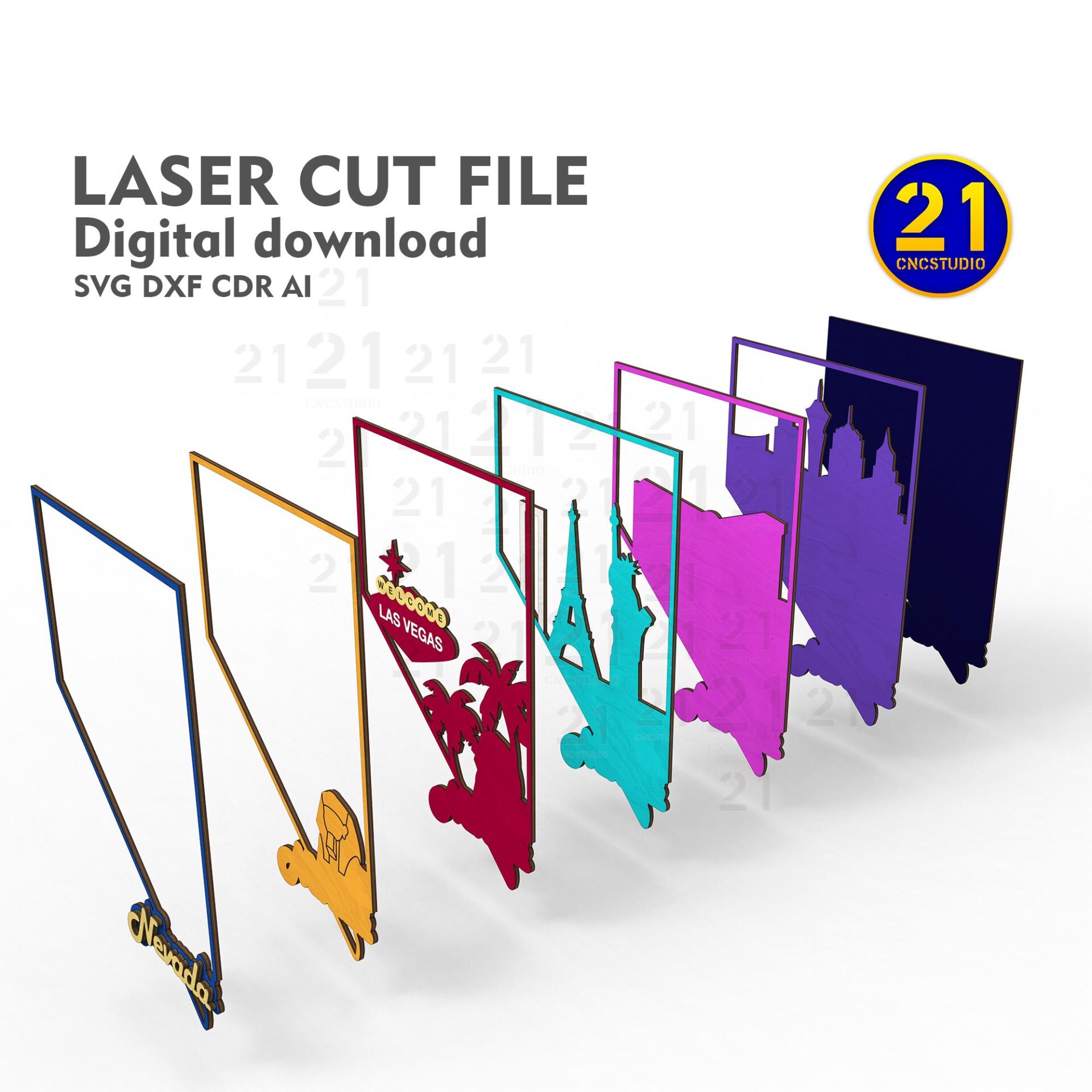

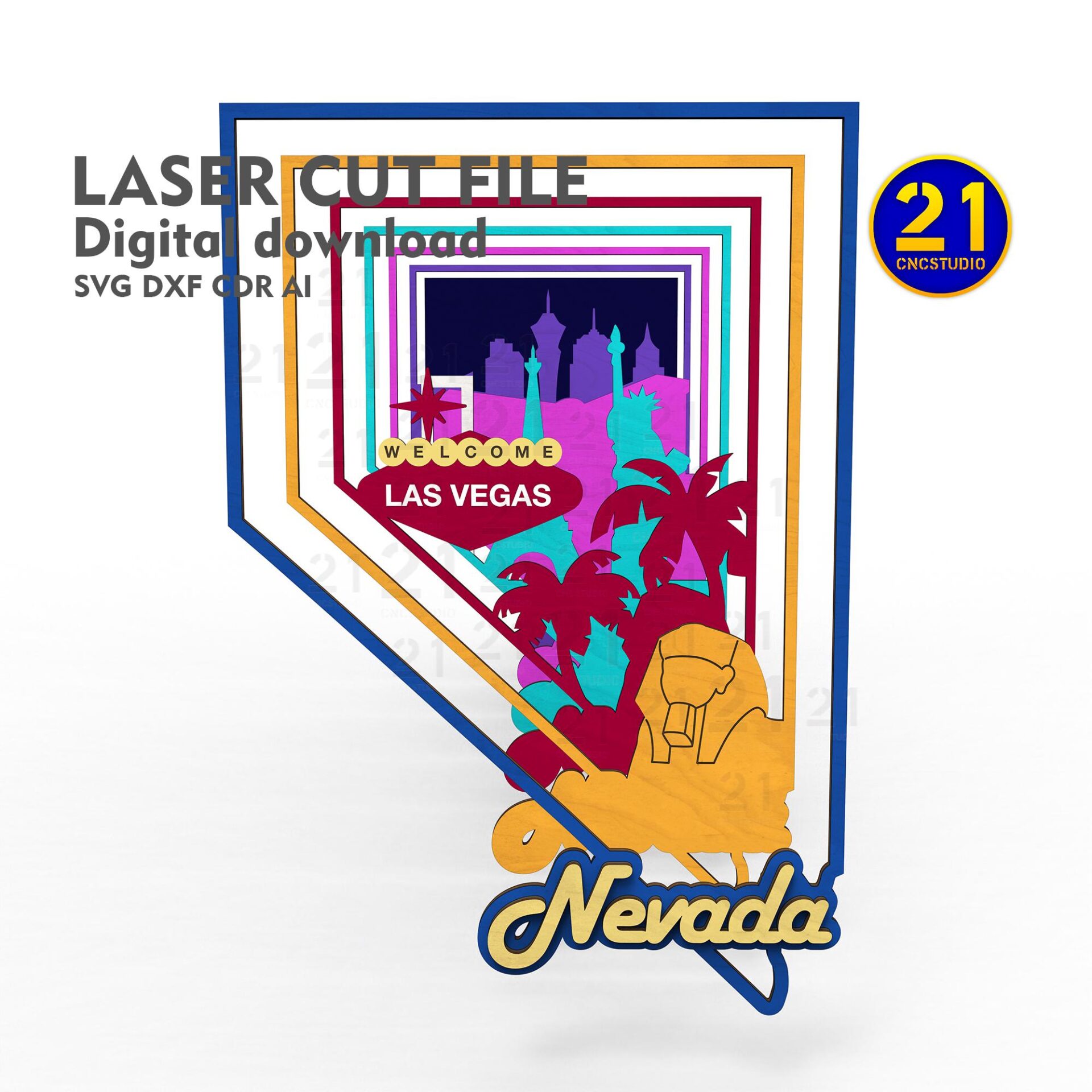

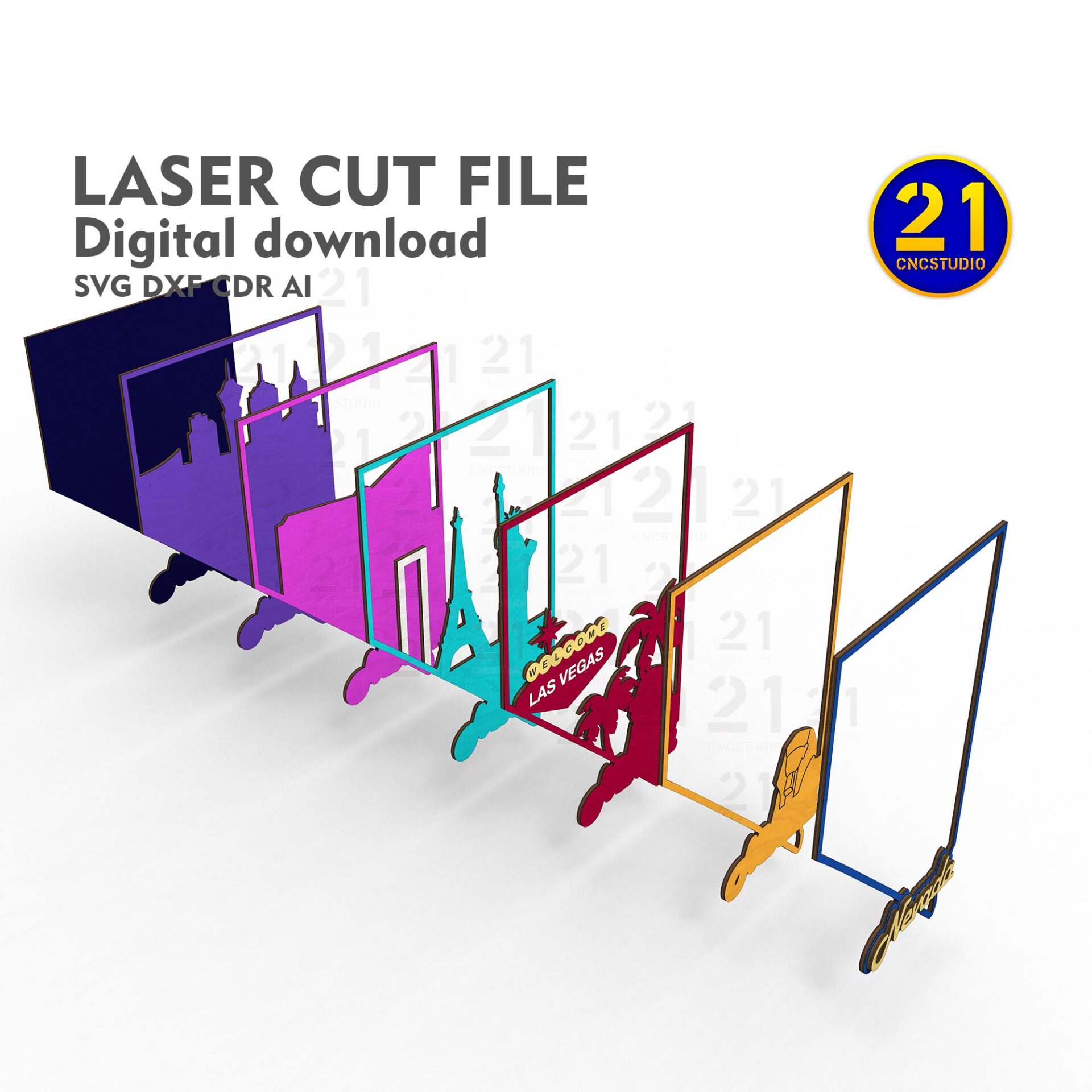

Seven-layer depth
Stack the cut surfaces to build the scene’s relief.
Las Vegas detail
The skyline and lettering distinguish this design from the other state maps.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Check the small lettering and fine shapes at the recommended size before changing the scale. Use the same scale for every layer and check their order before applying adhesive.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Seven-layer Nevada state art
- Vector formats
- SVG, DXF, AI, CDR
- Recommended size
- 255 × 170 mm
Is this a detailed street map of Nevada?
No. It is a seven-layer decorative design shaped like Nevada, with Las Vegas and desert-themed artwork inside the outline.
What do I receive?
SVG, DXF, AI and CDR vector files. An assembly guide and specific material versions are not confirmed. No physical artwork or material is shipped.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished pieces. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build your Nevada scene.
View the Nevada Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
