Louisiana Layered Map / Laser-cut design

Louisiana. Seven layers.

Water, trees and a cathedral silhouette inside the Louisiana outline. Build seven layers of decorative state art from digital cutting files.

Get the filesExplore the model

Digital design · SVG + DXF + AI + CDR
No physical model or materials are shipped.

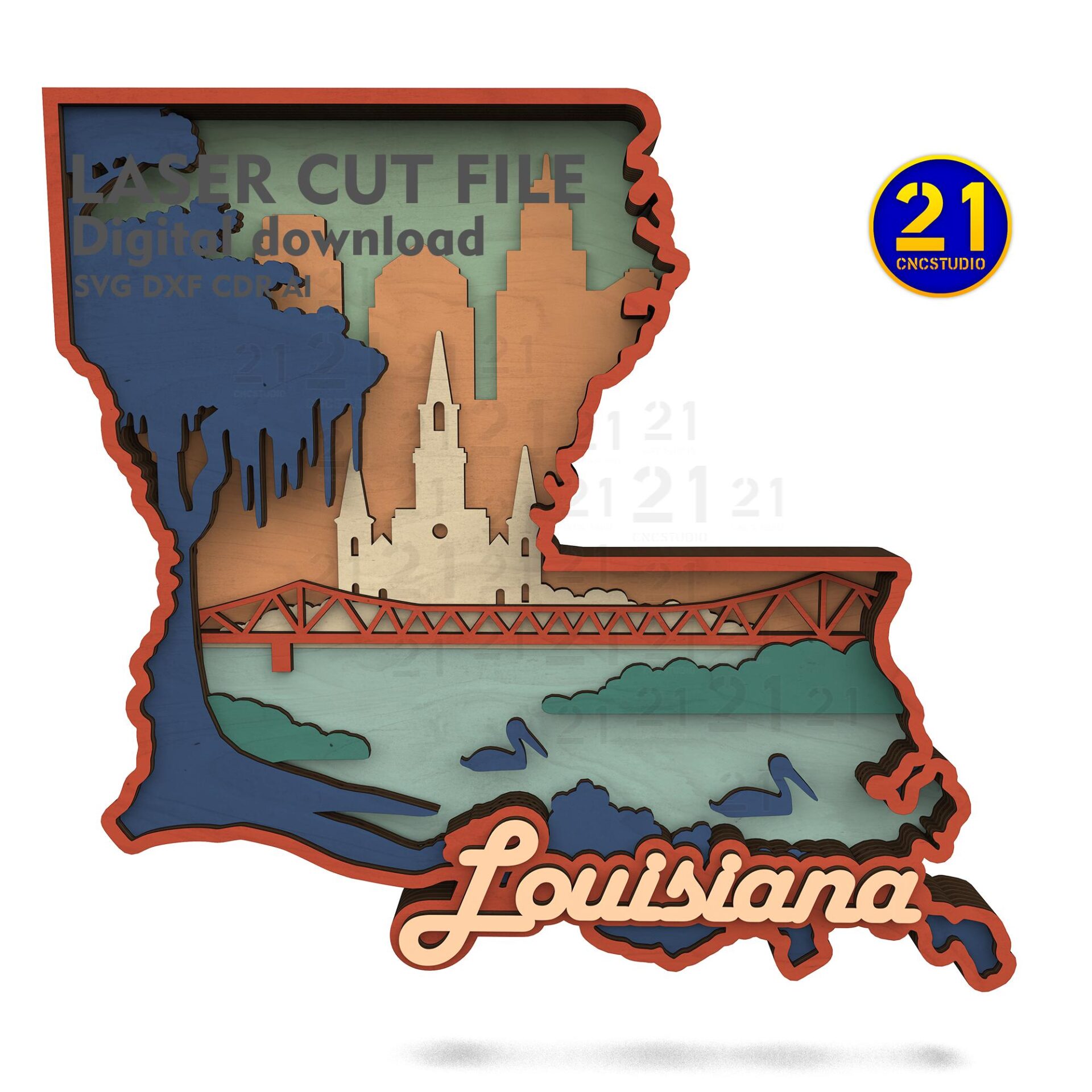

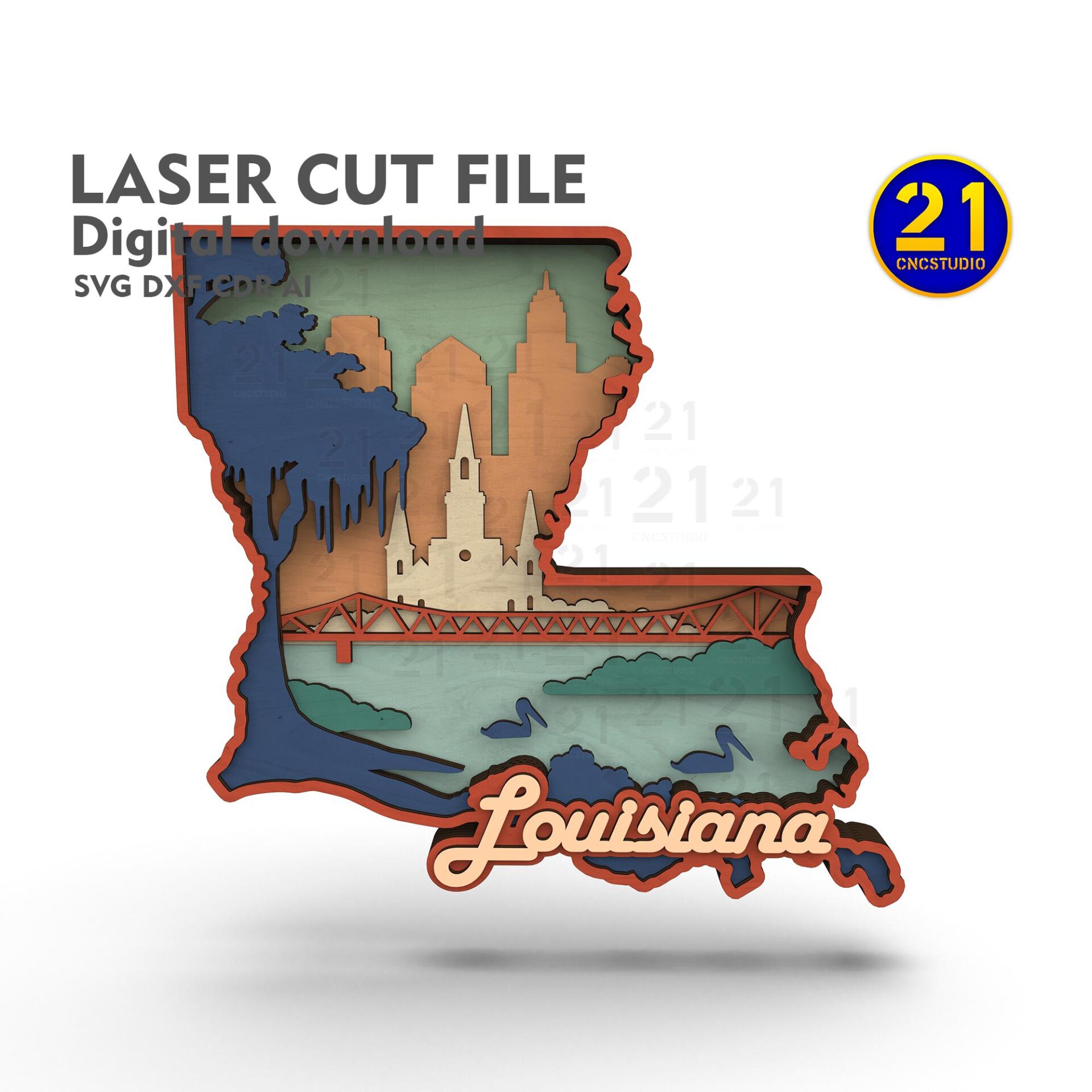

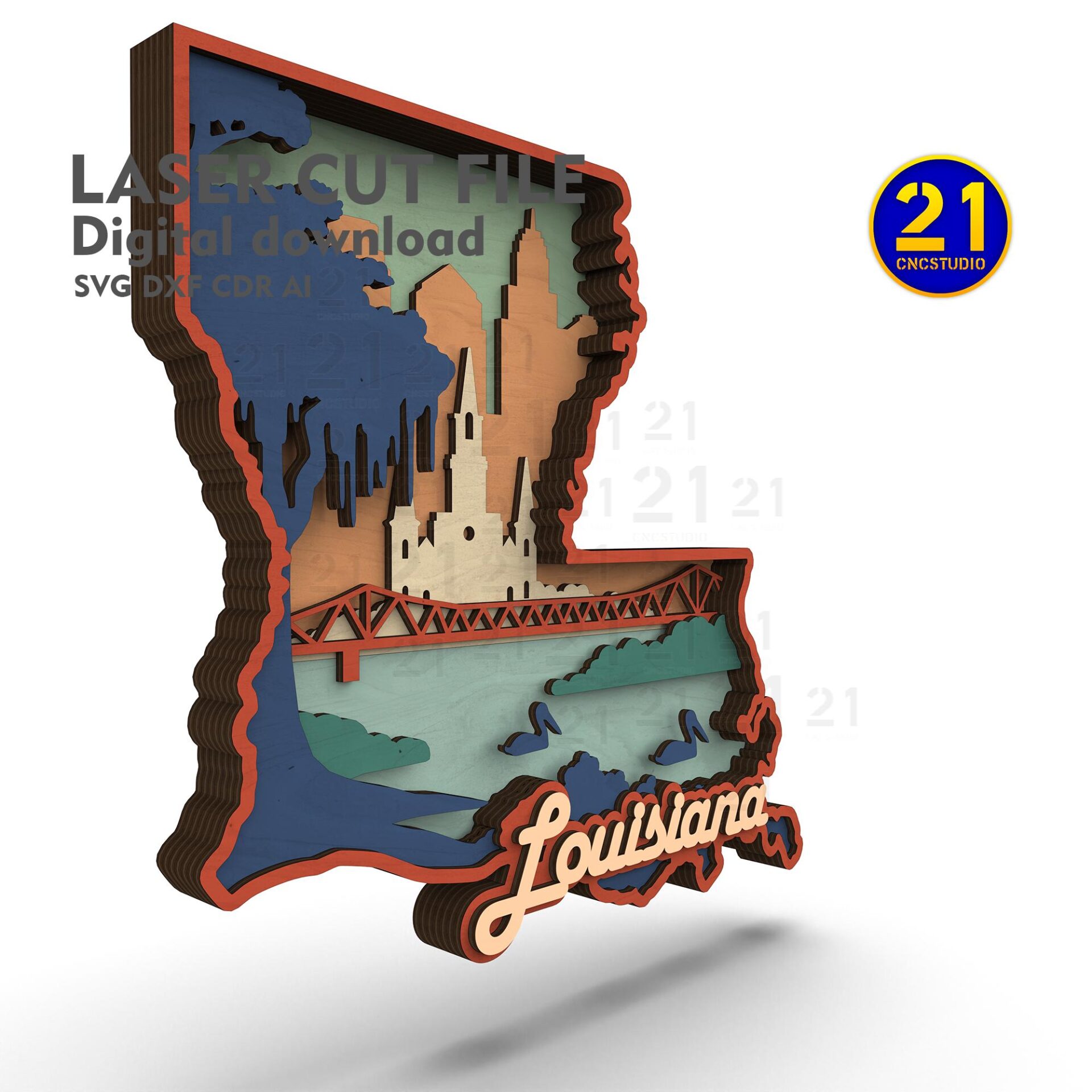

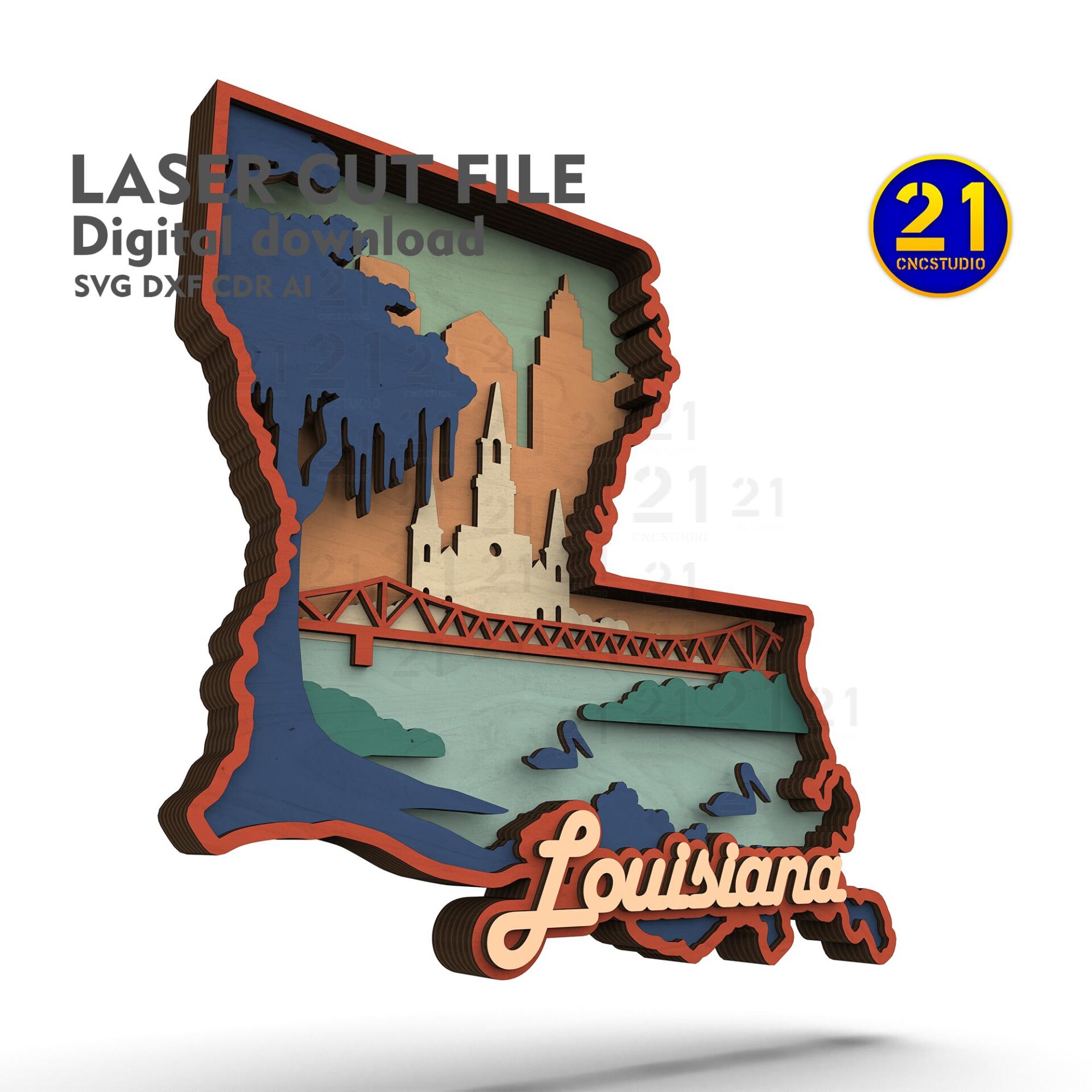

Front visualization of Louisiana-shaped layered art with water, trees, a cathedral silhouette and Louisiana lettering
AI-assisted model visualization based on 21CNCStudio design renders.

01 /The design

A Louisiana scene in relief.

The state-shaped artwork brings together a waterside scene, trees and a cathedral silhouette, with Louisiana lettering along the bottom. The stacked layers separate these elements into areas you can finish in different colours.

The current listing specifies seven layers, SVG, DXF, AI and CDR formats, and a recommended size of 260 × 244 mm. The customer photograph shows one completed piece with a bright painted finish.

Louisiana outline

The state silhouette forms the boundary of the design.

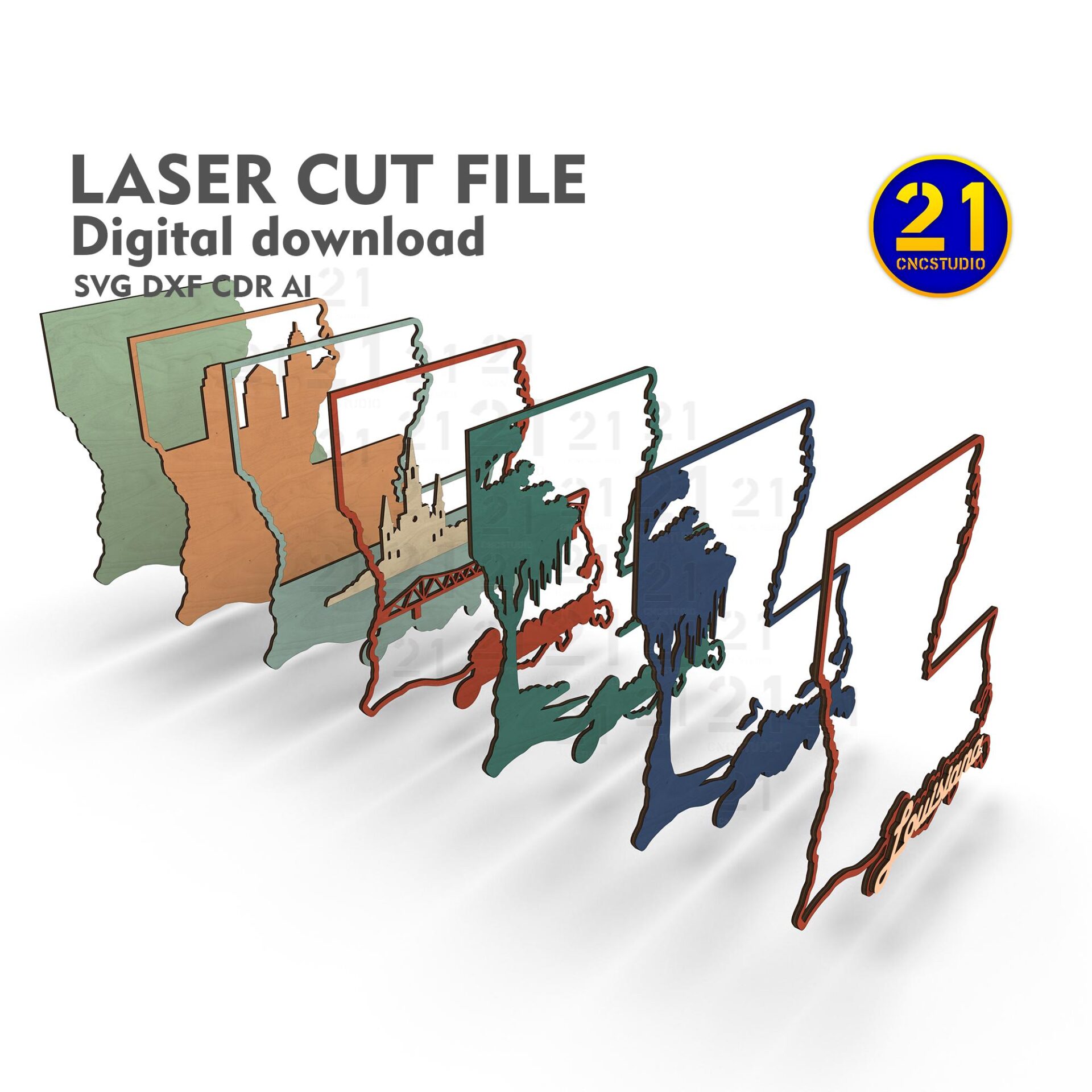

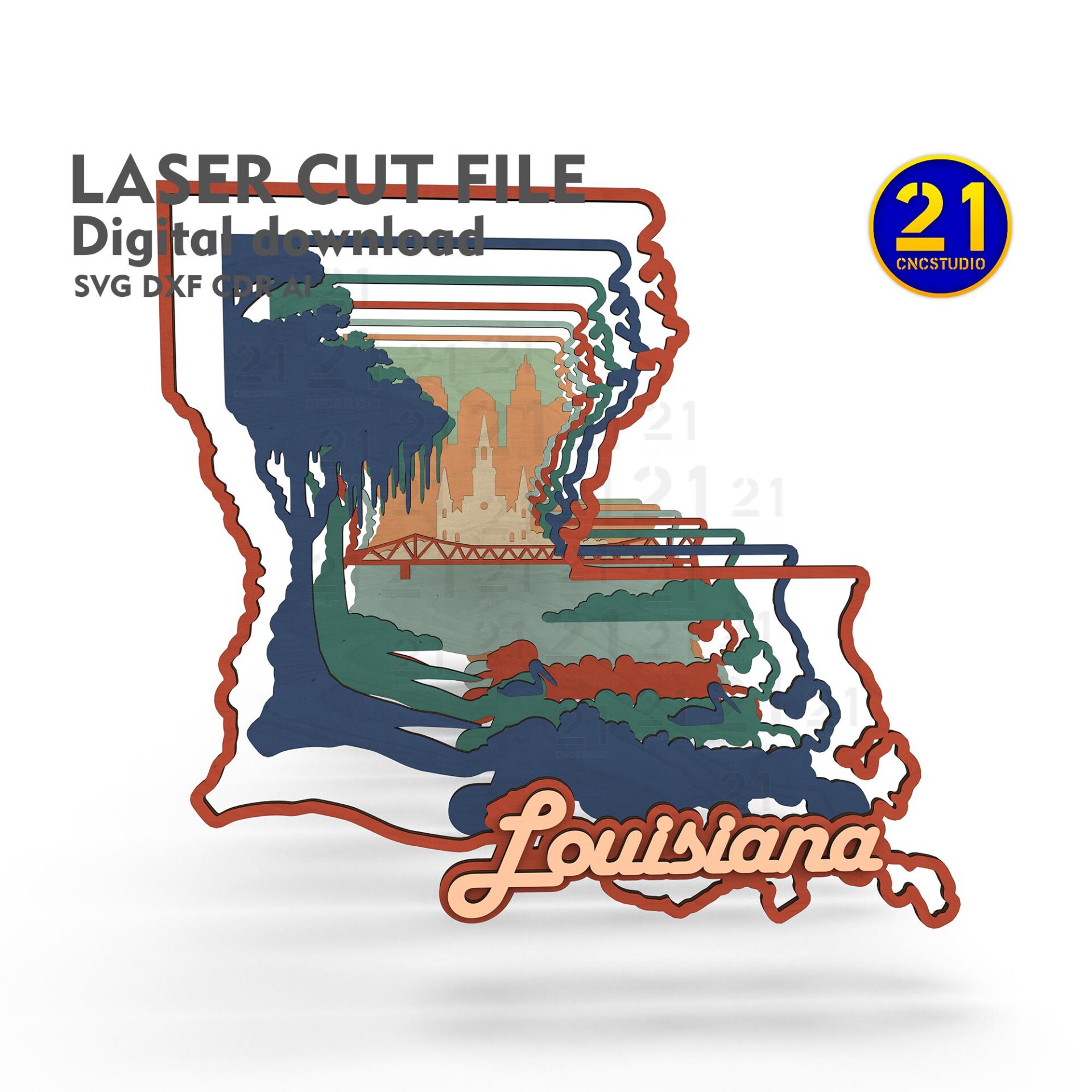

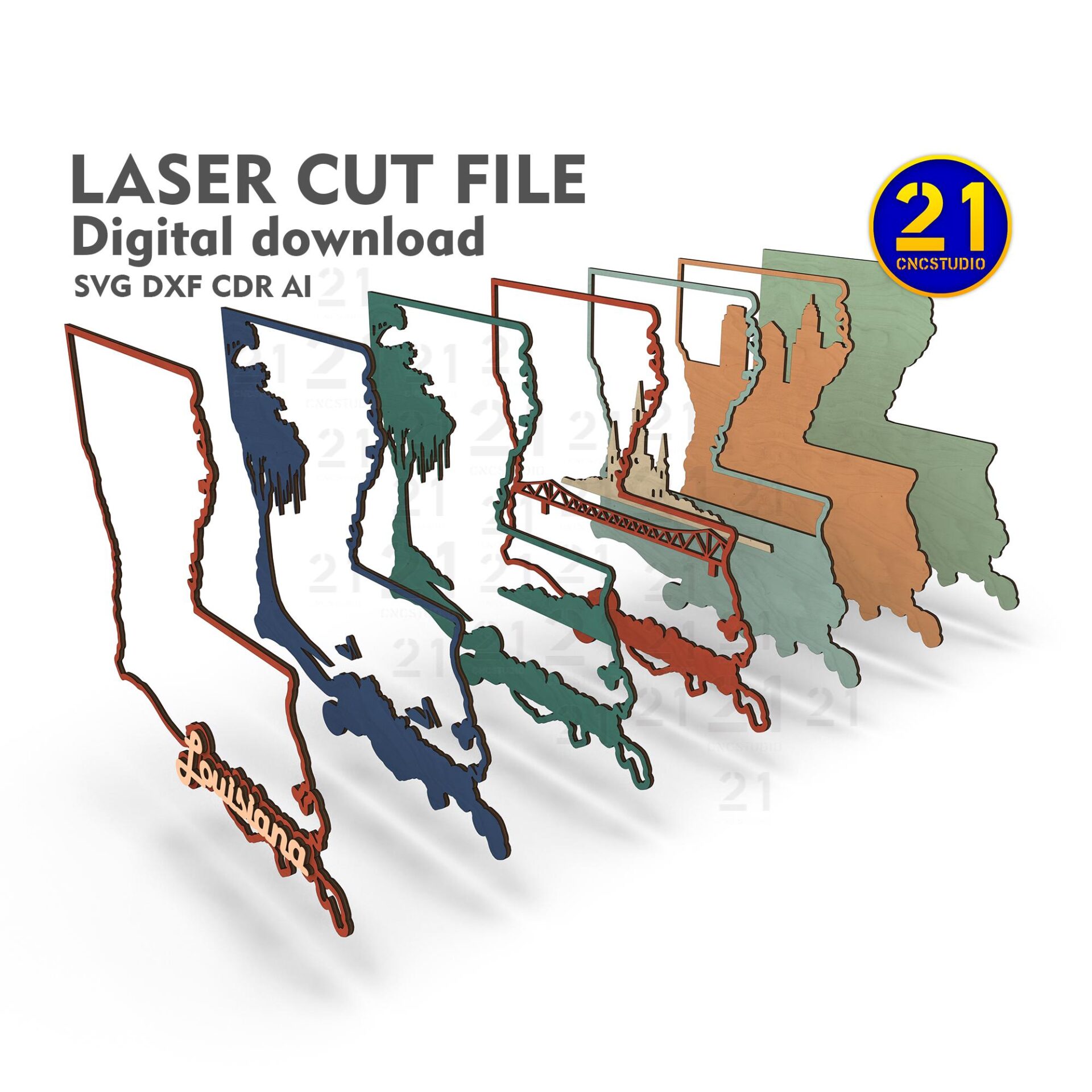

Seven-layer scene

Build depth by aligning the cut layers.

A maker’s example

The customer photo shows how different colours can separate the water, buildings and border.

A real build

A physical build, with the maker’s choice of materials and finish.

Customer-built Louisiana layered map in blue, green, orange and red on a gridded cutting mat.
Customer build from an Etsy review. Material, colours and finish are the maker’s own example.

02 /At your workbench

Choose your material.Make it fit.

01 /

Check the detail.

Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.

02 /

Keep the layers aligned.

Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.

03 /

Stack in order.

Arrange the cut layers in order and check their alignment before fixing them together.

Plan this build.

Check the lettering and smallest cutouts before resizing. Keep every layer at one scale, dry-stack them to confirm their order and finish the surfaces before final assembly if needed.

At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.

Before you start.

Design
Seven-layer Louisiana state art
Vector formats
SVG, DXF, AI, CDR
Recommended size
260 × 244 mm
Is this a street or topographic map?

No. It is decorative Louisiana-shaped wall art with a layered scene inside the outline, not a map for navigation.

What do I receive?

SVG, DXF, AI and CDR digital vector files. An assembly guide and specific material versions are not confirmed. No physical artwork or material is shipped.

Can I change the scale?

Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.

Can I use the design commercially?

The files are for personal use. Contact 21CNCStudio before commercial use or selling finished pieces. Do not resell, share or redistribute the digital files without permission.

03 /From the studio to your workbench

Make your Louisiana scene.

View the Louisiana Layered Map file package and its current terms on Etsy.

View files on EtsyDigital design files.
No physical model, material or hardware is shipped.
