Vintage Roadster / Laser-cut design
Vintage Roadster.

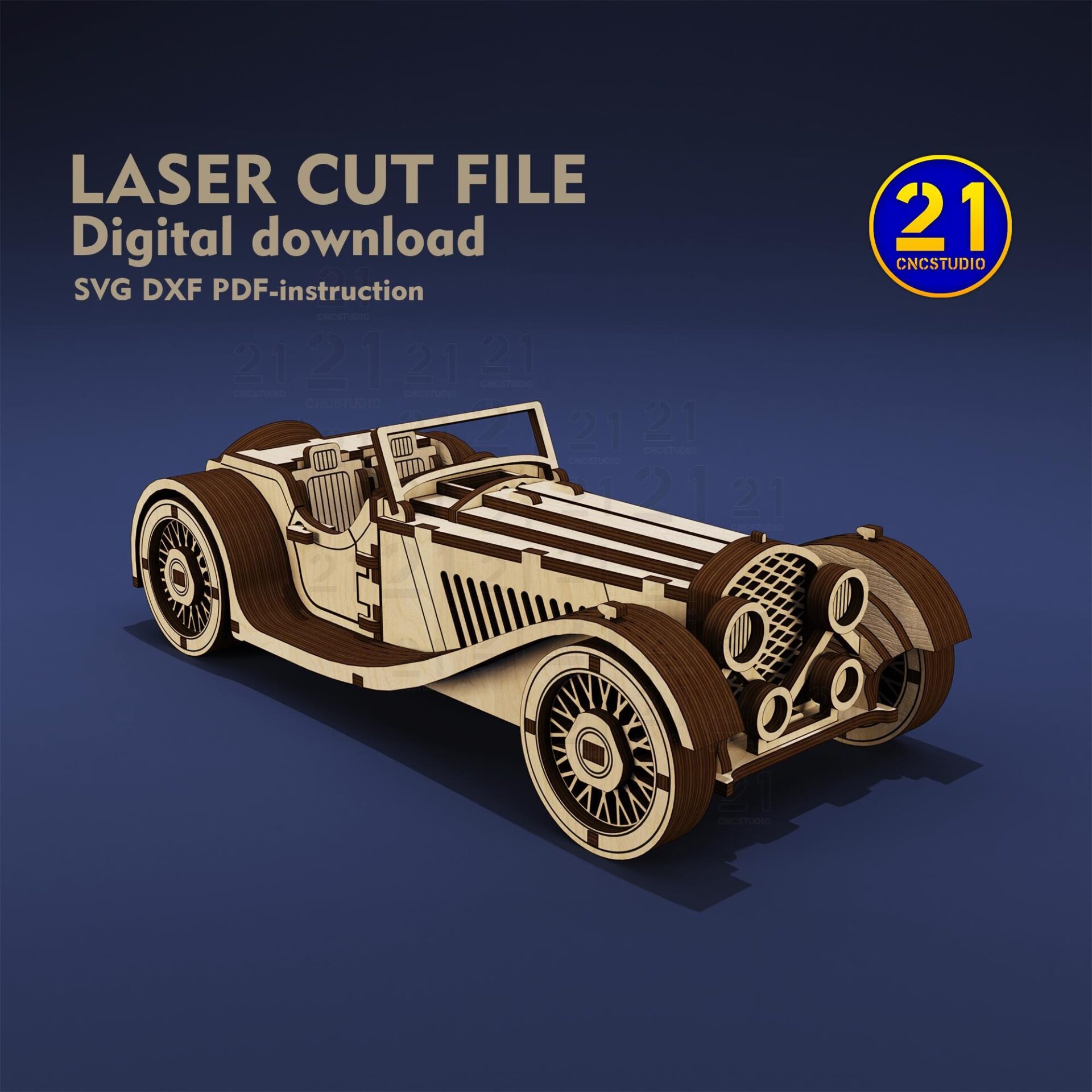

SVG and DXF laser-cut files for the Vintage Roadster, a 1930s-style open-top wooden model. Build its opening doors, engine compartment and rotating wheels with the PDF assembly guide.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
An open-top classic, made in layers.
The roadster combines a low open cockpit with the long front end of a vintage sports car. Its doors open, the engine compartment can be opened and the wheels rotate.
SVG and DXF files are supplied for 3 mm and 1/8-inch material, along with a PDF assembly guide. The listed finished size is 234 × 96 × 75 mm; the largest part stays within 240 mm.
Opening doors
Show the seating area through the open side doors.
Engine compartment
Open the bonnet to reveal the model’s engine detail.
Rotating wheels
Assemble the wheels and check their fit before finishing the chassis.
Views & details
A closer look.
Different views, details and a physical build. Select an image for a larger view.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Check the door, bonnet and axle fits before adding a finish. Keep glue away from moving connections and follow the PDF for the assembly order.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design files
- SVG + DXF
- Assembly guide
- PDF included
- Material versions
- 3 mm / 1/8 inch
- Listed finished size
- 234 × 96 × 75 mm (L × W × H)
- Largest part
- Within 240 mm
- Design features
- Opening doors and engine compartment; rotating wheels
Which parts can move?
The design includes opening doors, an opening engine compartment and rotating wheels. Their fit depends on the material and cutting kerf, so test the connections during assembly.
What do I receive?
Digital SVG and DXF design files and a PDF assembly guide. No physical model, material or hardware is shipped.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
Check the current listing licence before making finished models for sale. Do not redistribute or resell the digital design files; contact the studio about any use outside the supplied terms.
03 /From the studio to your workbench
Build the open-top classic.
View the Vintage Roadster file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
