Classic Car.

Name: Classic Car Laser Cut Files
Brand: 21CNCStudio

Build the vintage Classic Car from SVG and DXF laser-cut files. Versions for 3 mm and 1/8-inch material come with a PDF guide for the cabin, curved fenders and detailed wheels.

Get the files Explore the model

Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.

Front three-quarter visualization of the wooden Classic Car with tall cabin, round headlamps and side-mounted spare wheel — AI-assisted model visualization based on 21CNCStudio design renders.

01 /The design

A small car with plenty to look at.

Start at the upright grille and follow the curved fenders back to the enclosed cabin. The spare wheel and detailed wheel faces give the model interest from the side as well as the front.

At the 3 mm material scale, the car is 274 mm long. It is a compact display build for a shelf, desk or collection of wooden vehicles.

Vintage proportions.

An upright cabin and long fenders define the car’s profile.

Two material versions.

The package includes files for 3 mm and 1/8 inch material.

Guided construction.

Use the included PDF to follow the assembly sequence.

Views & details

A closer look.

Different views, details and a physical build. Select an image for a larger view.

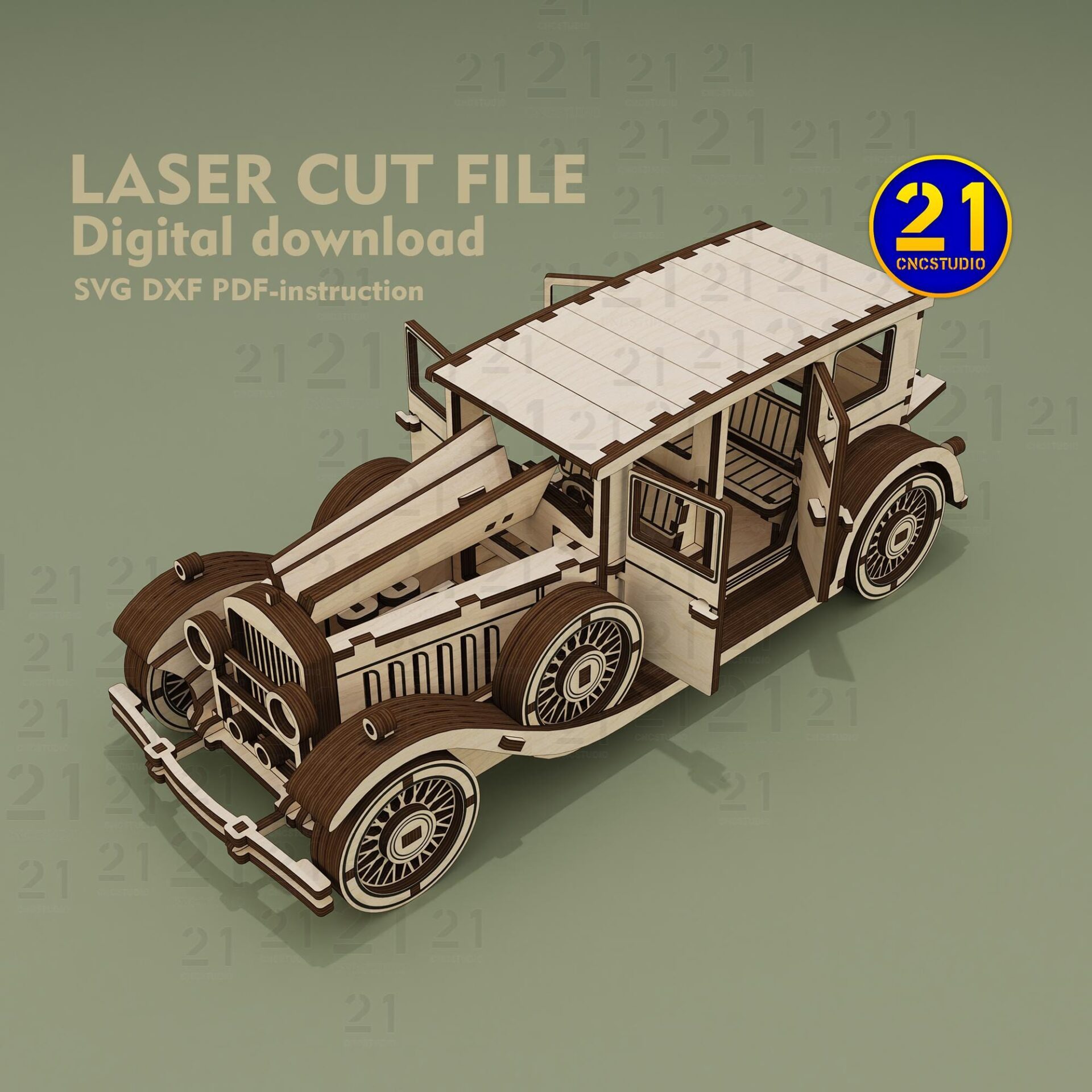

AI-assisted visualization. Classic Car shown from the front with its side doors open.

AI-assisted visualization. Close-up of the Classic Car engine beneath the open hood.

AI-assisted visualization. Rear three-quarter view of the assembled Classic Car.

AI-assisted visualization. Close-up of an open side door and the Classic Car interior.

Customer-built Classic Car photographed side-on on a patterned tabletop. — Customer build from an Etsy review. Materials, colours and any added lighting are the maker’s own example.

02 /At your workbench

Choose your material.Make it fit.

01 /

Measure first.

Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.

02 /

Check the layout.

Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.

03 /

Follow the guide.

Use the PDF assembly guide to identify the parts and work through the construction sequence.

Plan this build.

Choose the file version for your measured material thickness. A small slot test helps you check the fit before cutting the detailed body and wheel parts.

At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.

Before you start.

Design files: SVG + DXF
Assembly guide: PDF included
Material versions: 3 mm / 1/8 inch
Finished size at 3 mm: 274 × 106 × 97 mm (L × W × H)
Project type: Vintage car display model

How large is the finished car?

With the 3 mm version, the assembled car measures 274 mm long, 106 mm wide and 97 mm high. Rescaling changes those dimensions.

What do I receive?

Digital SVG and DXF design files, versions for 3 mm and 1/8 inch material, and a PDF assembly guide. No physical car, sheet material or hardware is shipped.

Can I change the scale?

Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.

Can I use the design commercially?

The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.

03 /From the studio to your workbench

Build a classic for your shelf.

View the Classic Car file package and its current terms on Etsy.

View files on EtsyDigital design files.
No physical model, material or hardware is shipped.
