SUV H1 6×6 Wagon / Laser-cut design

Six wheels. One wagon.

Six wheels beneath an enclosed wagon body. Build the SUV H1 6×6 at 1:24 scale, with movable wheels and opening doors.

Get the filesExplore the model

Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.

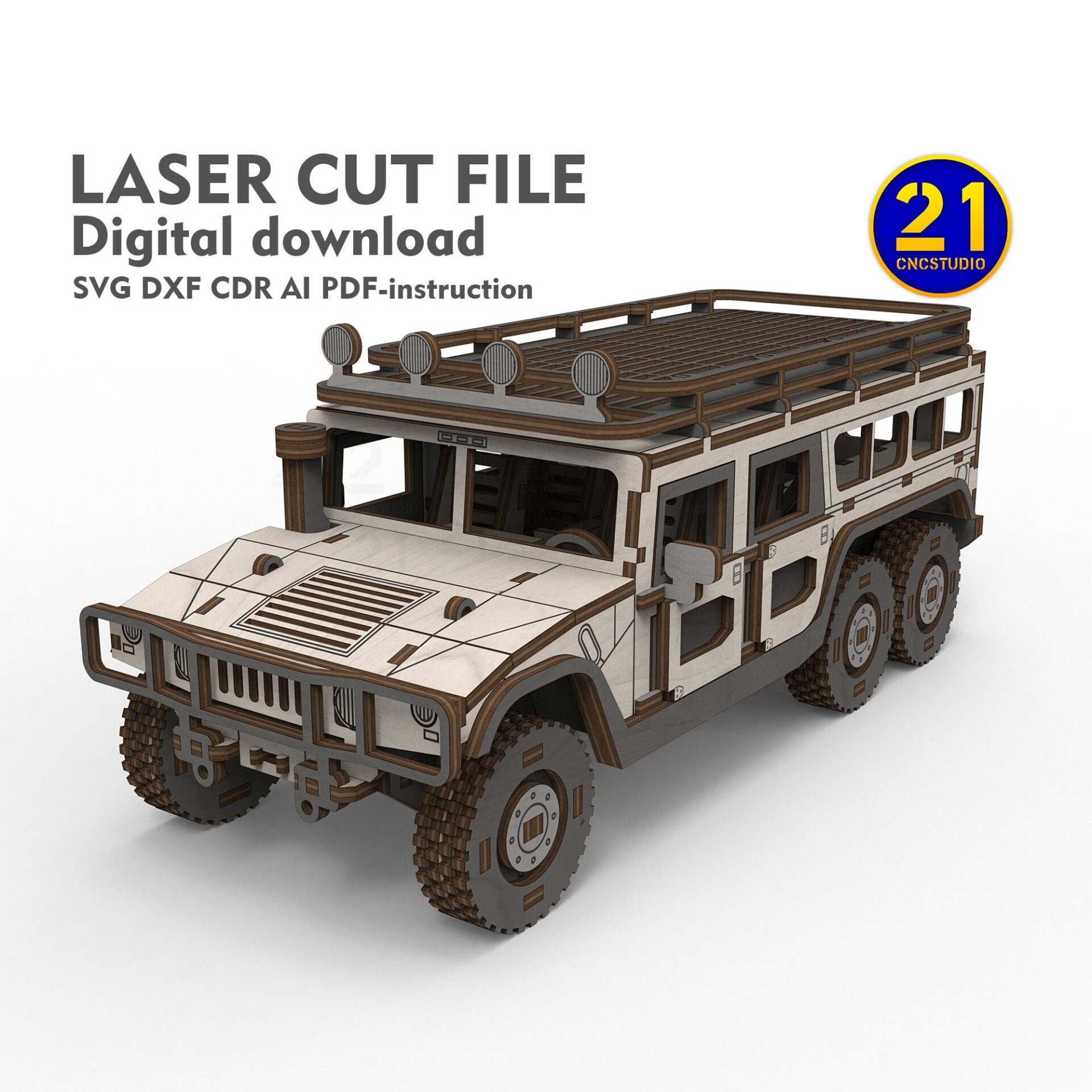

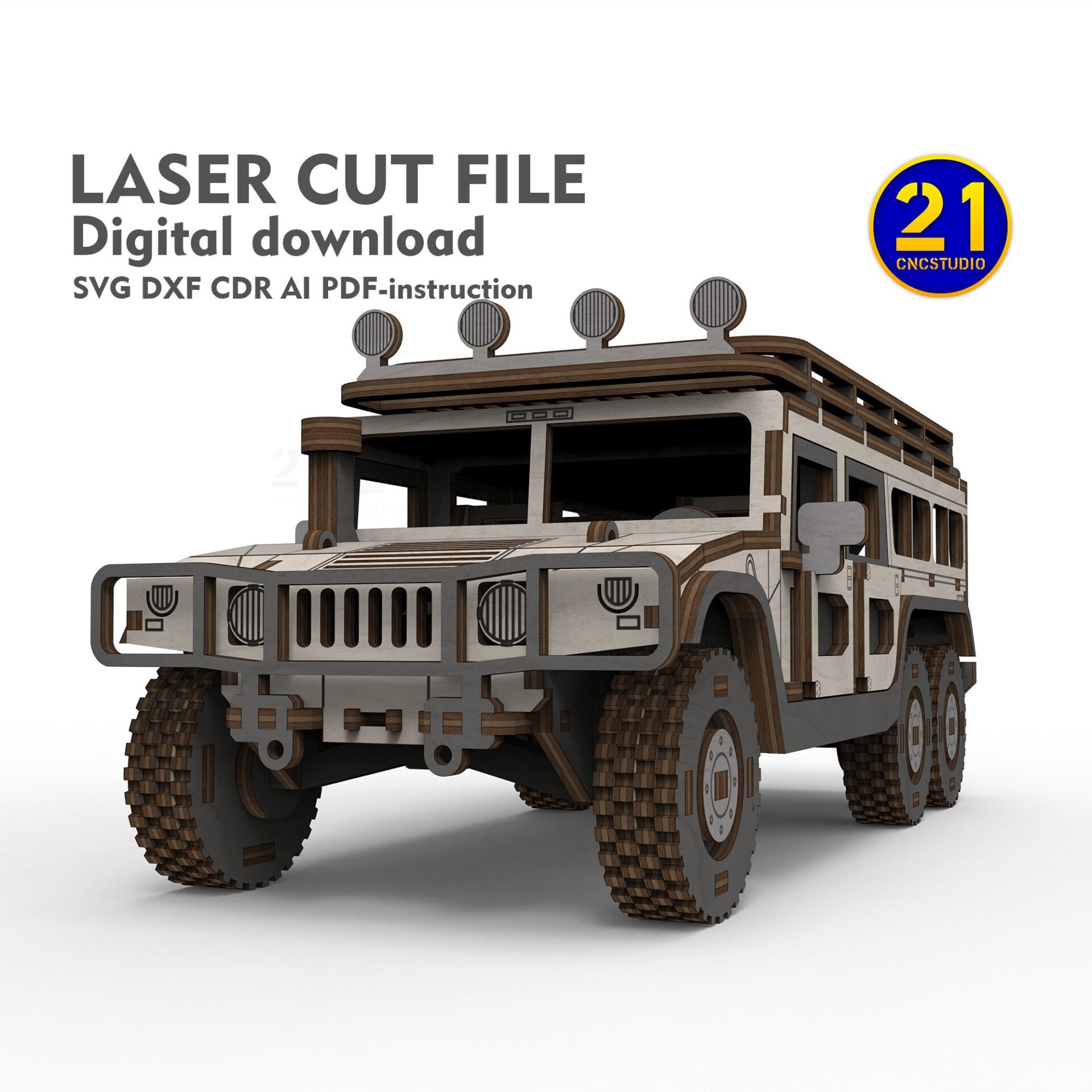

Front three-quarter visualization of the six-wheel SUV H1 wagon with an enclosed rear body and roof rail
AI-assisted model visualization based on 21CNCStudio design renders.

01 /The design

A long wagon body on six wheels.

The enclosed rear body distinguishes this wagon from the six-wheel pickup. Original renders show its rear doors, spare wheel and roof, while a customer photograph shows a natural-wood build with the doors open.

The finished model measures 245 × 100 × 80 mm. The files include versions for 3 mm and 1/8-inch plywood, accompanied by a PDF assembly guide.

Six-wheel wagon

This listing contains the enclosed wagon model.

Movable features

The wheels move and the doors open after assembly.

Tab-and-slot construction

Measure the plywood and test the fitted connections before building.

Views & details

Different views, details and a physical build. Select an image for a larger view.

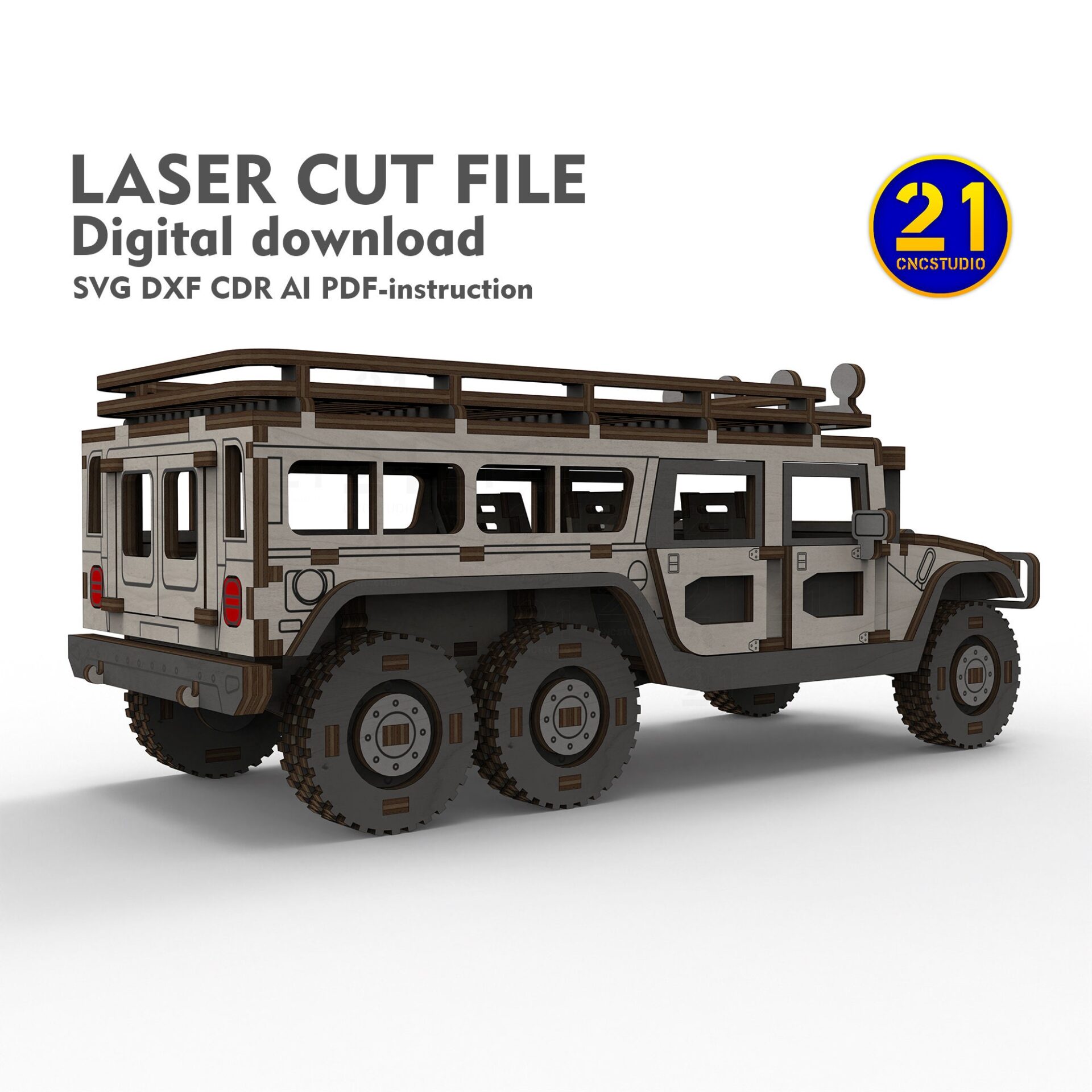

Rear three-quarter render of the six-wheel SUV H1 wagon showing its enclosed rear body and spare wheel.
Original 21CNCStudio design render. Rear three-quarter render of the six-wheel SUV H1 wagon showing its enclosed rear body and spare wheel.

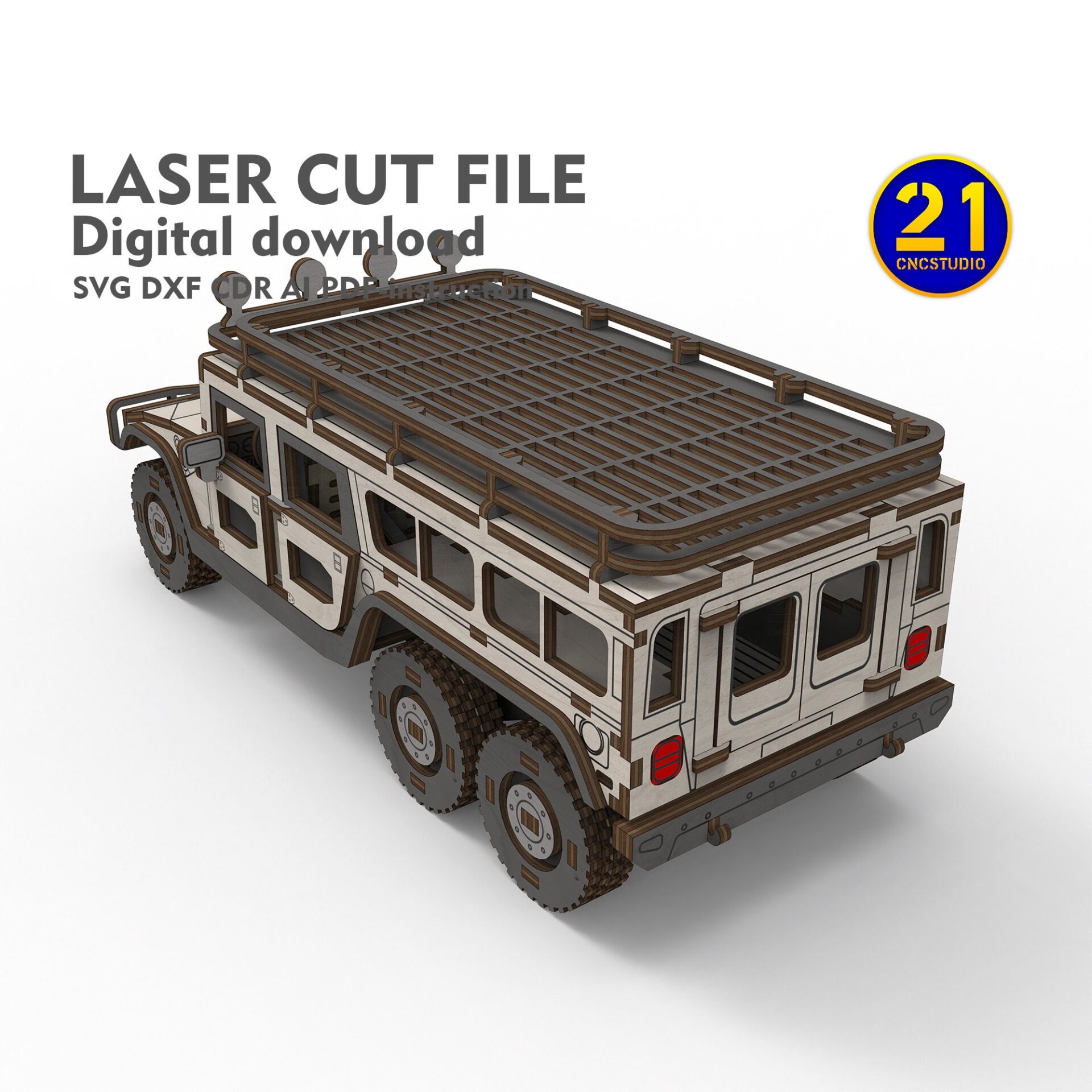

High rear three-quarter render of the six-wheel SUV H1 wagon showing its roof and rear doors.
Original 21CNCStudio design render. High rear three-quarter render of the six-wheel SUV H1 wagon showing its roof and rear doors.
Customer-built six-wheel SUV H1 wagon in natural wood with its doors open, photographed on a work surface.
Customer build from an Etsy review. Material, colours and finish are the maker’s own example. Other models in the background are not part of this wagon listing.

02 /At your workbench

Choose your material.Make it fit.

01 /

Measure first.

Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.

02 /

Check the layout.

Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.

03 /

Follow the guide.

Use the PDF assembly guide to identify the parts and work through the construction sequence.

Plan this build.

Use the file version matching your actual plywood thickness. Test the joints and kerf, allow clearance for moving doors and wheels, and follow the PDF through assembly.

At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.

Before you start.

Model
Six-wheel SUV H1 wagon
Scale
1:24
Design files
SVG + DXF
Assembly guide
PDF included
Material versions
3 mm / 1/8 inch plywood
Finished size
245 × 100 × 80 mm (L × W × H)
Movement
Movable wheels and opening doors
Does this listing include the pickup as well?

This is the six-wheel wagon on its own. The separate SUV H1 6×6 Bundle contains both the wagon and pickup.

What do I receive?

Digital SVG and DXF design files and a PDF assembly guide. No physical model, material or hardware is shipped.

Can I change the scale?

Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.

Can I use the design commercially?

The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.

03 /From the studio to your workbench

Build the six-wheel wagon.

View the SUV H1 6×6 Wagon file package and its current terms on Etsy.

View files on EtsyDigital design files.
No physical model, material or hardware is shipped.
