4-Wheel SUV H1 / Laser-cut design

SUV H1. Four wheels.

Name: 4-Wheel SUV H1 Laser Cut Files
Brand: 21CNCStudio

A civilian SUV H1 with opening doors and movable wheels. Build the four-wheel model at 1:24 scale from SVG and DXF files.

Get the files Explore the model

Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.

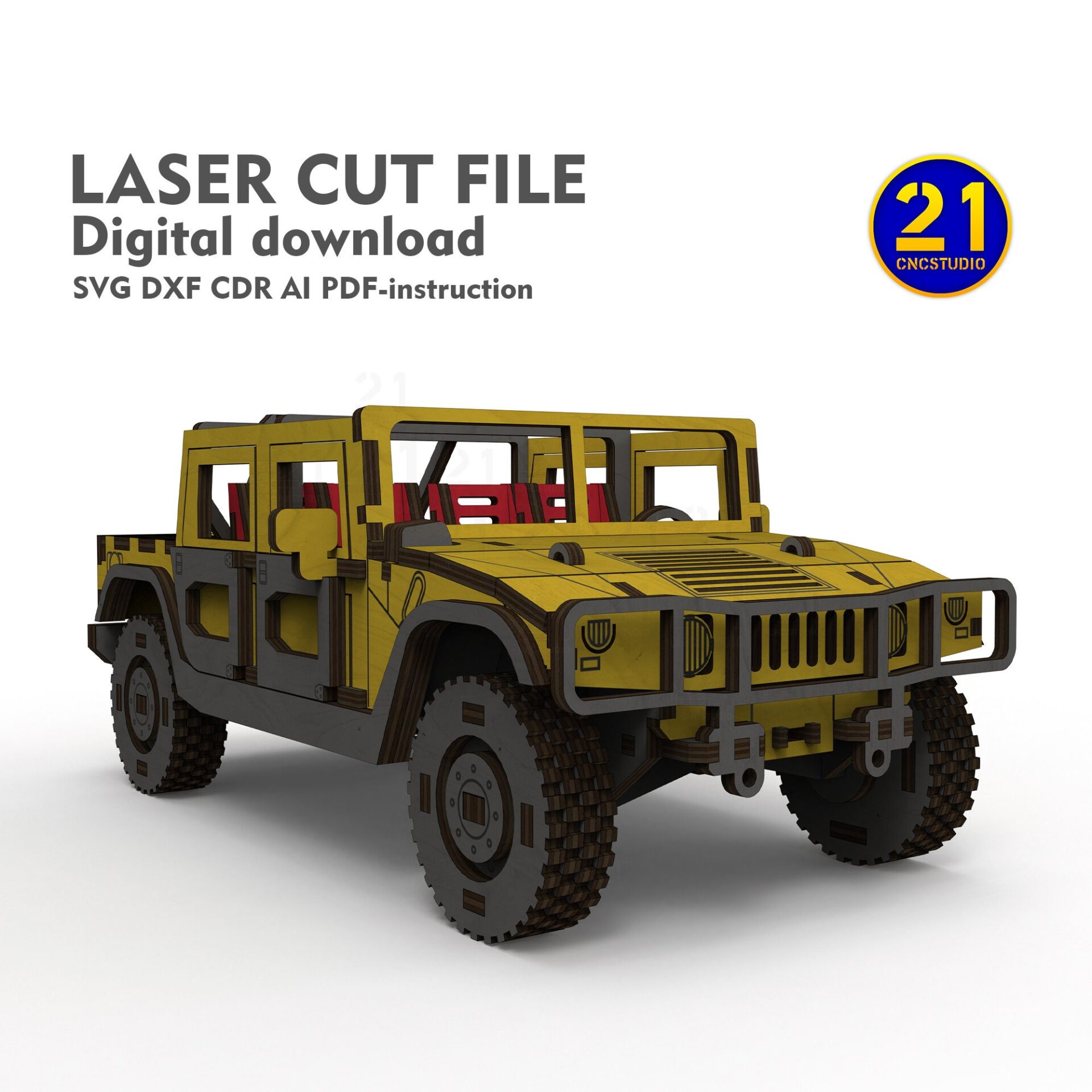

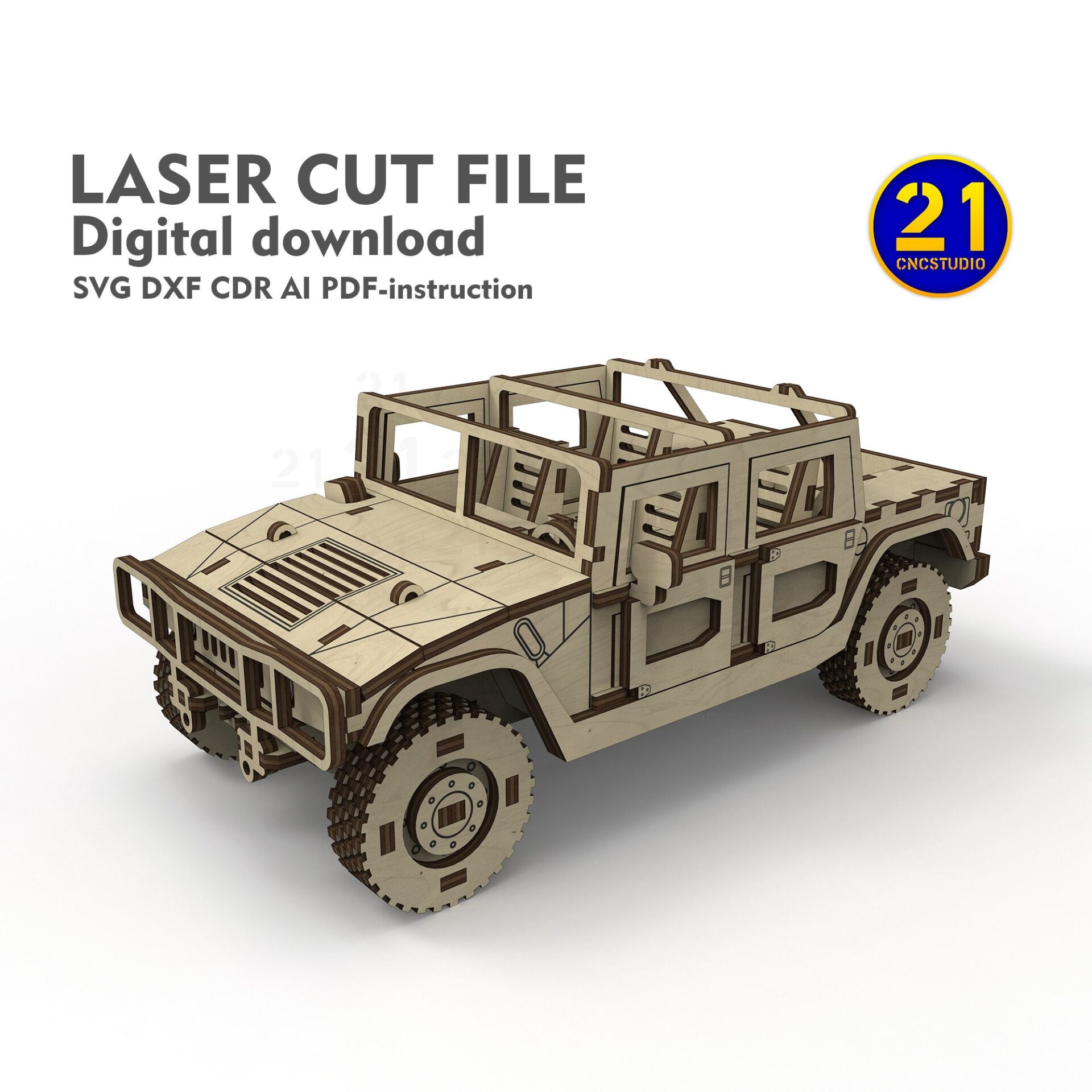

Front three-quarter visualization of the four-wheel wooden SUV H1 with an open cabin and rear cargo area — AI-assisted model visualization based on 21CNCStudio design renders.

01 /The design

An open cabin and a view inside.

The four-wheel SUV combines a wide body with an open cabin and rear cargo area. Its doors open and the wheels move, giving you connections to check as the body and chassis come together.

The listed finished size is 200 × 100 × 80 mm. The package includes SVG and DXF files for 3 mm and 1/8-inch plywood and a PDF assembly guide. Original renders show the side, rear and cabin detail; the customer photo shows a finished yellow model.

Opening doors

Check the door fit during assembly before applying the final finish.

Movable wheels

Fit the wheels and test their movement as the chassis takes shape.

Cabin detail

The open upper body leaves the seats and steering wheel visible.

Views & details

A closer look.

Different views, details and a physical build. Select an image for a larger view.

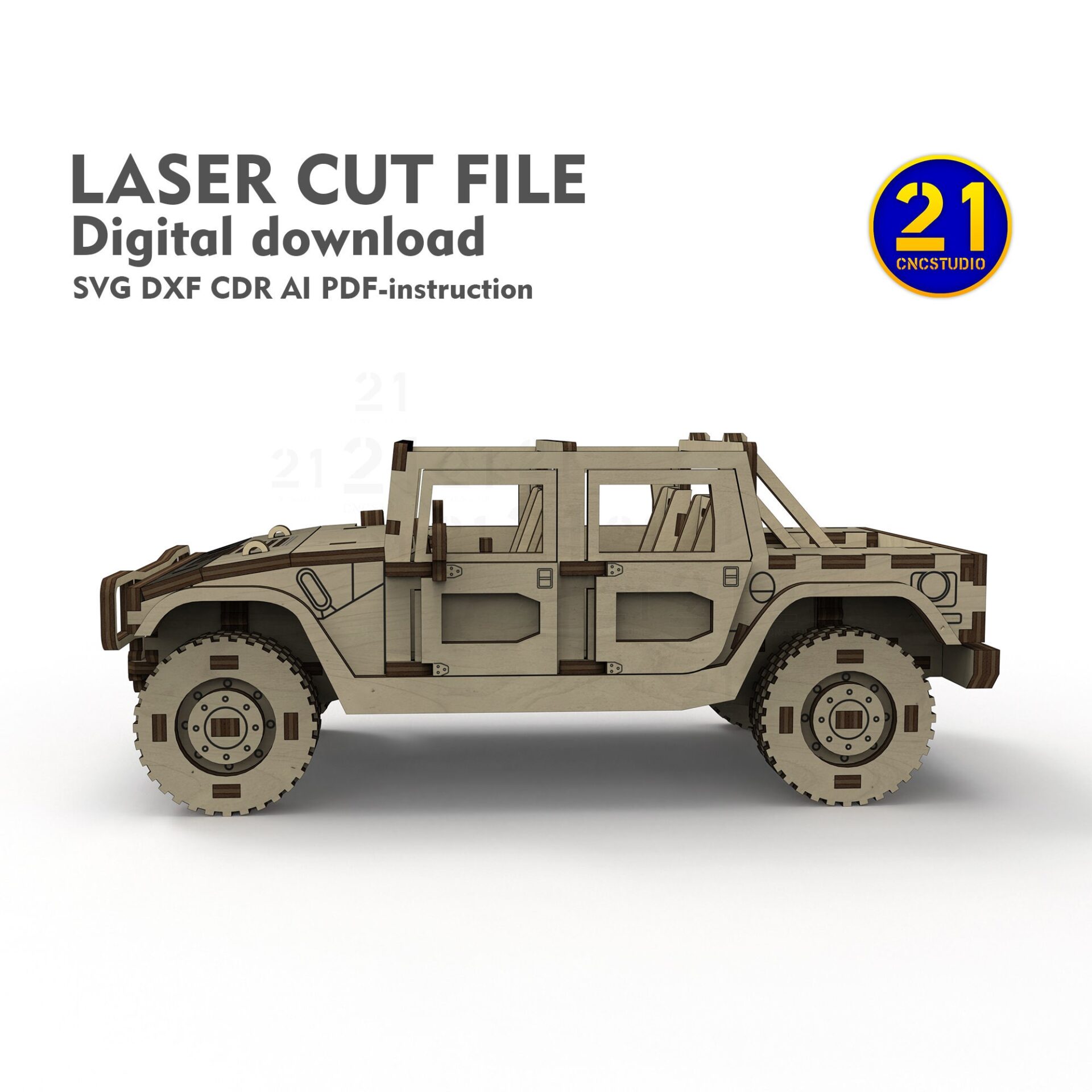

Original 21CNCStudio design render. Side render of the four-wheel SUV H1 with an open cabin and rear cargo area.

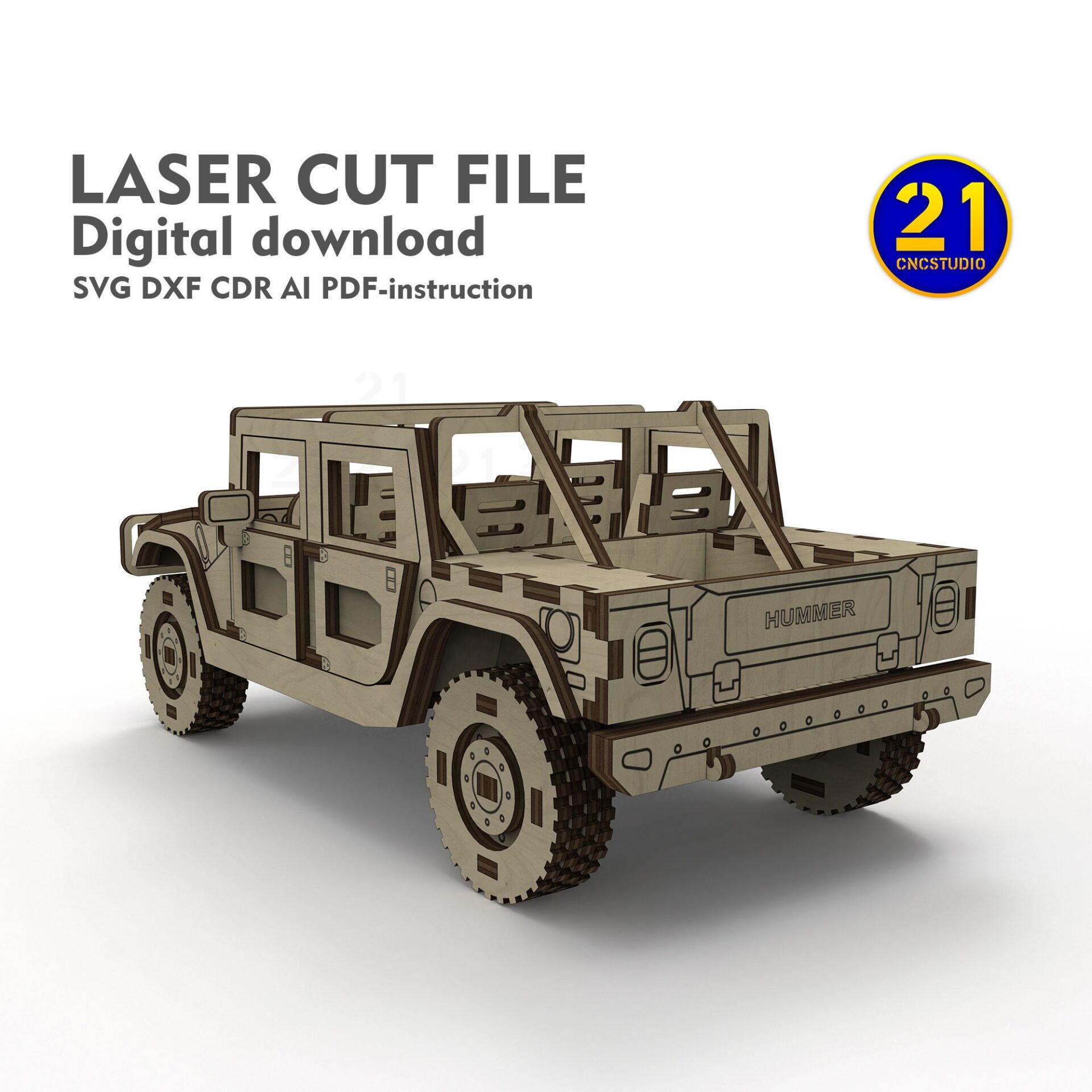

Original 21CNCStudio design render. Rear three-quarter render of the four-wheel SUV H1 showing the rear body and open cabin.

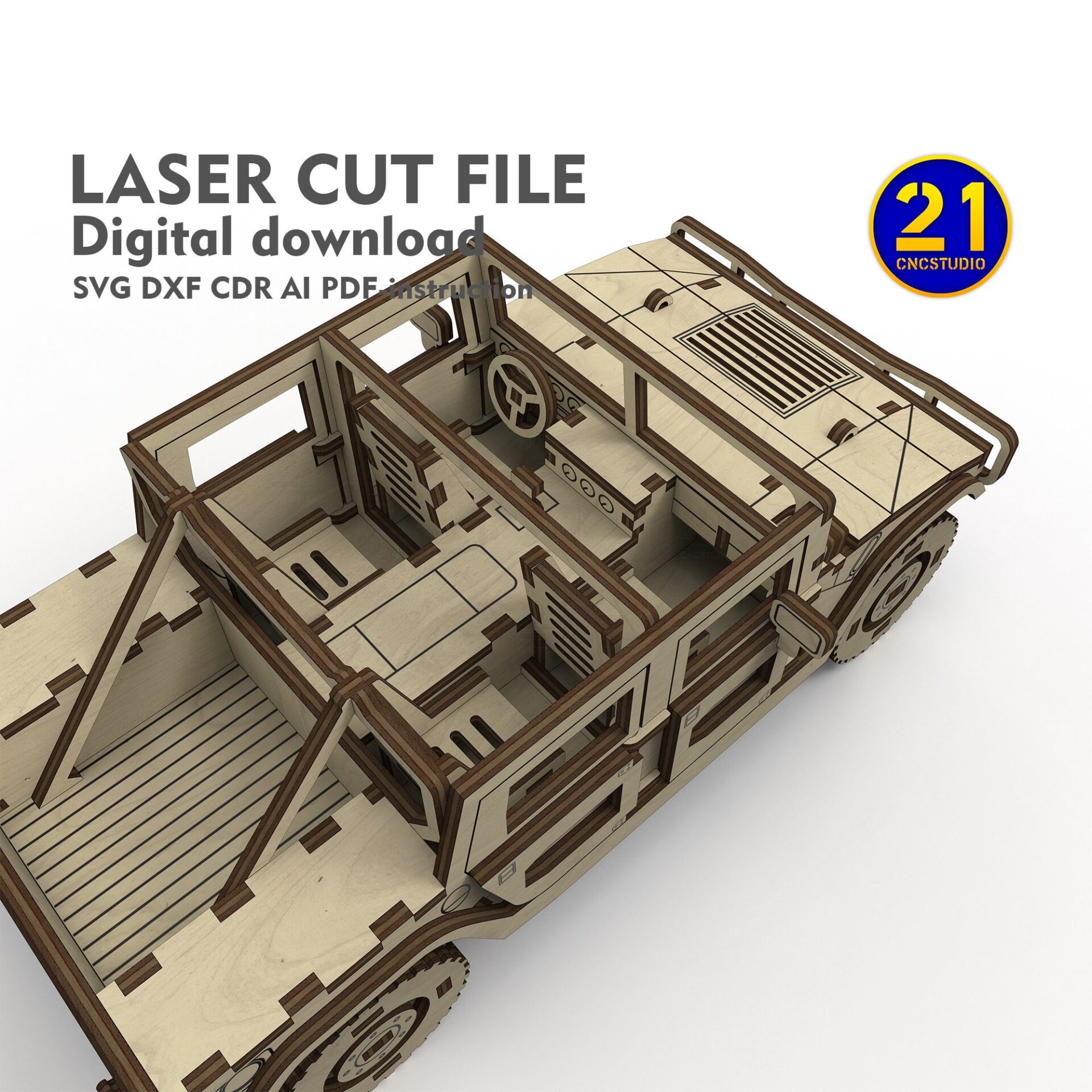

Original 21CNCStudio design render. Overhead detail render of the SUV H1 seats, steering wheel and open cabin.

Customer-built yellow SUV H1 on a separate wall-mounted display shelf. — Customer build from an Etsy review. Material, colours and finish are the maker’s own example. The display shelf is separate and is not included with the SUV files.

02 /At your workbench

Choose your material.Make it fit.

01 /

Measure first.

Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.

02 /

Check the layout.

Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.

03 /

Follow the guide.

Use the PDF assembly guide to identify the parts and work through the construction sequence.

Plan this build.

Use the version that matches your measured plywood thickness. Test the slots and moving connections, and follow the PDF to assemble the cabin and body in order. The display shelf in the customer photo is a separate item.

At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.

Before you start.

Design files: SVG + DXF
Assembly guide: PDF included
Scale: 1:24
Listed finished size: 200 × 100 × 80 mm (L × W × H)
Material versions: 3 mm / 1/8 inch plywood
Movement: Movable wheels and opening doors

Is this the six-wheel SUV file set?

No. This page is for the four-wheel civilian SUV H1 at 1:24 scale. Six-wheel variants are separate designs.

What do I receive?

Digital SVG and DXF design files and a PDF assembly guide. No physical model, material or hardware is shipped.

Can I change the scale?

Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.

Can I use the design commercially?

The files are for personal use. Contact 21CNCStudio before commercial use or selling finished models. Do not resell, share or redistribute the digital files without permission.

03 /From the studio to your workbench

Build the four-wheel SUV.

View the 4-Wheel SUV H1 file package and its current terms on Etsy.

View files on EtsyDigital design files.
No physical model, material or hardware is shipped.
