St Benedict Cross / Laser-cut design

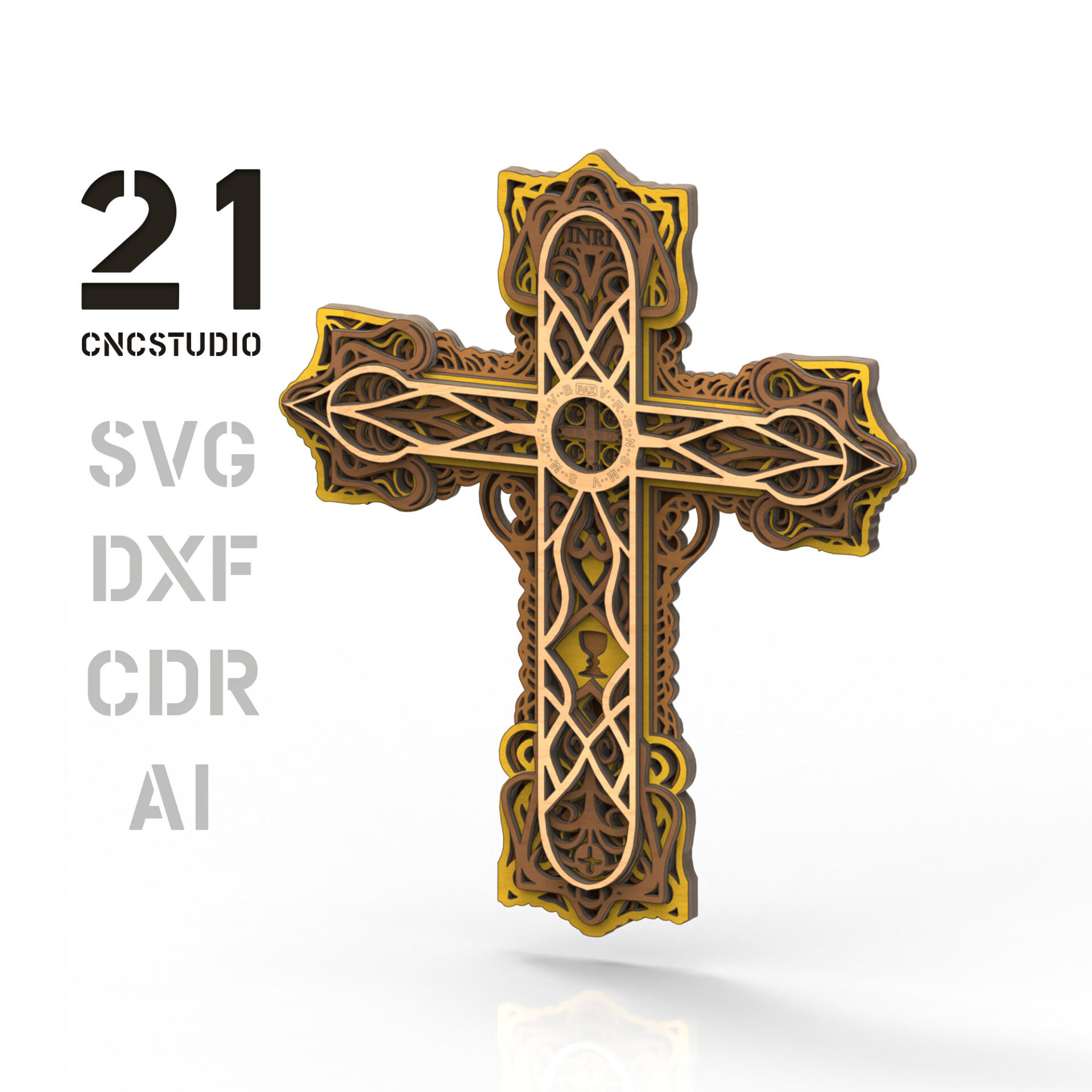

St Benedict Cross.
A five-layer cross with interlaced ornament, cut openings and engraved details. Prepare the layers, choose your finish and align them into a single wall piece.
Digital design · SVG + DXF + CDR
No physical model or materials are shipped.
01 /The design

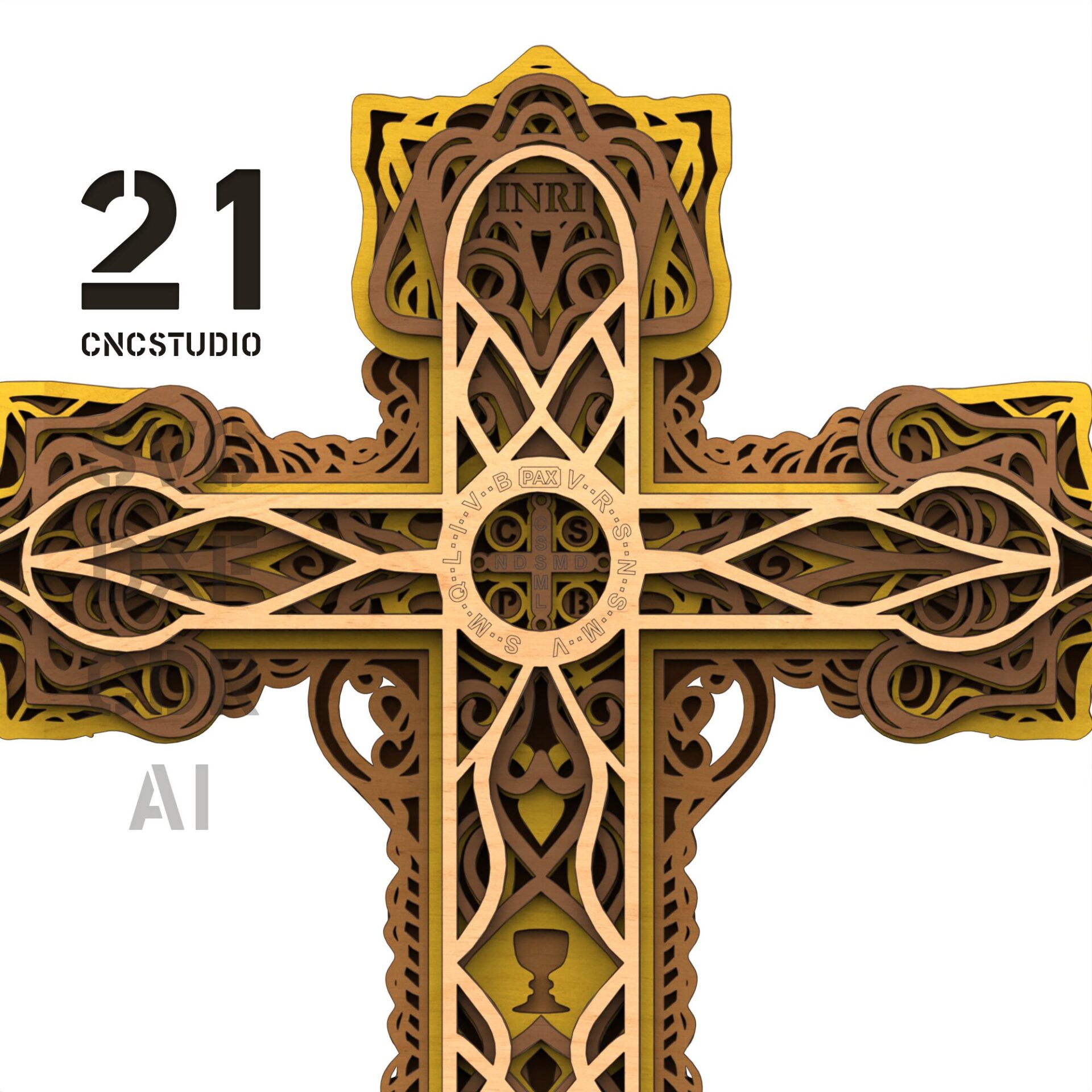

Ornament shaped by layers.
The cross outline holds a dense pattern of curves and interlaced shapes. Dark recessed layers separate the ornament from the face of the piece.
The design combines cutting and engraving. Check those operations in your laser software before preparing the five layers for assembly.
Five-layer structure.
Stack the cut layers in order to build the cross’s depth.

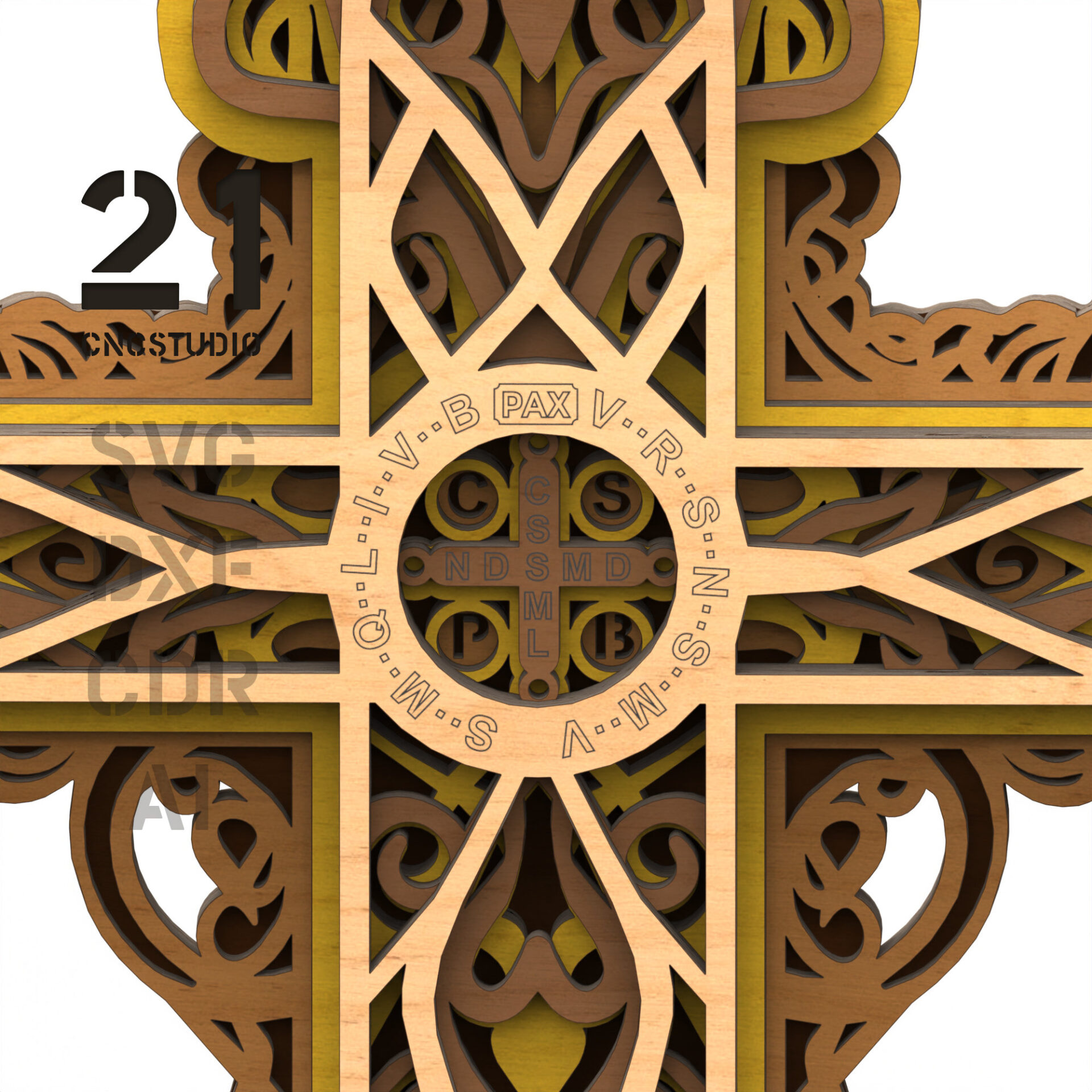

Cut and engraved detail.
Different operations define the openings and surface ornament.
Glue in order.
The listed assembly method is to align and glue the layers together.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Inspect the smallest ornamental connections before reducing the design. Check the actual file size, separate engraving from cutting and make a material test first.
Before you start.
- Design
- Five-layer cross with cut and engraved detail
- Vector formats
- SVG, DXF, CDR
- Additional files
- PNG images
- Assembly
- Glue layers in order; no guide included
- Material versions
- 3 mm / 1/8 inch
Does the package contain a guide?
No assembly instruction guide is included. The listed method is to cut the layers and glue them in order after checking their alignment.
What do I receive?
SVG, DXF and CDR vector design files plus PNG images. No assembly guide or physical cross is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Make the layers your own.
View the St Benedict Cross file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
