Michigan Layered Map / Laser-cut design
Michigan. Eight layers.
SVG, DXF, AI, CDR and EPS files for eight-layer Michigan artwork. Blue water, green landscape and a bridge fill the state shapes in a display you can cut and finish yourself.
Digital design · SVG + DXF + AI + CDR + EPS
No physical model or materials are shipped.
01 /The design

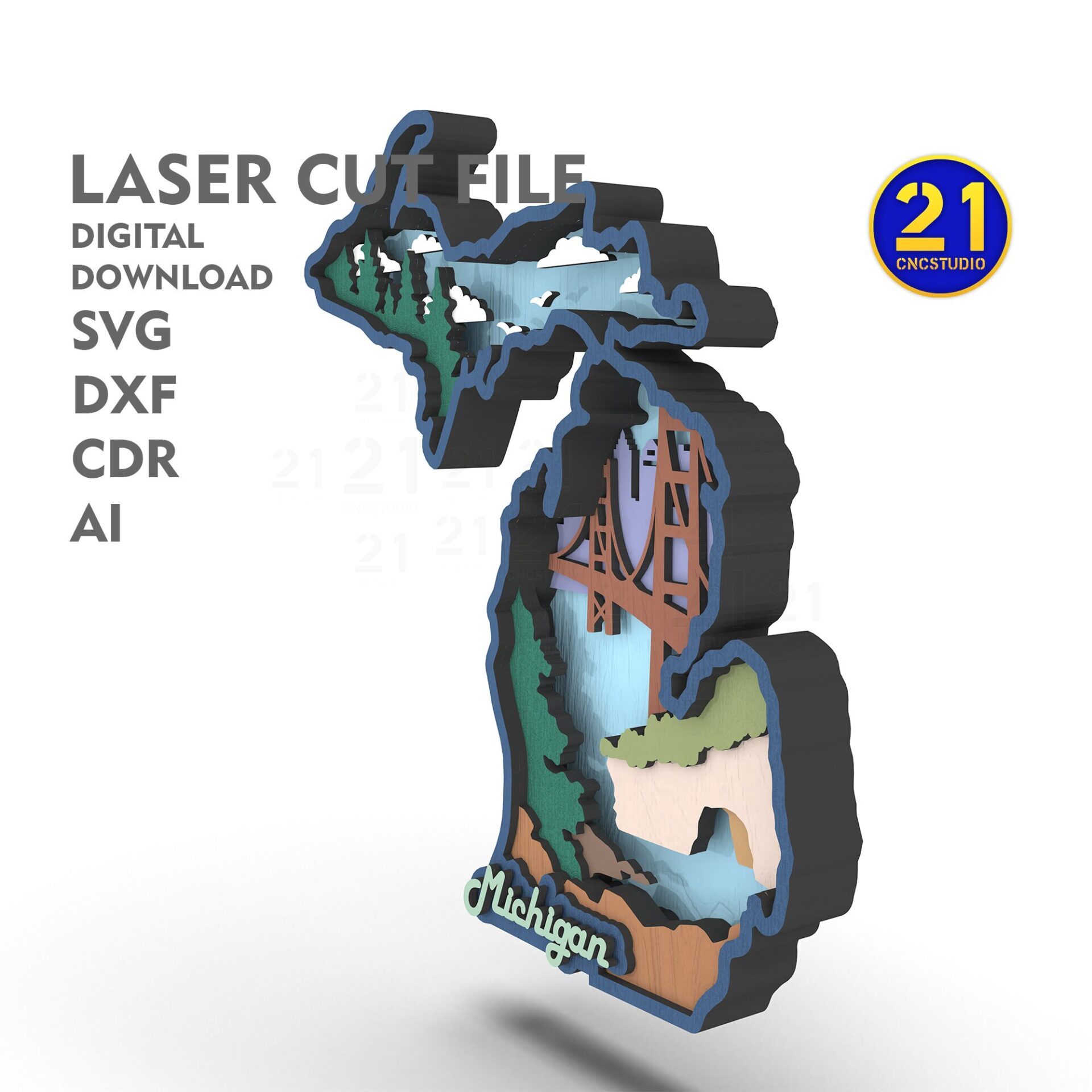

Water between the Michigan shapes.
The upper and lower state shapes sit around the blue water, with a bridge through the lower composition. The customer photograph shows a completed green-and-blue version alongside the preview’s colour choices.
The design uses eight layers at a listed size of 260 × 255 mm. Keep the separate state shapes in their intended positions as you arrange the matching layers.

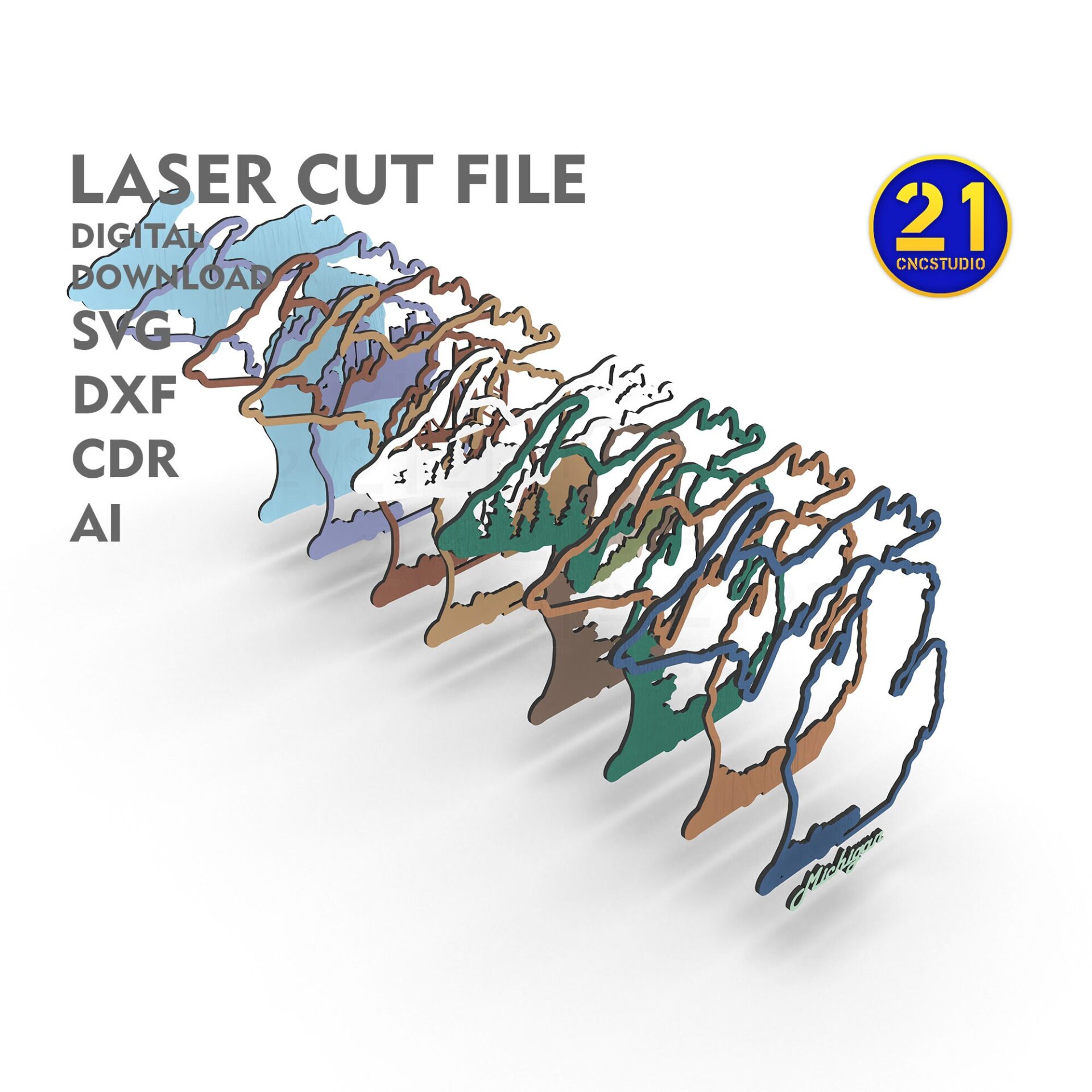

Eight layers
Stack the shapes to separate the landscape and water.
Michigan silhouette
Both state shapes contribute to the composition.
A finished example
The customer photograph shows another colour and finish combination.
A real build
Made from the files.
A physical build, with the maker’s choice of materials and finish.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Inspect the narrow peninsula shapes and bridge connections. Scale all eight layers together, test a detailed section and check the placement of the separate pieces before fixing the artwork.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Eight-layer Michigan artwork
- Vector formats
- SVG, DXF, AI, CDR, EPS
- Design size
- 260 × 255 mm
How large is the Michigan design?
The listed design size is 260 × 255 mm. If resizing, scale every layer and separate piece together, then test the finest connections before cutting the complete artwork.
What do I receive?
SVG, DXF, AI, CDR and EPS files for the eight-layer Michigan artwork. An assembly guide is not confirmed. No physical artwork or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Make your Michigan scene.
View the Michigan Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
