Asian Pagoda Pavilion / Laser-cut design

A pagoda pavilion. An open platform.

SVG and DXF files for an Asian pagoda pavilion with a curved roof and decorative panels. Build terrain for 28–32 mm miniatures with the included PDF assembly guide.

Get the filesExplore the model

Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.

Three-quarter visualization of an Asian pagoda pavilion with curved roof, decorative upper panels and open railed platform
AI-assisted model visualization based on 21CNCStudio design renders.

01 /The design

An open platform beneath the roof.

Railings enclose the lower platform, with a small step at the front. Pillars rise towards the curved roof and decorative upper panels. The gallery shows opposite, front and close views, alongside a customer build.

The finished pavilion measures 128 × 128 × 180 mm in length × width × height. Versions for 3 mm and 1/8-inch material are included. Place it in a samurai village, temple scene or diorama.

28–32 mm terrain

The pavilion is designed for this miniature size.

Open lower platform

Inspect the railing, step and floor detail in the close views.

PDF assembly guide

Follow the instructions with the matching material version.

Views & details

Different views, details and a physical build. Select an image for a larger view.

Three-quarter pavilion visualization with the digital cutting-file formats and PDF guide listed above it.
AI-assisted visualization based on 21CNCStudio design renders. Three-quarter pavilion visualization with the digital cutting-file formats and PDF guide listed above it.
Front pavilion visualization with the assembled dimensions 128 by 128 by 180 mm.
AI-assisted visualization based on 21CNCStudio design renders. Front pavilion visualization with the assembled dimensions 128 by 128 by 180 mm.

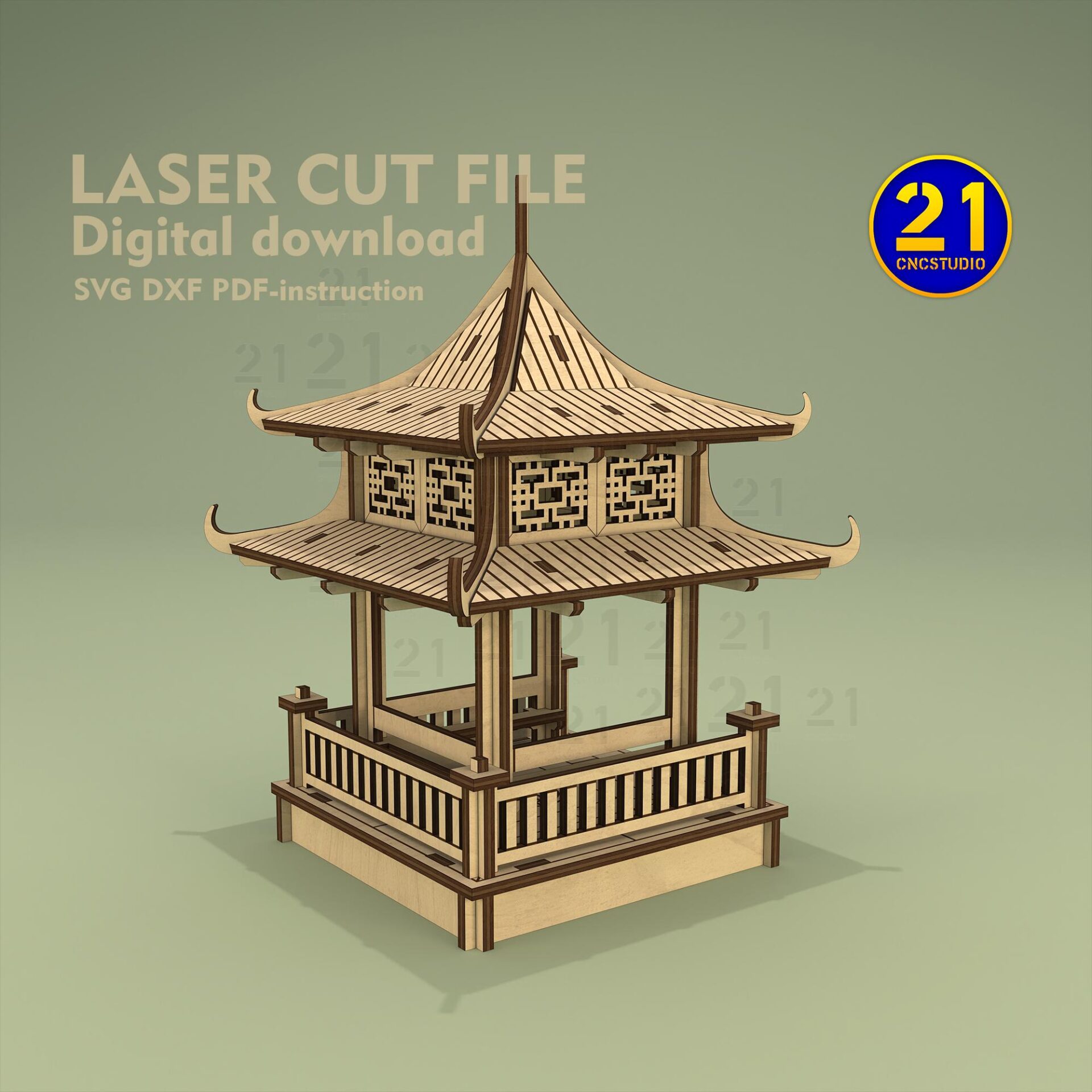

Opposite three-quarter visualization of the Asian pagoda pavilion showing the railings and upper panels.
AI-assisted visualization based on 21CNCStudio design renders. Opposite three-quarter visualization of the Asian pagoda pavilion showing the railings and upper panels.
Front visualization of the Asian pagoda pavilion with its open platform and central roof structure.
AI-assisted visualization based on 21CNCStudio design renders. Front visualization of the Asian pagoda pavilion with its open platform and central roof structure.
Close visualization of the pavilion platform, railing and small front step.
AI-assisted visualization based on 21CNCStudio design renders. Close visualization of the pavilion platform, railing and small front step.
Close visualization of the pavilion curved roof and decorative upper panels.
AI-assisted visualization based on 21CNCStudio design renders. Close visualization of the pavilion curved roof and decorative upper panels.
Three-quarter pavilion visualization with a note that the terrain is designed for 28–32 mm miniatures.
AI-assisted visualization based on 21CNCStudio design renders. Three-quarter pavilion visualization with a note that the terrain is designed for 28–32 mm miniatures.
Three-quarter pavilion visualization with the 3 mm and 1/8-inch material-version notes.
AI-assisted visualization based on 21CNCStudio design renders. Three-quarter pavilion visualization with the 3 mm and 1/8-inch material-version notes.
Side pavilion visualization explaining proportional scaling and the 3 mm to 4.5 mm material example.
AI-assisted visualization based on 21CNCStudio design renders. Side pavilion visualization explaining proportional scaling and the 3 mm to 4.5 mm material example.
Customer photograph of the assembled wooden Asian pagoda pavilion on a blue cutting mat.
Customer build photo from an Etsy review. Customer photograph of the assembled wooden Asian pagoda pavilion on a blue cutting mat.

02 /At your workbench

Choose your material.Make it fit.

01 /

Measure first.

Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.

02 /

Check the layout.

Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.

03 /

Follow the guide.

Use the PDF assembly guide to identify the parts and work through the construction sequence.

Plan this build.

Measure the material and test the fitted connections before preparing all the parts. Check the fine railing and panel details. If enlarging the 3 mm design to 150%, use approximately 4.5 mm actual material and test the fit; the finished size also increases.

At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.

Before you start.

Miniature size
28–32 mm
Design files
SVG + DXF
Assembly guide
PDF included
Material versions
3 mm / 1/8 inch
Finished size
128 × 128 × 180 mm (L × W × H)
Is the covered bridge included with this pavilion?

This is the standalone pagoda pavilion. The covered Asian bridge is a separate design with steps at both ends and its own roofed crossing; its page is linked below.

What do I receive?

SVG and DXF designs for the pagoda pavilion, with PDF assembly instructions and versions for 3 mm and 1/8-inch material. No physical terrain, miniatures or material is supplied.

Can I change the scale?

Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.

Can I use the design commercially?

The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.

03 /From the studio to your workbench

Build a pavilion for your scene.

View the Asian Pagoda Pavilion file package and its current terms on Etsy.

View files on EtsyDigital design files.
No physical model, material or hardware is shipped.
