Simple Vehicle Trio / Laser-cut design
Three small builds. Land and air.
A helicopter, a biplane and a small SUV in one file set. Three compact wooden builds, each with its own PDF assembly guide.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
A small fleet for the workbench.

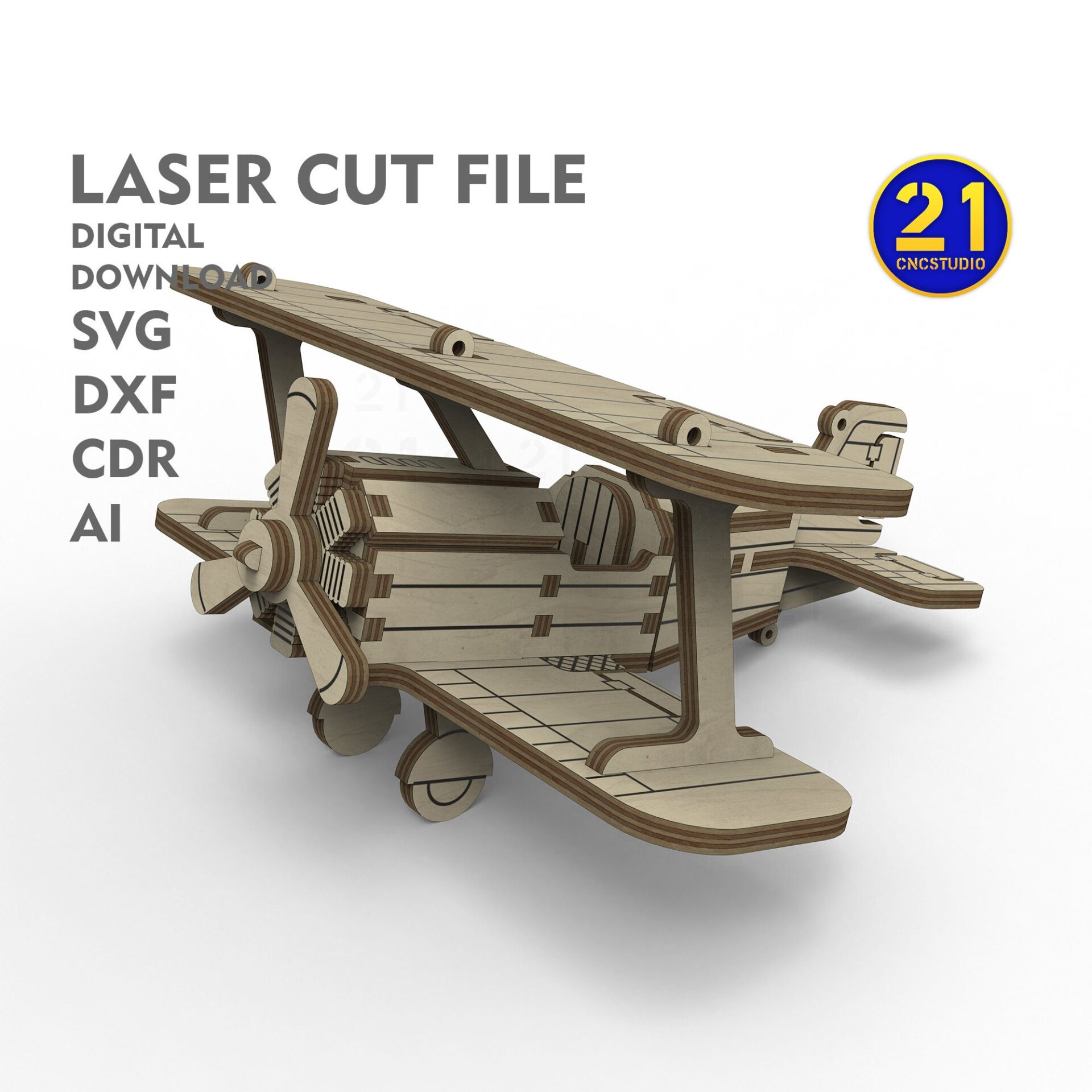

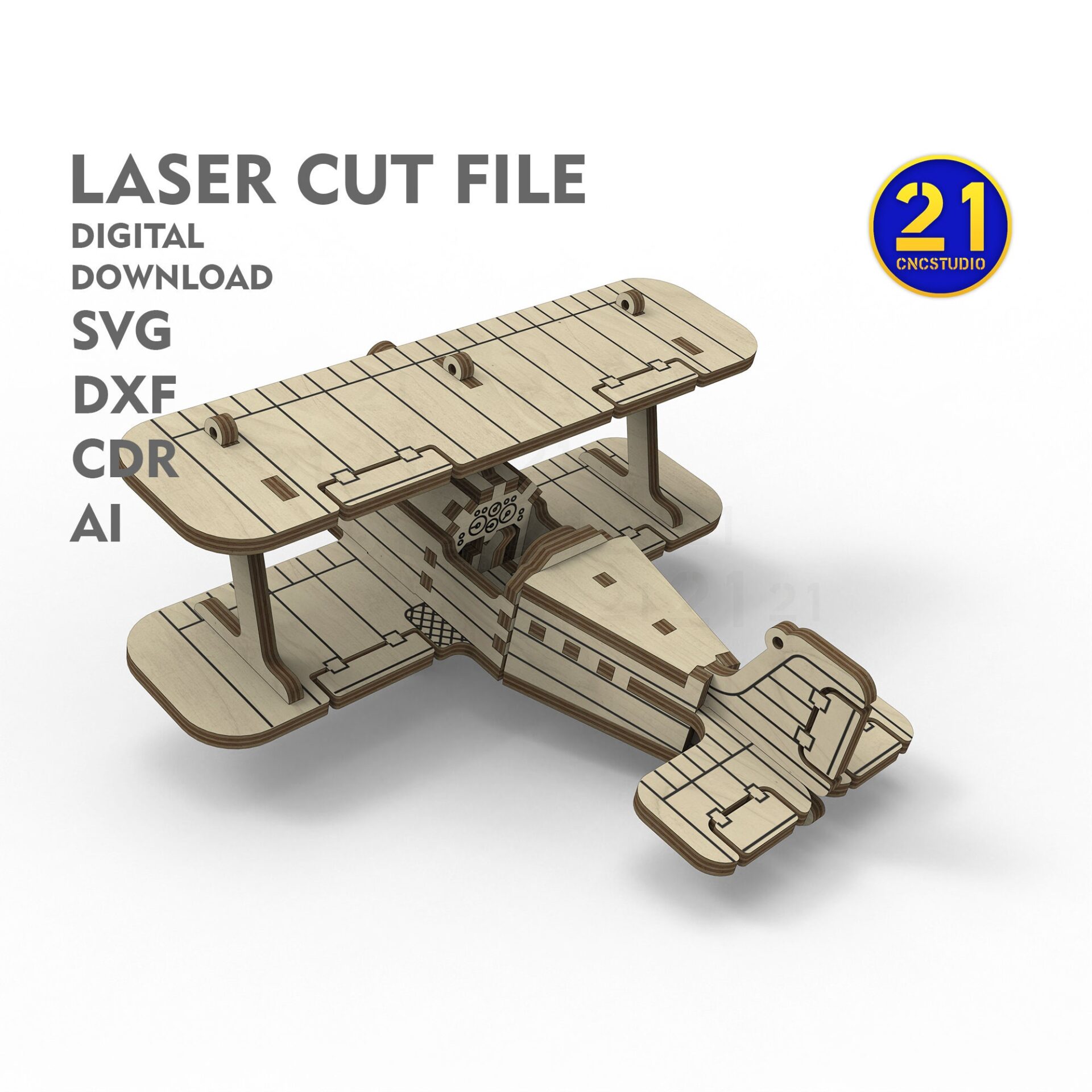

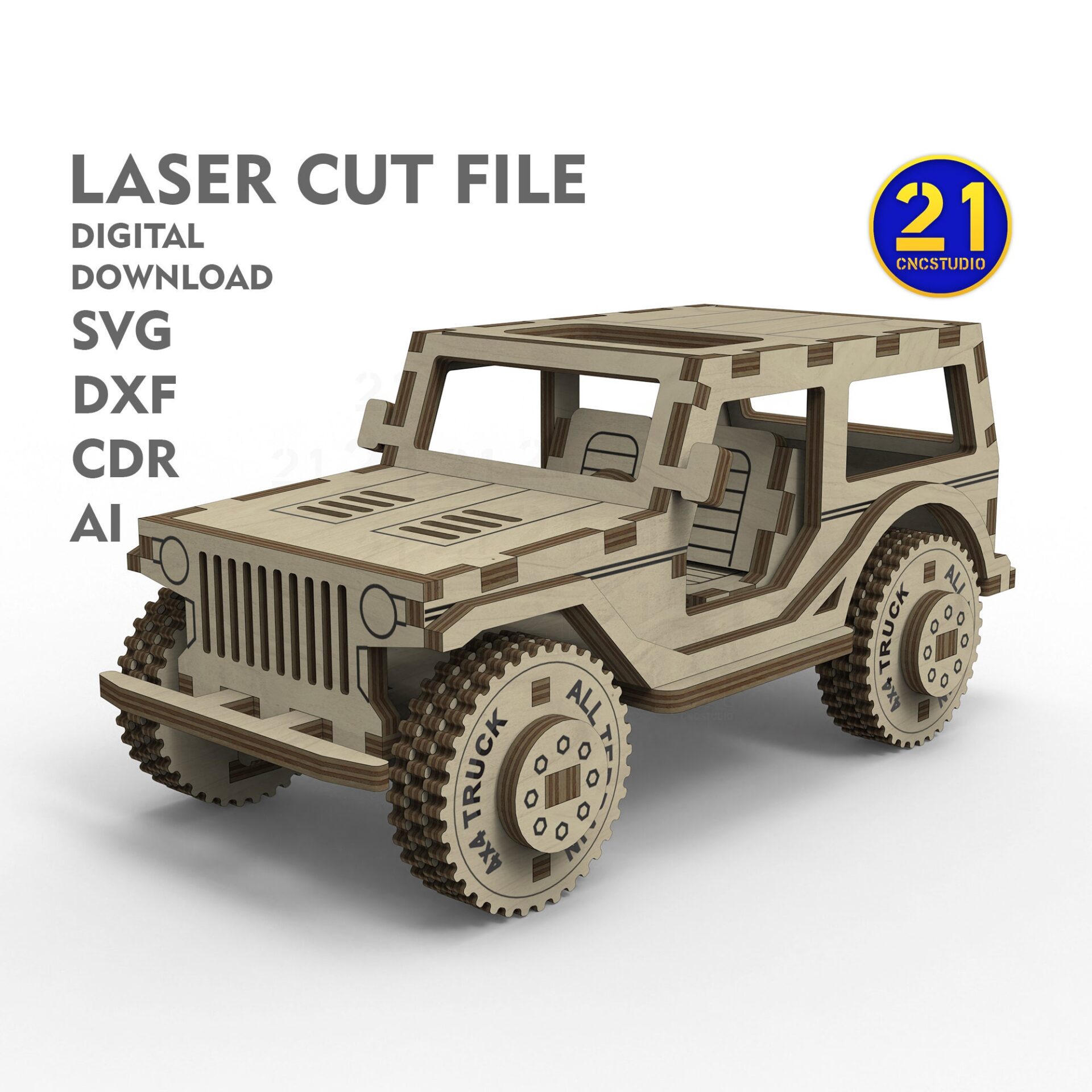

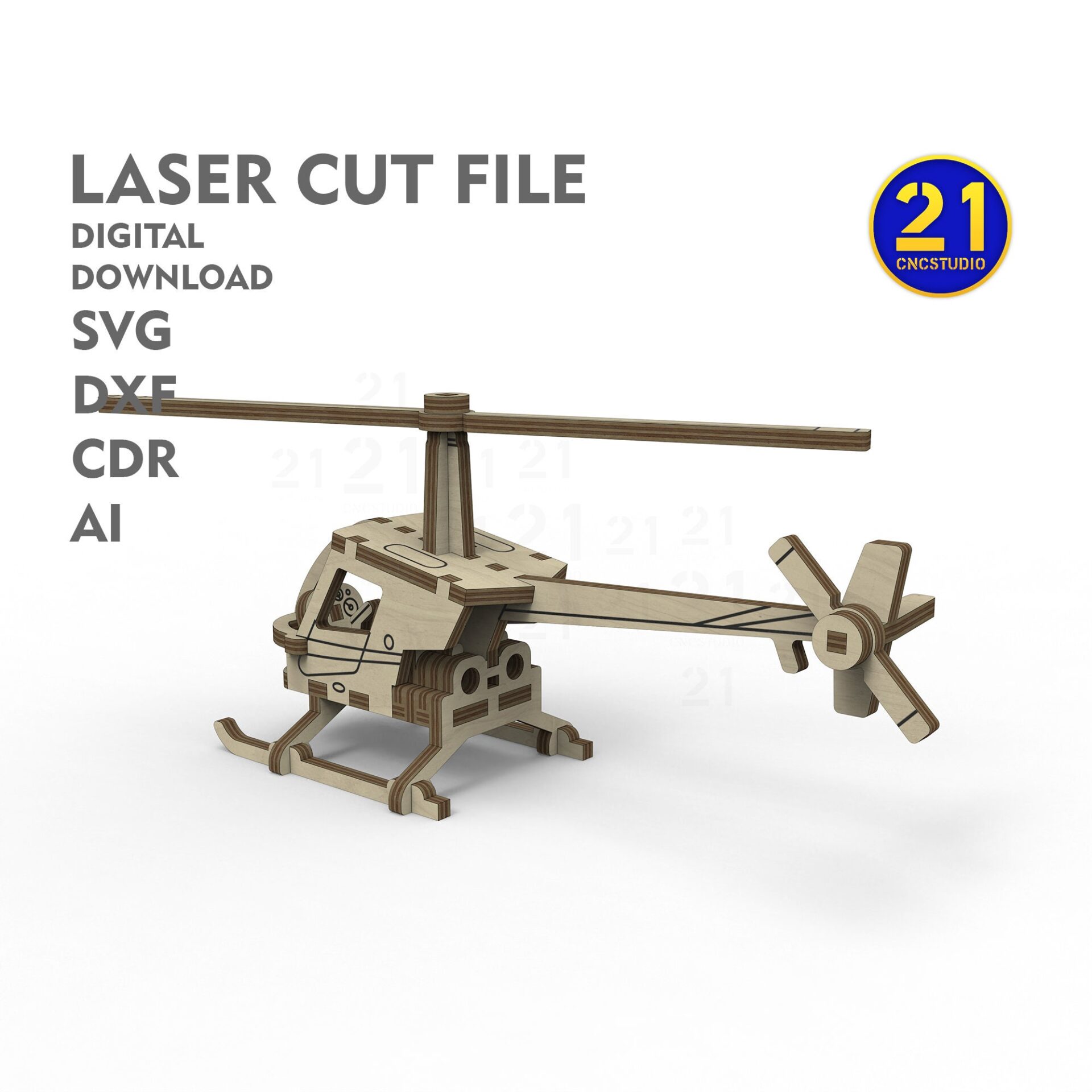

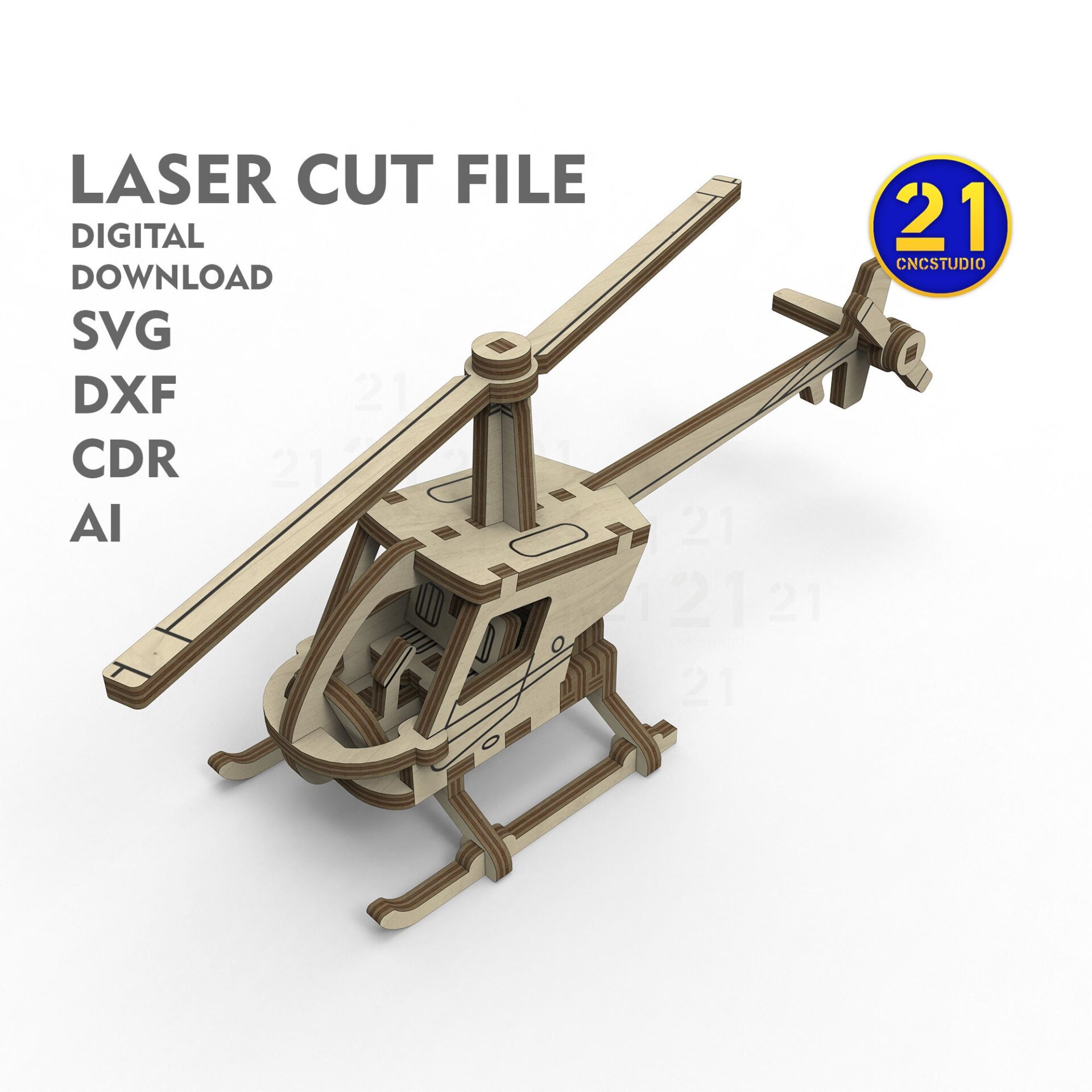

The trio pairs two aircraft with a boxy SUV. Open cabins, the biplane’s stacked wings and the helicopter’s long rotor give each model a distinct outline.

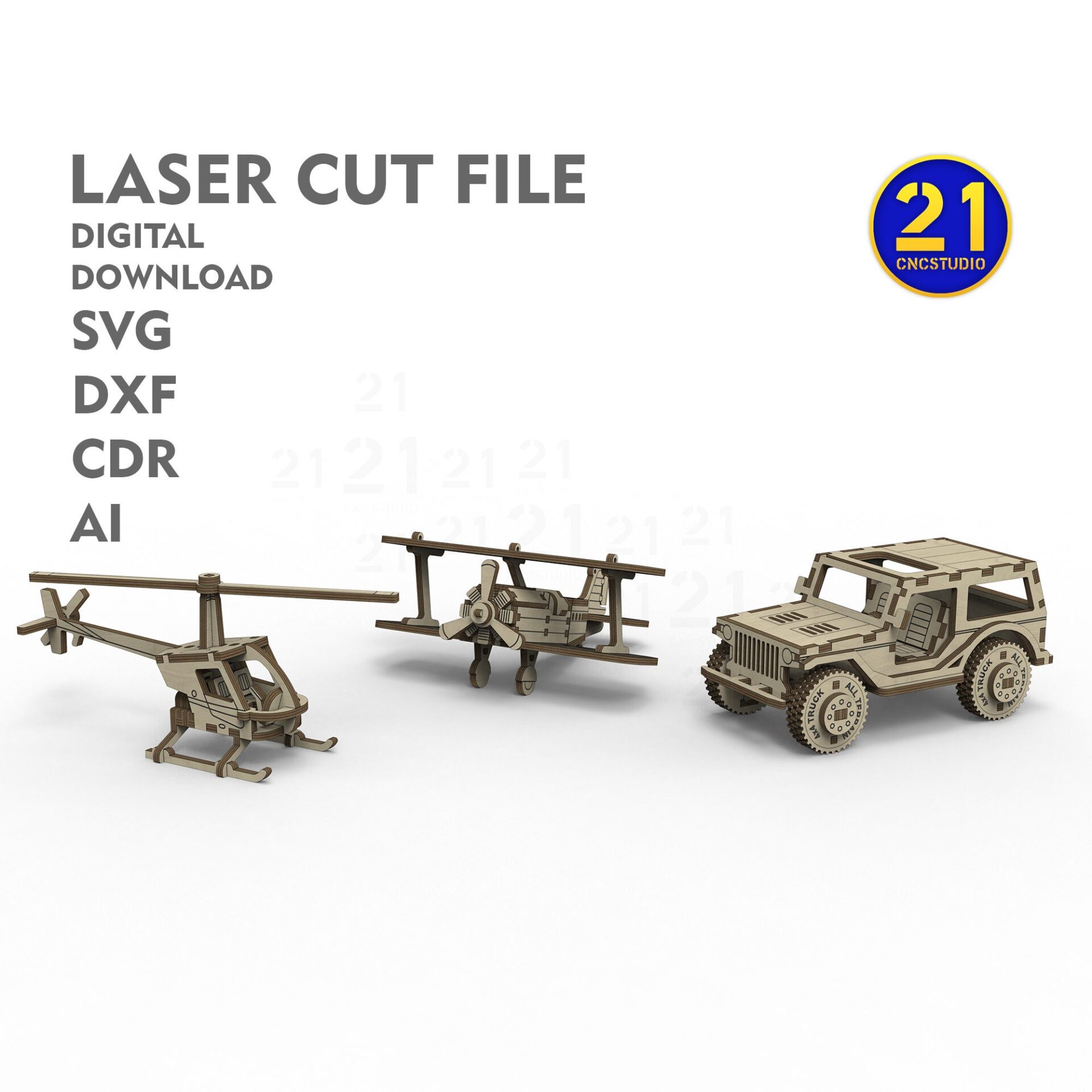

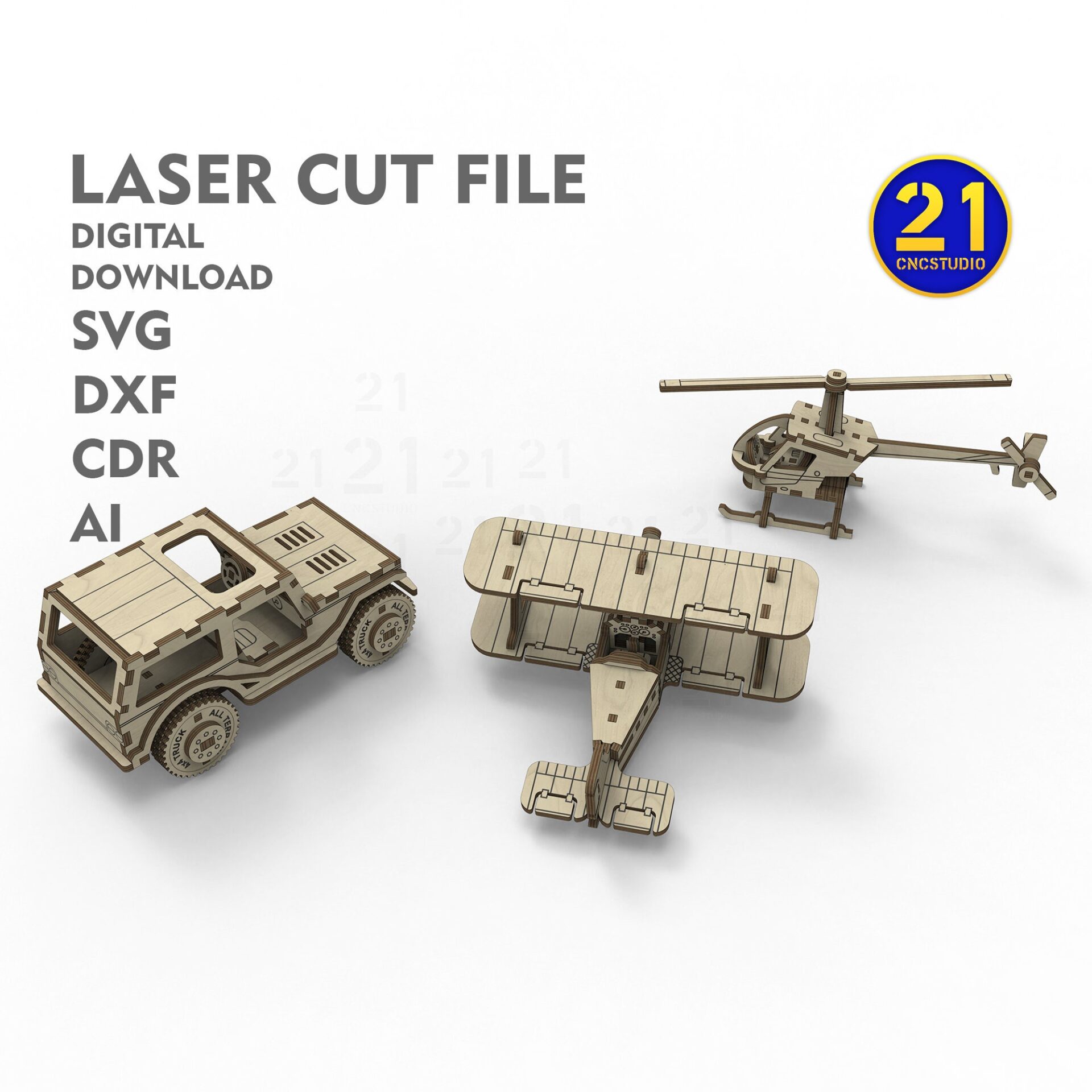

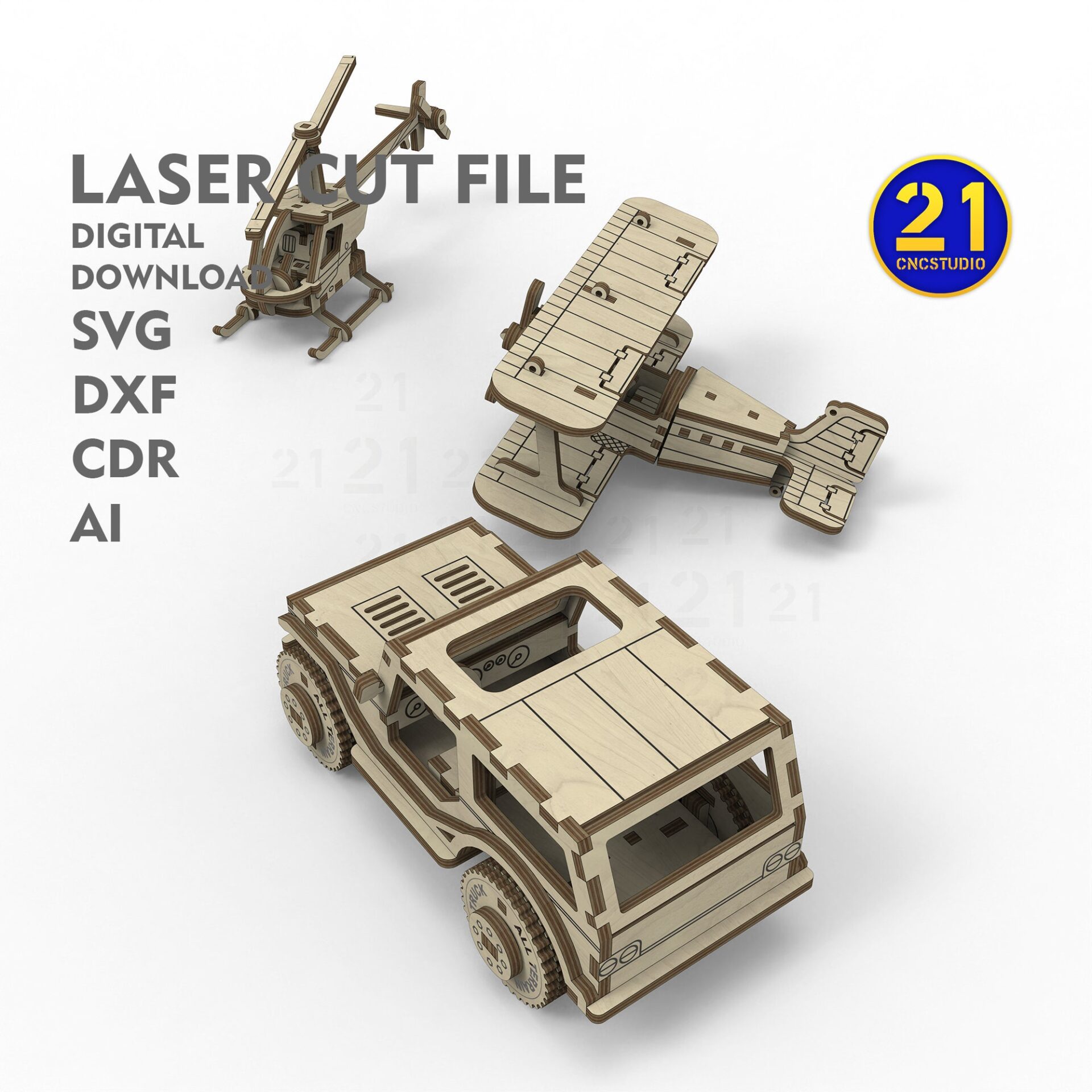

The designs have versions for 3 mm and 1/8-inch plywood. At 3 mm, the helicopter is 130 mm long, the biplane 120 mm long and the SUV 140 mm long. The gallery includes original views from several angles and a photograph of all three assembled models.
Three different builds
Make the helicopter, biplane and SUV from the same bundle.
A guide for each model
Three PDF guides cover the individual assembly sequences.
Compact finished models
The listed lengths range from 120 to 140 mm at the 3 mm material scale.
Views & details
A closer look.
Different views, details and a physical build. Select an image for a larger view.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Keep each model’s parts and guide together. Match the file version to your actual plywood thickness, test the slots and kerf, and check the rotor and wing details before cutting all three models.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Models
- Helicopter, biplane and SUV
- Design files
- SVG + DXF
- Assembly guides
- Three PDFs
- Material versions
- 3 mm / 1/8 inch plywood
- Helicopter at 3 mm
- 130 × 50 × 70 mm (L × W × H)
- Biplane at 3 mm
- 120 × 130 × 65 mm (L × W × H)
- SUV at 3 mm
- 140 × 64 × 71 mm (L × W × H)
Which vehicles are in the bundle?
The bundle contains a helicopter, a biplane and a small SUV. These are the compact designs shown together in the gallery, each with its own assembly guide.
What do I receive?
A digital design bundle with SVG and DXF files and three PDF assembly guides. Versions for 3 mm and 1/8-inch plywood are provided. Extract the ZIP archive before opening the files. No physical models, plywood or hardware are supplied.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
Contact 21CNCStudio to discuss permission before commercial use. Do not redistribute the digital files without the author’s permission.
03 /From the studio to your workbench
Build the three-model set.
View the Simple Vehicle Trio file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
