Istanbul Skyline / Laser-cut design
Istanbul. Eight layers.
SVG, DXF and CDR files for an eight-layer Istanbul skyline with minarets, a Bosphorus bridge and a crescent moon. Cut and stack the matching layers to build the framed cityscape.
Digital design · SVG + DXF + CDR
No physical model or materials are shipped.
01 /The design

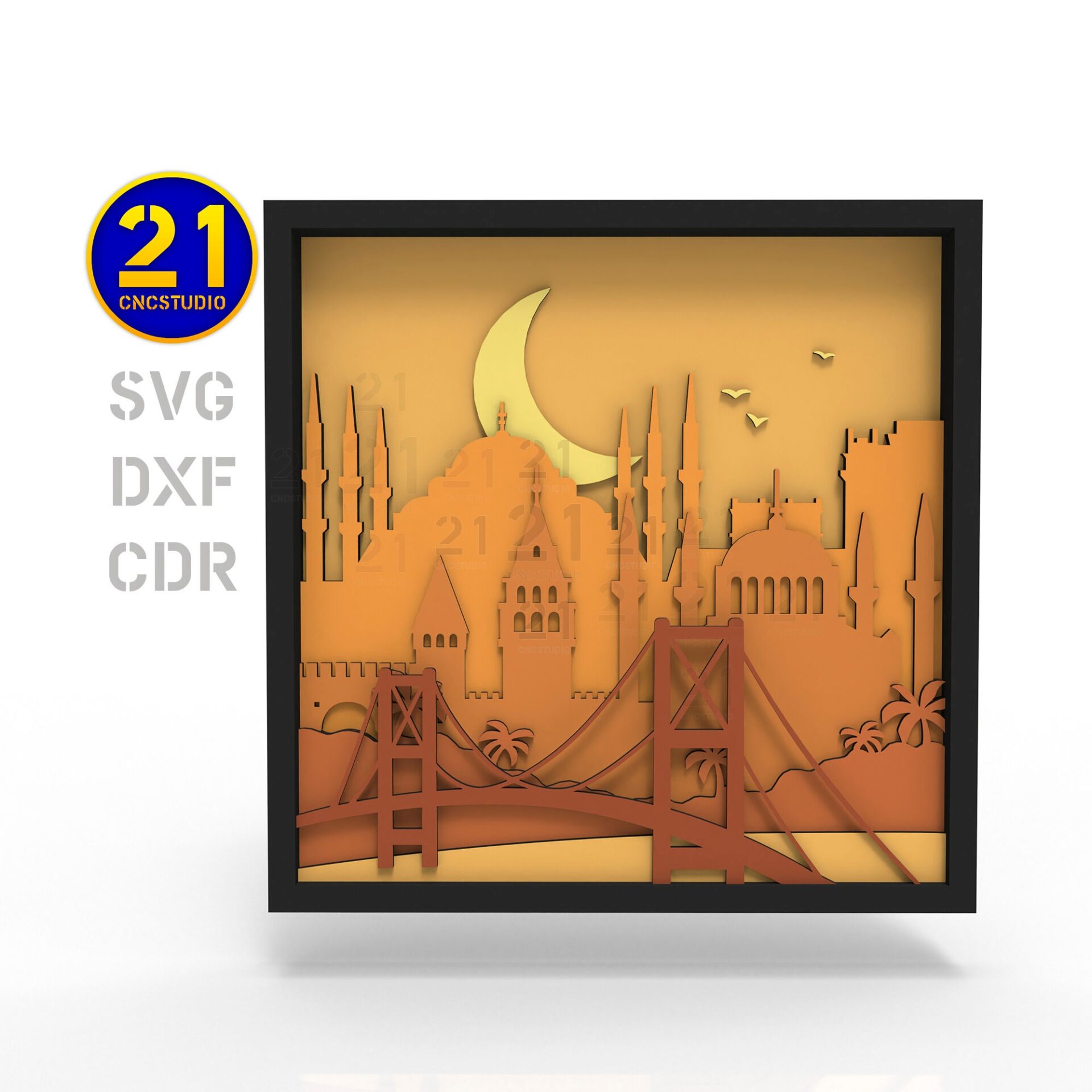

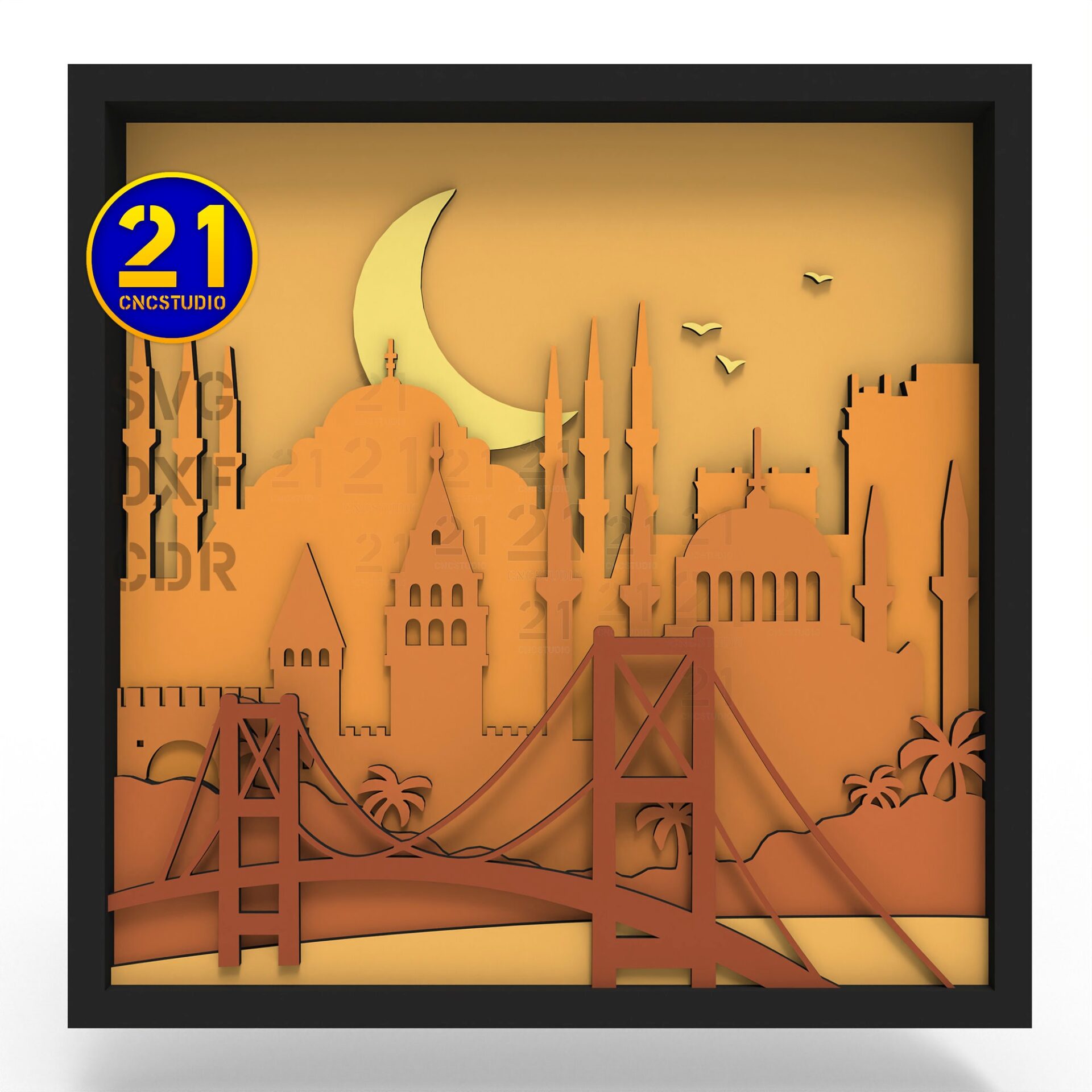

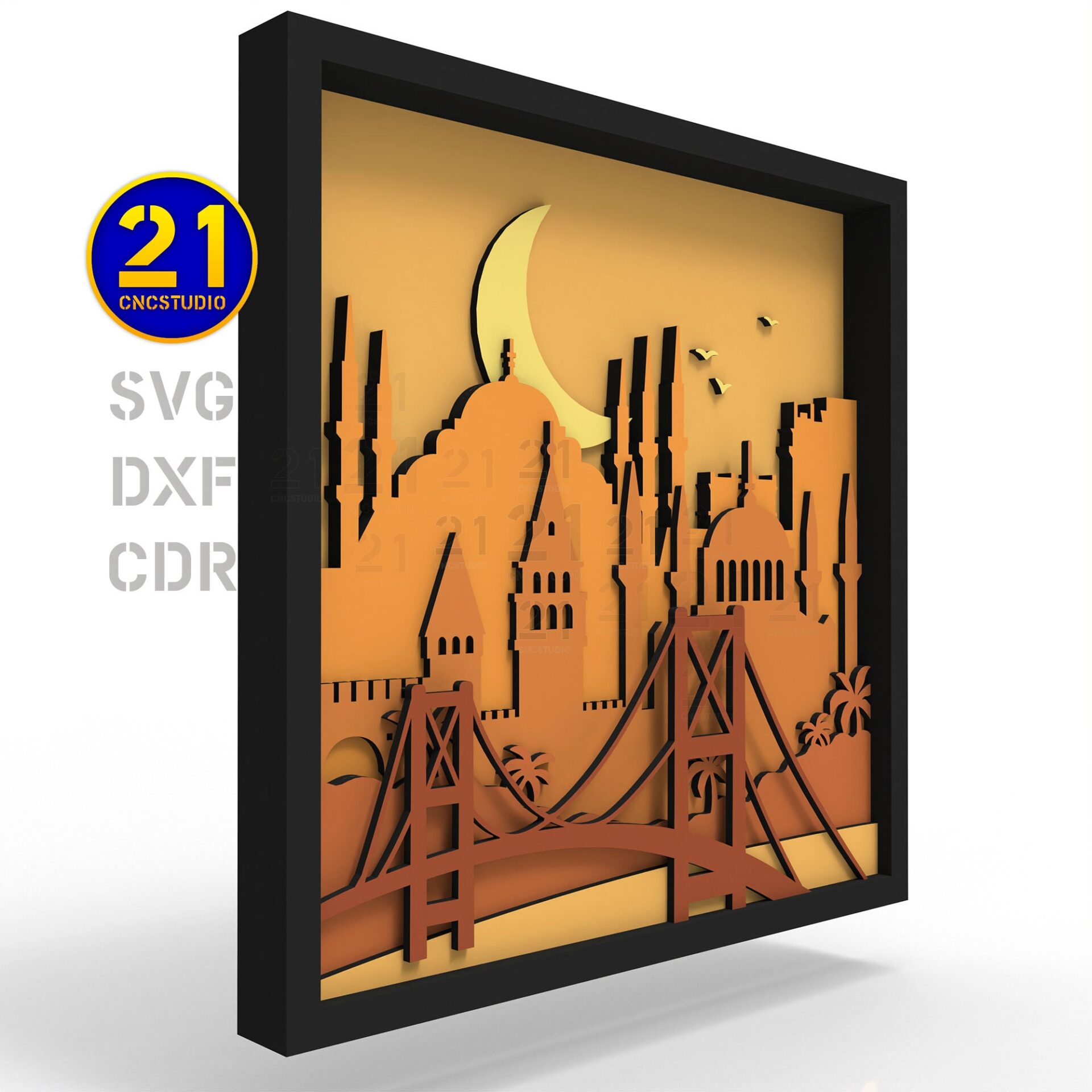

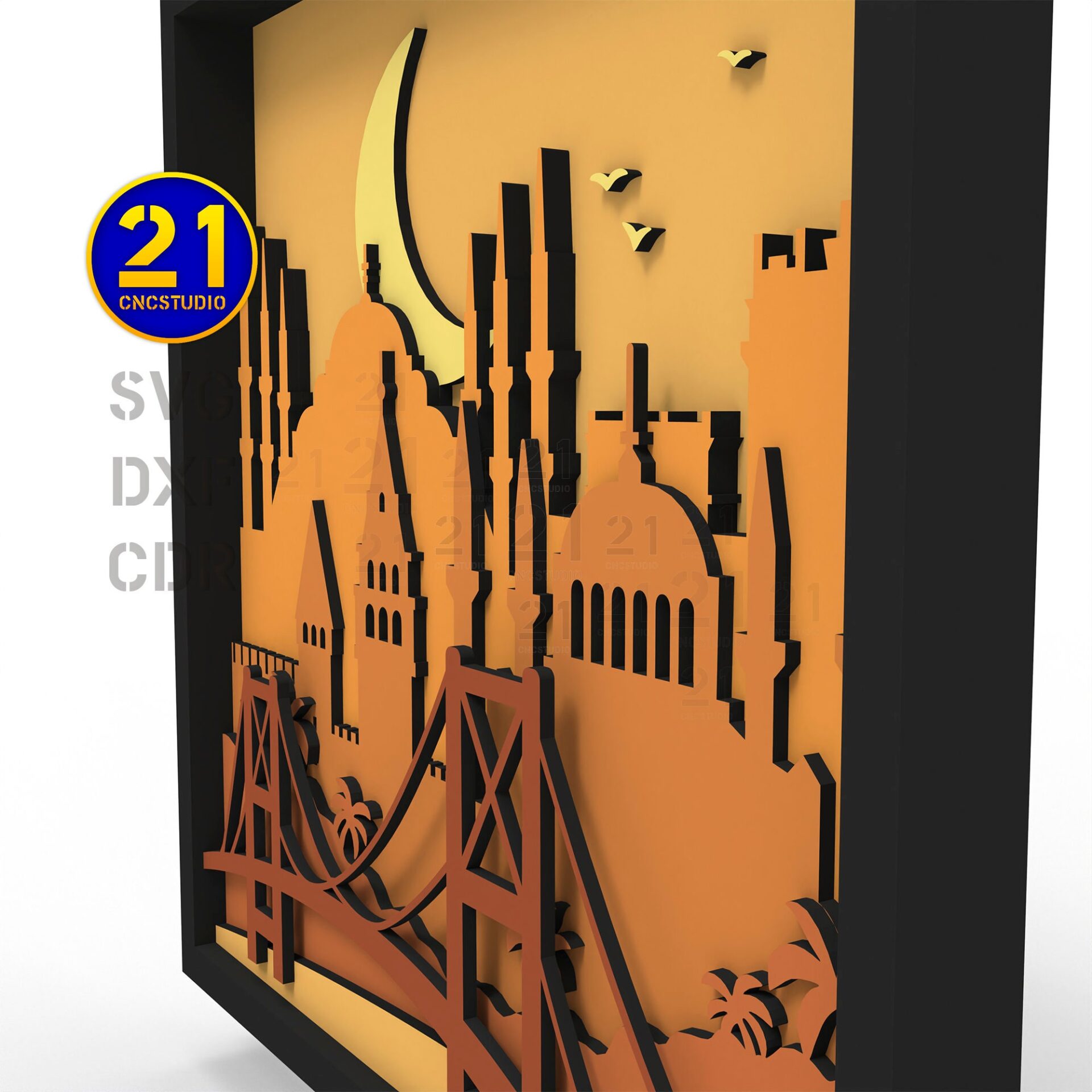

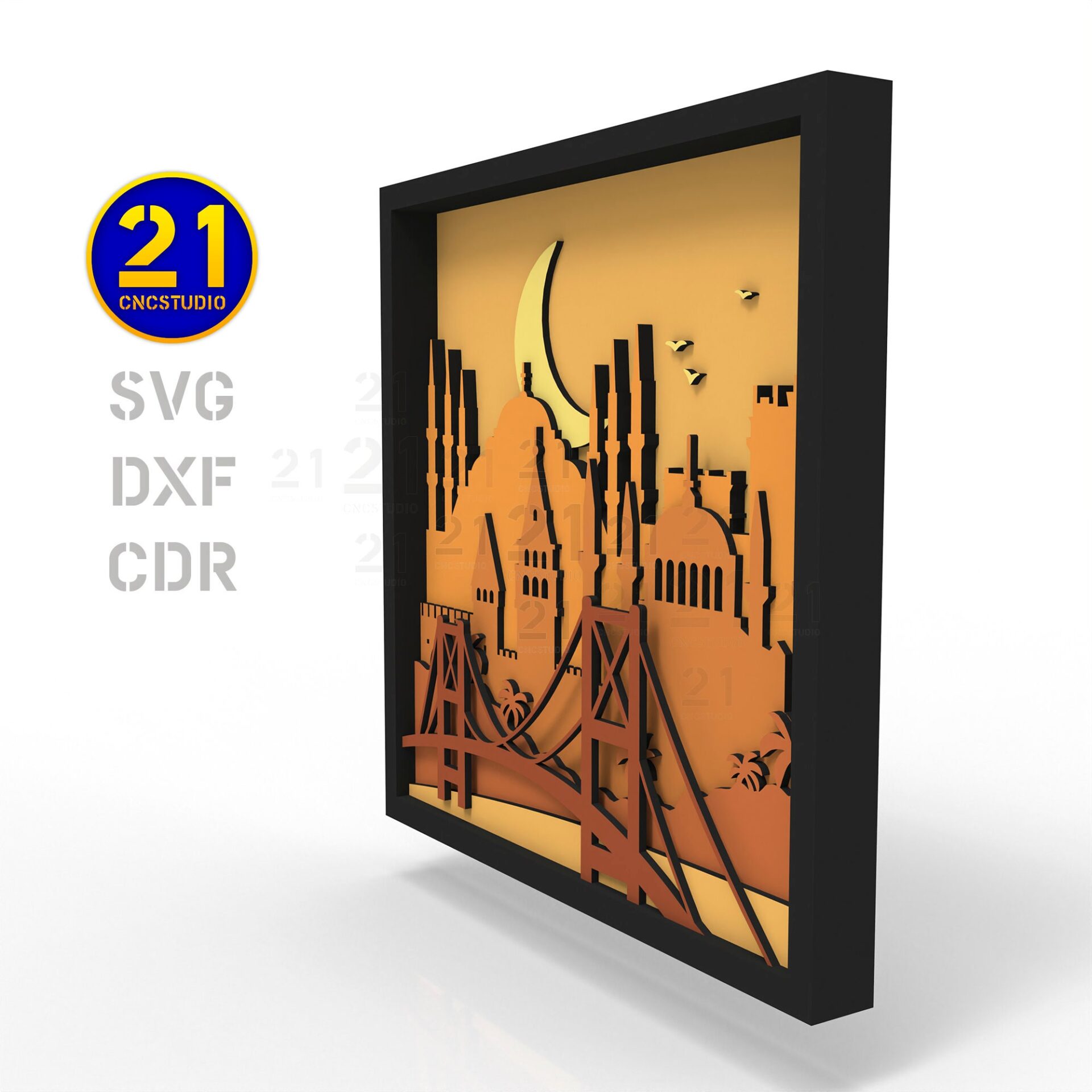

A bridge in front, minarets beyond.
The bridge crosses the foreground while tall minarets rise behind it. A crescent moon completes the upper part of the composition, with the layers separating the city shapes.
The design lists SVG, DXF and CDR files for 3 mm and 1/8-inch plywood or MDF. The recommended minimum size is 260 × 260 mm.

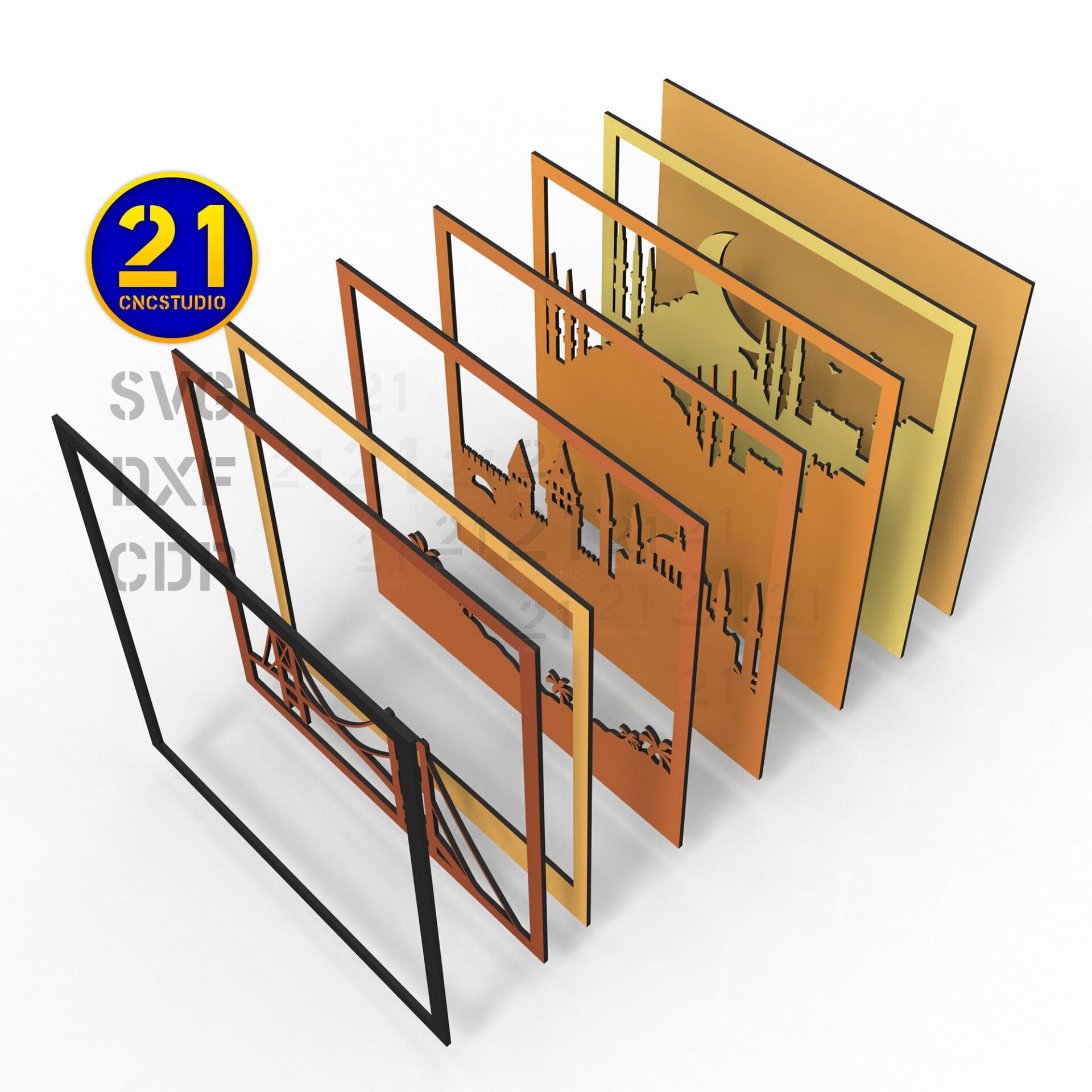

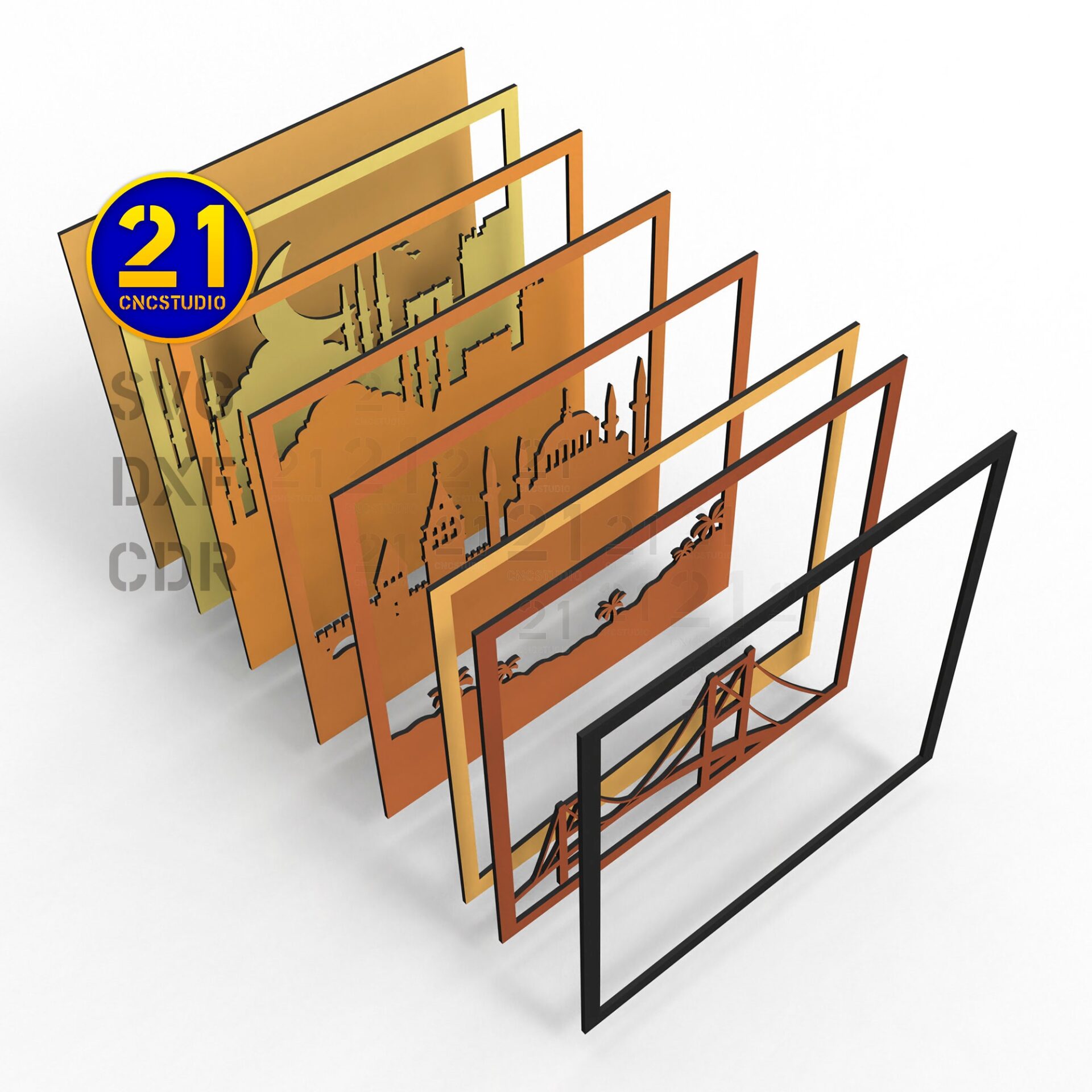

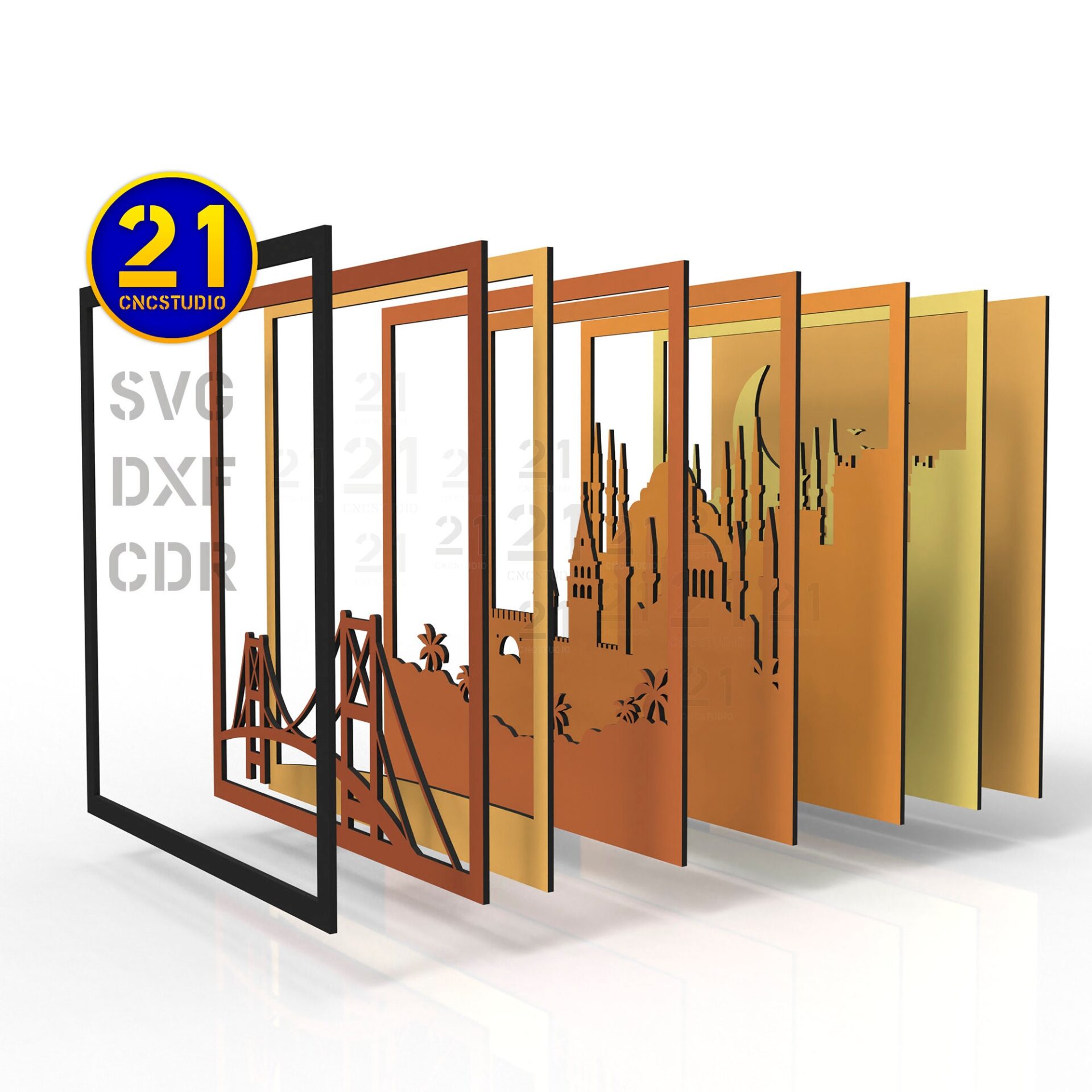

Eight-layer cityscape
Use a common scale for all eight layers.
Istanbul details
Minarets, a Bosphorus bridge and a crescent moon define the scene.
Material versions
Choose the supplied version that matches your actual material.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Check the thin minarets, bridge details and small connections at the intended size. Keep the layers aligned and test a detailed section before cutting the full artwork.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Eight-layer Istanbul cityscape
- Scene
- Minarets, a Bosphorus bridge and a crescent moon
- Vector formats
- SVG, DXF, CDR
- Recommended minimum size
- 260 × 260 mm
- Material versions
- 3 mm / 1/8 inch plywood or MDF
Is this the Istanbul street-map design?
This is the eight-layer landmark cityscape with minarets, a bridge and a crescent moon. Istanbul Street Map is a separate four-layer design with round, square and hexagonal frames.
What do I receive?
SVG, DXF and CDR design files with versions for 3 mm and 1/8-inch material. An assembly guide is not confirmed. No physical cityscape or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
