Istanbul Street Map / Laser-cut design
Istanbul. Four map layers.
SVG laser-cut files for a four-layer Istanbul street map. Choose a round, square or hexagonal outline around the road and water pattern.
Digital design · SVG
No physical model or materials are shipped.
01 /The design
One city map, three frame shapes.

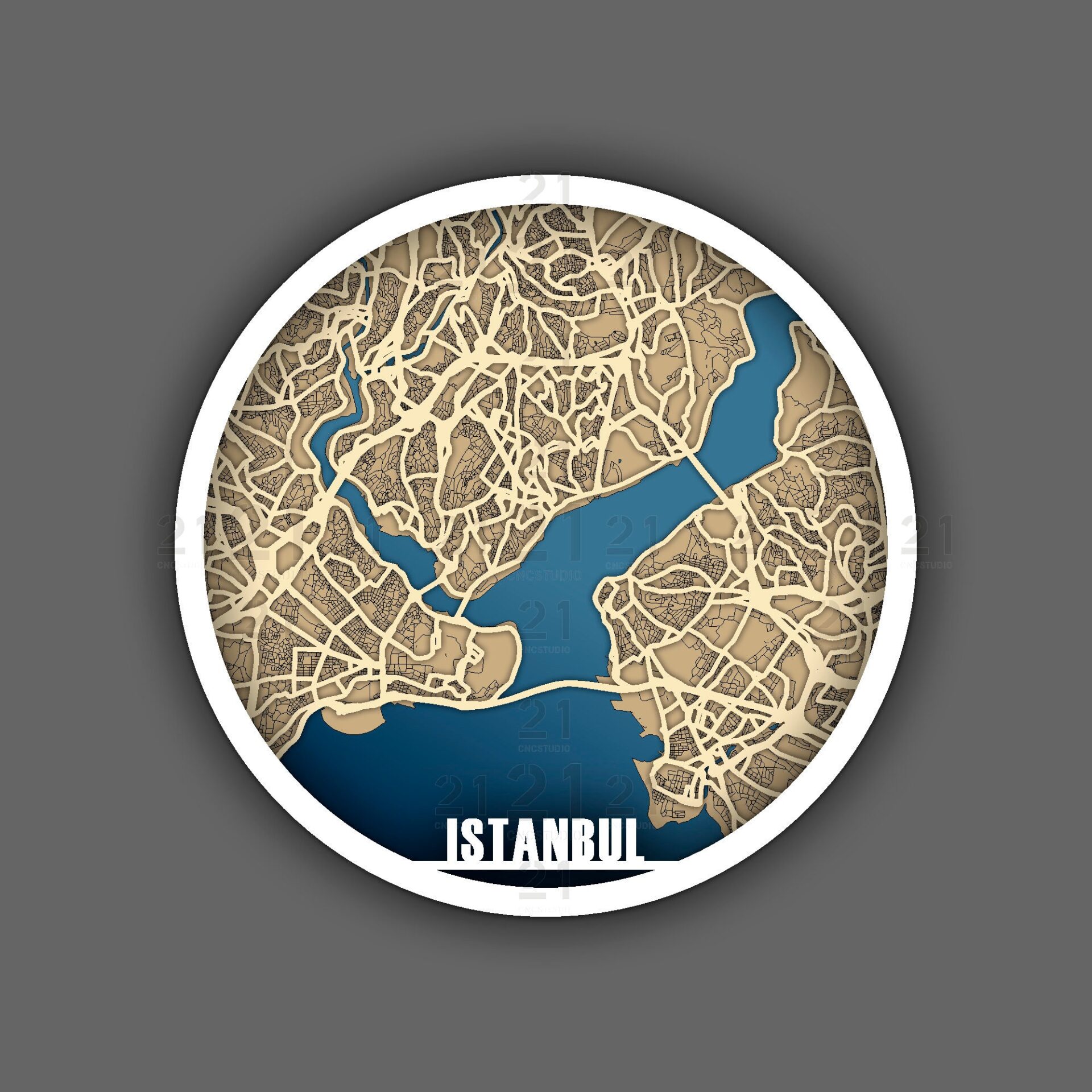

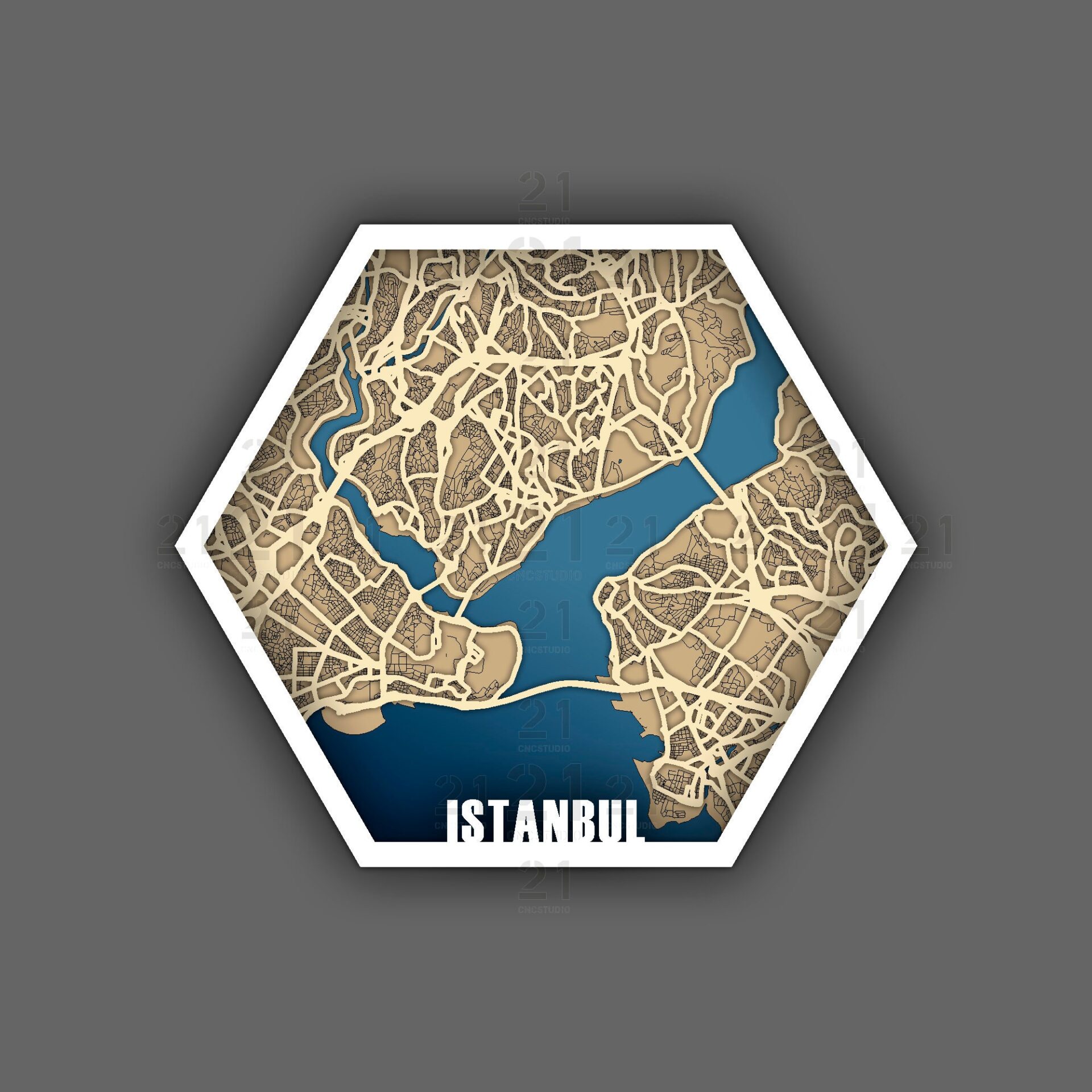

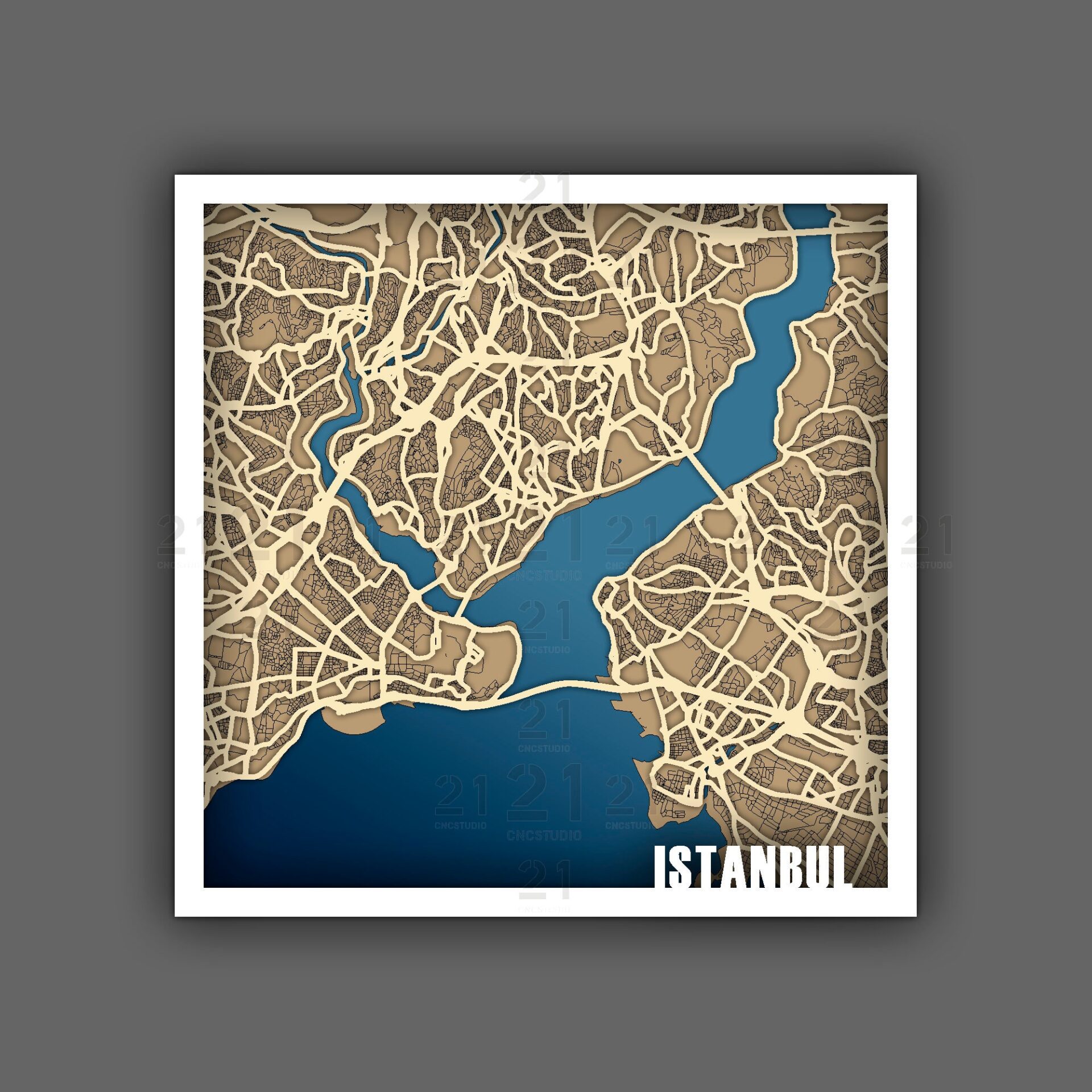

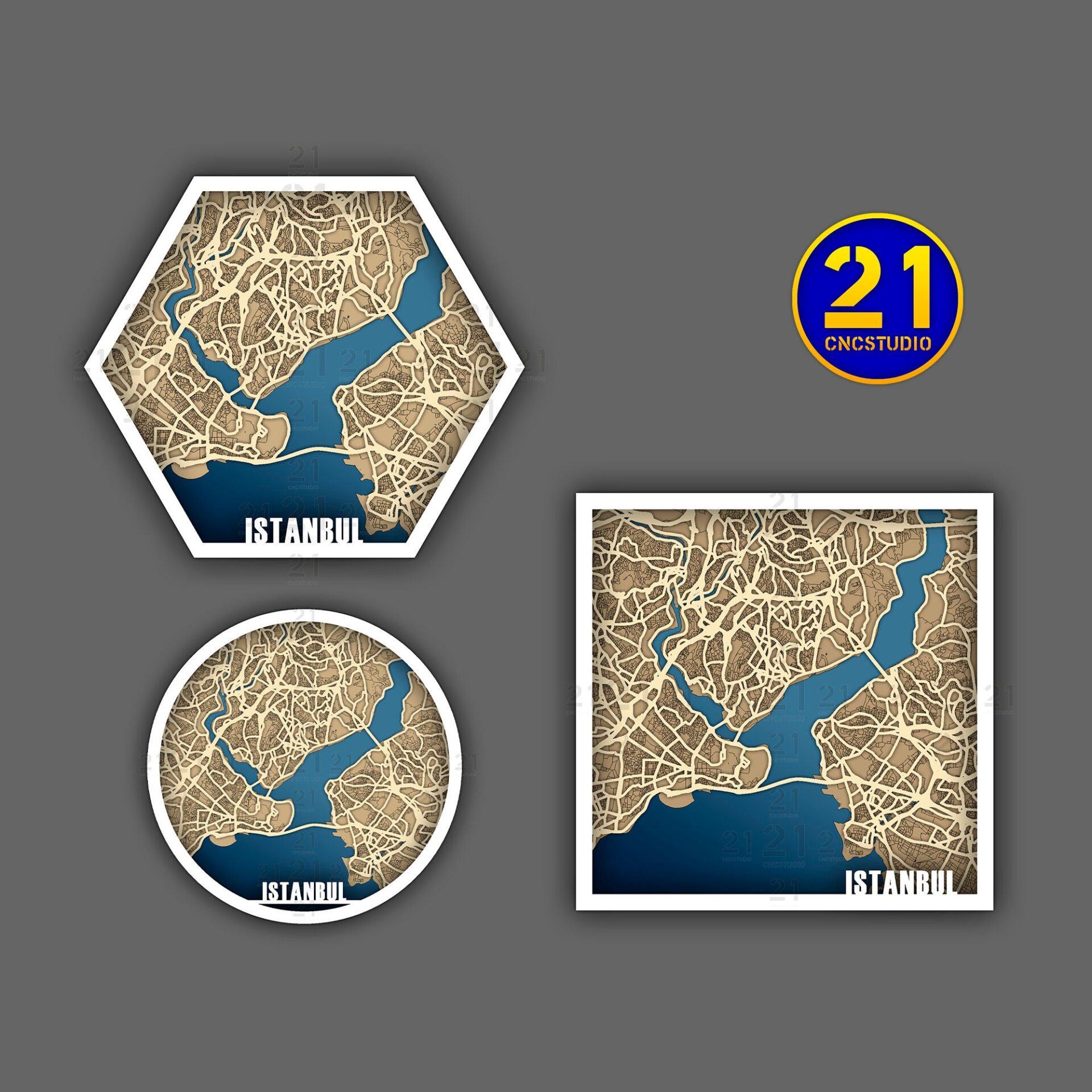

Fine road detail sits against the water shapes inside each outline. The preview shows the round, square and hexagonal versions together so you can compare their proportions.
The current package lists SVG design files. This is the street-map design; the separate Istanbul Skyline artwork uses buildings and a bridge as a cityscape composition.
Four map layers
Keep the matching layers together when preparing and cutting the design.
Three frame options
Choose a round, square or hexagonal outline.
SVG design files
Open the supplied SVG in compatible preparation software.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.
Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Check the current file dimensions and recommended minimum size before choosing your sheets. Fine road lines and connections need a test cut; scale all four layers equally and inspect the result before making the full map.
Before you start.
- Design
- Four-layer Istanbul street map
- Design files
- SVG
- Frame options
- Round, square or hexagonal
Is this the same design as the Istanbul Skyline?
No. This design shows a street map with road and water detail in three frame shapes. Istanbul Skyline is a separate layered cityscape design.
What do I receive?
SVG design files for the four-layer street map with round, square and hexagonal frame options. An assembly guide and DXF files are not confirmed in the current package. No physical map or material is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
Contact 21CNCStudio to discuss permission before commercial use. Do not redistribute the digital files without the author’s permission.
03 /From the studio to your workbench
Choose your Istanbul map shape.
View the Istanbul Street Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
