SUV H1 6×6 Pickup / Laser-cut design
Six wheels. An open pickup.
SVG and DXF files for a six-wheel SUV H1 pickup at 1:24 scale. Build the open-bed model with movable wheels, opening doors and the included PDF assembly guide.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
An open bed behind the cabin.

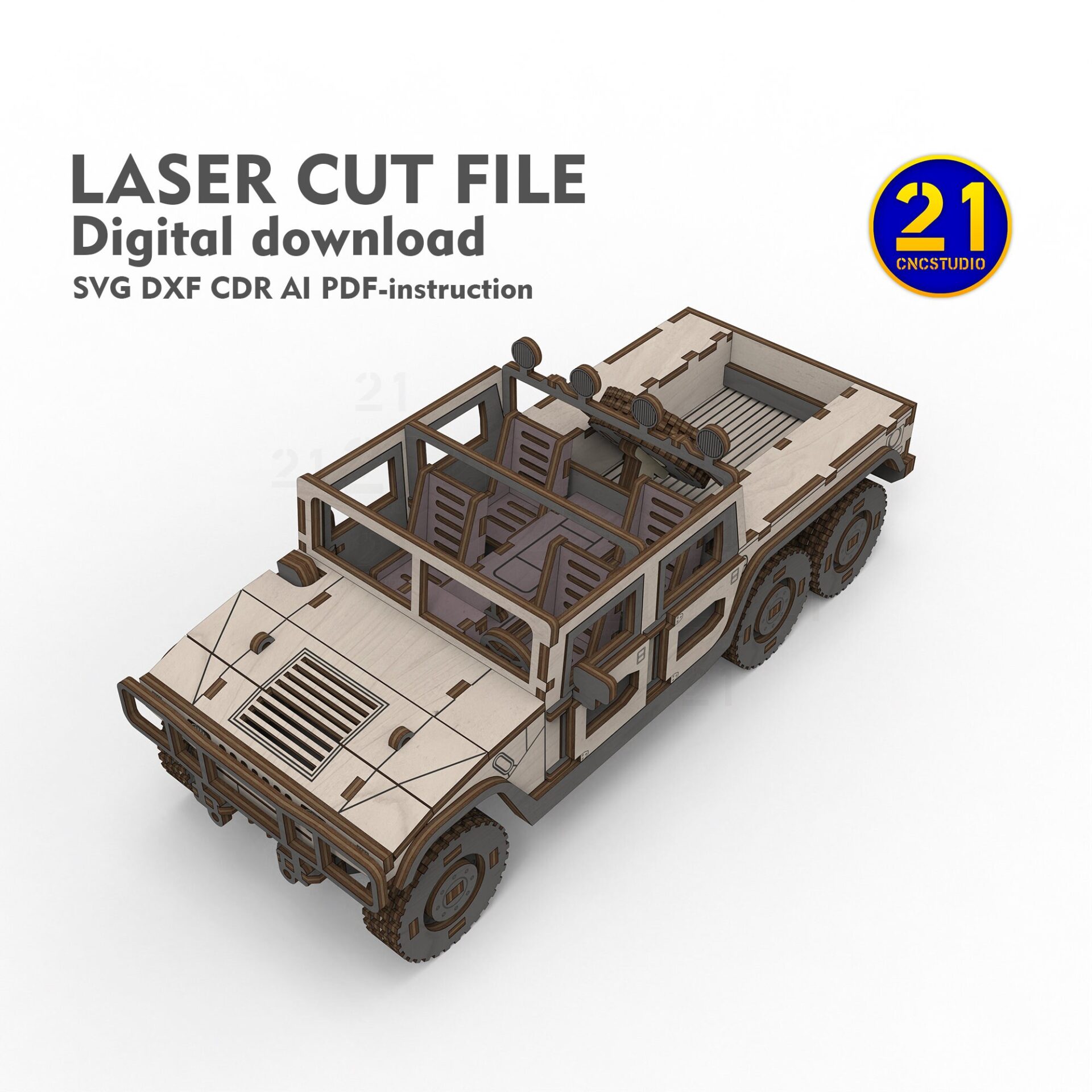

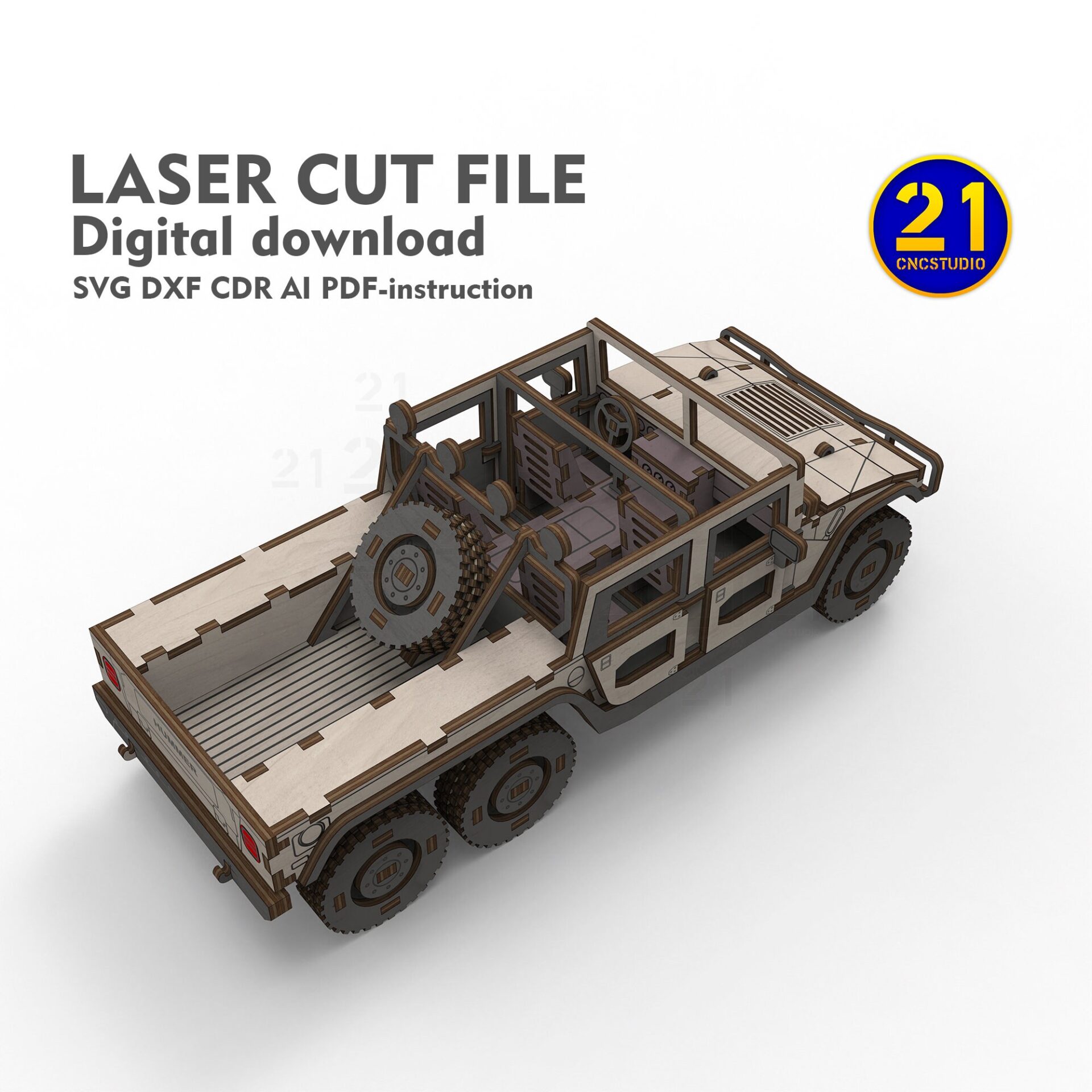

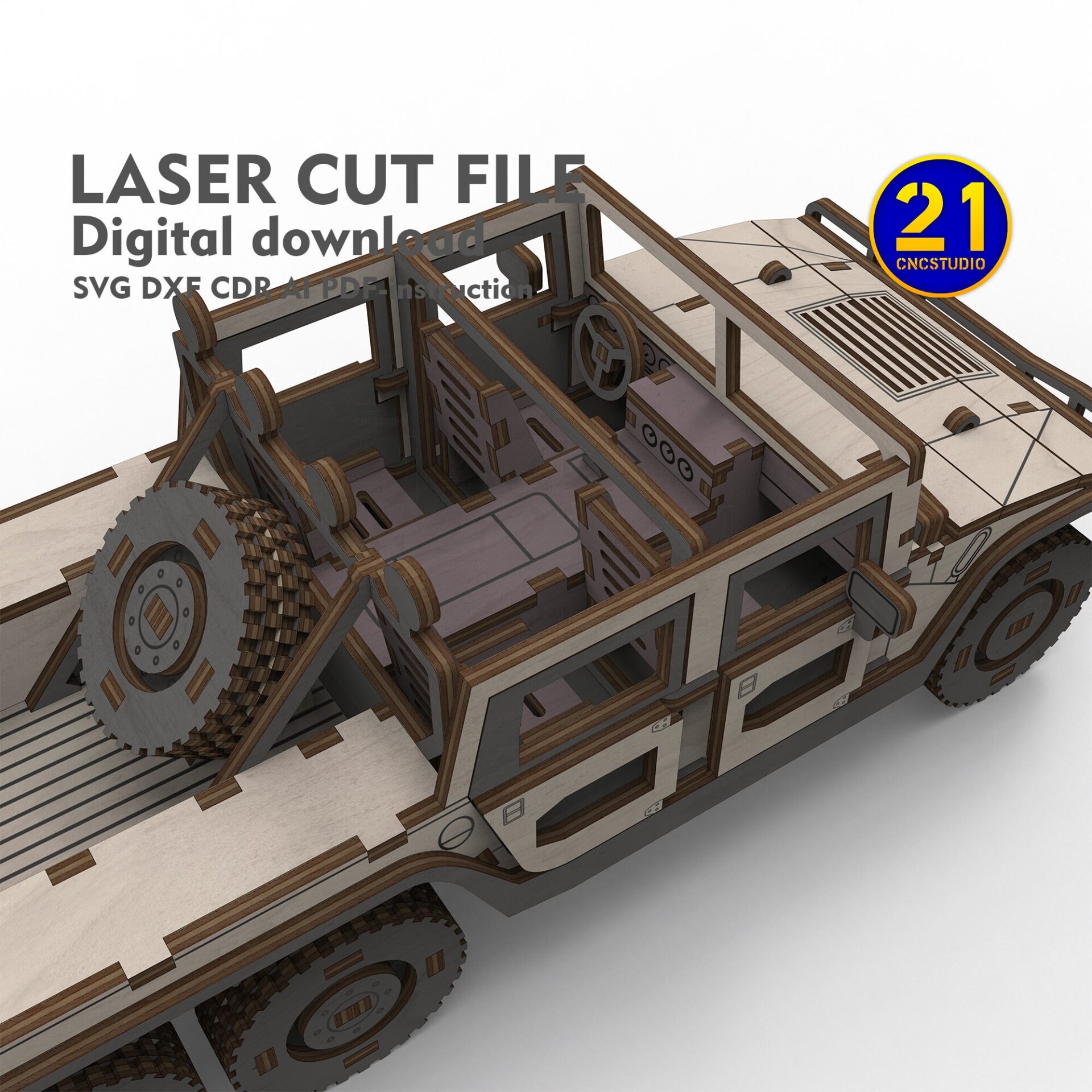

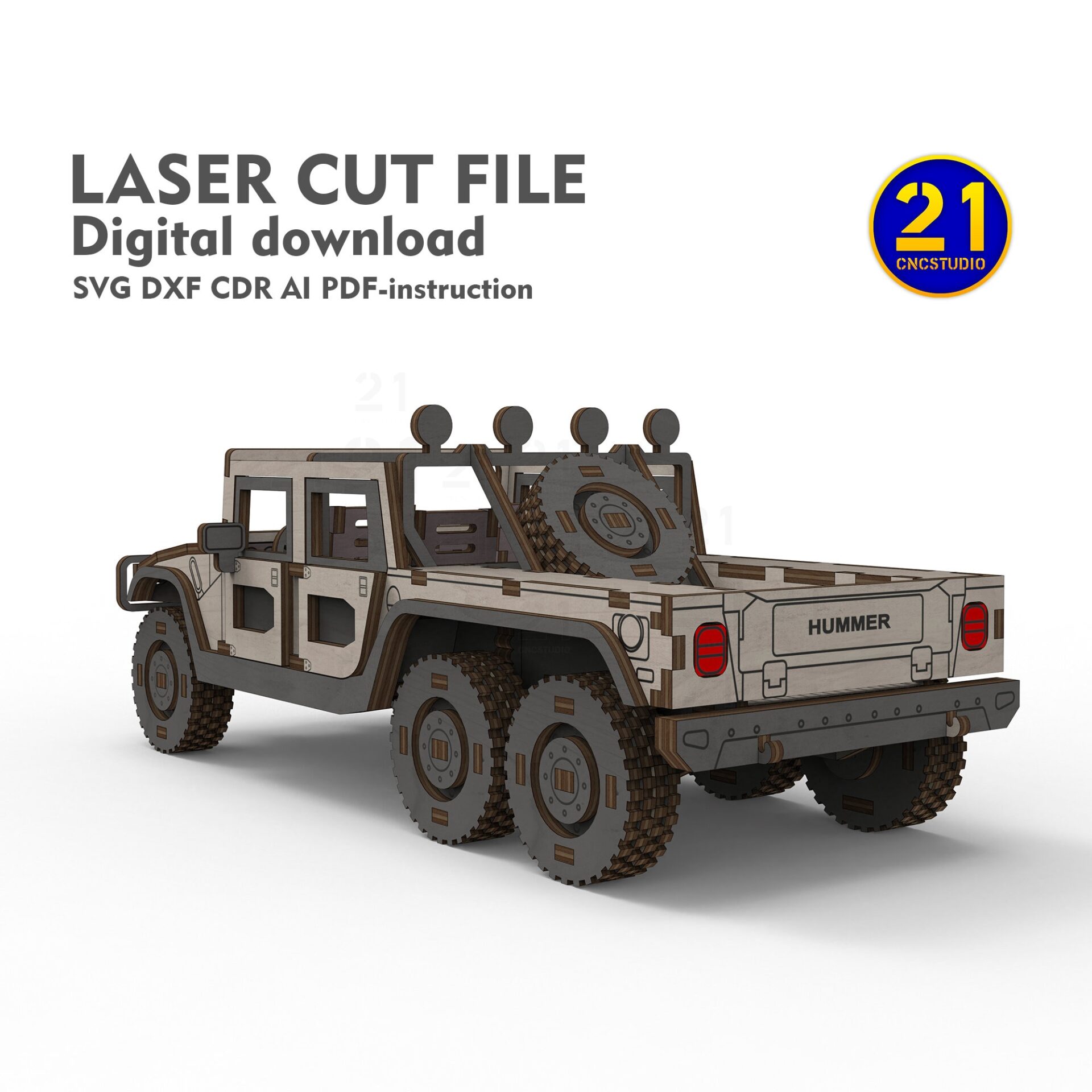

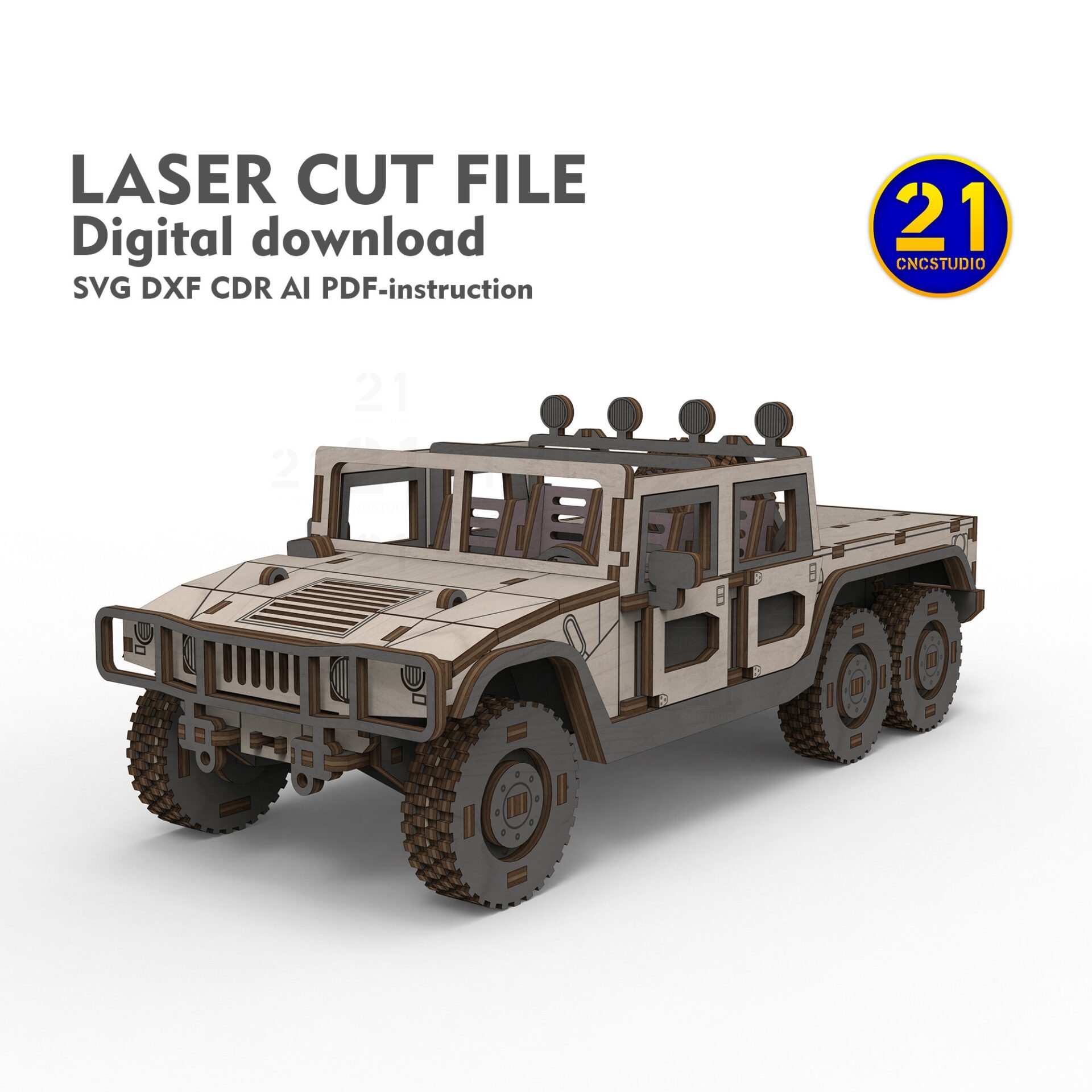

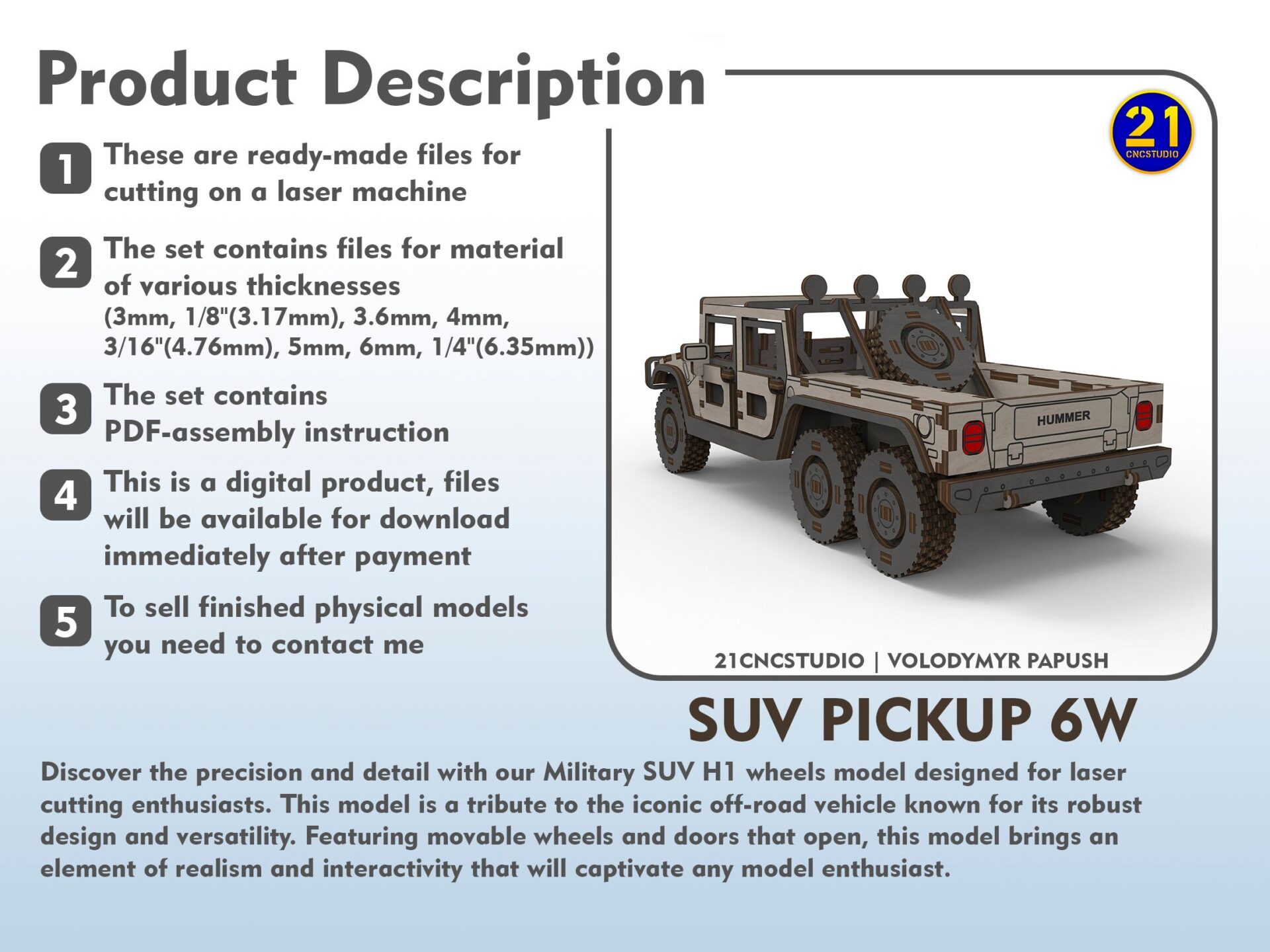

The six-wheel pickup has a long rear bed and a spare wheel behind the seats. Original renders show the cabin from above and the view over the tailgate; the customer photograph shows a completed natural-wood build.

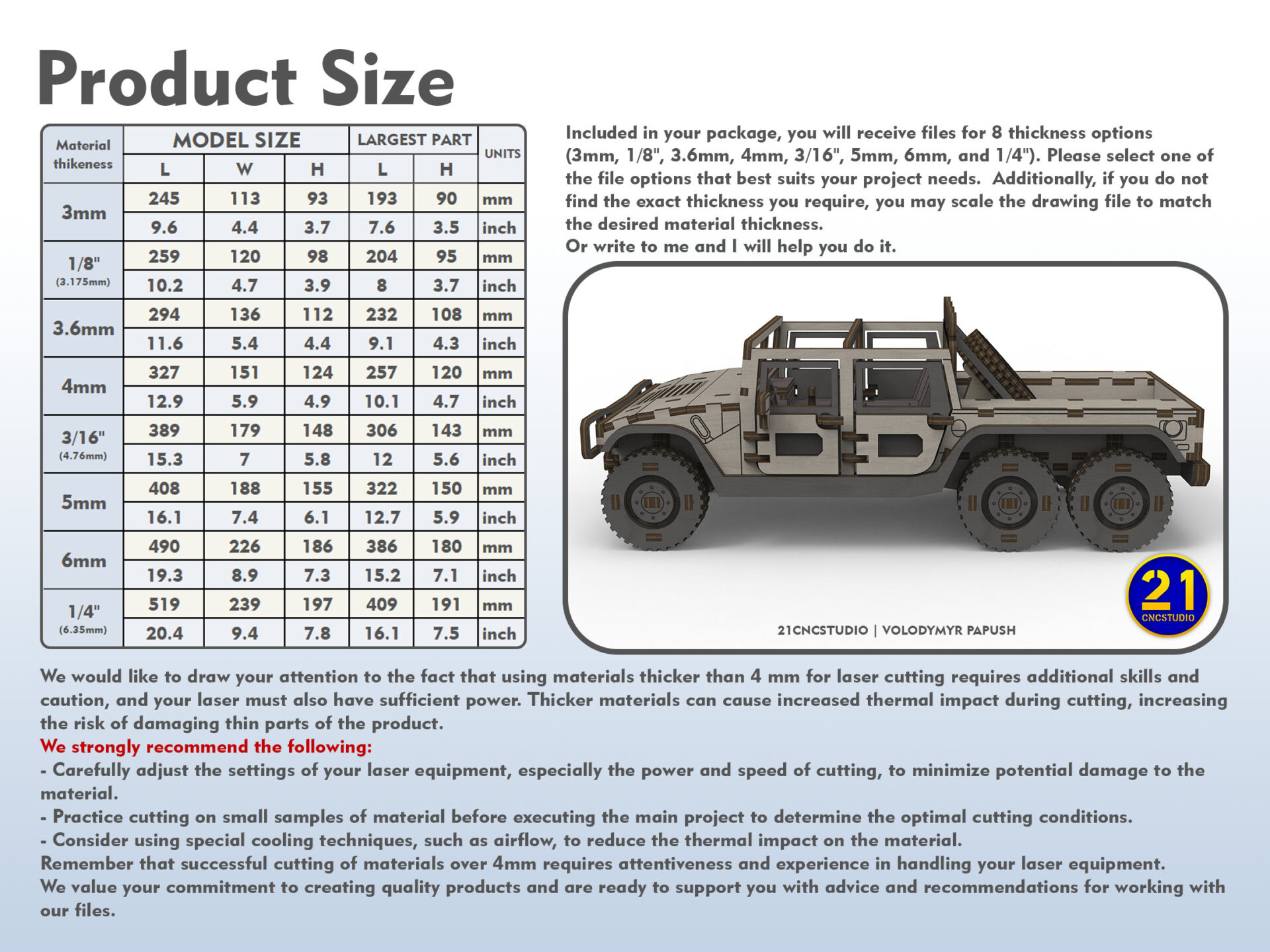

With 3 mm plywood, the finished model measures 245 × 113 × 93 mm in length × width × height. Versions for 3 mm and 1/8-inch plywood are supplied. This is the pickup on its own.
1:24 pickup
The open rear bed distinguishes it from the enclosed wagon.
Movable features
The wheels move and the doors open after assembly.
PDF assembly guide
Follow the instructions with the matching SVG or DXF design.

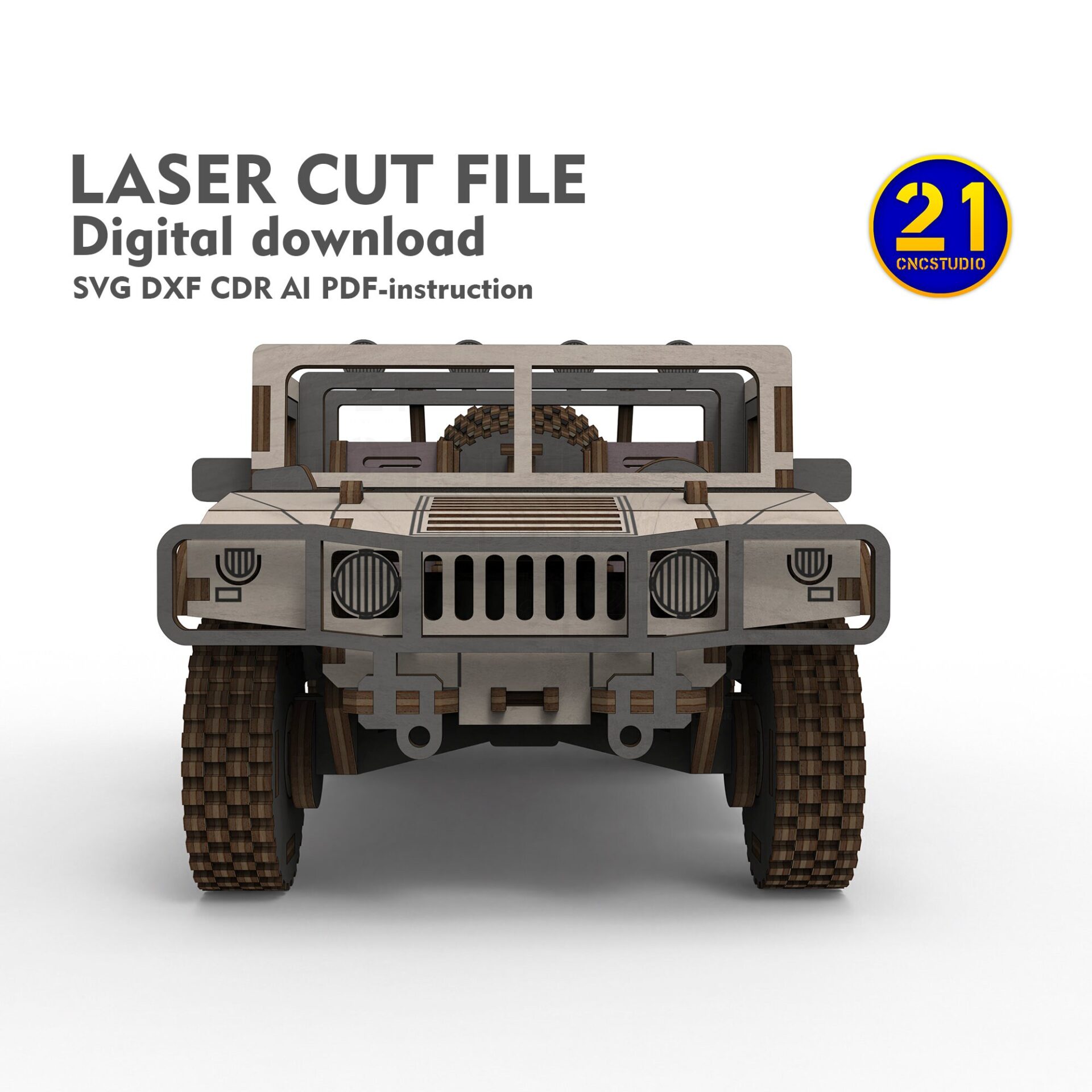

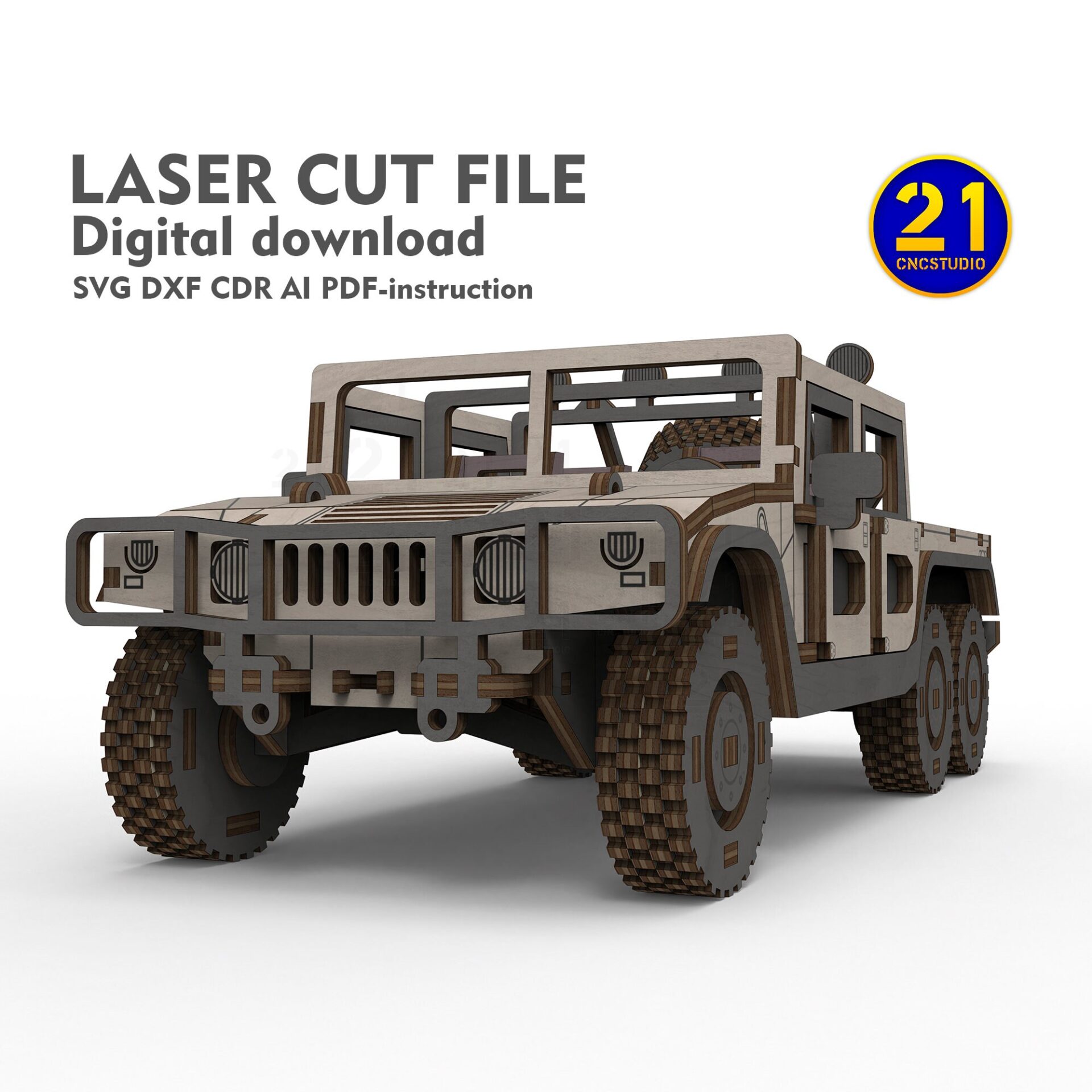

Views & details
A closer look.
Different views, details and a physical build. Select an image for a larger view.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.

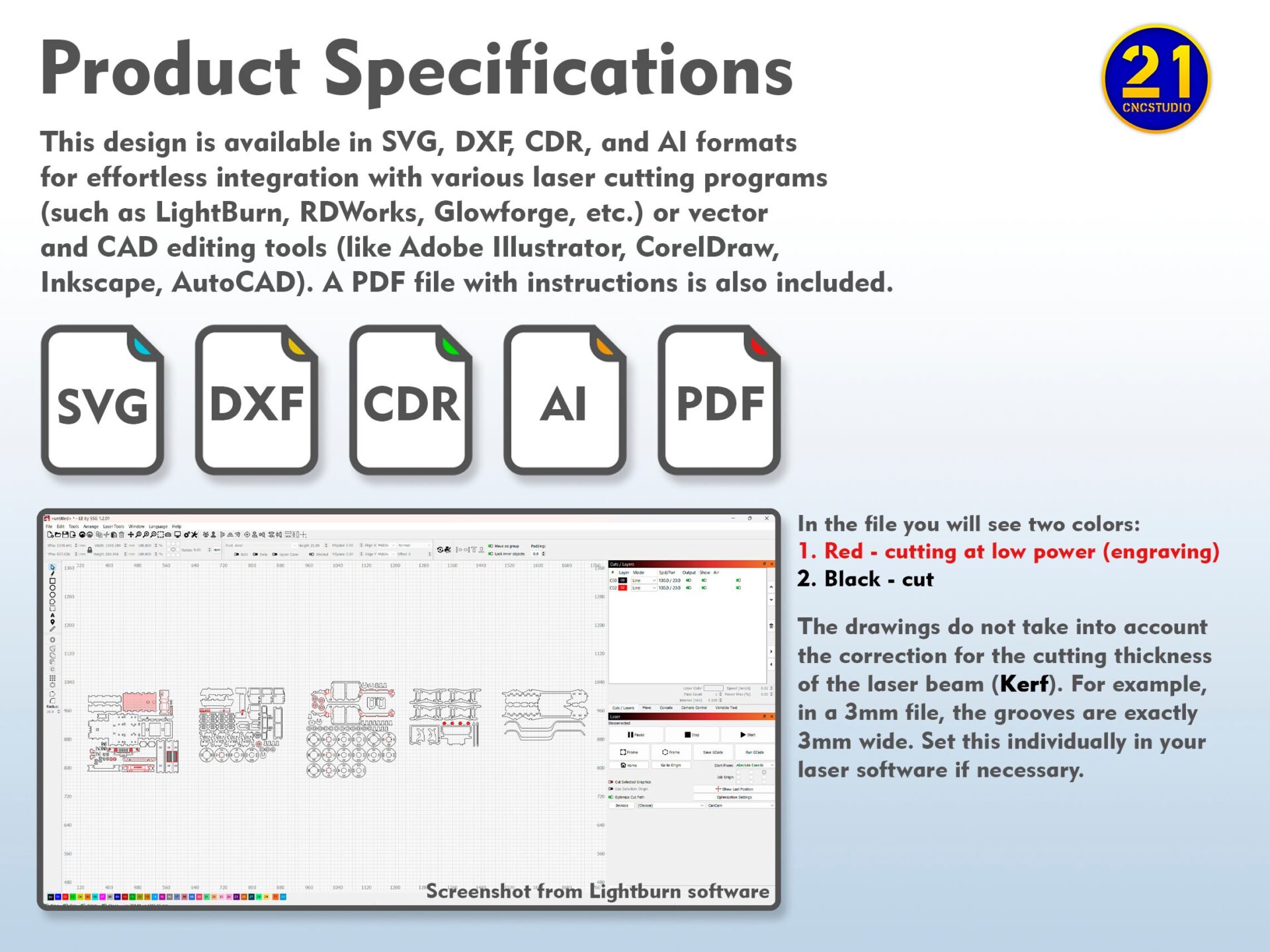

Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Measure the plywood and choose the matching file version. Test fitted connections and kerf, leave clearance for the moving doors and wheels, and follow the PDF through assembly.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Scale
- 1:24
- Design files
- SVG + DXF
- Assembly guide
- PDF included
- Material versions
- 3 mm / 1/8 inch plywood
- Finished size at 3 mm
- 245 × 113 × 93 mm (L × W × H)
- Features
- Movable wheels and opening doors
Does this include the six-wheel wagon too?
This listing contains the pickup only. The separate SUV H1 6×6 Bundle contains both pickup and wagon, while the wagon also has its own page.
What do I receive?
SVG and DXF cutting designs for the six-wheel pickup, with PDF assembly instructions and versions for 3 mm and 1/8-inch plywood. No physical model, plywood or hardware is supplied.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
