California Layered Map / Laser-cut design
California. A layered scene.
SVG, DXF, AI, CDR and EPS files for layered California state artwork. Build the silhouette with Hollywood lettering, palm trees, a red suspension bridge and water below.
Digital design · SVG + DXF + AI + CDR + EPS
No physical model or materials are shipped.
01 /The design
Landmark shapes within the California outline.

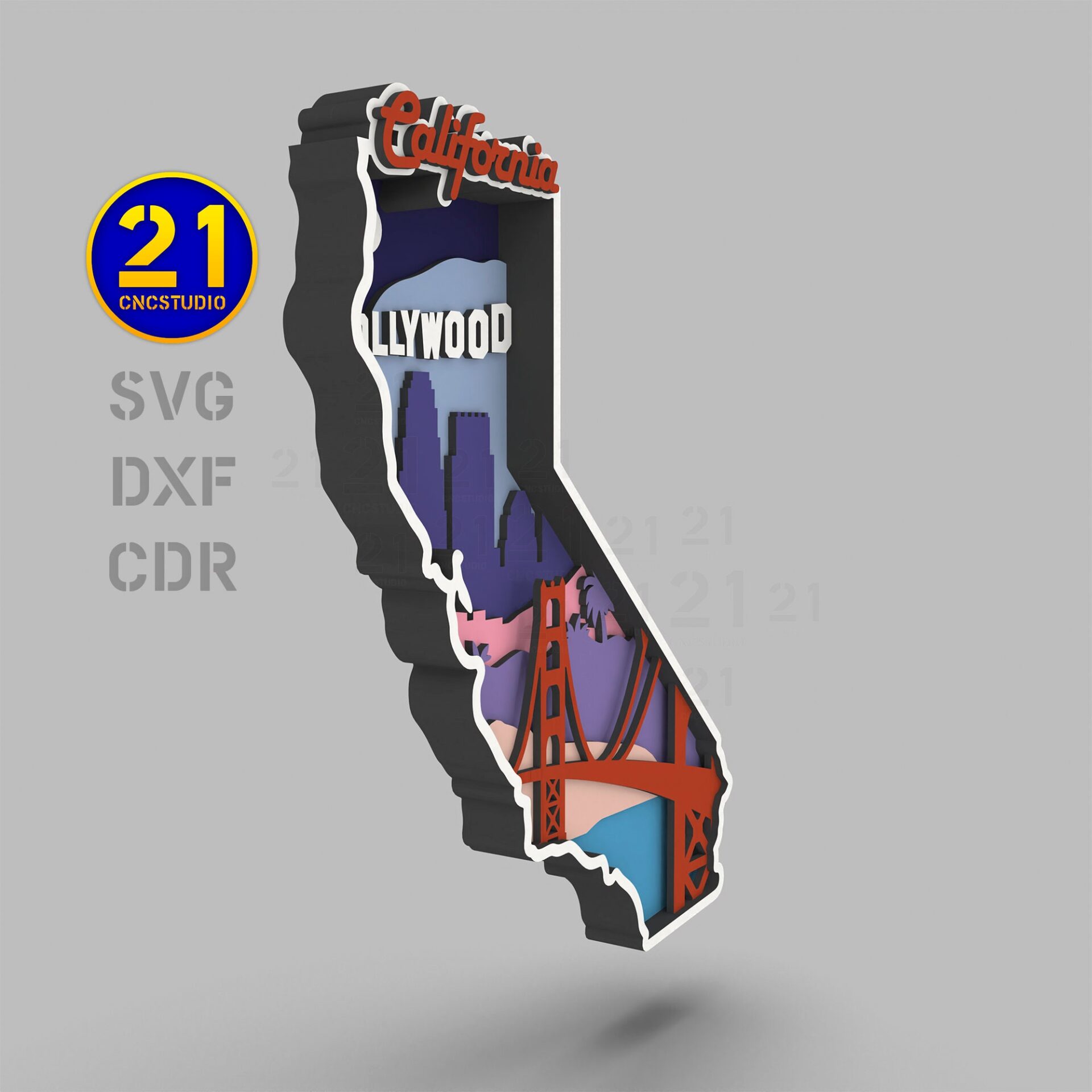

The tall state silhouette contains Hollywood lettering above palm trees and buildings. A red suspension bridge crosses the lower scene, with pale blue water beneath it and California lettering at the top.
The listed design size is 260 × 210 mm. Five vector formats are supplied; the current package does not confirm a layer count, material version or assembly guide.
California silhouette
The state outline frames the layered landmark scene.
Bridge and palms
Contrasting finishes separate the foreground from the buildings behind it.
Five vector formats
Choose SVG, DXF, AI, CDR or EPS in compatible preparation software.
02 /At your workbench
Choose your material.Make it fit.
Check the detail.
Inspect the smallest bridges and fine cutouts at your chosen size. Cut a small sample before committing a full sheet.
Keep the layers aligned.
Use the same scale for every layer. Check the design against your laser’s usable work area before cutting.

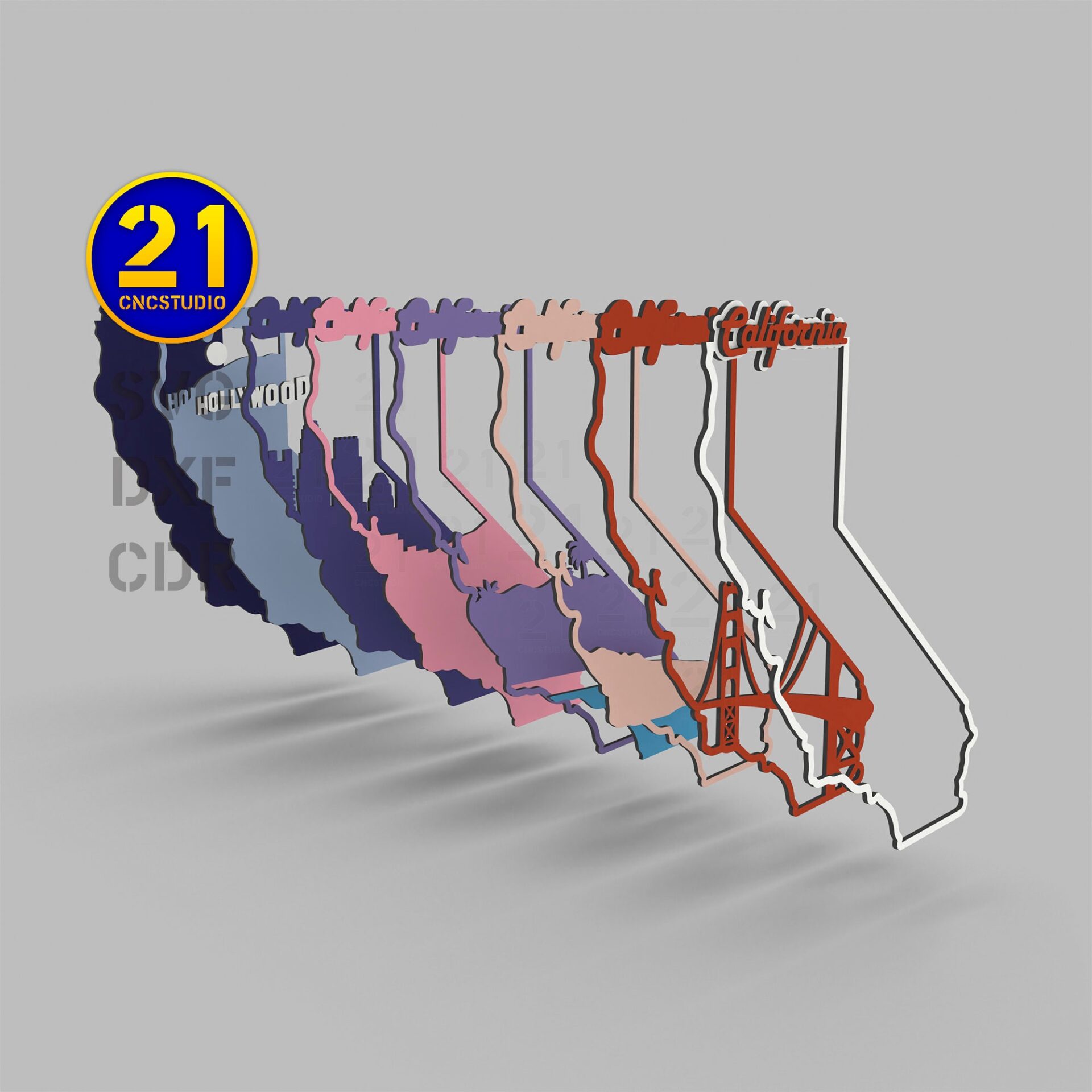

Stack in order.
Arrange the cut layers in order and check their alignment before fixing them together.
Plan this build.
Inspect the narrow bridge, lettering and palm details at your intended size. Keep every layer at one scale, test a detailed section and check the stacking order before fixing the artwork together.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design
- Layered California state artwork
- Vector formats
- SVG, DXF, AI, CDR, EPS
- Design size
- 260 × 210 mm
Is this a California street map?
This design combines landmark and landscape shapes inside the state outline. It is not a street network or a topographic map. Check the preview and file details before choosing it for your project.
What do I receive?
SVG, DXF, AI, CDR and EPS design files for the layered California artwork. An assembly guide is not confirmed. No physical artwork, material or mounting hardware is supplied.
Can I change the scale?
Scale every layer by the same percentage. The overall dimensions change, and fine bridges can become fragile when reduced. Material thickness changes the depth of the stack; check any alignment features or fitted connections and test a small section first.
Can I use the design commercially?
The files are for personal use. Contact 21CNCStudio before commercial use or selling finished items. Do not resell, share or redistribute the digital files without permission.
03 /From the studio to your workbench
Build your California scene.
View the California Layered Map file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
