Black Pearl / Laser-cut design
Black Pearl. In wood.
SVG and DXF laser-cut files for an unofficial Black Pearl fan-art ship model. Build the wooden hull and three masts from 3 mm or 1/8-inch material with the included PDF guide.
Digital design · SVG + DXF · PDF guide
No physical model or materials are shipped.
01 /The design
A ship that takes shape at your workbench.

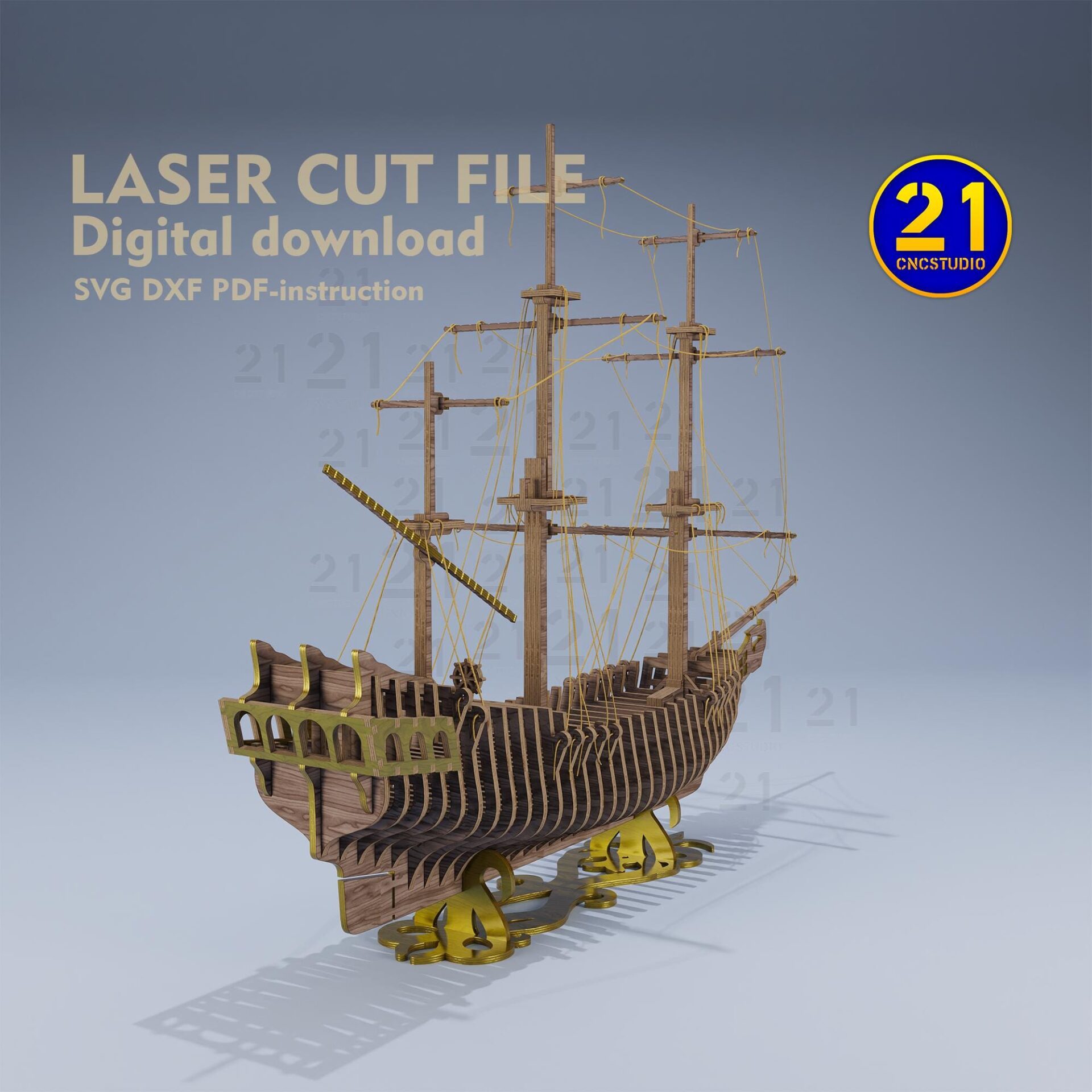

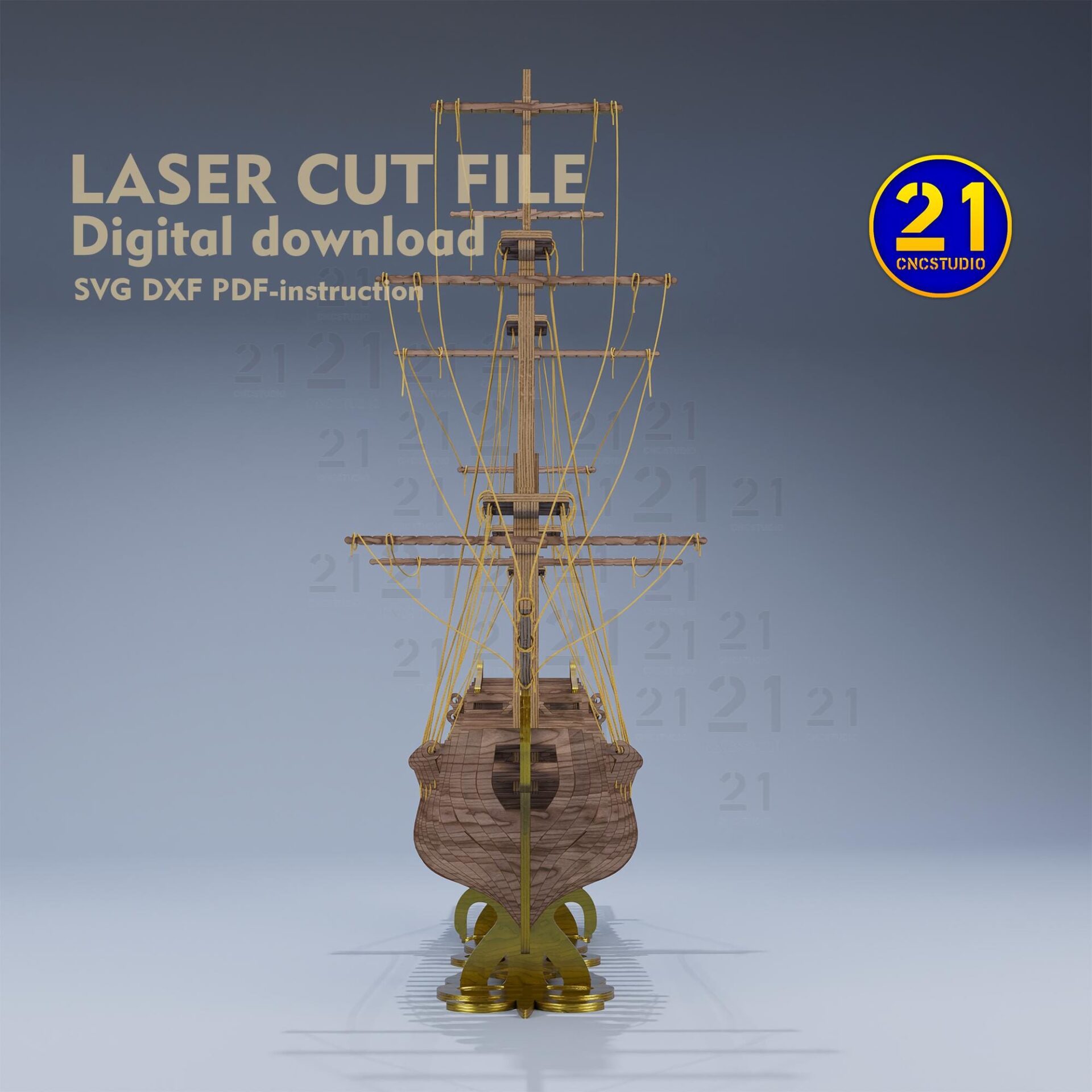

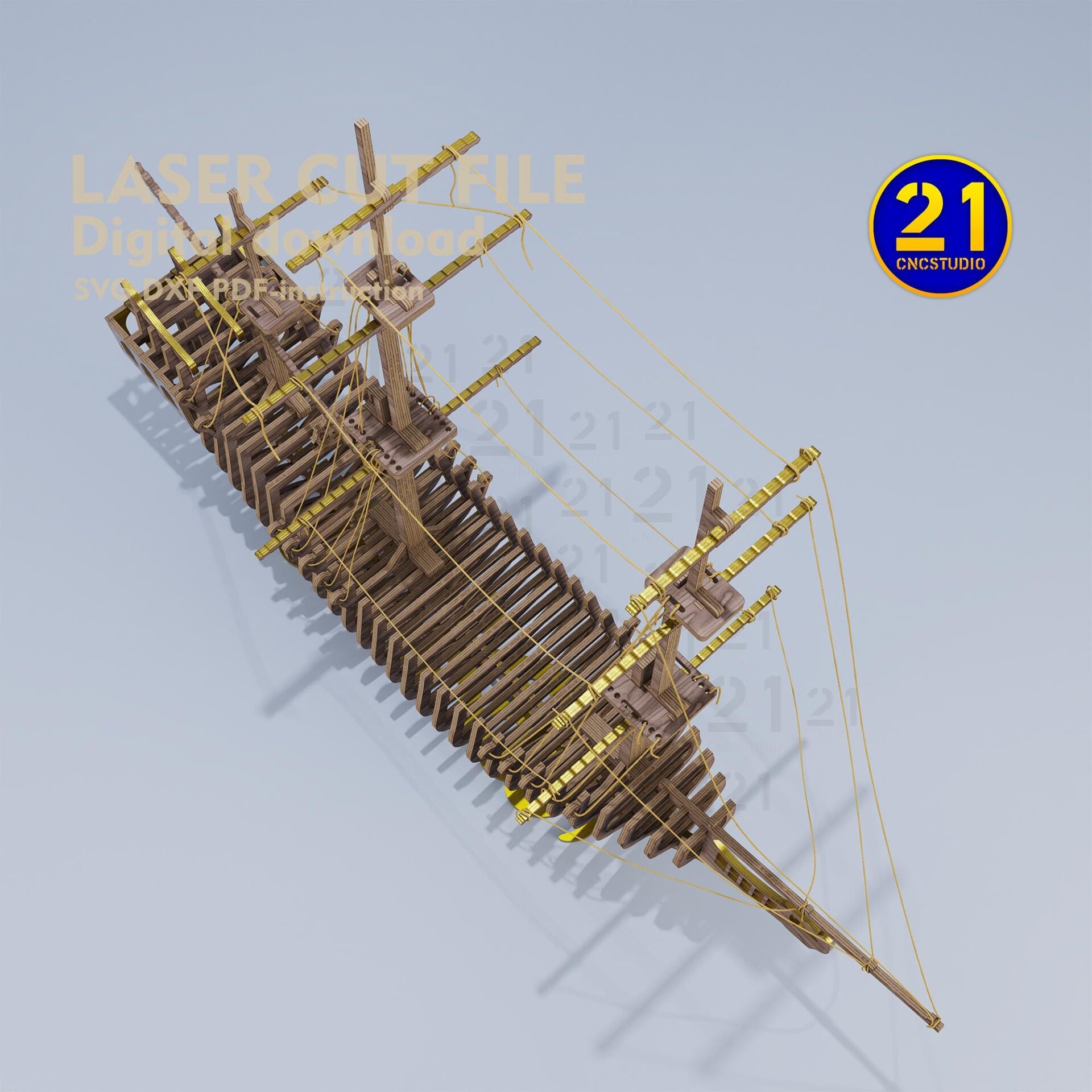

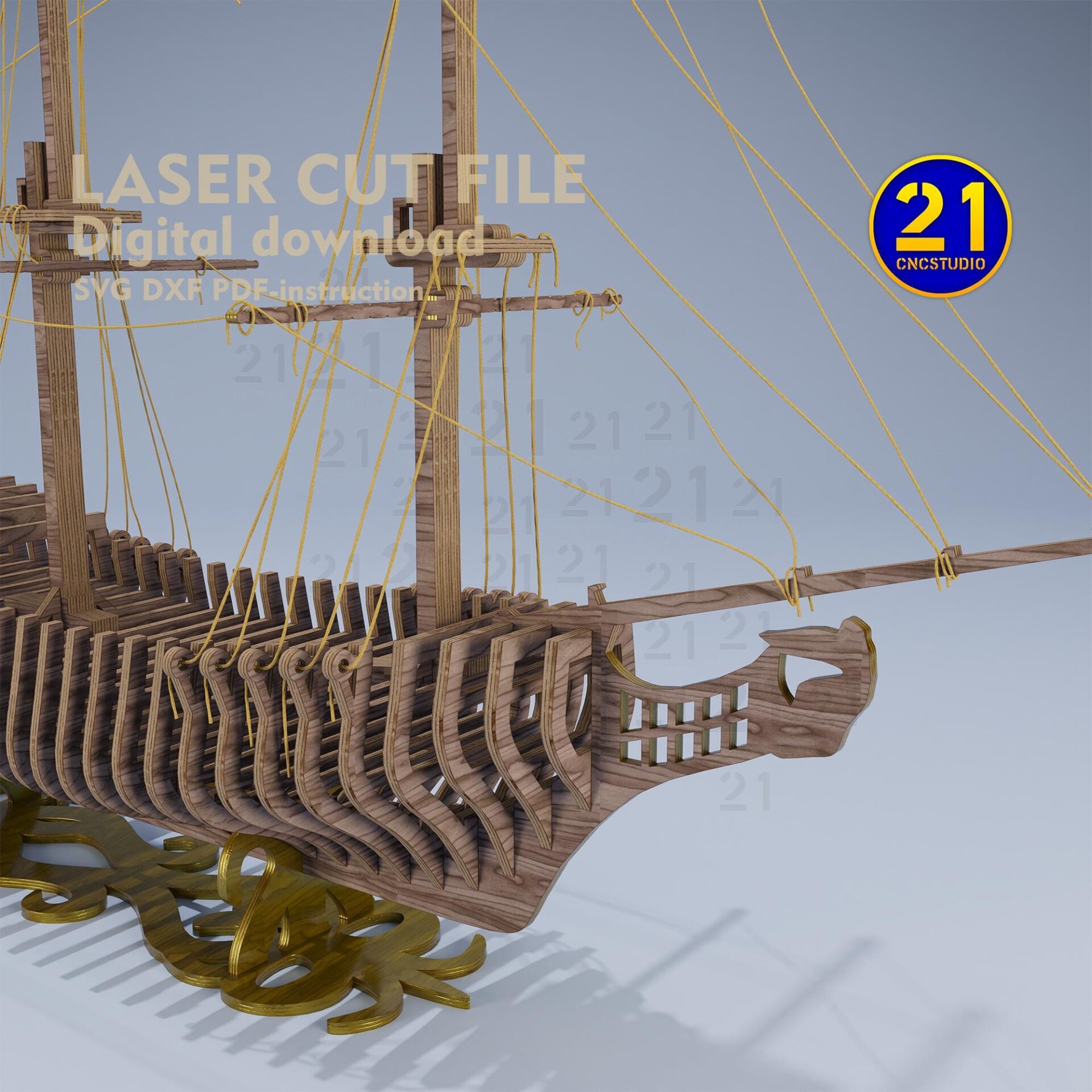

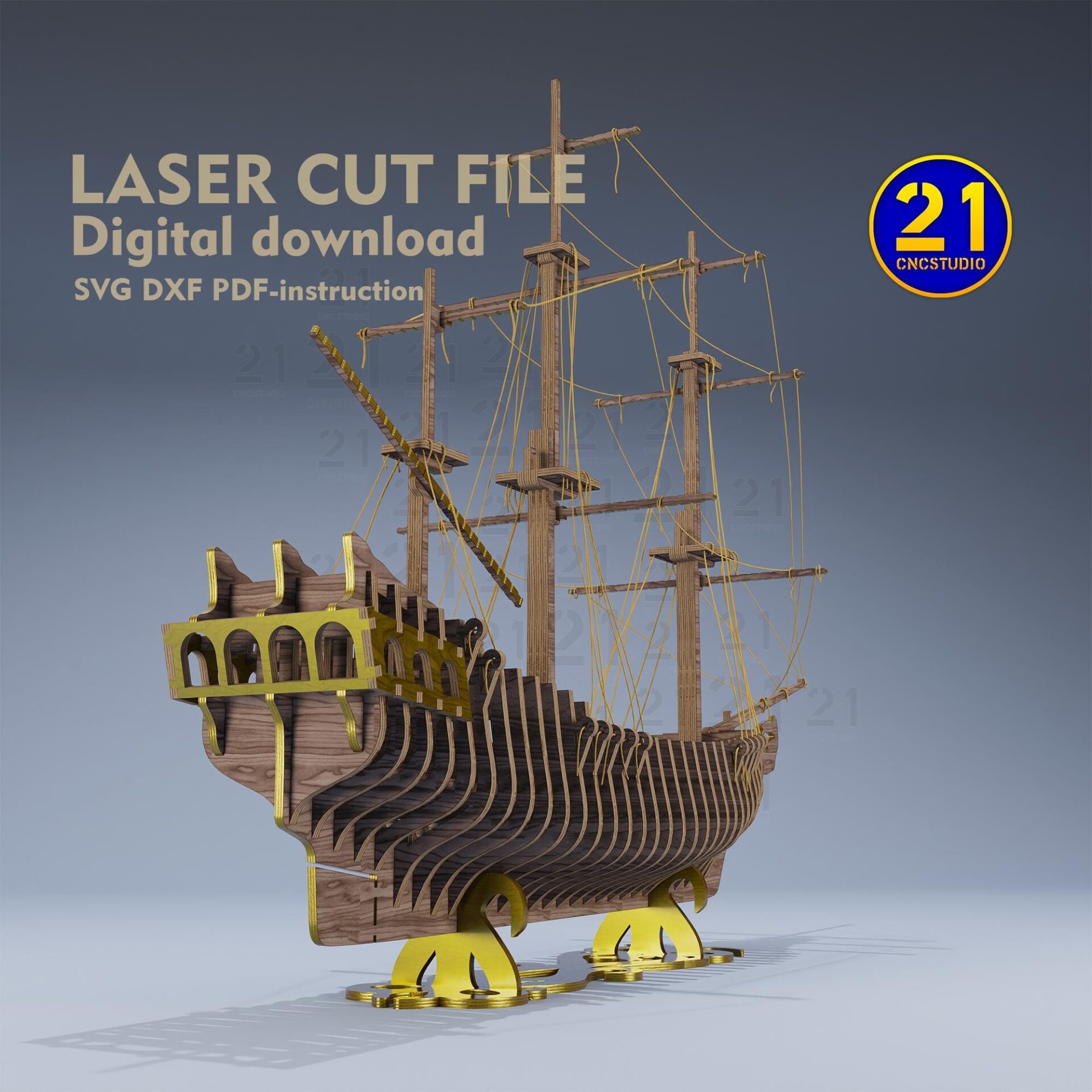

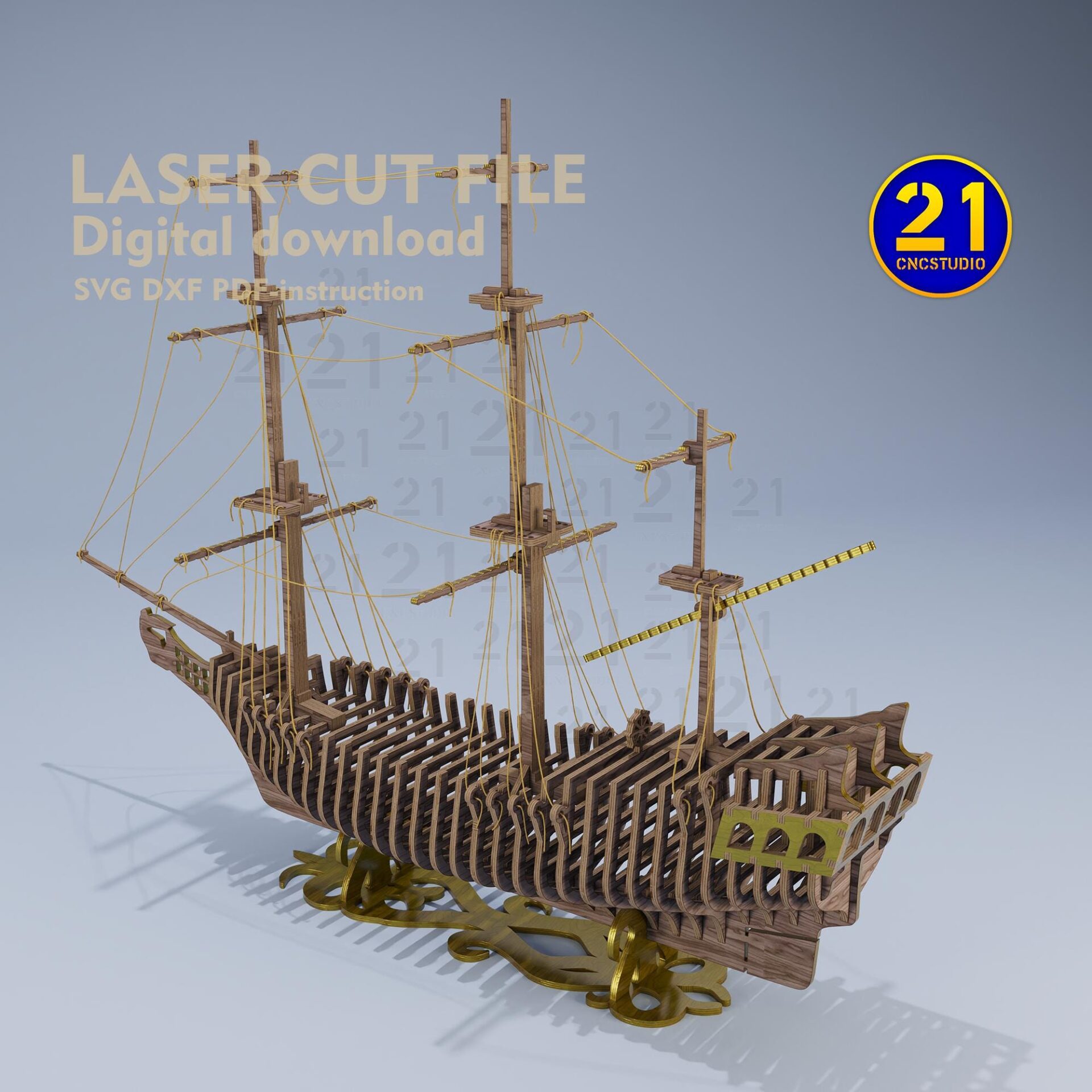

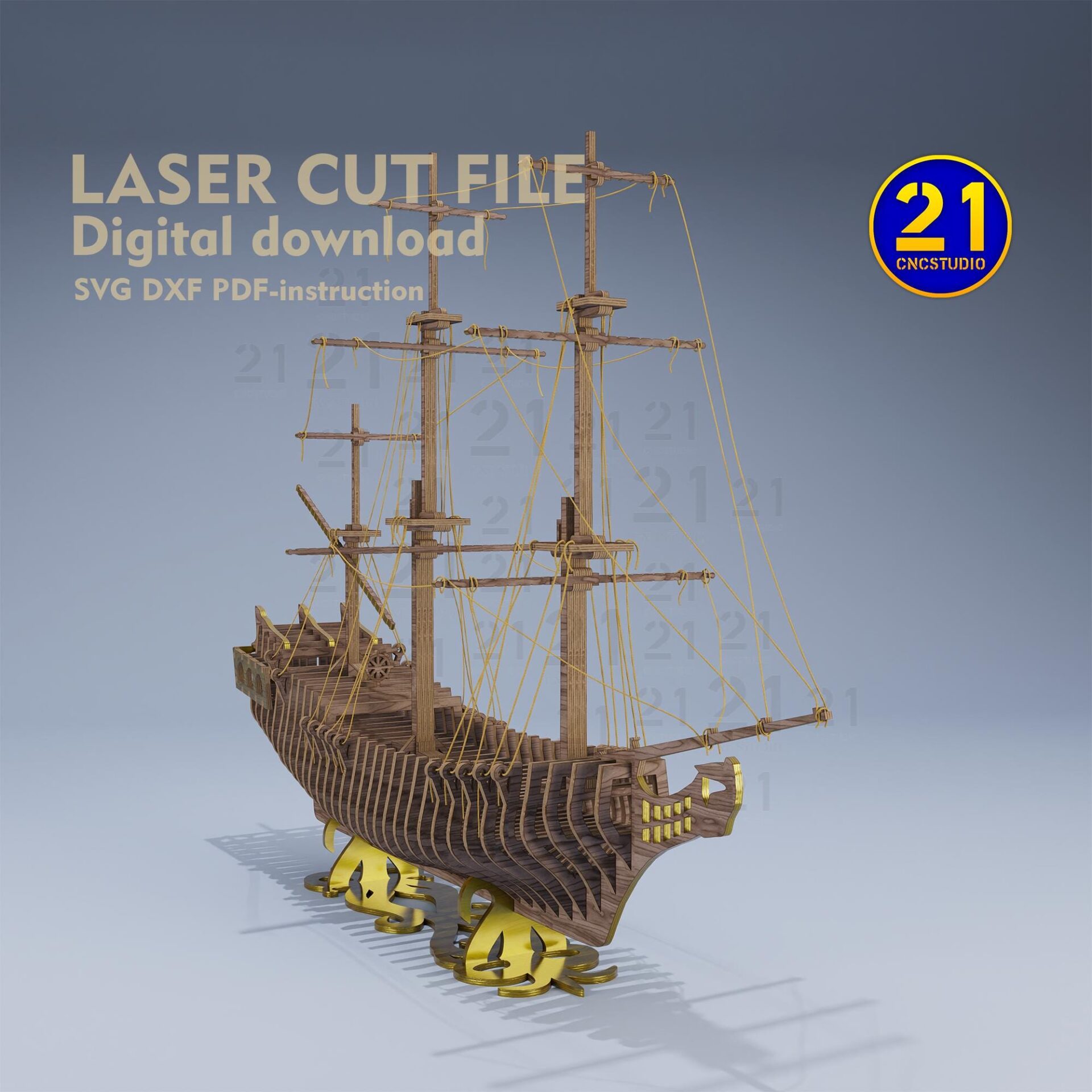

The Black Pearl brings the silhouette of a tall ship to a wooden display model. The layered hull, open deck and three masts give you detail to explore from the bow to the stern.
The listed finished model measures 447 mm long, 140 mm wide and 355 mm high. Leave space for the masts as well as the hull when choosing its display spot. This is an unofficial fan-art design, not an officially licensed product.
Hull and masts
Build the ship’s body and tall mast structure as one display project.
Two material versions
Choose the supplied version for 3 mm or 1/8-inch sheet material.
Assembly reference
The included PDF guides the construction sequence alongside the SVG and DXF cutting files.
A real build
Made from the files.
A physical build, with the maker’s choice of materials and finish.
02 /At your workbench
Choose your material.Make it fit.
Measure first.
Check your actual material thickness and the matching file version. Test the slots and kerf on a small cut.
Check the layout.
Open the supplied design in compatible laser software. Check that the layout fits your machine’s usable work area.
Follow the guide.
Use the PDF assembly guide to identify the parts and work through the construction sequence.
Plan this build.
Check the PDF and cutting layout before preparing your sheets. The assembled ship is longer than a single part, and a sheet layout is not the same measurement as the largest component.
At the 3 mm material scale, no individual part exceeds 290 mm. This refers to one part, not the assembled model or the whole cutting layout. Rescaling changes that limit.
Before you start.
- Design files
- SVG + DXF
- Assembly guide
- PDF included
- Material versions
- 3 mm / 1/8 inch
- Listed finished size
- 447 × 140 × 355 mm (L × W × H)
- Design type
- Unofficial fan-art ship model
Is this a physical ship kit?
No. This is a set of digital cutting files and an assembly guide. You supply the sheet material, cutting equipment and any finishing materials.
What do I receive?
Digital SVG and DXF design files and a PDF assembly guide. No physical model, material or hardware is shipped.
Can I change the scale?
Scale every part equally. Slots and tabs change with the design, so the material thickness must change in the same proportion; the finished dimensions also change. Test the fit and kerf before cutting all the parts.
Can I use the design commercially?
The design is for personal use. It is unofficial fan art and is not affiliated with or endorsed by the franchise rights holders. Check the current listing terms; purchasing the files does not grant commercial rights to the franchise.
03 /From the studio to your workbench
Build your Black Pearl.
View the Black Pearl file package and its current terms on Etsy.
View files on EtsyDigital design files.No physical model, material or hardware is shipped.
